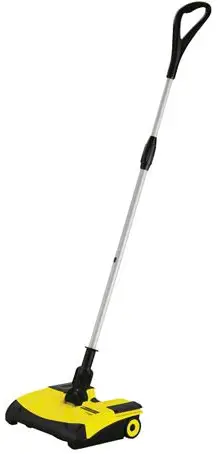

Karcher Eb 30-1 Cordless Electric Sweeper 12 Inch User Guide

KARCHER EB 30-1 Cordless Electric Sweeper 12 Inch User Guide

Warning

These are only brief instructions! Please read and comply with these instructions prior to using or servicing your appliance.

The non-compliance of the operating and safety instructions may lead to damages of the appliance and to dangers for the operator and other persons.

Start up

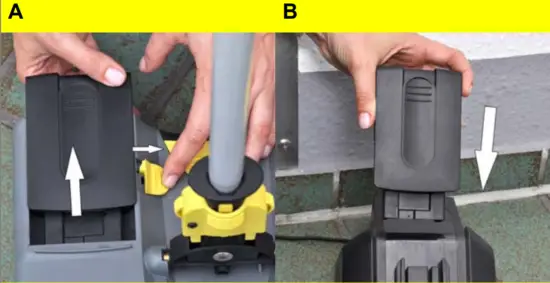

1. A Press the unlocking button of the battery and remove the battery.

2. B Connect the battery to the charger using the charging cable or rather insert the battery in the charger.


Operation

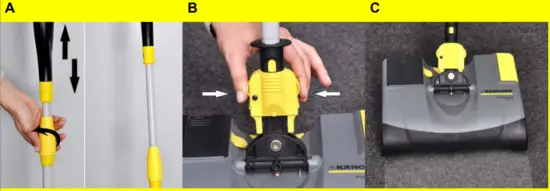

1. A Loosen the handle and pull out the strut to the desired working height; turn the handle to the correct position and tighten using the turning handle.
   B Lock telescope strut on the side: Activate the lock, then move it down and lock it in.
   C The Cardin joint can be locked when cleaning high-fiber carpets to prevent the brush head from moving from side to side. Advantage: The brush head can be moved in straight paths.

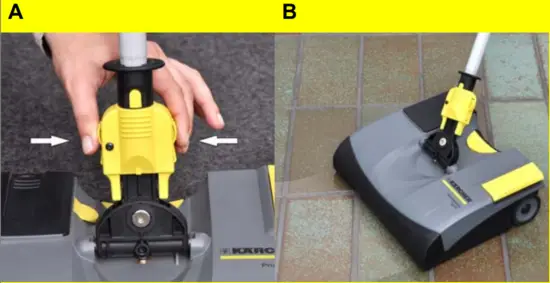

2. A Unlock telescopic strut: Activate the lock, then move it up and lock it in.
   B The Cardin joint can be unlocked again when cleaning smooth surfaces in order to allow the brush head to move more flexibly.


Finish operation

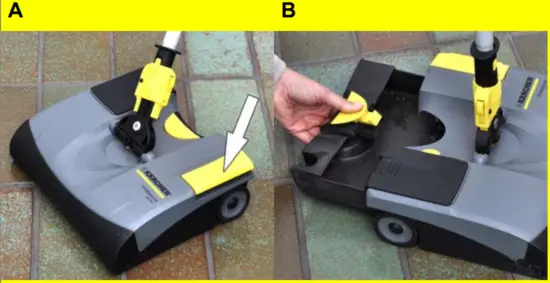

1. A Switch off the appliance when finished.
   B Unlock the dirt container and remove it. Empty dirt container after each cleaning. Insert and lock into place the dirt container.

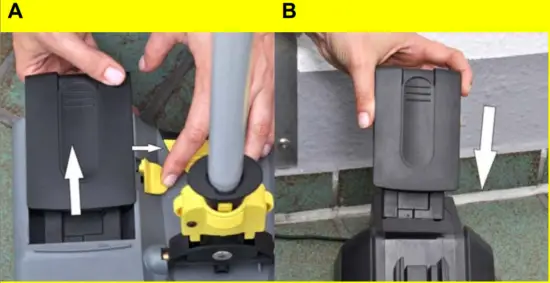

2. A Press the unlocking button of the battery and remove the battery.
   B Charge the battery.


Maintenance and care

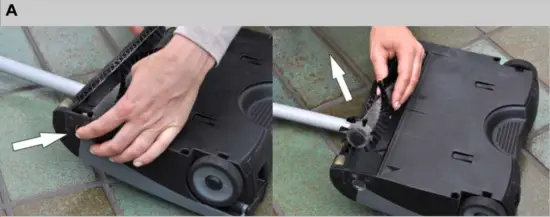

1. A Press the unlocking button and remove the brush roller.

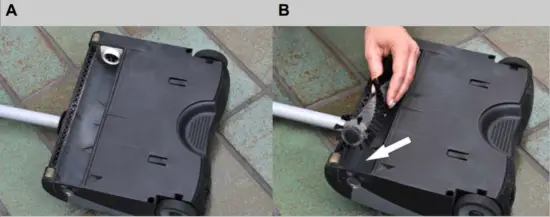

2. A Remove wound up hair using a knife or scissors by moving the knife along the defined cutting edge of the brush roller. Remove loosened hair from the brush roller.
   B Insert the cleaned or new brush roller and check the proper position.
