USER MANUAL LED BATHROOM MIRROR
INSTALLATION GUIDE

PACKAGE CONTENTS

TOOLS REQUIRED

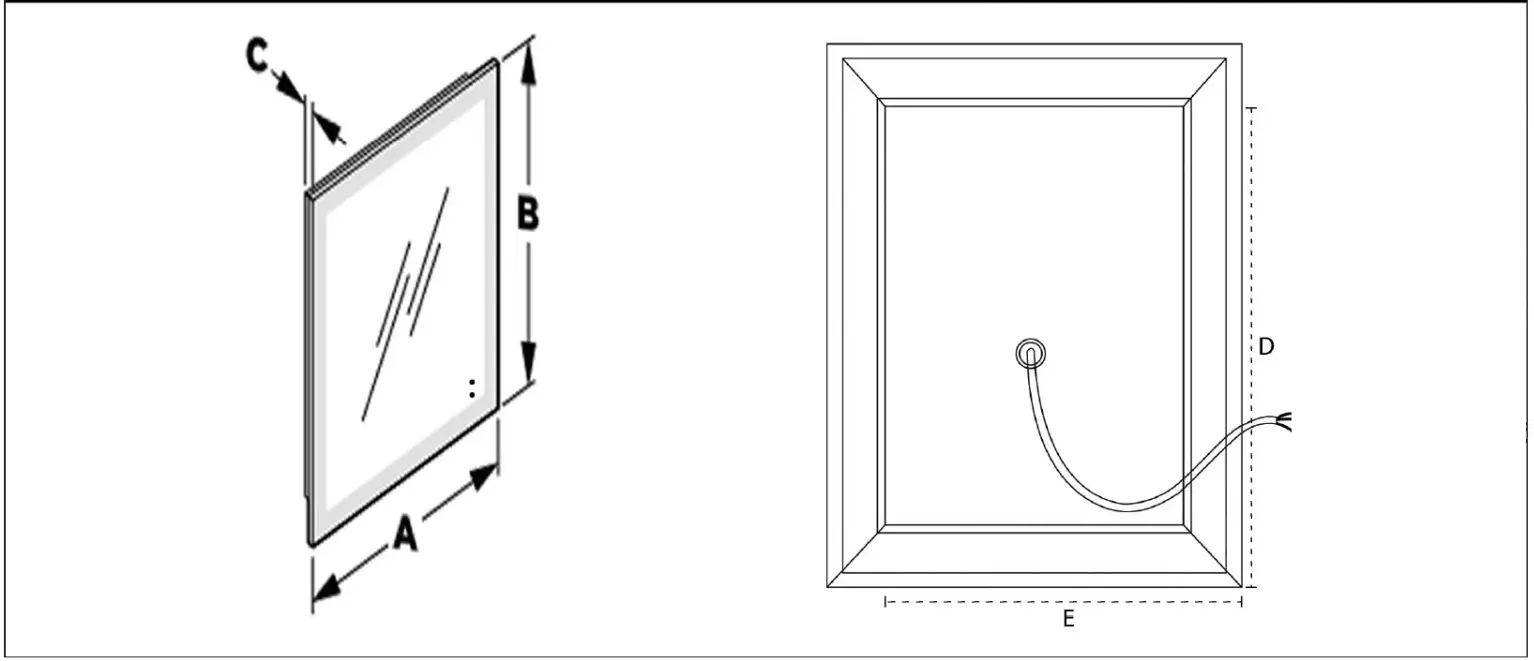

MIRROR DIMENSIONS

IMPORTANT SAFETY INSTRUCTIONS

Pre-Installation
PLANNING INSTALLATION
Compare all parts with the part listed in the package contents section if any part appears missing or damaged. Do not install and use this light. Contact customer service.

WARNING: RISK OF ELECTRICAL SHOCK

• Turn off electrical power at fuse or circuit breaker box before wiring fixture to the power supply.
• Turn off the power when you perform any maintenance.
• Please verify that the supply voltage is correct by comparing it with the luminaire label information.
• Make all electrical and grounded connections under the National Electrical Code, and any applicable local code requirement.
• All wiring connections should be capped with UL-approved wire connectors.

CAUTION: RISK OF INJURY

• Wear gloves and safety glasses when removing luminaire from the carton, installing, servicing or performing maintenance.
• Avoid direct eye exposure to the light source while it is on.
• Account for small parts and destroy packing material, as these may be hazardous to children.
• Mirrors are heavy. Get assistance lifting the unit. This installation is most straightforward when performed by two people.

WARNING: RISK OF BURN

• Allow fixture to cool before handling. Do not touch the enclosure or light source.
• Follow all lamp manufacturer’s warnings, recommendations, and restrictions for driver type, burning position, mounting locations/methods, replacement, and recycling. CAUTION: RISK OF FIRE
• Keep combustible and other materials that can burn away from the luminaire and lamp/lens.

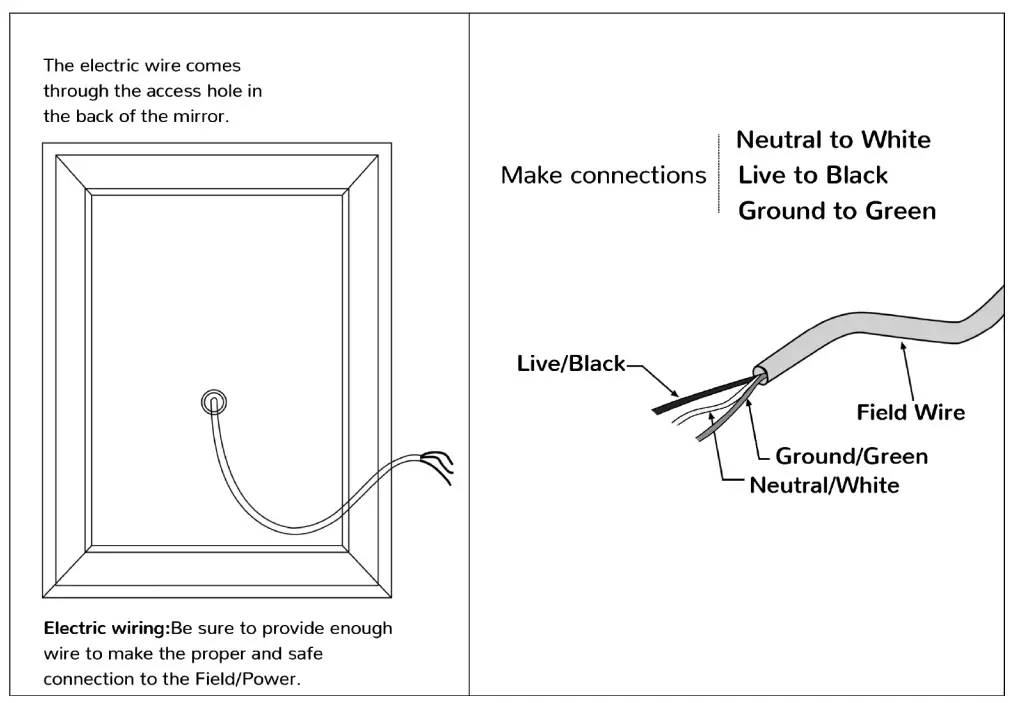

ELECTRIC CONNECTIONS

ALL WIRING SHOULD BE DONE BY A QUALIFIED LICE NC ED ELECTRICIAN
WARNING: Shut off power before wring the mirror.
WARNING: An Electrical option mirror must be wired to a 20 Amp GFI (Ground Foult Interrupter) protected circuit when used in bathrooms and all other locations required by the National Electric Code.
WARNING: This mirror must be connected to a grounded, metal permanent wiring system or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment grounding terminal or lead on the mirror.
CAUTION: Requires 120 VAC 20 Amp 6FI protected circuit.

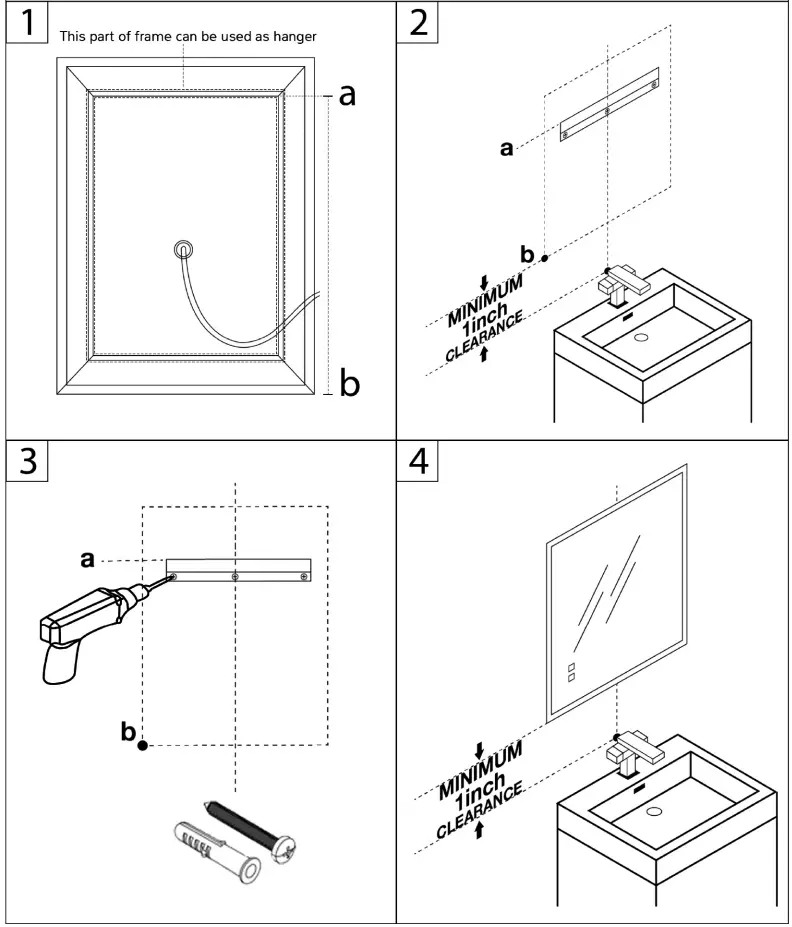

INSTALLATION INSTRUCTIONS

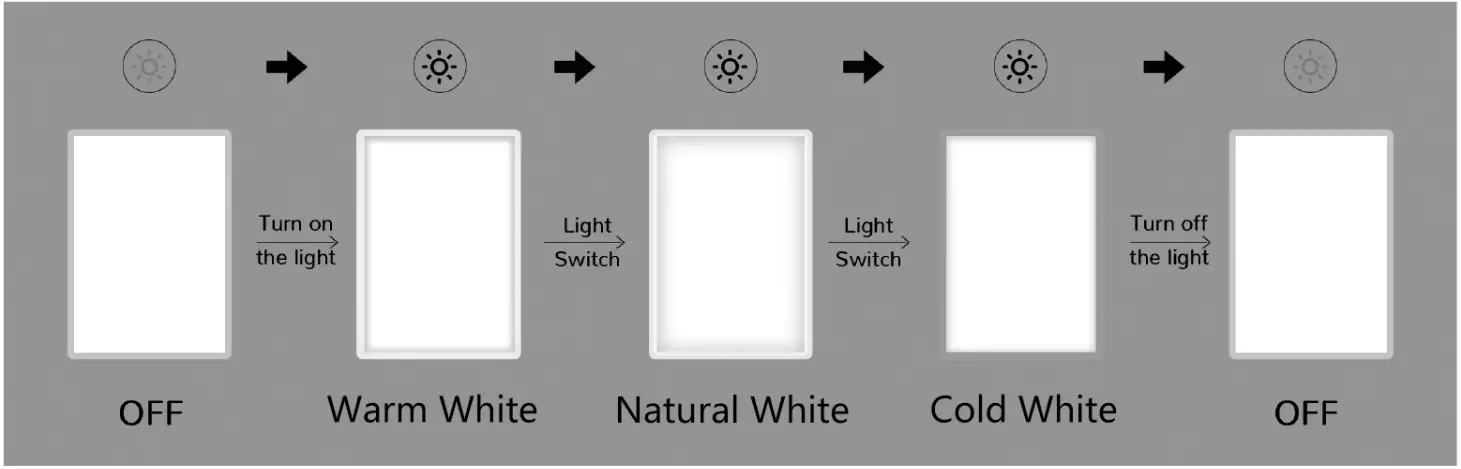

Color Temperature Adjustment:

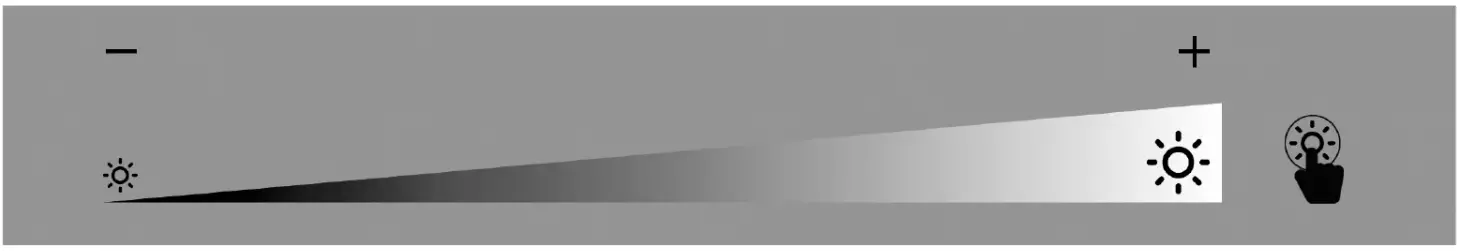

Dimming:
• You can freely adjust the brightness of the light by long pressing.

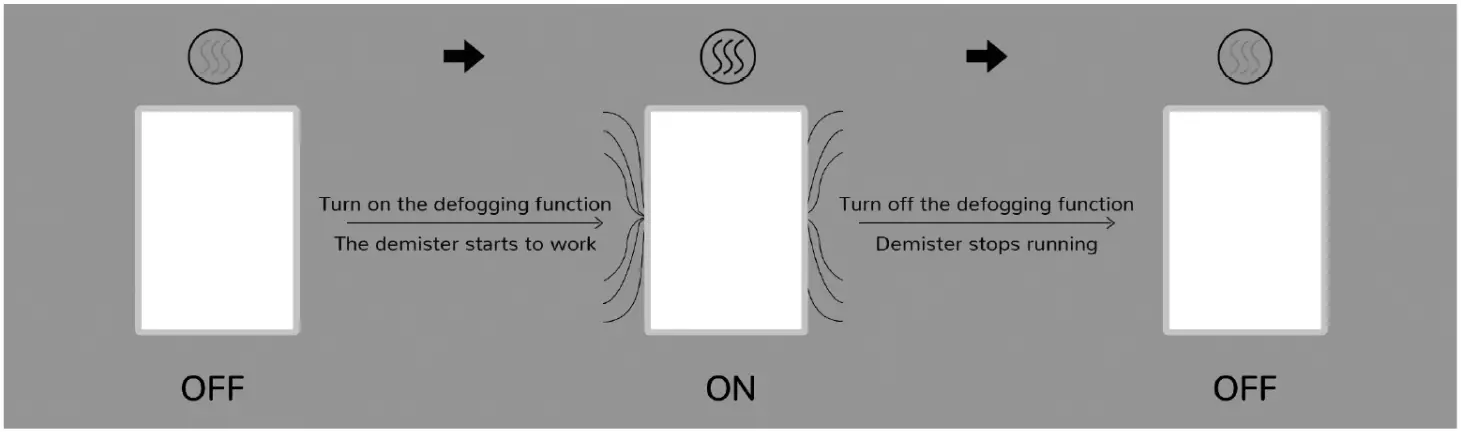

Defog function:

Memory function: Set the brightness and color temperature you want, after 1 Os, it will keep your setting. When restart the next time, it returns to the previous state of use.
Wall switch control: You can turn on or off the mirror led light by a wall switch.
Touchless control: You can turn on the LED night light when close to the radar sensor less than 100-150CM, the LED night light will be turned off after 30-60s when keep away from the sensor
Energy saving function: All LED lights will be turned off one hour later automatically if you forget to close them.

Specifications:

Warranty:
30 Days Money Back Guarantee:
We offer a 30 days satisfaction guarantee. If you’re unsatisfied for any reason, don’t hesitate to contact us for a full refund. For non-quality-related issues, the customer will need to pay the return shipping costs.

2-Year Warranty for Quality-Related Issues:
Customers can contact us for a refund or replace your product if there are defective due to faulty materials, craft, or function within one year of purchase or delivery.

1. Damage is caused by not carrying out the recommended appliance maintenance.
2. Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation, or handling of the appliance are not by our operating manual.
3. Use of the device for anything other than regular domestic household purposes.
4. Faulty installation.
   If you are in any doubt as to what is covered by your guarantee, please contact us.
