BM3H Wall-Mounted LED Bathroom Mirror
Wall-Mounted LED Bathroom Mirror User Manual
Product Information
- Name: Wall-Mounted LED Bathroom Mirror
- Model: [insert model number]
- Voltage: [insert voltage]
- Lighting Power Input: [insert lighting power input]
- Product Size: 29.5mm / 1.2 x 1524mm / 60 x 1016mm / 40
- Frame Color: [insert frame color]
- Color Temperature: [insert color temperature]
- Material: [insert material]
Product Usage Instructions
- Read the instructions carefully before using.
- Make sure that your charging device is adequate for the mirror voltage rating before using.
- Turn off the power and avoid direct sunlight if not used or stored for a long time. Keep the mirror away from children’s access.
- Do not disassemble or remodel the mirror, and keep it away from sharp objects.
- Do not use corrosive liquids to clean the mirror.
- Do not violently throw, hit, or rub the mirror.
- Do not approach or put the product into the fire in case of fire or explosion.
- Stop using it immediately if abnormality occurs.
Product Installation

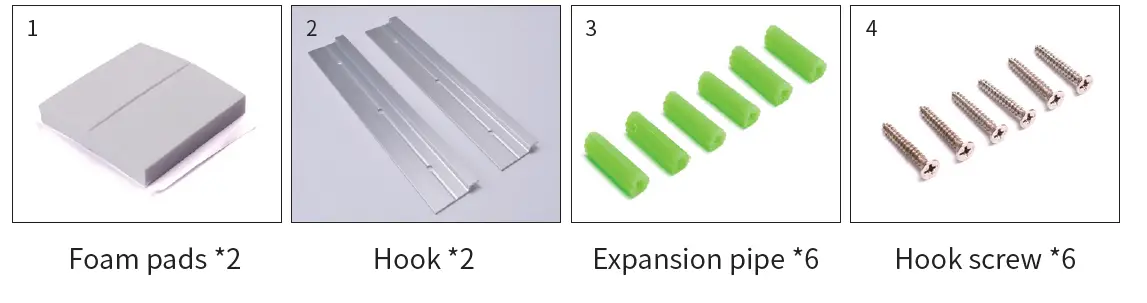

Included Accessories
- Foam pads x 2
- Hook x 2
- Expansion pipe x 6
- Hook screw x 6
Step 1. Foam Pads Installation
- Paste the foam pad to the back of the mirror.
- Horizontal paste position.
Step 2. Wall-Mounted Method
- Choose a suitable location on the wall and mark it.
- Drill holes and insert the expansion tube screws into the hole.
- Fix the hook with the hook screws.
- Hang up the mirror as above demonstration.
Step 3. Two Ways of Connection
- Connect to power source directly by using the plug installed.
- Connect by the connector provided. The method is as follows:
- Remove the plug by pulling up the buttons of the connector.
- Connect the wire from your home power source to one end of the connector.
- Make sure all wires are settled firmly.

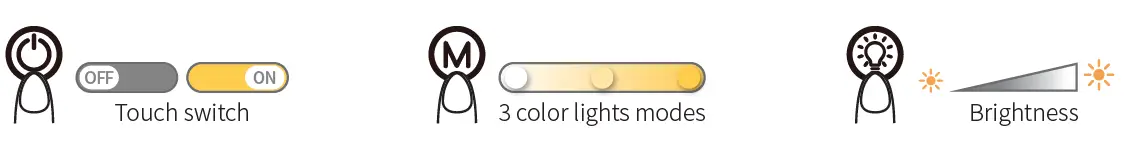

Operating Instructions
- OFF/ON: Touch switch to turn on or off the mirror.
- 3 color lights modes: Choose between different color light modes.
- Brightness: Adjust the brightness of the mirror.
Notice
For warranty, please kindly contact us for return policy if any issues happen.
WALL-MOUNTED LED BATHROOM MIRROR
Product Operating Instruction
Notice
For warranty , please kindly contact us for return policy if any issues happen.
- Please read the instructions carefully before using.
- Make sure that your charging device is adequate for the mirror voltage rating before using.
- Turn off the power and avoid direct sunlight if not used or stored for a long time. Far away from children’s access.
- Please do not disassemble or remodel mirror, and keep it away from sharp things.
- Please do not use corrosive liquids to clean the mirror.
- Please do not violently throw, hit and rub mirror.
- Do not approach or put the product into the fire in case of fire or explosion.
- Please stop using it immediately if abnormality occurs happen.
Product Information
| Name Model | Wall-Mounted LED Bathroom Mirror BM3H |
| Voltage | 12V 4A |
| Lighting Power | Max 48W |
| Input | UL110V |

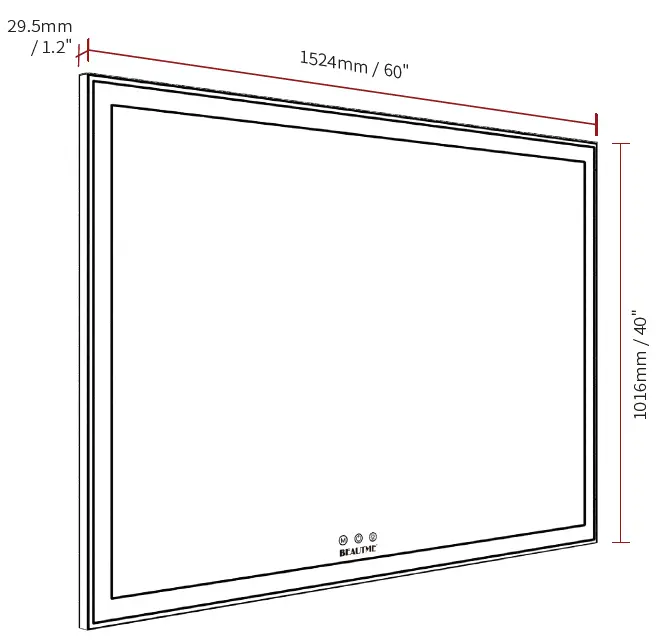

| Product Size | 1524×1016×29.5mm (60×40×1.2 inches) |
| Frame Color | Silver |
| Color Temperature | White Light 6500K, Natural Light 4800K, Warm Light 3200K |
| Material | Aluminum + Glass |
Installation
accessories

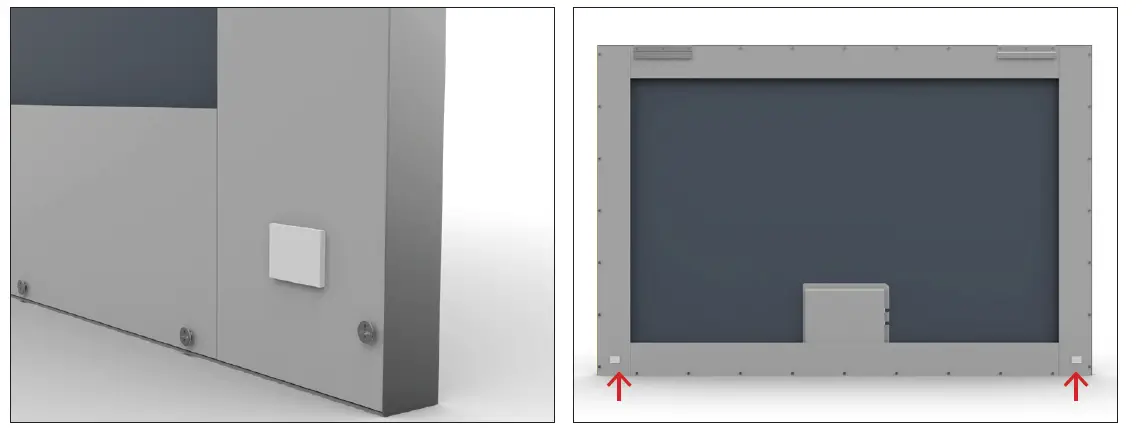

Step 1. Foam pads installation
- 1. Paste the foam pad to the back of the mirror
- Horizontal paste position

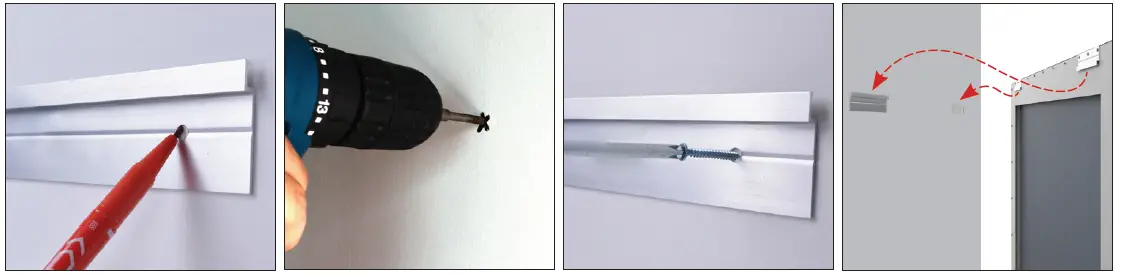

Step 2. Wall-Mounted Method
- Choose a suitable location on the wall and mark it
- Drill holes and insert the expansion tube into the hole
- Fix the hook with screws
- Hang up the mirror as above demonstration

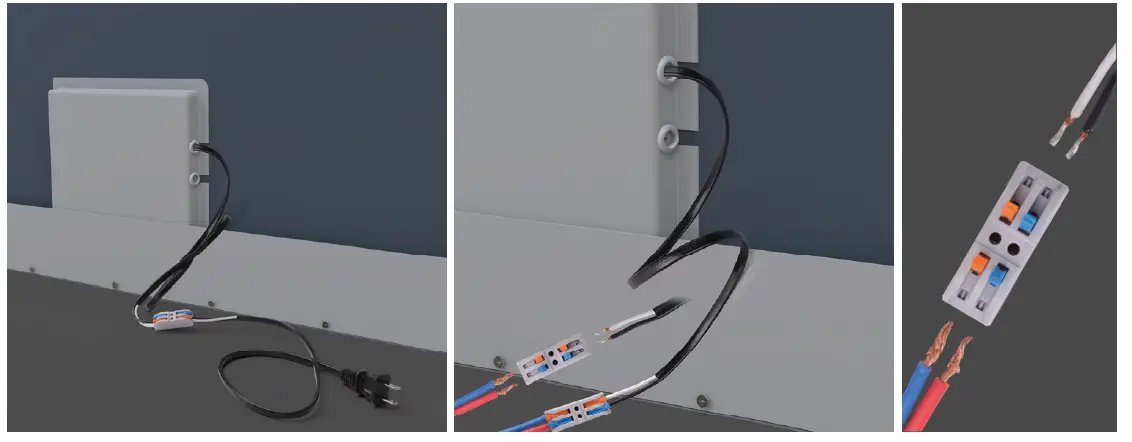

Step 3. Two Ways Of Connection
- Connect to power source directly by using the plug installed
- Connect by the connector provided. The method as follows:
- Remove the plug by pull up the buttons of the connector
- Connect the wire from your home power source to one end of the connect
- Make sure all wires settled firmly
