materplug EFLDF10B40-M5 Outdoor LED Floodlight
FEATURES
- Die-cast housing
- Sturdy steel bracket for simple installations
- Pre-wired 0.3m H05RN-F 3G1.0mm2 cable
- IP68 connector

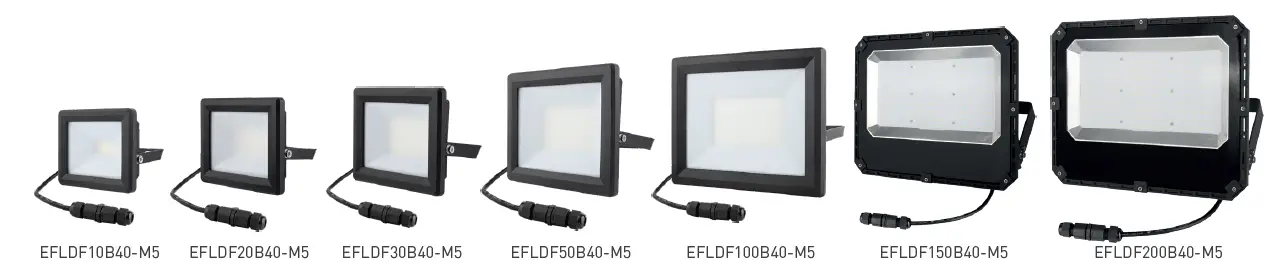

PRODUCT IMAGES MODLES
TECHNICAL SPECIFICATIONS
| Size Wattage Lumens | |||||
| EFLDF10B40-M5 114mm x 52mm x 114mm | 10W | 800 | |||
| EFLDF20B40-M5 129mm x 54mm x 121mm | 20W | 1600 | |||
| EFLDF30B40-M5 144mm x 53mm x 132mm | 30W | 2400 | |||
| EFLDF50B40-M5 184mm x 52mm x 165mm | 50W | 4000 | |||
| EFLDF100B40-M5 285mm x 53mm x 283mm | 100W | 8000 | |||
| EFLDF150B40-M5 400mm x 81.5mm x 382.5mm | 150W | 18000 | |||
| EFLDF200B40-M5 400mm x 81.5mm x 382.5mm | 200W | 24000 | |||
| CAT NO. WEIGHT EFFICACY CRI | FREQUENCY | IK | TEMP | AMBIENT TEMP | L/B RATED |
| (g) (Llm/W) | (Hz) | RATING | RANGE | RATED LIFE (ºC) | LIFE |
| EFLDF10B40 302 80 ≥80 | 50 | IK06 | -20 to +45 | 25 | 70/50 |
| EFLDF20B40 365 80 ≥80 | 50 | IK06 | -20 to +45 | 25 | 70/50 |
| EFLDF30B40 439 80 ≥80 | 50 | IK06 | -20 to +45 | 25 | 70/50 |
| EFLDF50B40 720 80 ≥80 | 50 | IK06 | -20 to +45 | 25 | 70/50 |
| EFLDF100B40 1549 80 ≥80 | 50 | IK06 | -20 to +45 | 25 | 70/50 |
| EFLDF150B40 4450 80 ≥80 | 50 | IK06 | -20 to +45 | 25 | 70/50 |
| EFLDF200B40 4465 80 ≥80 | 50 | IK06 | -20 to +45 | 25 | 70/50 |
INSTALLATION INFORMATION
Installation Instructions
To comply with regulations, installation must be carried out by a suitably qualified competent person and in accordance with the current IEE Wiring Regulations (BS7671) and Building Regulations. A copy of the instructions must be left for the user/Maintenance engineer for future reference.
