Centra Linear Valve
VDE….M/VXE…M (DN25-DN40)
Mounting instructions
Ventra Linear Valve VDE…M, VXE…M, DN25, DN40

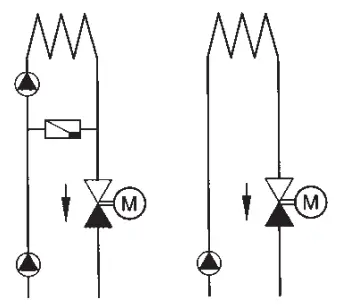

| Valve in the return |  |

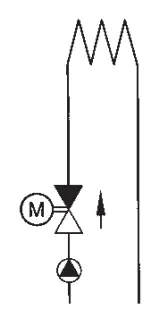

| Valve in the flow |  |

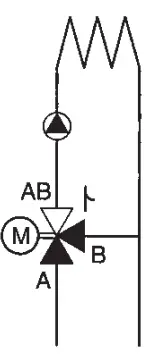

| Mixing system: Valve as a mixer in the flow. |  |

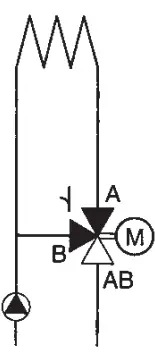

| Diverting system: Valve as a mixer in the return. |  |

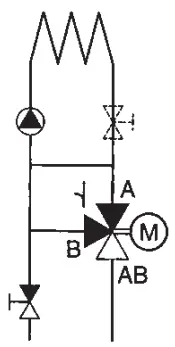

| Injection system: Valve as a mixer in the return. |  |

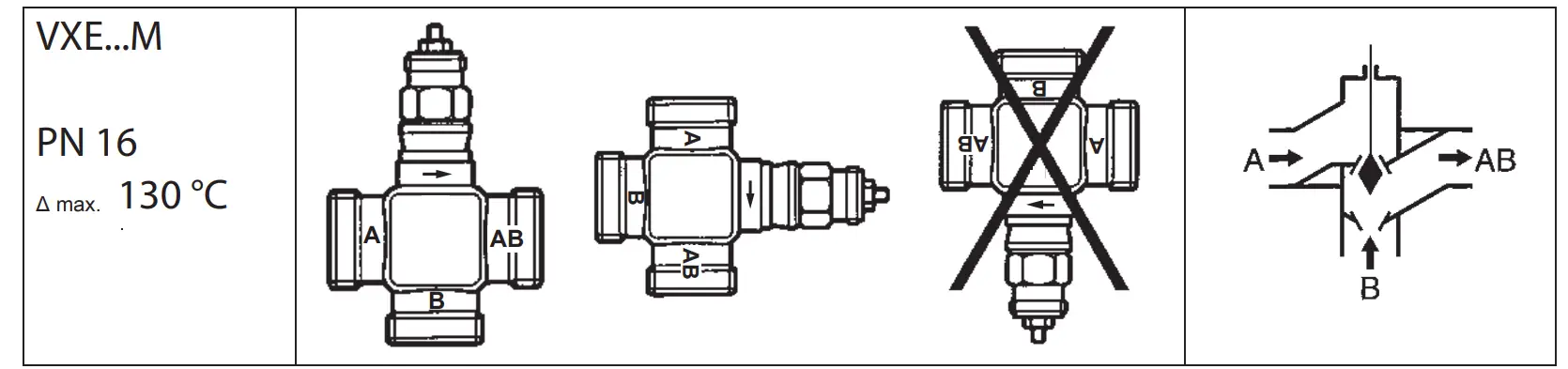

VDE…M/VXE…M
Warning – risk of injury when removing!
– Brass collar is under high spring tension!

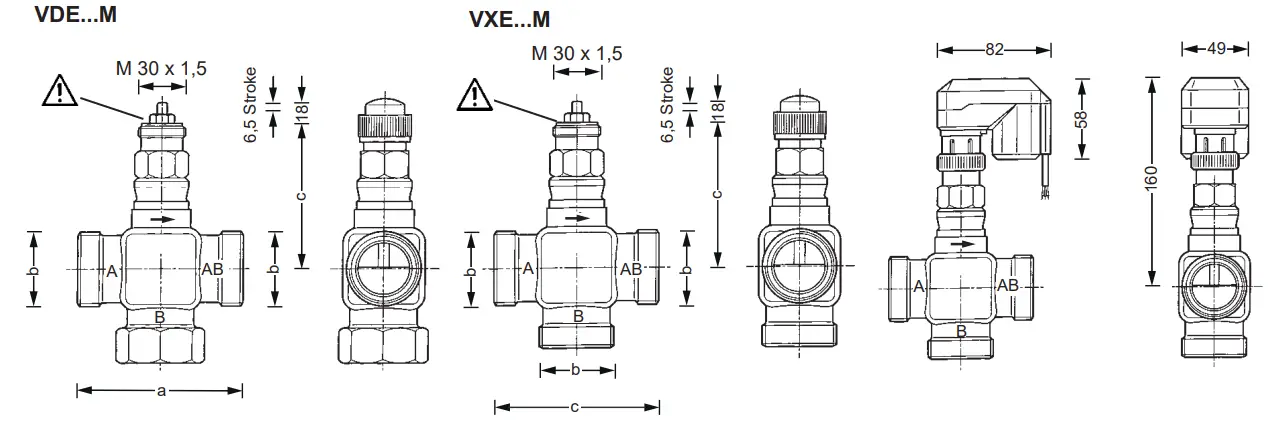

VDE…M (DN 25 – 40)
| a | b | c | |
| DN 25 | 105 mm | G 1½ A* | 92 mm |
| DN 32 | 105 mm | G 2 A* | 92 mm |
| DN 40 | 130 mm | G 2 ¼ A* | 98 mm |
VXE…M (DN 25 – 40)
| a | b | c | d | |
| DN 25 | 105 mm | G 1 1/2 A* | 92 mm | 52,5 mm |
| DN 32 | 105 mm | G 2 A* | 92 mm | 52,5 mm |
| DN 40 | 130 mm | G 2 1/4 A* | 98 mm | 65,0 mm |
| ISO 7/1 | DN | Type |
 | 25 32 40 | ASV-CS-25-O-F ASV-CS-32-O-F ASV-CS-40-O-F |
 | 25 32 40 | ASV-CS-25-I-F ASV-CS-32-I-F ASV-CS-40-I-F |
| Type | b | e | f |
| ASV-CS-25-I-F | G 1 1/2 | Rp 1 | |
| ASV-CS-25-O-F | G 1 1/2 | R 1 | |
| ASV-CS-32-I-F | G 2 | Rp 1 1/4 | |
| ASV-CS-32-O-F | G 2 | R 1 1/4 | |
| ASV-CS-40-I-F | G 2 1/4 | Rp 1 1/2 | |
| ASV-CS-40-O-F | G 2 1/4 | R 1 1/2 |
* ISO 228/1
Manufactured for and on behalf of
Pittway Sàrl, Z.A.,La Pièce
1180 Rolle, Switzerland
© 202 Resideo Technologies, Inc. All rights reserved.
For more information
homecomfort.resideo.com/europe
Ademco 1 GmbH, Hardhofweg 40,
74821 MOSBACH, GERMANY
Phone: +49 6261 810
Fax: +49 6261 81309
Subject to change.-17 82GE23 R1 122
Points de collecte sur www.quefairedemesdechets.fr
