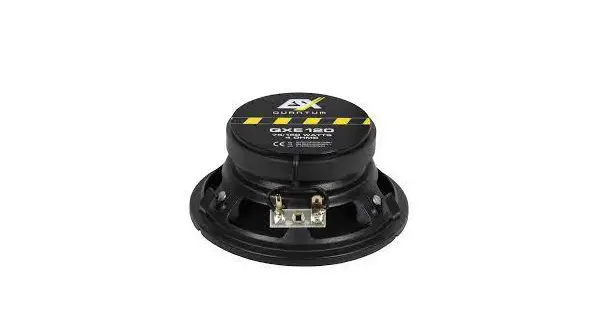

ESX QXE120 Quantum Car Audio Loudspeakers Installation Guide

INSTALLATION NOTES

The first step of installing a speaker system is thorough planning. Choose a suitable location for your speaker components carefully. Follow these suggestions to ensure proper imaging and maximum performance:

1. Please handle the components with care, otherwise they will get damaged.
2. Please pay attention to the correct polarity (+ or -) for all terminals and connections.
3. Never connect the speakers to the electrical ground or with the body of the vehicle.

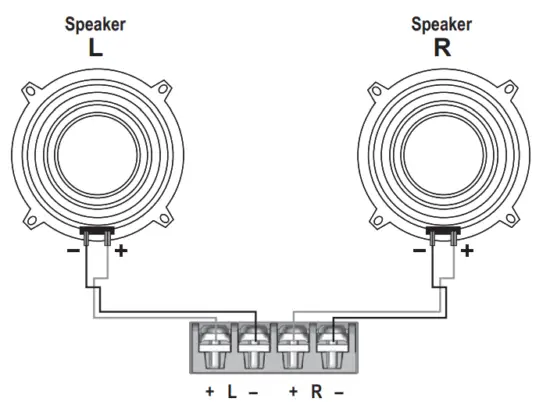

Speaker Outputs at the Amplifier

IMPORTANT:

Please pay attention to the correct polarity (+ or -) for all terminals and connections.
