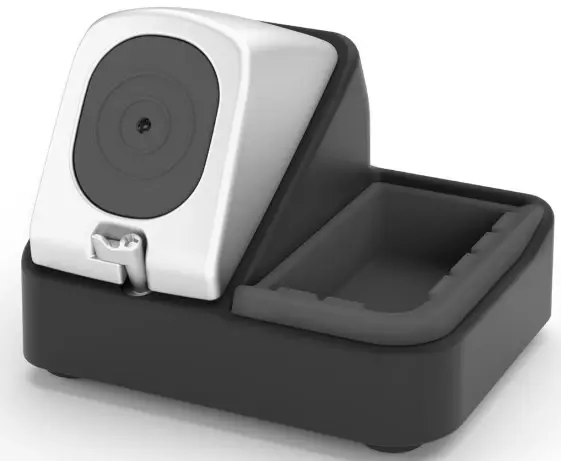

JBC CL8499 ESD Safe Tip Cleaner Instruction Manual
Packing list
The following items are included:

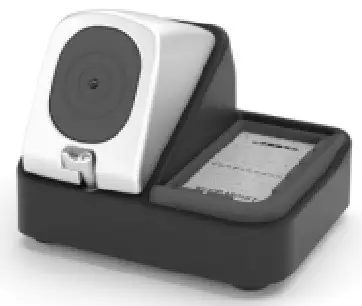

- Manual Tip Cleaner: 1 unit Ref. CL8499

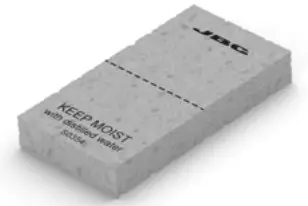

- Sponge: 1 unit Ref. S0354
- Brass Wool: 1 unit Ref. CL6210
- Manual: 1 unit Ref. 0028694

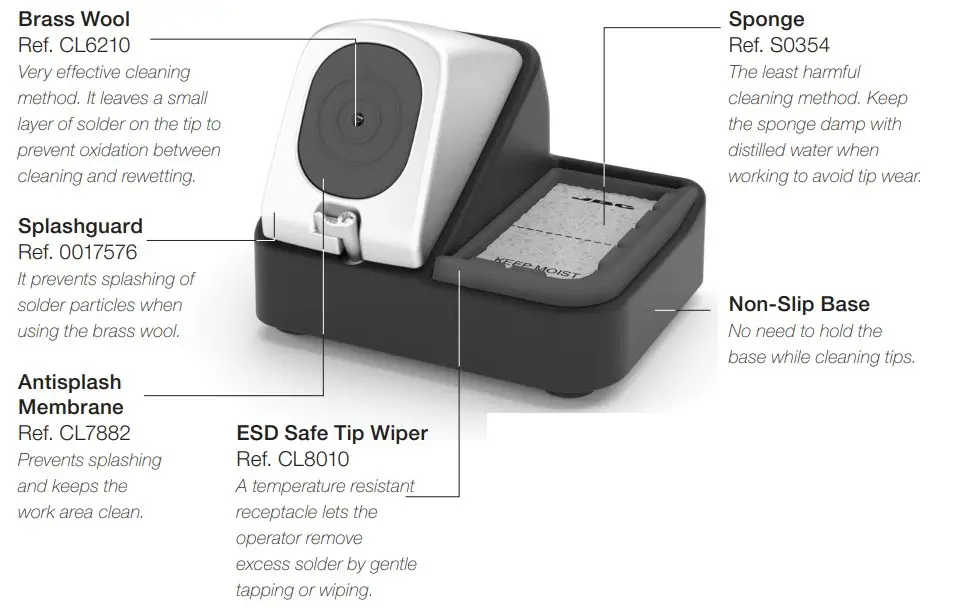

Features
Select the option to suit your needs and improve the thermal transfer of the tip.

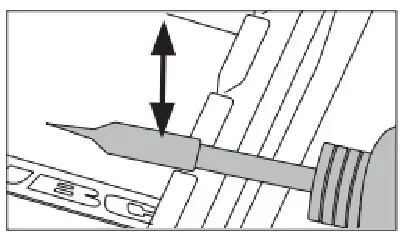

Tapping
Tap to remove excess solder

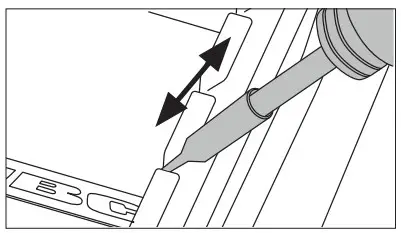

Wiping
Use the slots to remove remaining particles
If the tip is very dirty, JBC recommends first cleaning it with the wiper to remove excess solder and then with the brass wool.
Wiper Replacement

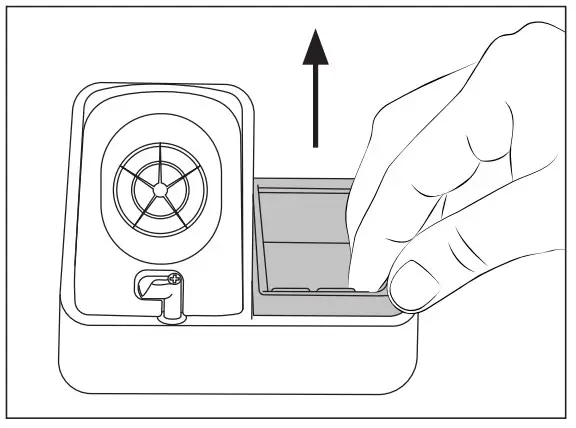

First pull the wiper out.

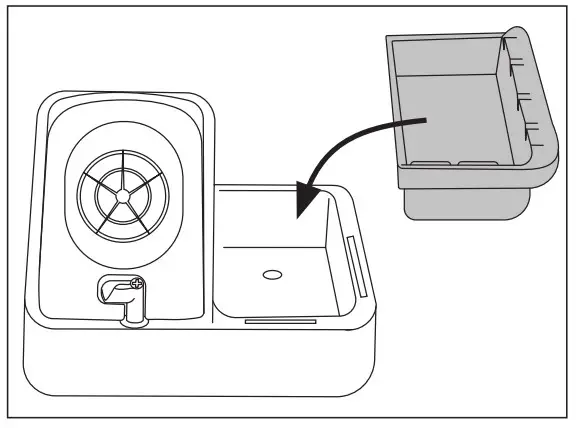

Then inset the new one

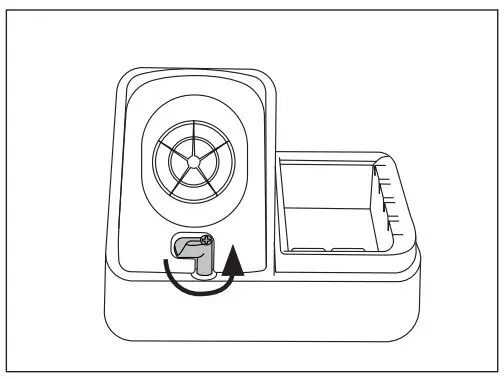

Wool/Brush Replacemen
Open the splashguard and take it off.

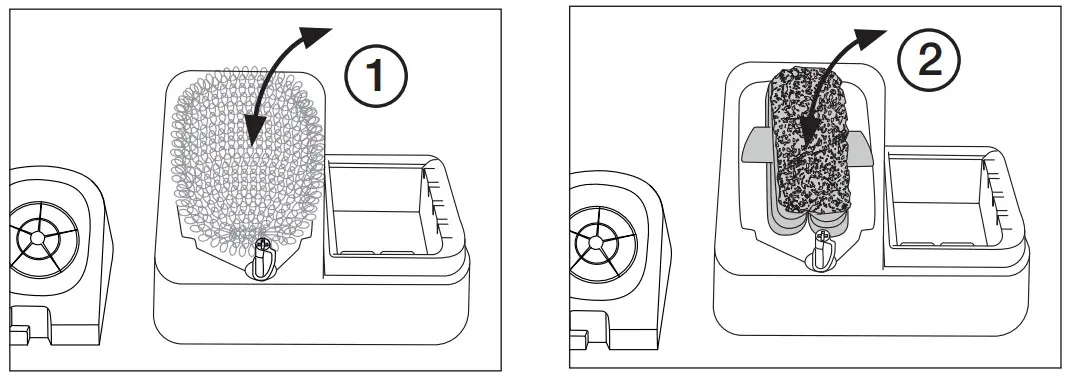

Depending on the component used, replace the brass wool (1) or brush (2) for a new one.

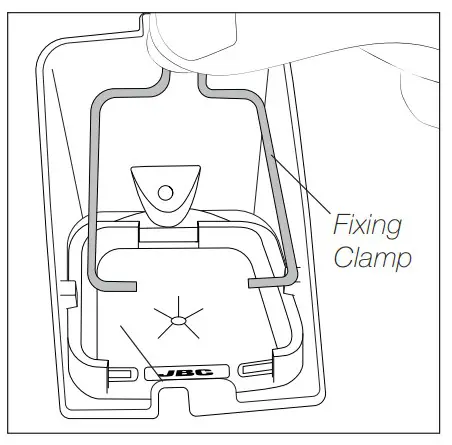

Membrane Replacement
Loosen the screw and remove the screw, the washer
Then take out the fixing clamp.

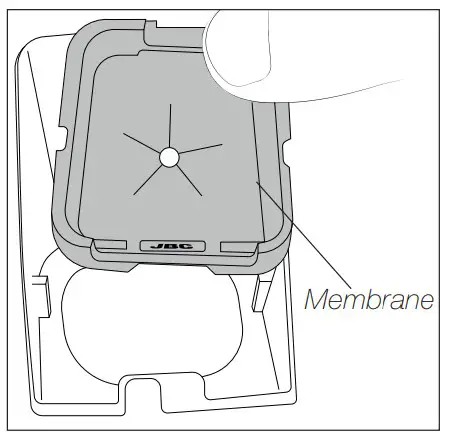

Finally the membrane. Replace the membrane for a new one.
Once the new membrane is positioned, place all the components back again and tighten the screw.
Specifications
CLM Manual Tip Cleaner Ref. CL8499
- Total Net Weight: 877 g / 1.93 lb
- Package Dimensions / Weight: 130 x 100 x 98 mm / 936 g (Lx W x H) 5.12 x 3.92 x 3.86 in / 2.06 lb
Complies with CE standards. ESD Safe.
Warranty
JBC’s 2 year warranty covers this equipment againstall manufacturing defects, including the replacement of defective parts and labour.Warranty does not cover product wear or misuse.In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased.
This product should not be thrown in the garbage.
In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must be collected and returned to an authorized recycling facility
