JBC CLS Series Metal Brushes cleaning product Instruction Manual

Packing List

The following items should be included:

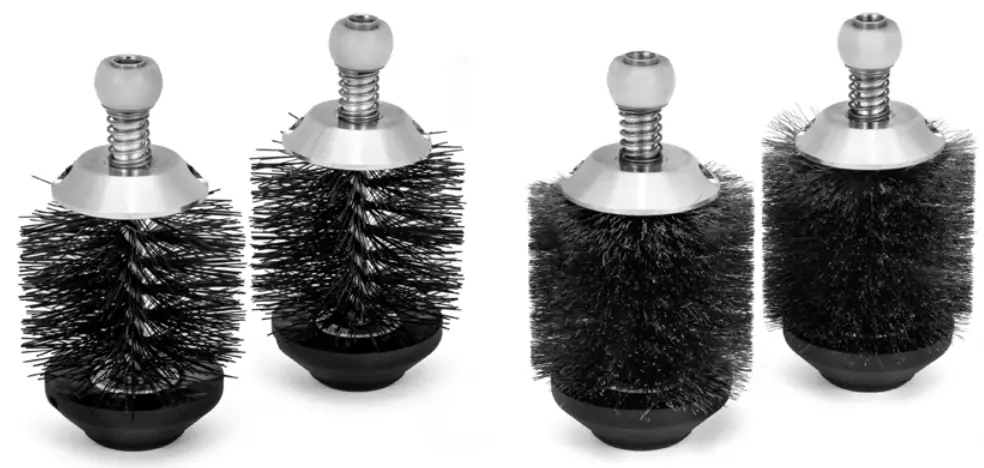

Brushes for CLS 2 units

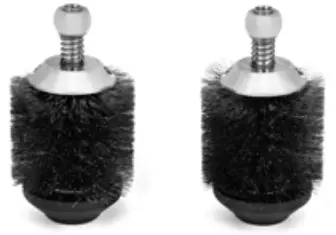

metal brushes

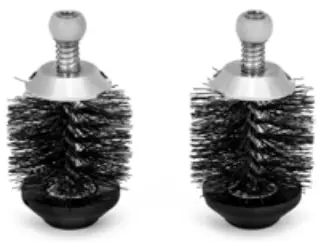

non-metal HMP brushes

Manual 1 unit
Ref. 0027331

Features

Non-metal* brushes have a longer lifespan than metal brushes.

* Only use the non-metal brushes when they are rotating. Incorrect use will damage them.

Changing Brushes for CLS

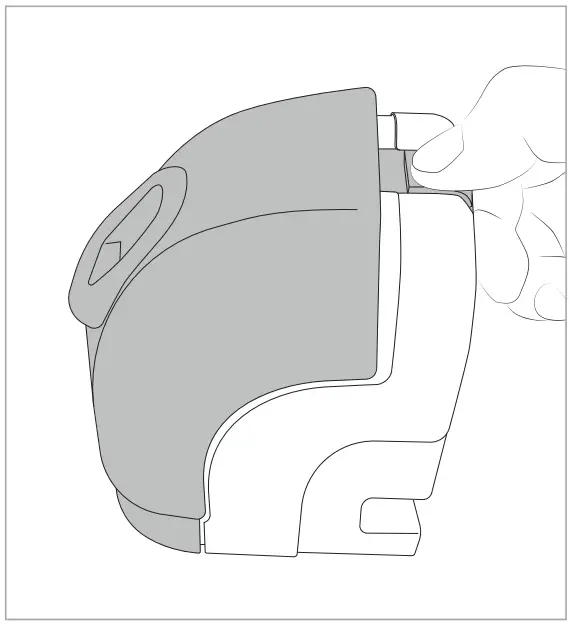

1. Open the Splashguard
   Unplug CLS from the mains and slide the tab on the top to open the splashguard.

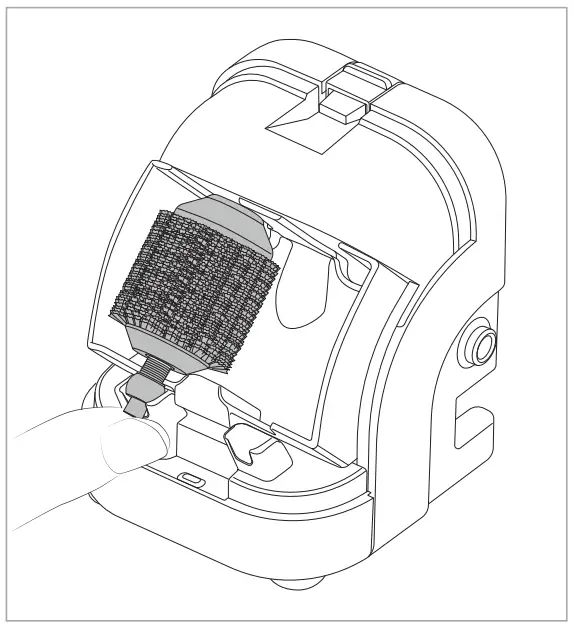

2. Change the Brushes
   Pull upwards the bottom end of the brushes to remove them and place the new ones following the same steps conversely


Specifications

CLS8 / CLSP2
Metal Brushes / Non-Metal Brushes (HMP) for CLS
Ref.: CLMS-A8
Ref.: CLMS-P2

• Brush Dimensions: 34 x 34x 61 mm / 1.34 x 1.34 x 2.40 in

CLMS-A8

• Total Net Weight: 50 g / 0.11 lb
• Package Dimensions/Weight: 140 x 81 x 80 mm / 112 g
  (L x W x H) 5.51 x 3.19 x 3.15 in / 0.25 lb

CLMS-P2

• Total Net Weight: 50 g / 0.11 lb
• Package Dimensions/Weight: 140 x 81 x 80 mm / 112 g
  (L x W x H) 5.51 x 3.19 x 3.15 in / 0.25 lb

Warranty

JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour.
Warranty does not cover product wear or misuse.
In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased.

This product should not be thrown in the garbage.
In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must be collected and returned to an authorized recycling facility

www.jbctools.com
