Homestyles 200 -301-fb 1 80 Sofa User Manual

homestyles 200 -301-FB 1 80 Sofa

IMPORTANT
Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage. Carefully and strictly follow these assembly instructions to ensure a completed product as designed. Do not use power tools above 8 volts to assemble.

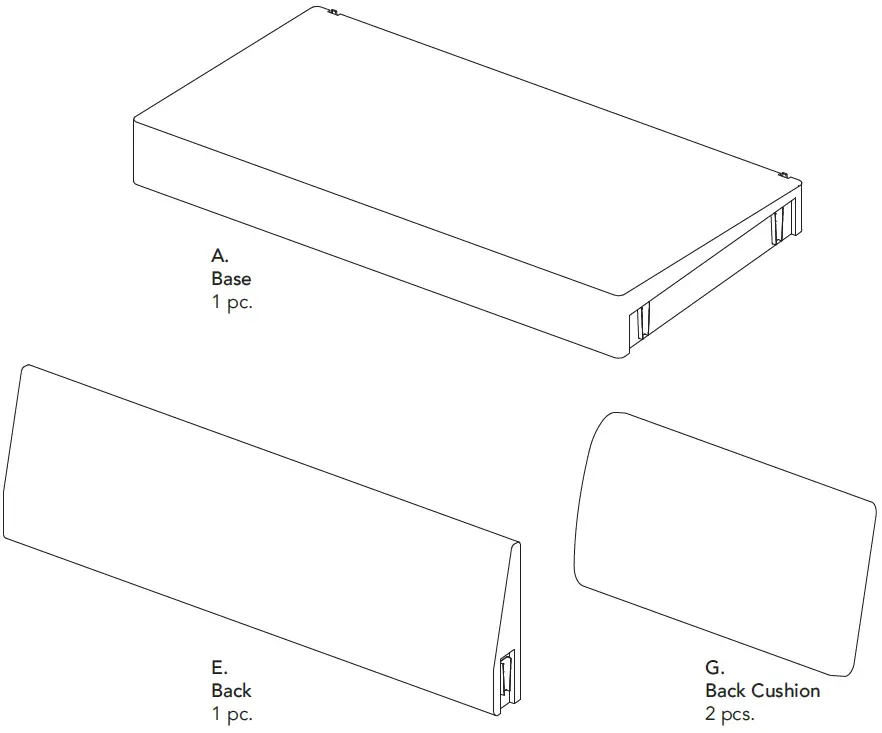

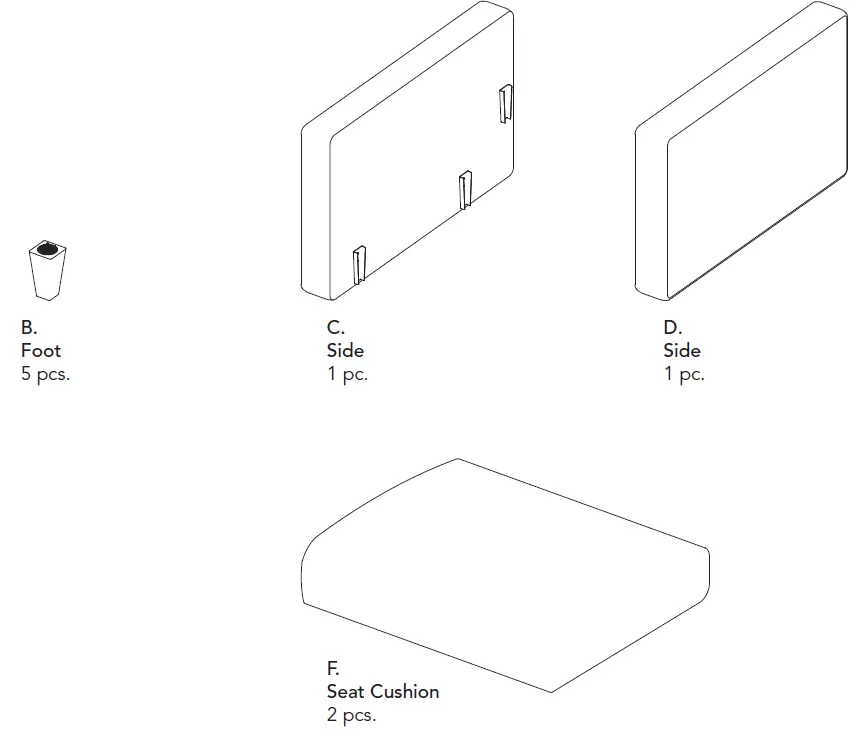

Part List

For assembly see instructions in carton 2001-302-FB80.

Carton 2001-301-FB80 is also needed for assembly.

Assembly Instructions 2/3

IMPORTANT

• Use a soft cloth between these parts and the floor.
• STEP 1

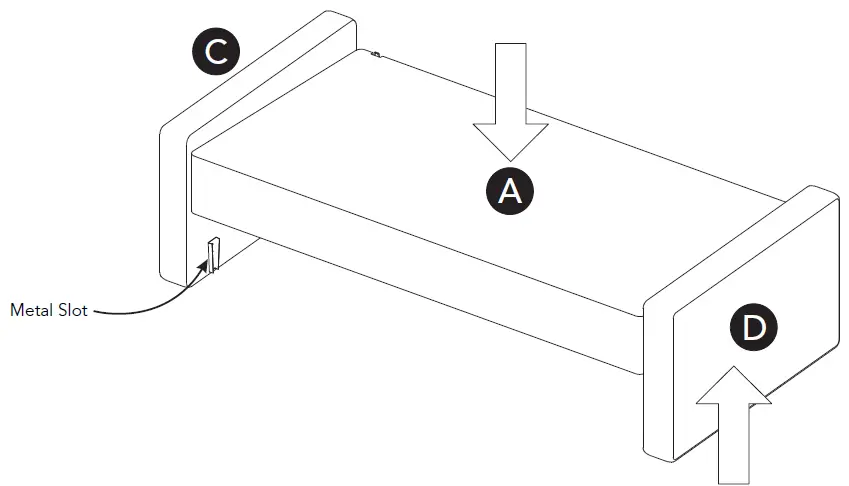

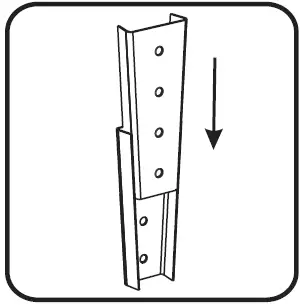

  Attach Base (A) to Side (C) by sliding metal slots into position.Attach Side (D) to unit by sliding metal slots into position.
• STEP 2

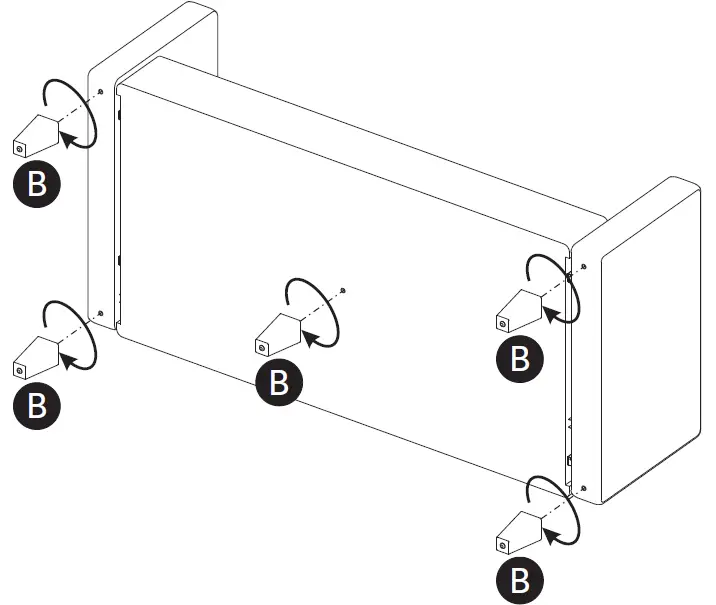

Attach Feet (B) to unit, then tighten.

• STEP 3

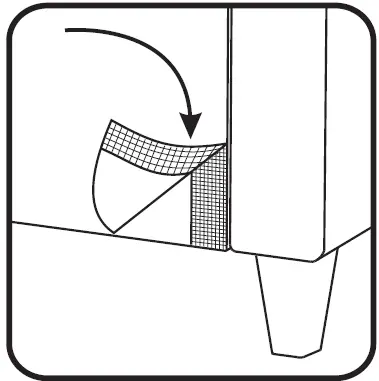

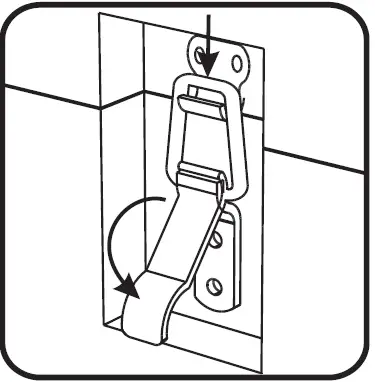

Align the metal brackets of the Back (E) to brackets of each Side (C & D) and insert at the same time. Lock Back (E) in position with latches.Attach back cover to back of unit.

• STEP 4

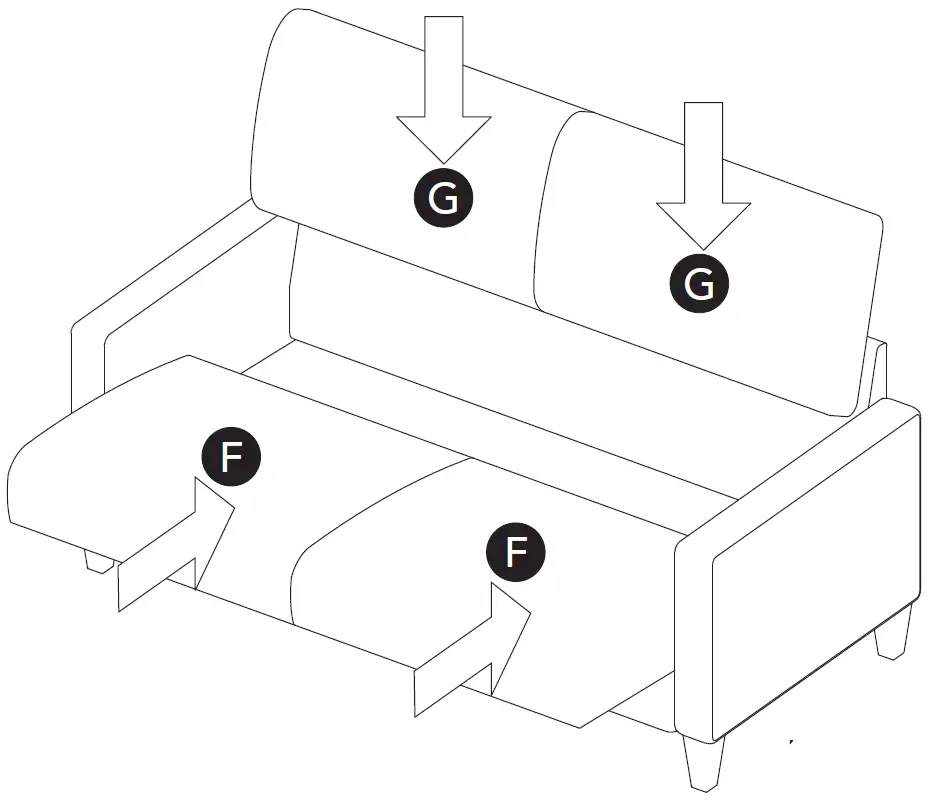

Place Seat Cushions (F) into position. Place Back Cushions (G) into position.

CARE INSTRUCTIONS

NEVER
allow liquids to remain on furniture. Absorption causes parts to warp and split and finishes to delaminate.

NEVER
use glass cleaners on finished furniture. Ammonia chemically attacks the finish.

• Do not use power tools above 8 volts to assemble.
  PREVENT
  CRACKING
• Do not place in direct sunlight.
  PREVENT
  FADING
• Do not write directly on surface.
  PREVENT
  MARKING
• Do not place hot objects on surface. PREVENT FINISH DAMAGE
• Do not use rubber based placemats. PREVENT DISCOLORING
• Do not use commercial waxes and polishes. PREVENT YELLOWING

CLEAN
with a soft cloth moistened in lukewarm soap and water. Buff with a dry clean cloth. homestyles will provide replacements free of charge for missing or damaged parts within1 year of purchase. Digital images of the defective parts may be required. If the product was not purchased from an authorized retailer, homestyles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged parts may be requested via contact info below.
homestyles Customer Service: www.homestylesfurniture.com,
[email protected], 888-680-7460
