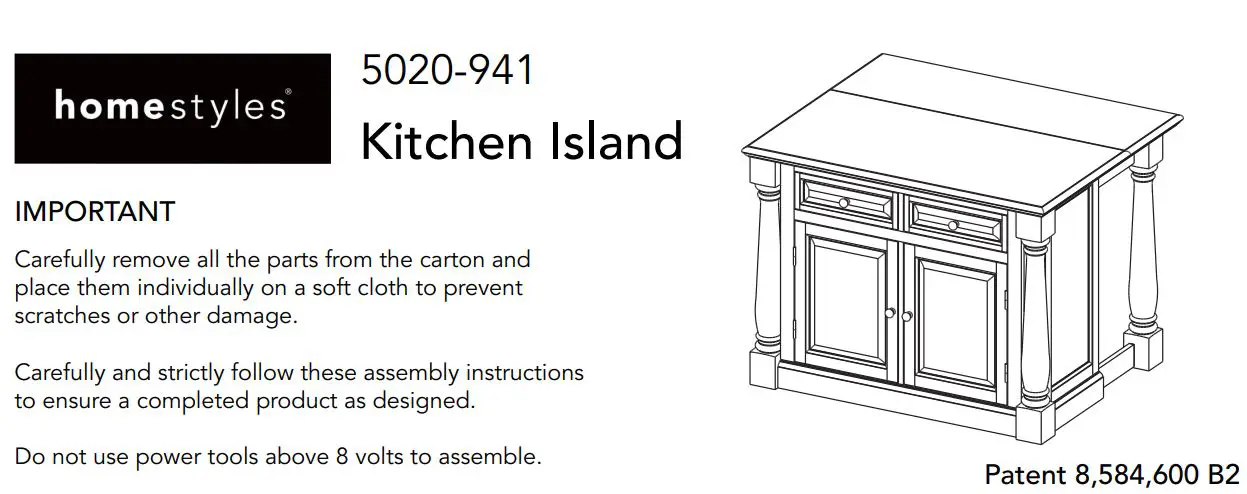

homestyles 5020-941 Kitchen Island Instruction Manual
Part List

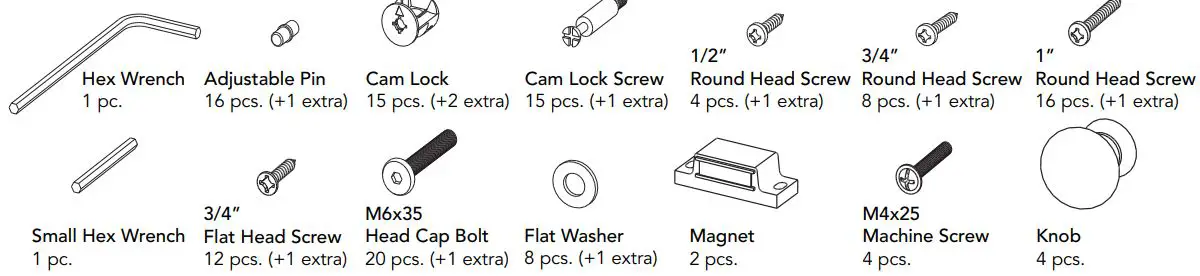

Hardware List
Cartons 5020-942 and 5008-943 or 5009-943 are also needed for assembly.
Tool(s) required for assembly: Phillips screwdriver, Level home styles
Customer Service: www.homestylesfurniture.com,
[email protected],
888-680-7460
Assembly Instructions
IMPORTANT
- Use a soft cloth between these parts and the floor.
- Do not use power tools above 8 volts to assemble.
- Do not tighten all the bolts until each part is properly assembled.
- The unit must be level to work properly. Use the included adjustable levelers to level.
- Keep Hex Wrench as the bolts may need to be tightened in the future.

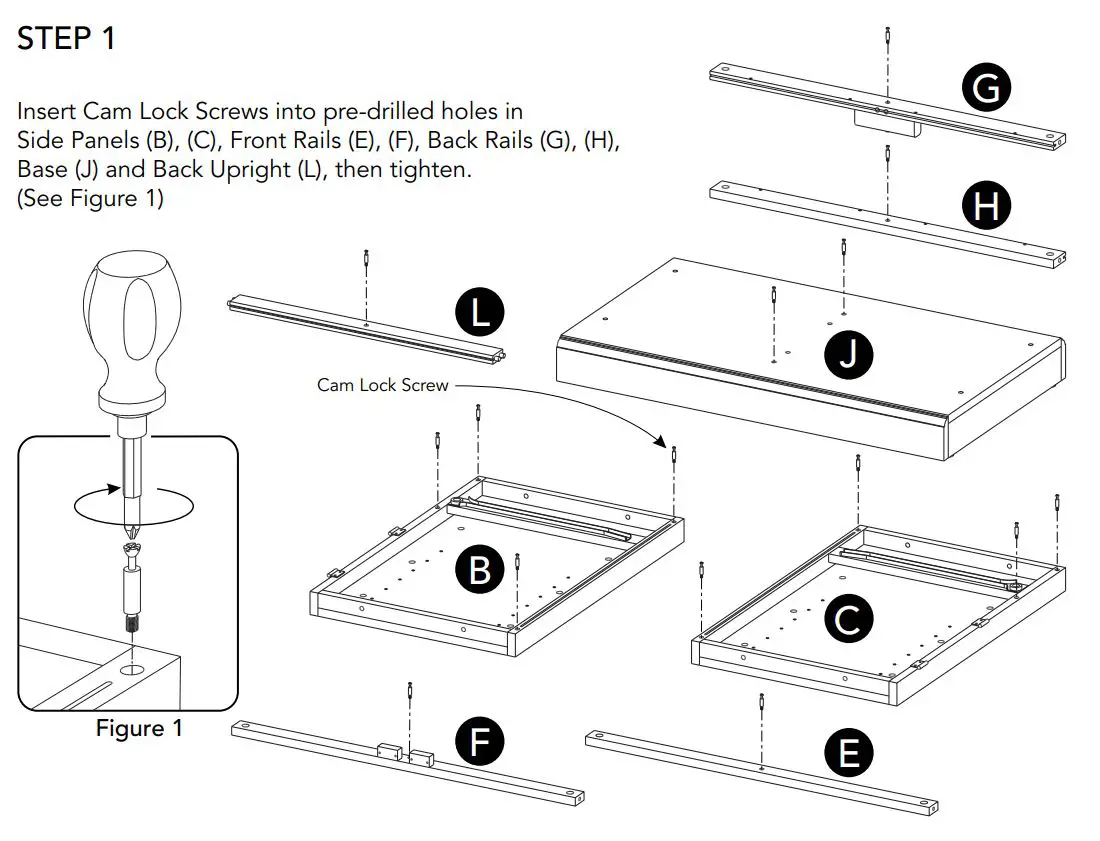

STEP 2

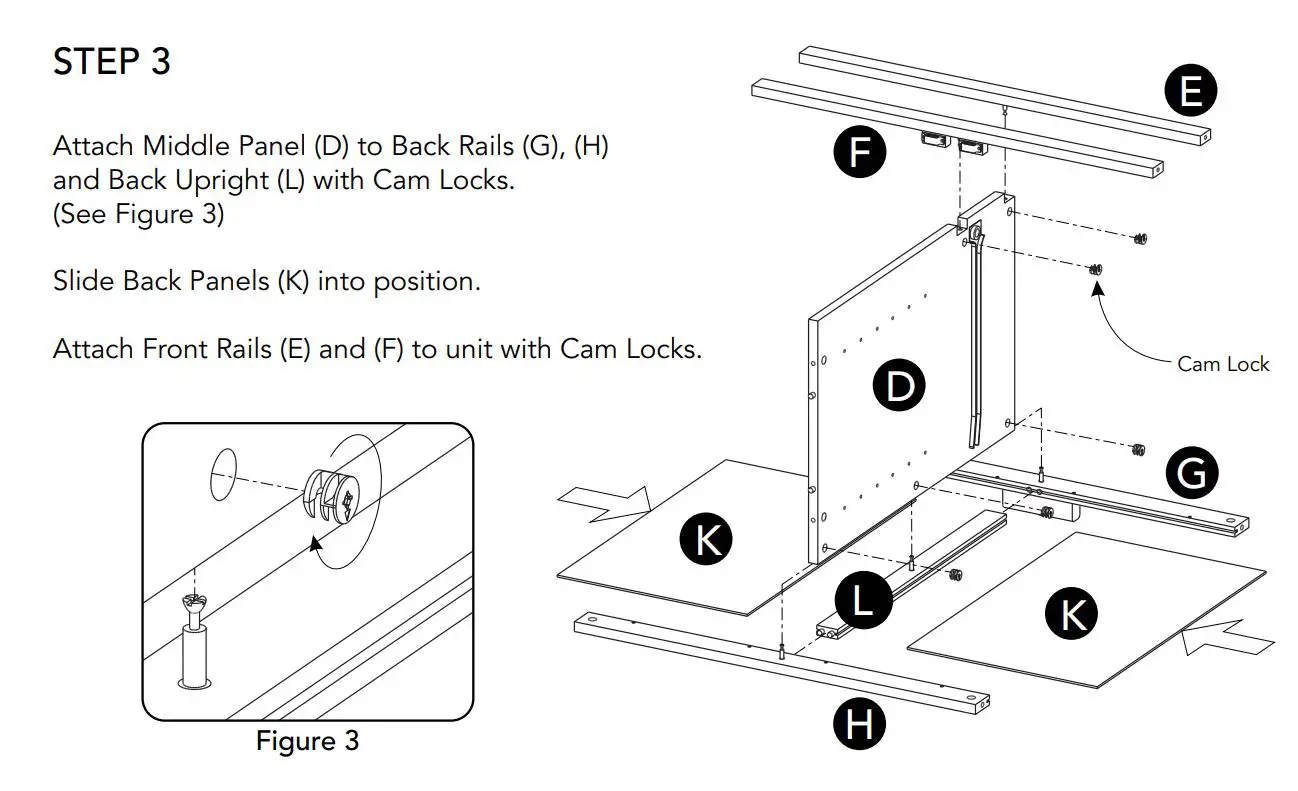

STEP 4
Attach Side Panels (B) and (C) to unit with Cam Locks.
STEP 6

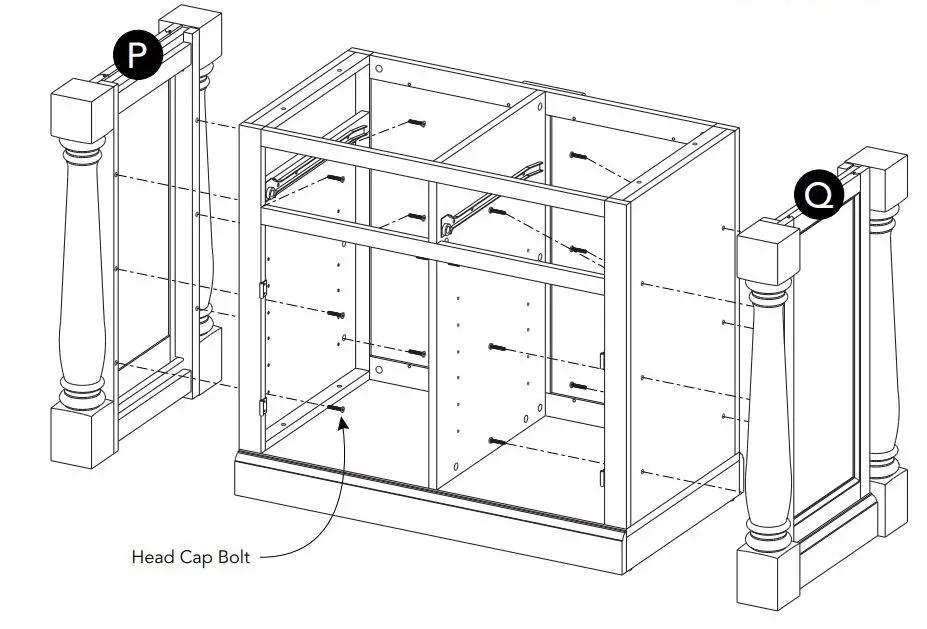

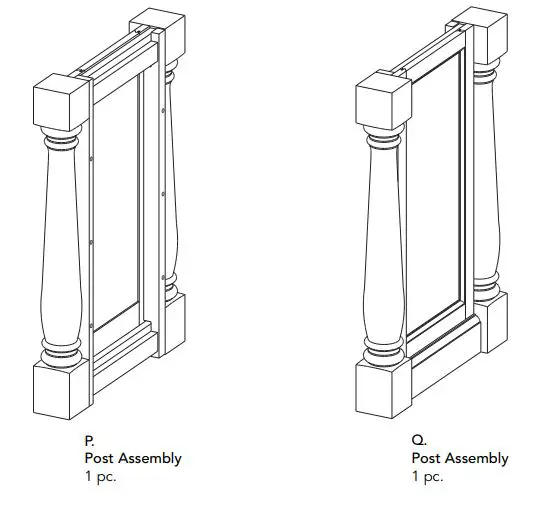

Turn unit to its upright position. Attach Post Assemblies (P) and (Q) to unit with Head Cap Bolts. Tighten bolts with Hex Wrench.
STEP 7

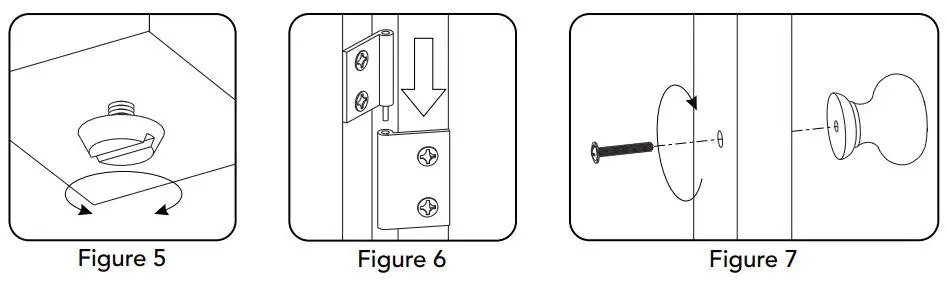

Level unit by adjusting the adjustable levelers on bottom of unit. (See Figure 5) Note: Unit must be level to proceed. Insert 3/4″ Round Head Screws into pre-drilled holes in back of unit, then tighten. Note: Unit must be level before tightening these screws. Attach Doors (M) and (N) to unit by sliding door hinges into side panel hinges. (See Figure 6) Attach Knobs to Doors (M) and (N) with Machine Screws. (See Figure 7)
STEP 8

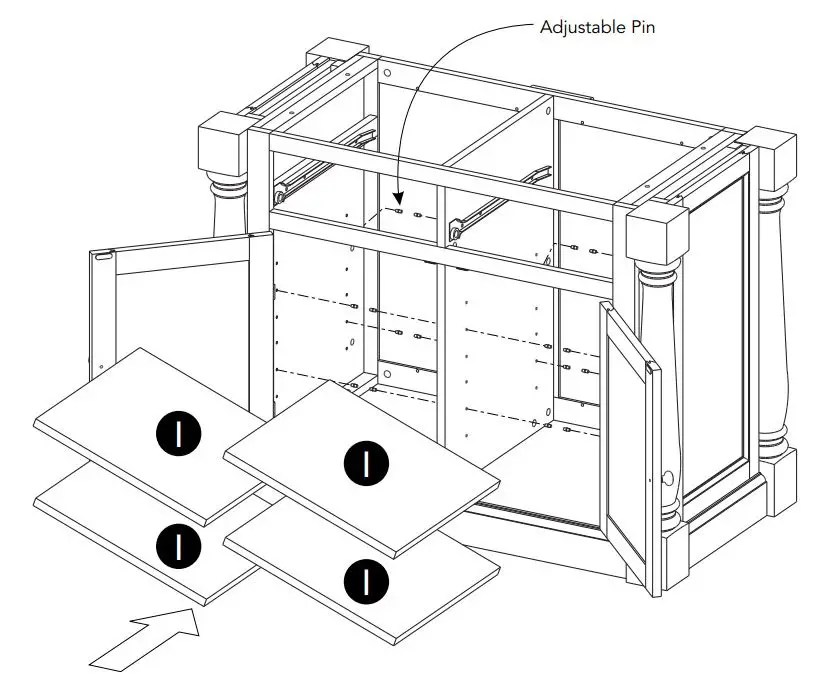

Insert Adjustable Pins into side panels and middle panel at desired level. Slide Shelves (I) into position.

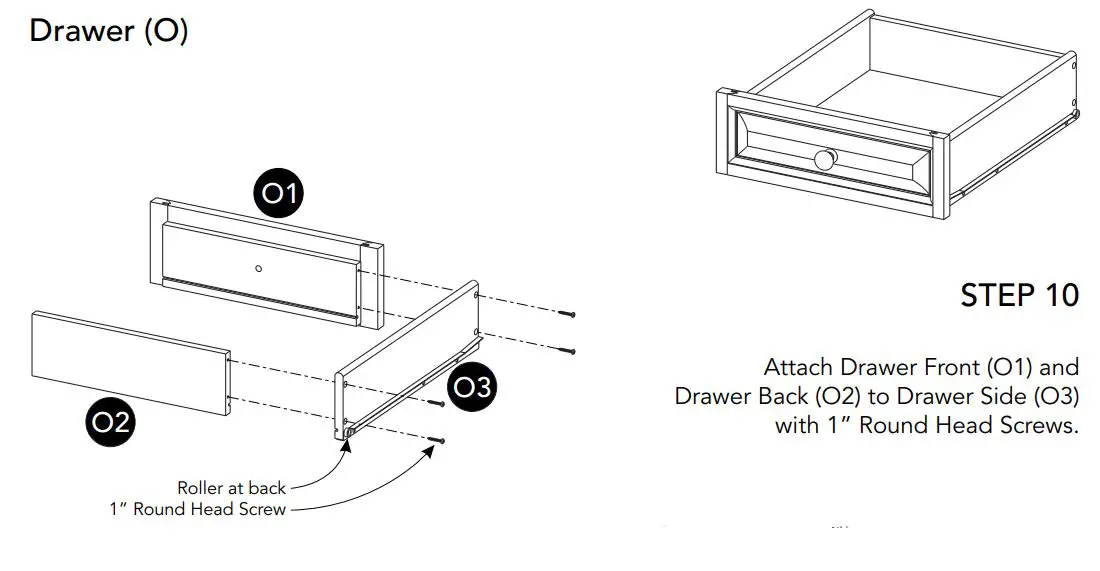

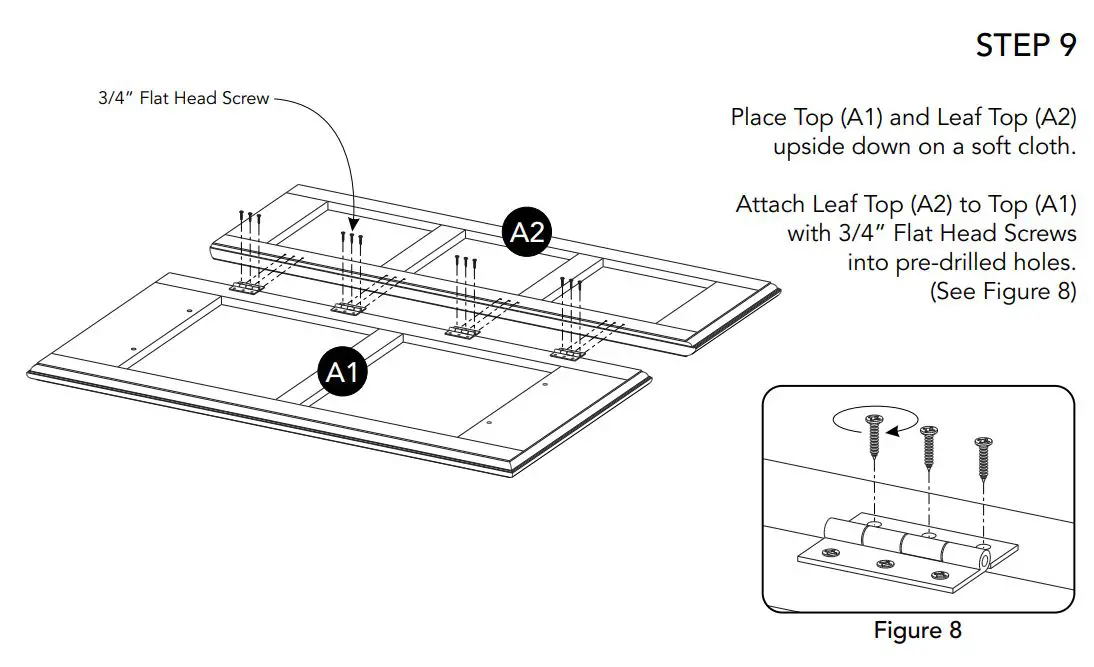

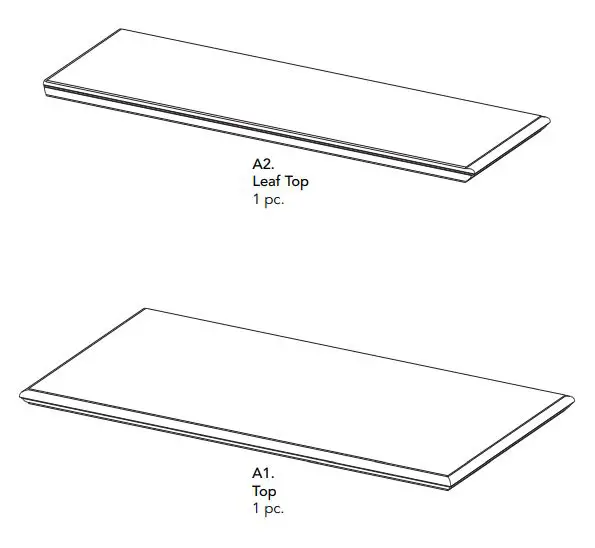

Part List

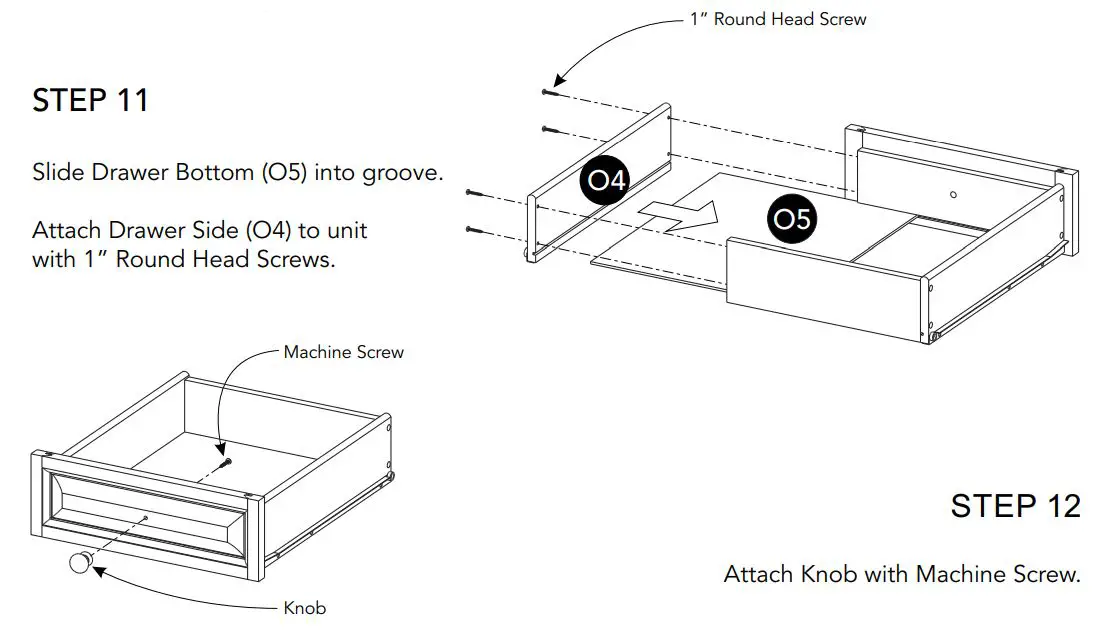

STEP 13

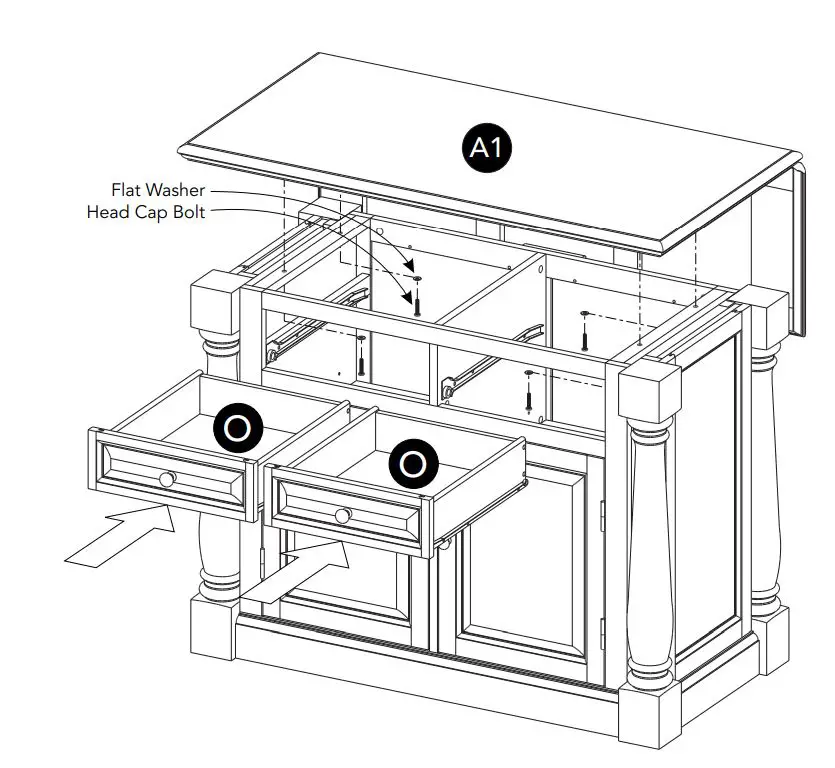

Attach Top (A1) to unit with Flat Washers and Head Cap Bolts. Slide Drawers (O) into position.

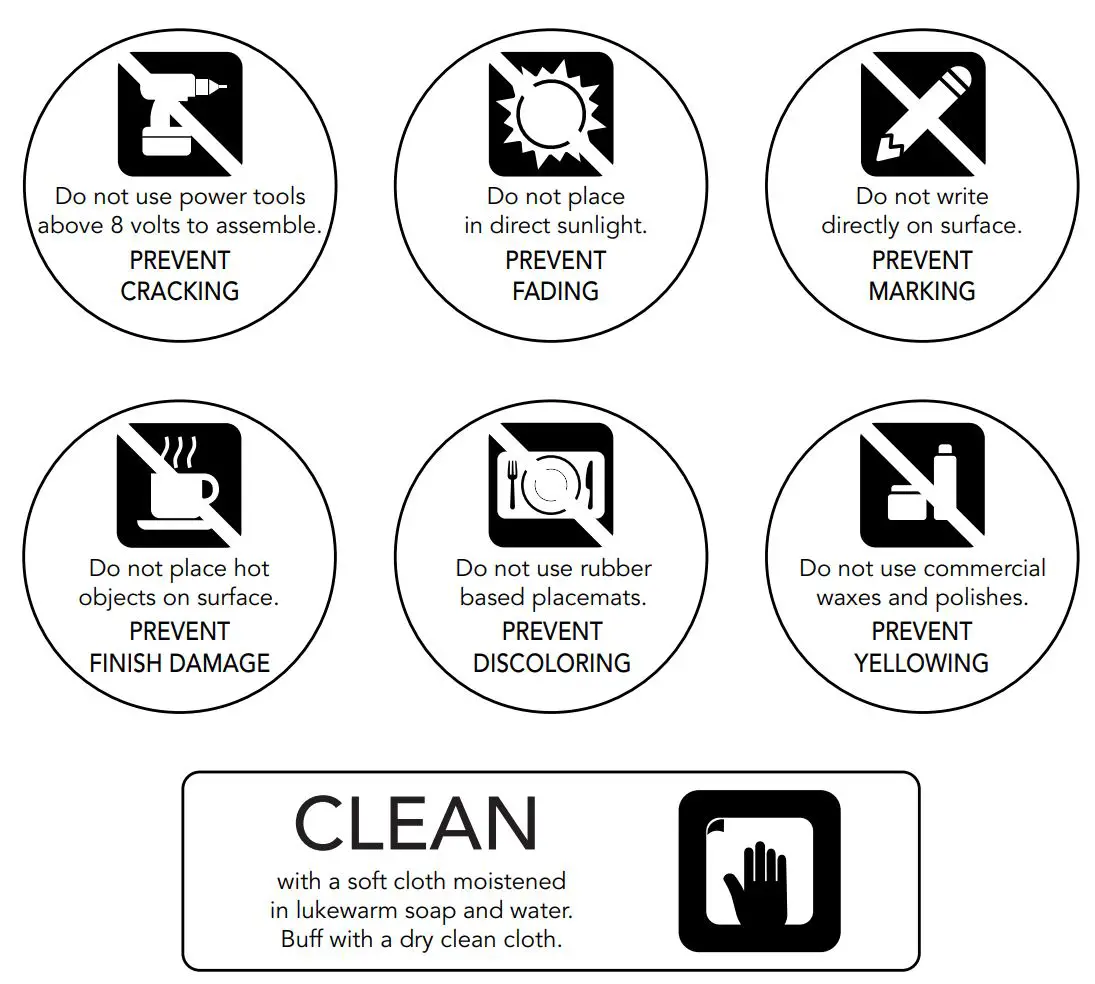

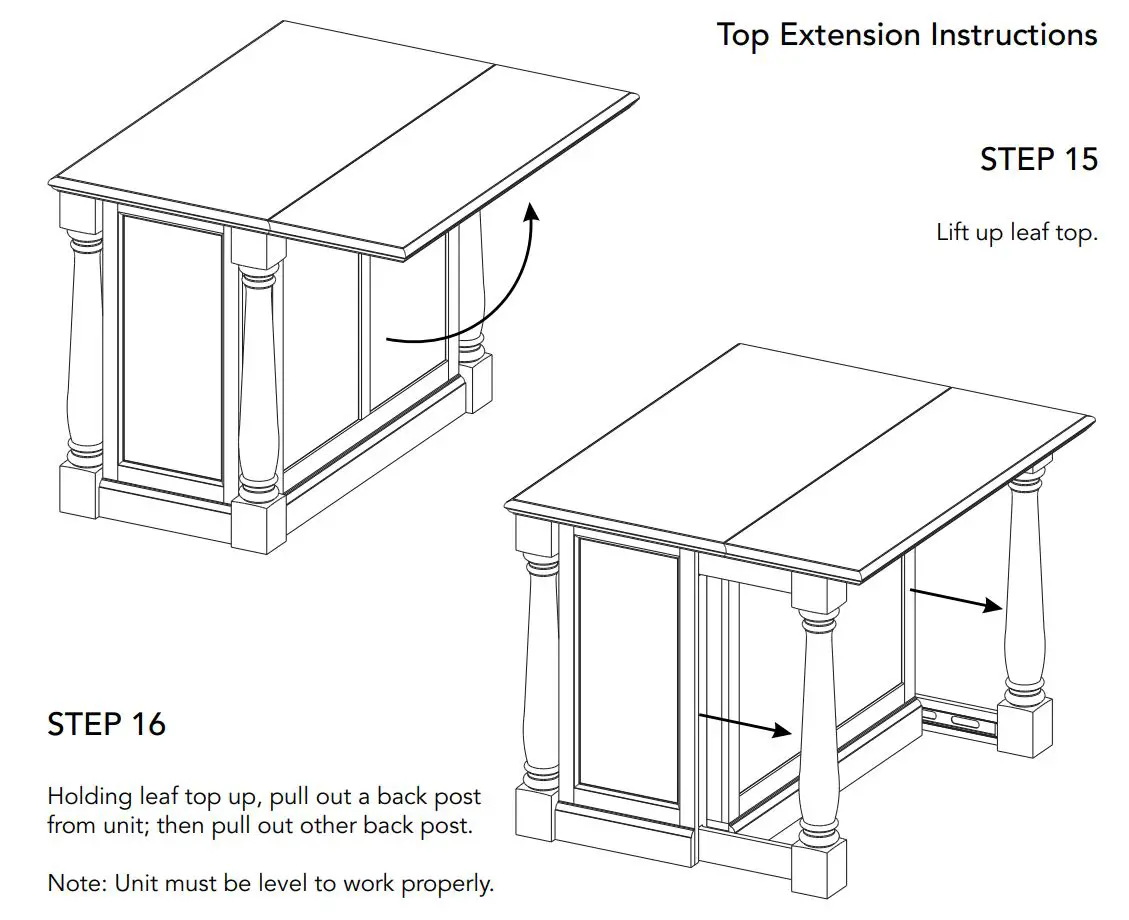

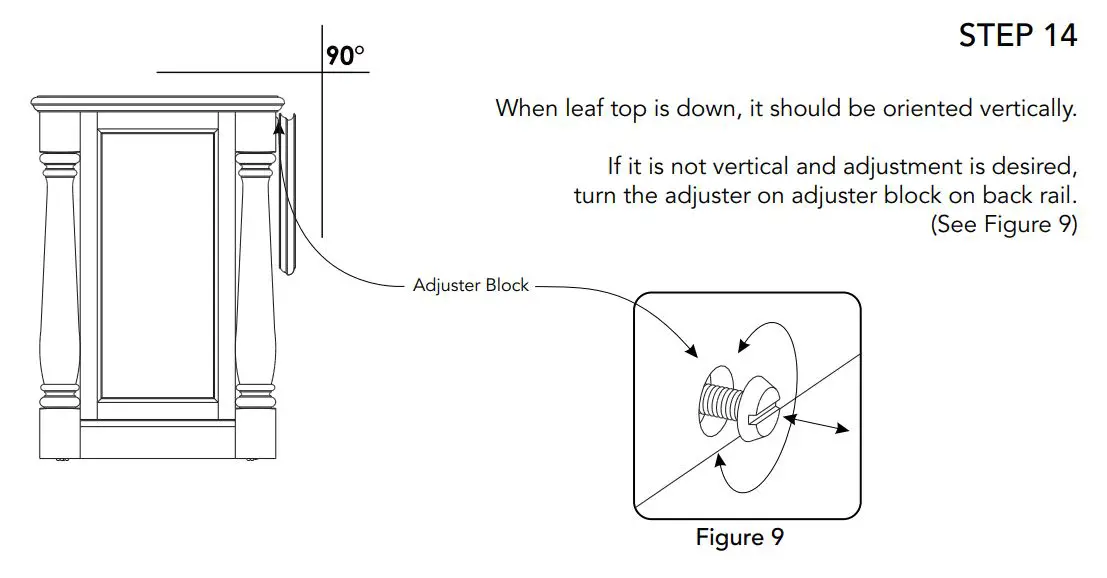

CARE INSTRUCTIONS
NEVER
allow liquids to remain on furniture. Absorption causes parts to warp and split and finishes to delaminate.
NEVER
use glass cleaners on finished furniture. Ammonia chemically attacks the finish.
homestyles will provide replacements free of charge for missing or damaged parts within 30 days of purchase. Digital images of the defective parts may be required. If the product was not purchased from an authorized retailer, homestyles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged parts may be requested via contact info below.
homestyles Customer Service: www.homestylesfurniture.com, [email protected], 888-680-7460
5020-942
Kitchen Island
IMPORTANT
Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage.
Carefully and strictly follow these assembly instructions to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

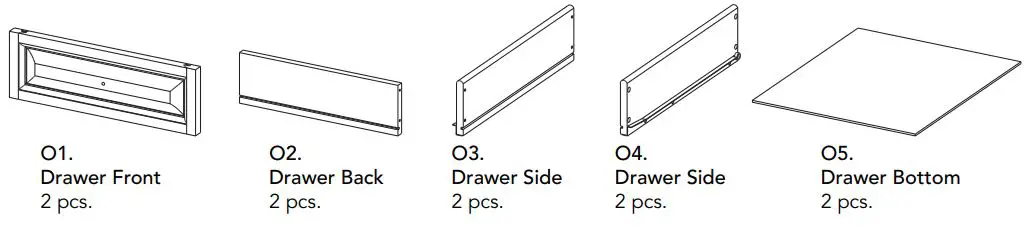

Part List
5008-943
Kitchen Island
IMPORTANT
Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage.
Carefully and strictly follow these assembly instructions to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
For assembly see instructions in carton 5006-941, 5008-941 or 5020-941.
homestyles Customer Service: www.homestylesfurniture.com, [email protected], 888-680-7460
