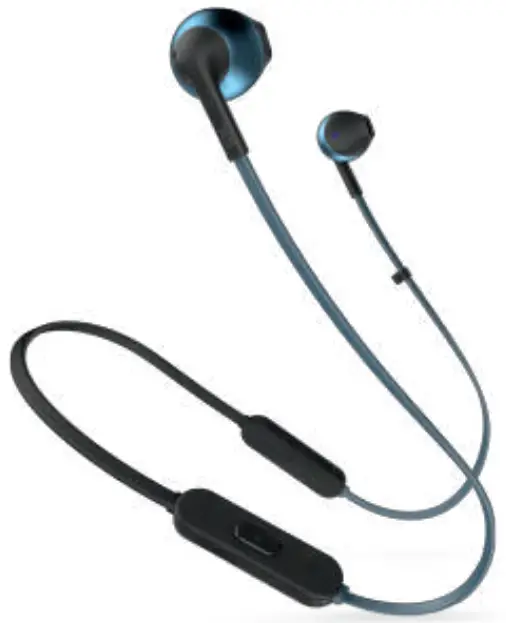

JBL TUNE 205 BT Bluetooth Earphones

JBL-TUNE-205-BT-Bluetooth-Earphones-fig-1

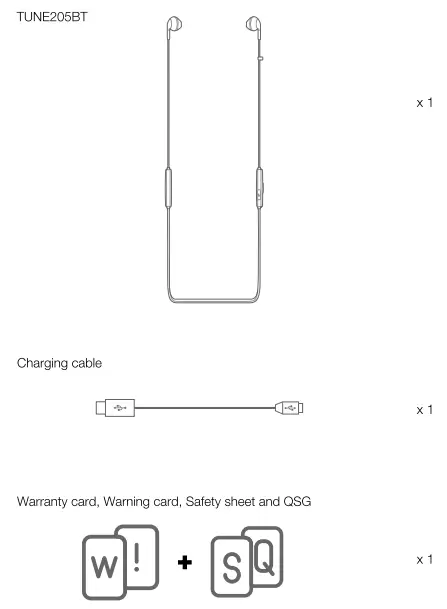

What’s In the box

JBL-TUNE-205-BT-Bluetooth-Earphones-fig-2

Overview

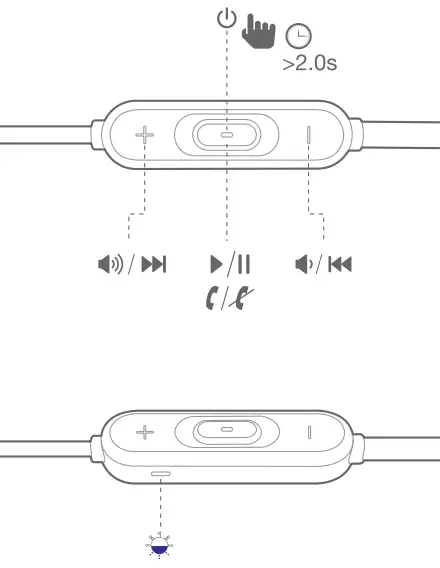

  1. Buttons and LEDs

    JBL-TUNE-205-BT-Bluetooth-Earphones-fig-3

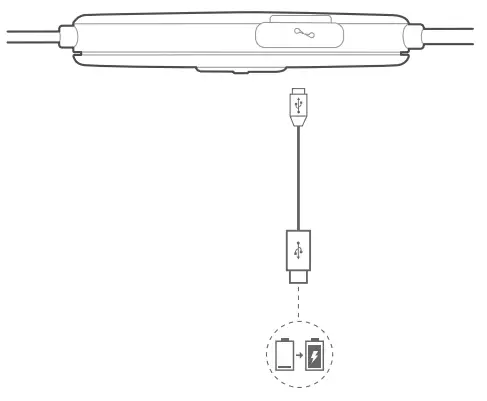

  2. Charging

    JBL-TUNE-205-BT-Bluetooth-Earphones-fig-4

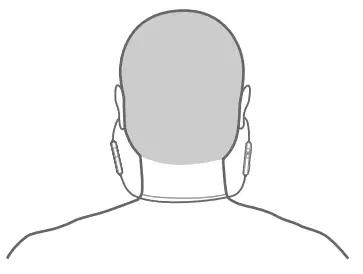

Wearing the headphone

Wear behind the neck

JBL-TUNE-205-BT-Bluetooth-Earphones-fig-5

Bluetooth• connection

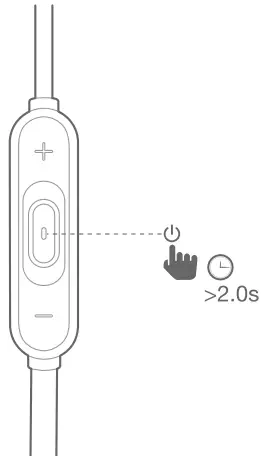

  1. Tum on the headphone

    JBL-TUNE-205-BT-Bluetooth-Earphones-fig-6

  2. If connecting for the first time, the headphone will enter pairing mode automatically after it is powered on.

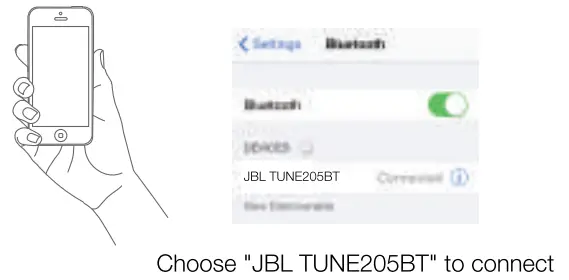

  3. Connect to bluetooth device

    JBL-TUNE-205-BT-Bluetooth-Earphones-fig-7

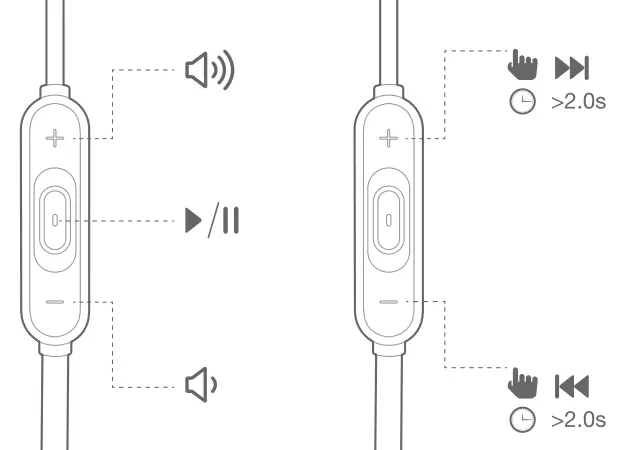

Music

JBL-TUNE-205-BT-Bluetooth-Earphones-fig-8

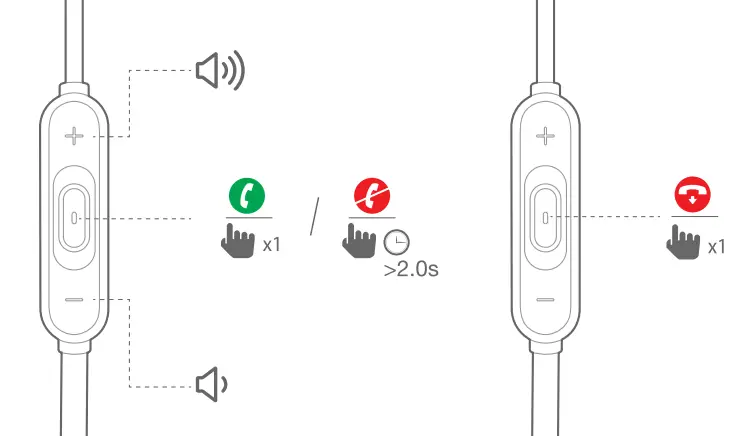

Phone call

JBL-TUNE-205-BT-Bluetooth-Earphones-fig-9

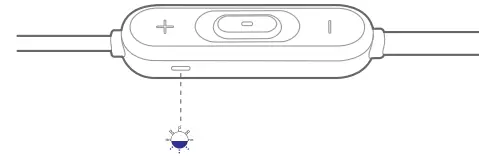

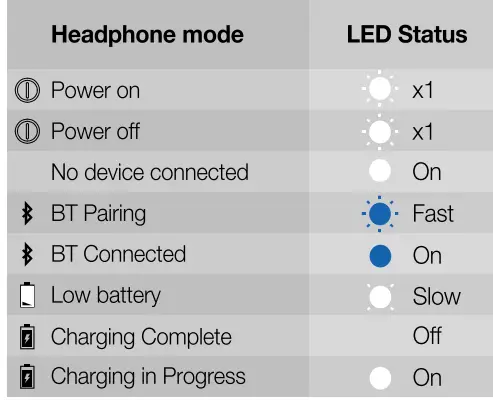

LED behaviour

JBL-TUNE-205-BT-Bluetooth-Earphones-fig-10
JBL-TUNE-205-BT-Bluetooth-Earphones-fig-11

Specifications

  • Driver size: 12.5mm
  • Dynamic frequency response range: 20Hz-20kHz
  • Sensitivity: 100dB SPL/1mw
  • Maximum SPL: 100dB@1kHz
  • Microphone sensitivity @1kHz dB v/pa: -21
  • Impedance: 322
  • Bluetooth transmitted power: 0–4dBm
  • Bluetooth transmitted modulation: GFSK,DQPSK, 8-DPSK
  • Bluetooth frequency: 2.402GHz-2.48GHz
  • Bluetooth profiles: HFPv1.5, HSPv1.2, A2DP v1.2, AVRCP v1.5
  • Bluetooth version: V4.1
  • Battery type: GSPO51230 01
  • Polymer Li-ion Battery (3.7V, 120mAh)
  • Charging time: <2hr
  • Music play time with BT on: >6hr
  • Talk time with BT on:>6hr
  • Weight (g): 16.5g

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.
