quick start guide
TUNE175 BT

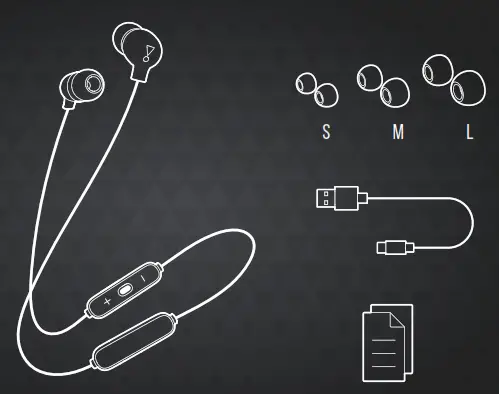

WHAT’S IN THE BOX
https://register.jbl.coutm_mediumUS&utm_source=QSG

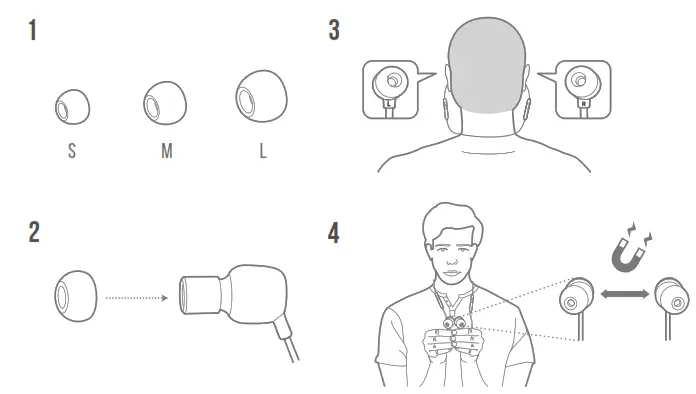

HOW TO WEAR

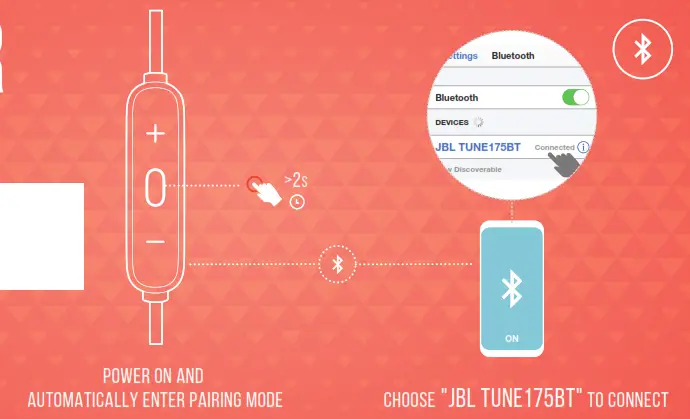

power on & connect

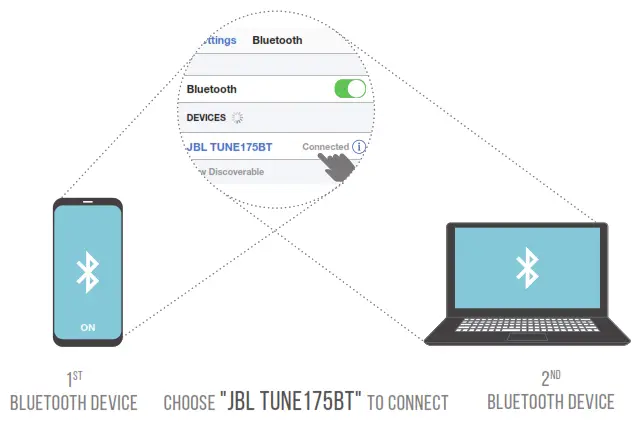

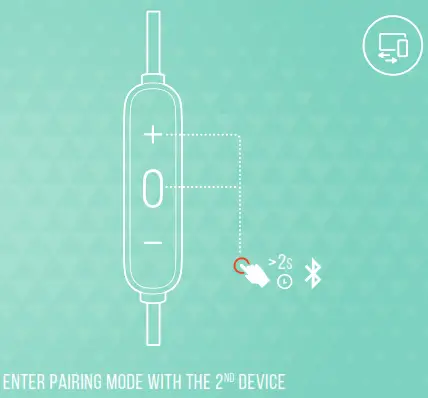

MULTI-POINT CONNECTION
- To switch music source, pause the music on the current device and select play on the 2 nd device.
- A phone call will always take priority.
- If one device goes out of Bluetooth range or powers off, you may need to manually reconnect the remaining device.
- SELECT “forget this device” on your Bluetooth devices to disconnect multi-point.
CHARGING

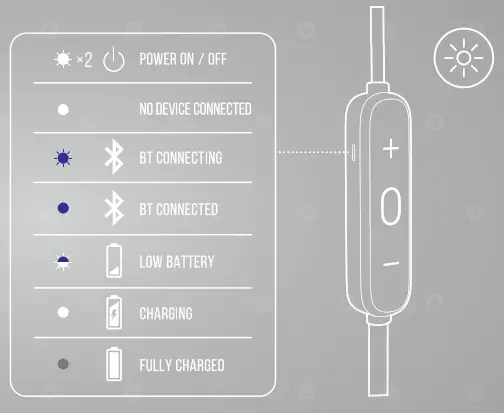

LED BEHAVIORS
TECH SPEC
| Model: | TUNE175BT |
| Driver Size: | 8.6 mm / 0.34” Dynamic driver |
| Power supply: | 5 V 1 A |
| Weight: | 18.3g/0.04lbm |
| Headset battery type: | Lithium-ion battery (3.7 V / 130 mAh) |
| Charging time: | < 2 hrs |
| Music playtime with BT on: | 14 hrs |
| Frequency response: | 20 Hz – 20 kHz |
| Impedance: | 16 ohm |
| Sensitivity: | 95 dB SPL @1kHz 1mw |
| Microphone sensitivity | -29 dBV/Pa @1kHz |
| Bluetooth version: 5.0 | 5.0 |
| Bluetooth profile version: | HFP 1.7, A2DP 1.3, AVRCP 1.6 |
| Bluetooth transmitter frequency range: | 2.4 GHz- 2.4835 GHz |
| Bluetooth transmitter power: | < 6 dBm |
| Bluetooth transmitter modulation: | GFSK, π/4 DQPSK, 8DPSK |
| Maximum operation temperature: | 45 °C |
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.
HP_JBL_TUNE175BT_QSG_CR_V3
