TUNE 220TWS
quick start guide

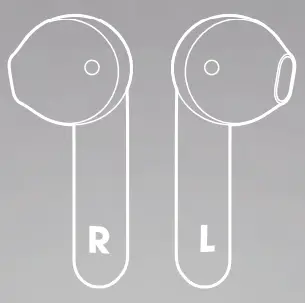

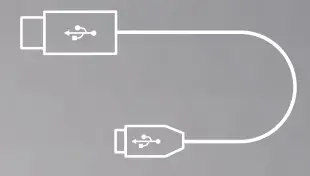

WHAT’S IN THE BOX
 |  |
 |  |
HOW TO WEAR

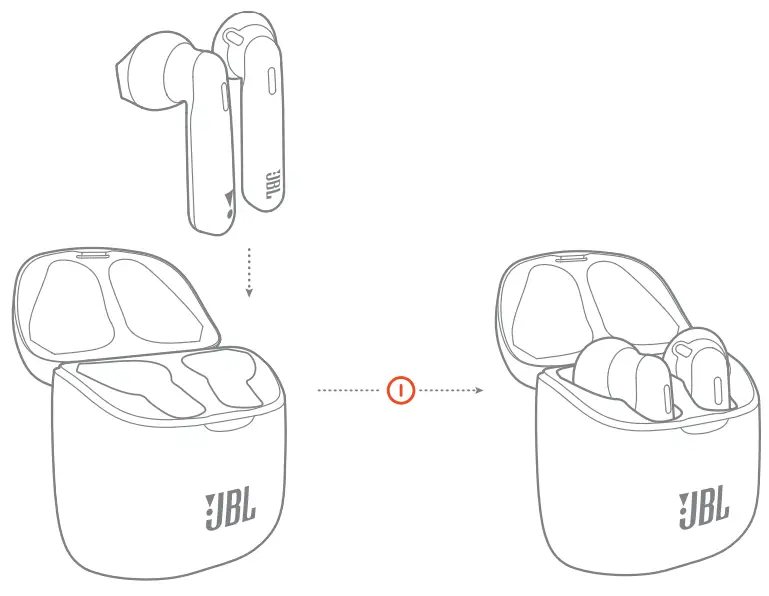

FIRST TIME USE

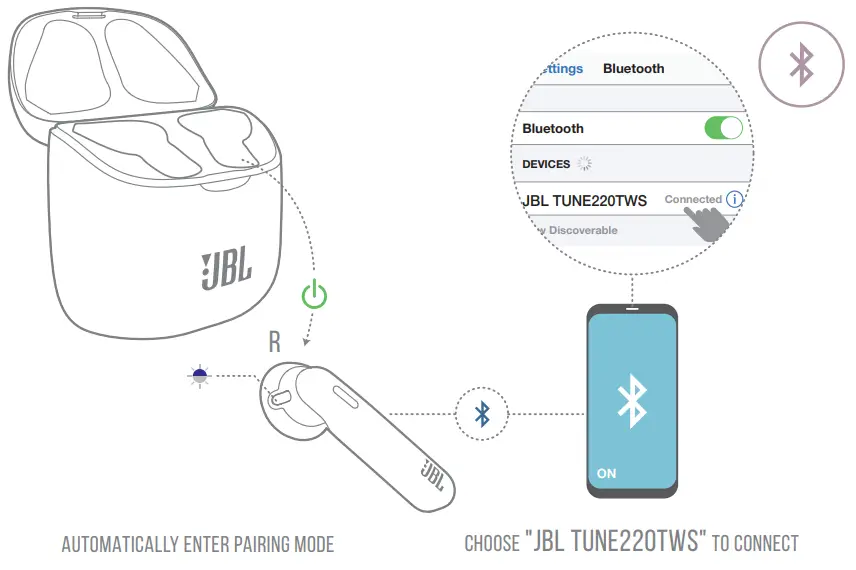

POWER ON&CONNECT

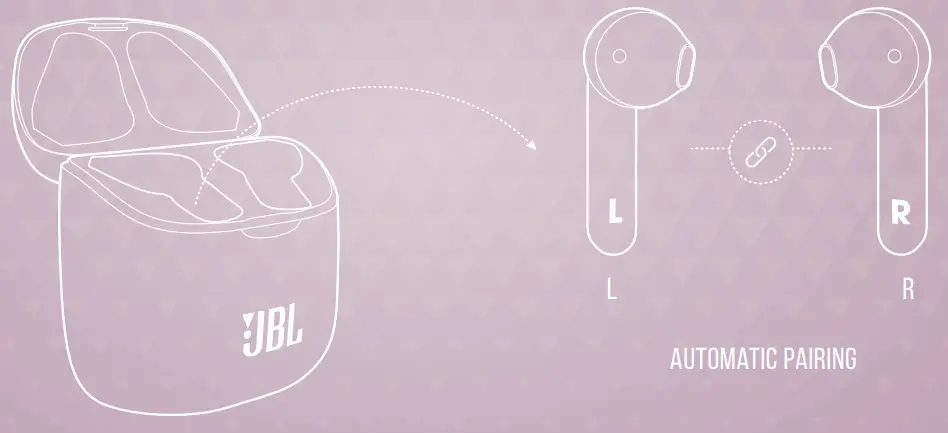

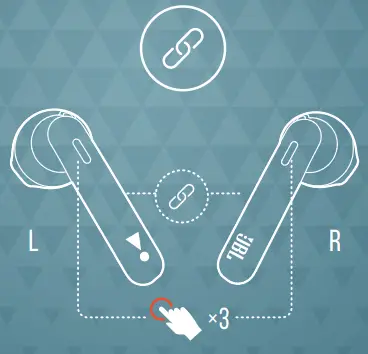

PAIRING
POWER OFF

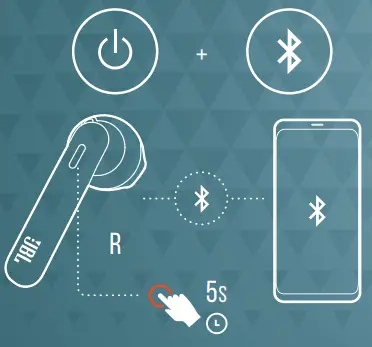

MANUAL CONTROLS
| POWER ON&CONNECT TO DEVICE | CONNECTING |
 |  |

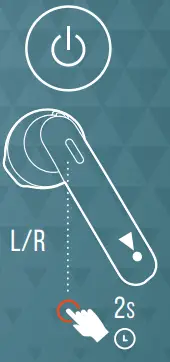

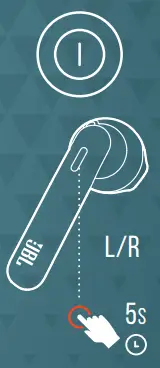

| POWER ON | POWER OFF |
 |  |

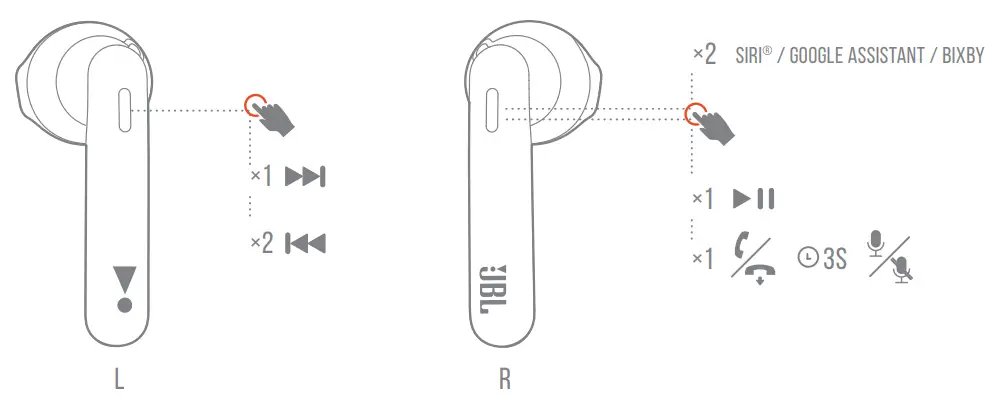

BUTTON COMMAND

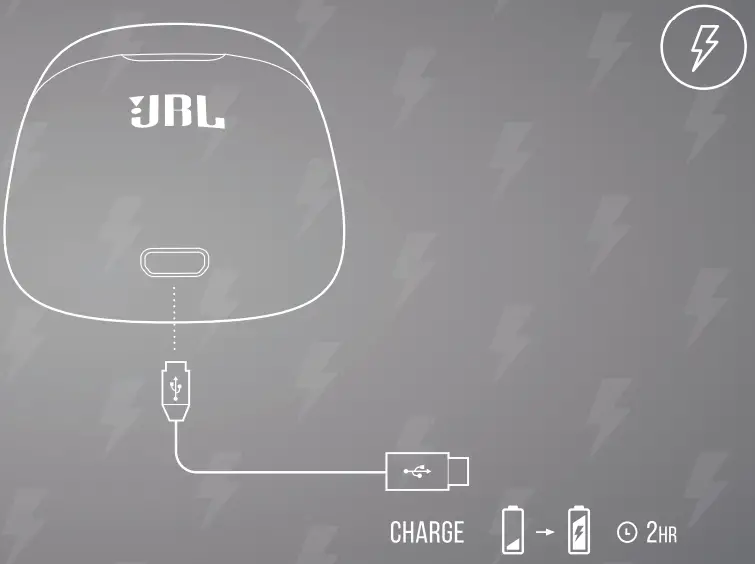

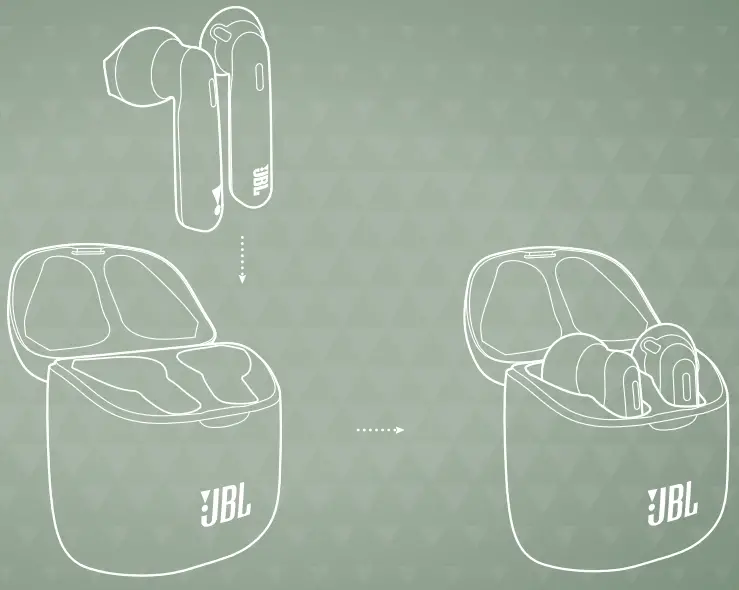

CHARGING
CHARGING

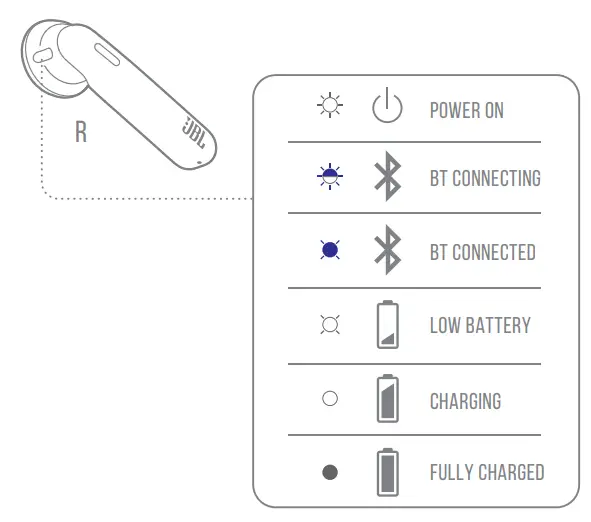

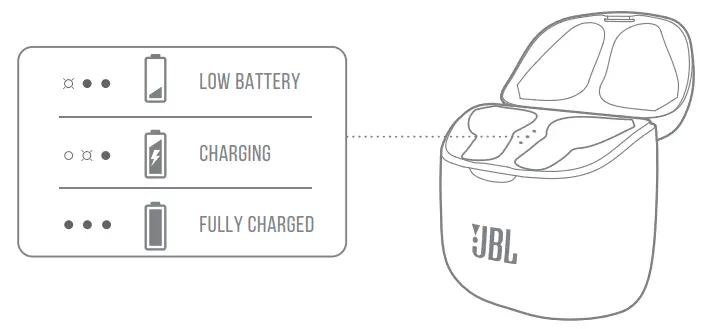

LED
BEHAVIORS
 |  |
TECH
SPEC
| Driver Size: | 12 mm Dynamic driver |
| Frequency Response: | 20 Hz – 20 kHz |
| Sensitivity: | 105 dB SPL |
| Maximum SPL: | 98 dB SPL |
| Microphone sensitivity: | -30 dBV@1 kHz/Pa |
| Impedance: | 32 ohm |
| Bluetooth transmitter power: | 12 dBm |
| Bluetooth transmitted modulation: | GFSK/ π/4DQPSK/ 8DPSK |
| Bluetooth frequency: | 2.402 GHz – 2.48 GHz |
| Bluetooth profile version: | A2DP 1.3, AVRCP 1.5, HFP 1.6 |
| Bluetooth version: | 5 |
| Headset battery type: | Lithium-ion battery (22 mAh / 3.85 V ) |
| Charging case battery type: | Lithium-ion battery (410 mAh / 3.85 V ) |
| Power supply: | 5 V  1.0 A |
| Charging time: | <2 hrs from empty |
| Music playtime with BT on: | 3 hrs |
| Total music playtime with charging case: | 19 hrs |
| Weight: | 57 g |
The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc., and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.
NOTE: The maximum operating temperature of the product is 45 ° C
