Jbl Tune 220tws True Wireless Earbuds User Manual

User Manual

JBL Tune 220TWS True Wireless Earbuds

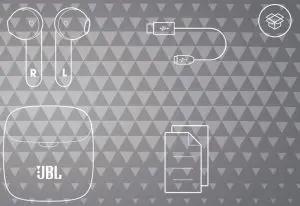

WHAT’S IN THE BOX

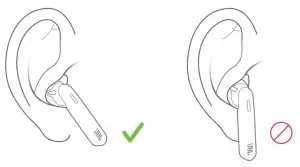

HOW TO WEAR

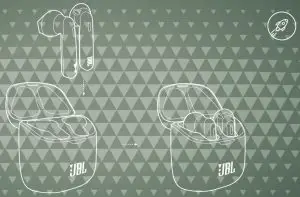

FIRST TIME USE

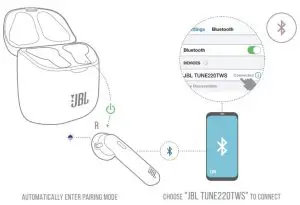

POWER ON & CONNECT

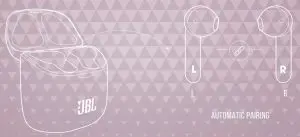

PAIRING

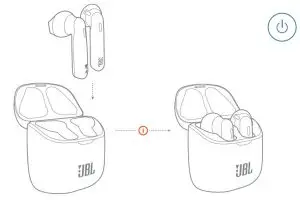

POWER OFF

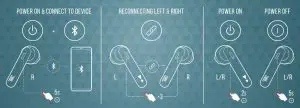

MANUAL CONTROLS

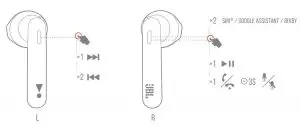

BUTTON COMMAND

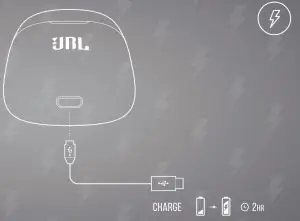

CHARGING

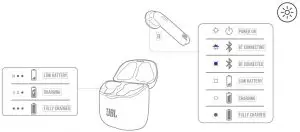

LED BEHAVIORS

TECHNICAL SPECIFICATION

• Driver Size: 12 mm Dynamic driver
• Frequency Response: 20 Hz – 20 kHz
• Sensitivity: 105 dB SPL
• Maximum SPL: 98 dB SPL
• Microphone sensitivity: -30 dBV@1 kHz/Pa
• Impedance: 32 ohm
• Bluetooth transmitted power: 12 dBm
• Bluetooth transmitted modulation: GFSK/ /4DQPSK/ 8DPSK
• Bluetooth frequency: 2.402 GHz – 2.48 GHz
• Bluetooth profile version: A2DP 1.3, AVRCP 1.5, HFP 1.6
• Bluetooth version: 5.0
• Headset battery type: Lithium-ion battery (22 mAh / 3.85 V )
• Charging case battery type: Lithium-ion battery (410 mAh / 3.85 V )
• Power supply: 5 V 1.0 A
• Charging time: <2 hrs from empty
• Music playtime with BT on: 3 hrs
• Total music playtime with charging case: 19 hrs
• Weight: 57 g

Bluetooth

The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.

NOTE : The maximum operating temperature of the product is 45 ° C
