Ds18 Pro-zxi8m 8” Mid-range Loudspeaker With Aluminum Basket Owner's Manual

DS18 PRO-ZXi8M 8” Mid-Range Loudspeaker with Aluminum Basket

8” MID-RANGE LOUDSPEAKER WITH ALUMINUM BASKET

PRO-ZXi8M

SPECIFICATIONS

• Nominal Diameter
  8” / 203.2mm
• Nominal Impedance
  8 OHMS
• RMS Power Handling
  350 Watts
• MAX Power Handling
  700 Watts
• Sensitivity
  99dB
• Frequency Response
  80Hz – 8Khz
• Recommended Hi Pass Crossover
  125Hz
• Pair or single
  Single

MOTOR

• Voice Coil Diameter
  1.5” / 38.6mm
• Voice Coil Former Material
  Glass Fiber
• Winding Material
  CCAW
• Cone Material
  Paper
• Dust Cap Material
  Paper
• Surround Material
  Cloth
• Basket Material
  Aluminum
• Basket Color
  Sandblasted Black
• Magnet Material
  Ferrite + Neodymium
• Magnet Weight
  30 + 3 Oz
• Displacement Volume
  0.63L / 0.022ft3

THIELE & SMALL PARAMETERS

• Equivalent Volume
  27.67L / 0.977ft3
• Excursion (one way)
  7.6mm
• Free Air Resonance
  128Hz
• Mechanical Factor
  9.319
• Electrical Factor
  0.856
• Total Factor
  0.784
• Mechanical Mass
  3.95g
• Mechanical Compliance
  0.392mm/N
• BL Factor
  4.136
• Voice Coil Inductance
  0.7203mH
• Cone Area
  224.32cm2
• DC Resistance
  4.6 ohm

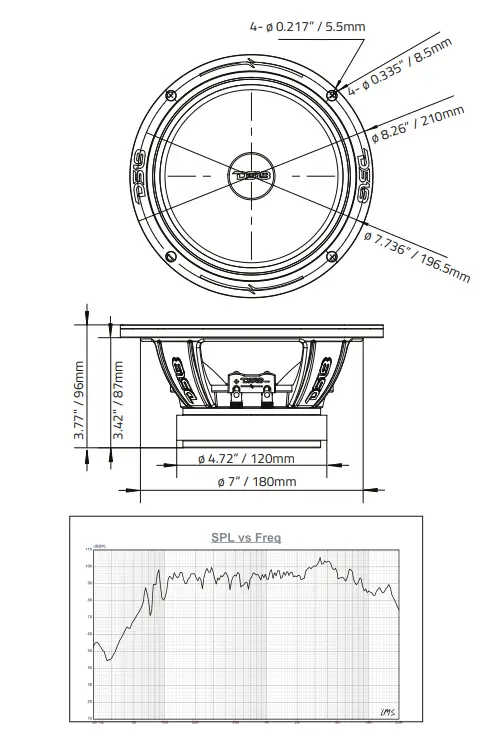

MEASUREMENTS

• Overall Diameter
  8.26”/ 210mm
• Overall Depth
  3.77″ / 96mm
• Front Mount Baffle Cutout
  7″ / 180mm
• Mounting Depth
  3.42″ / 87mm
• Motor Diameter
  4.72” / 120mm
