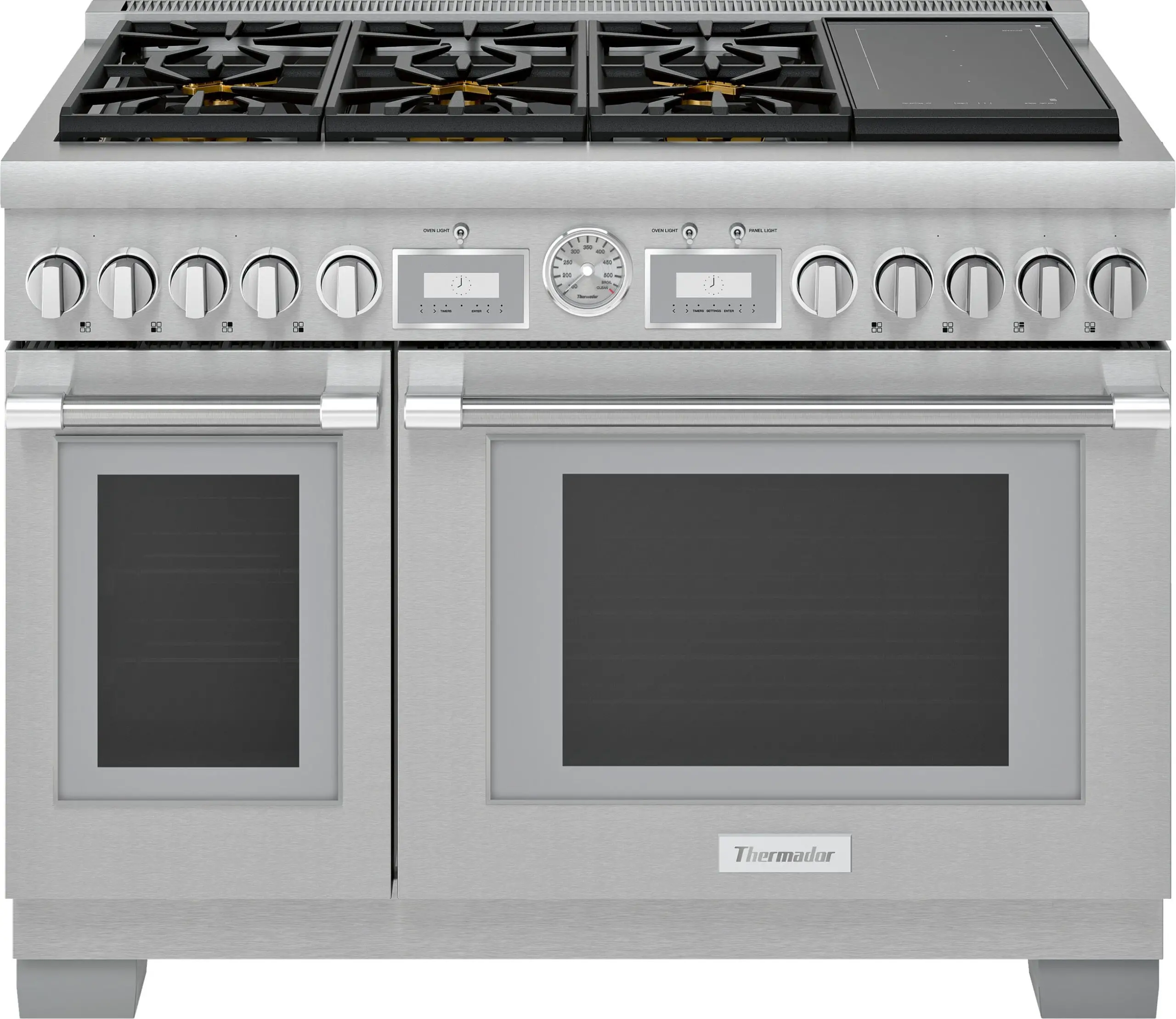

Thermador PRD486WIGU-2 Dual Fuel Professional Range
Parts Description
| Position ID | Part number. | Replaces: | Description |

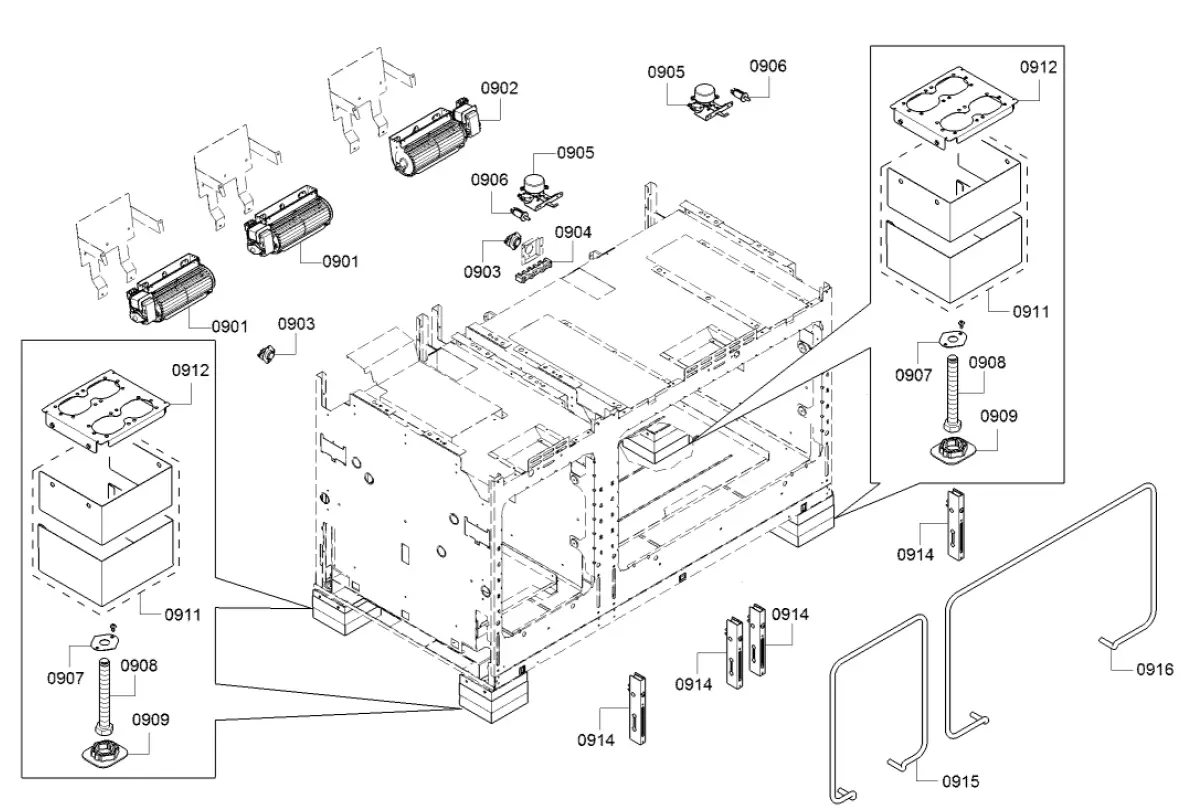

| 0903 | 10011167 | Limiter-temperature | |
| 0904 | 00628372 | Terminal | |
| 0905 | 00651285 | Latch | |
| 0906 | 00618400 | Switch-door | |
| 0907 | 10001186 | Plate | |
| 0908 | 12013593 | Bolt | |
| 0909 | 10001351 | Foot | |
| 0912 | 12028141 | Cover | |
| 0915 | 12028710 | Seal-door | |
| 0916 | 20000145 | Seal-door | |
| 0930 | 00648862 | Cable harness | |
| 8010 | 00466148 | Microfiber E-Cloths | |
| 8011 | 00311945 | Care product | |
| 8012 | 00312007 | Care product | |
| 8013 | 00460770 | Cleaning Cloth | |
| 8014 | 00311896 | Hob detergent | |
| 8015 | 00311897 | Hob detergent | |
| 8016 | 00311898 | Hob detergent | |
| 8017 | 00311899 | Hob detergent | |
| 8018 | 00311900 | Ceramic glass care | |
| 8019 | 00311901 | Ceramic glass care | |
| 8020 | 00311902 | Ceramic glass care | |
| 0914 | 00655554 | Receiver | |
| 8021 | 00311903 | Ceramic glass care | |
| 8022 | 15000432 | Auxiliary tool | |
| 8023 | 00311908 | 00312207 | Degreaser |
| 8024 | 00311946 | Stainless Steel Cleaning Powder |
| 8025 | 00311964 | Care product | |
| 0911 | 10014059 | Cover | |
| 0901 | 10020211 | Fan motor | |
| 0902 | 10020212 | Fan motor | |
| 0999 | 12030965 | Repair-set |

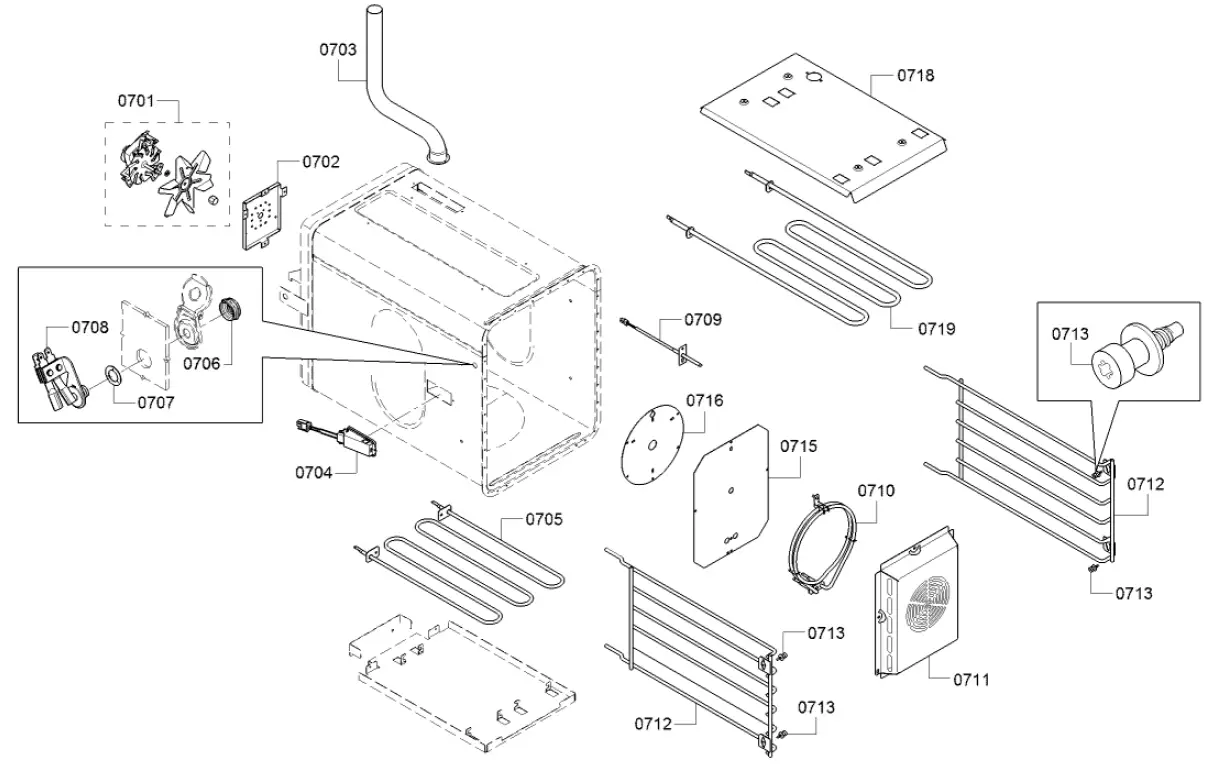

| Position ID | Part number. | Replaces: | Description |
| 0701 | 00497756 | Motor | |
| 0702 | 00489178 | Bracket | |
| 0704 | 10007424 | Lamp | |
| 0705 | 00709469 | Heating element | |
| 0706 | 10010225 | Nut | |
| 0708 | 10008183 | Socket | |
| 0709 | 00627375 | Temperature sensor | |
| 0710 | 00750884 | Heater-ring | |
| 0711 | 12028706 | Cover | |
| 0712 | 11032546 | Support | |
| 0713 | 10011396 | Bolt | |
| 0714 | 12028136 | Adapter | |
| 0715 | 00706442 | Reflector | |
| 0716 | 00655581 | Plate | |
| 0718 | 00708175 | Plate | |
| 0719 | 11033032 | Heating element | |
| 8010 | 00466148 | Microfiber E-Cloths | |
| 8011 | 00311945 | Care product | |
| 8012 | 00312007 | Care product | |
| 8013 | 00460770 | Cleaning Cloth | |
| 8014 | 00311896 | Hob detergent | |
| 8015 | 00311897 | Hob detergent | |
| 8016 | 00311898 | Hob detergent | |
| 8017 | 00311899 | Hob detergent | |
| 8018 | 00311900 | Ceramic glass care | |
| 8019 | 00311901 | Ceramic glass care | |
| 8020 | 00311902 | Ceramic glass care |
| 0703 | 00494383 | Pipe connection piece | |
| 0707 | 10010208 | Washer | |
| 8021 | 00311903 | Ceramic glass care | |
| 8022 | 15000432 | Auxiliary tool | |
| 8023 | 00311908 | 00312207 | Degreaser |
| 8024 | 00311946 | Stainless Steel Cleaning Powder | |
| 8025 | 00311964 | Care product |
| 0703 | 00494383 | Pipe connection piece | |
| 0707 | 10010208 | Washer | |
| 8021 | 00311903 | Ceramic glass care | |
| 8022 | 15000432 | Auxiliary tool | |
| 8023 | 00311908 | 00312207 | Degreaser |
| 8024 | 00311946 | Stainless Steel Cleaning Powder | |
| 8025 | 00311964 | Care product |

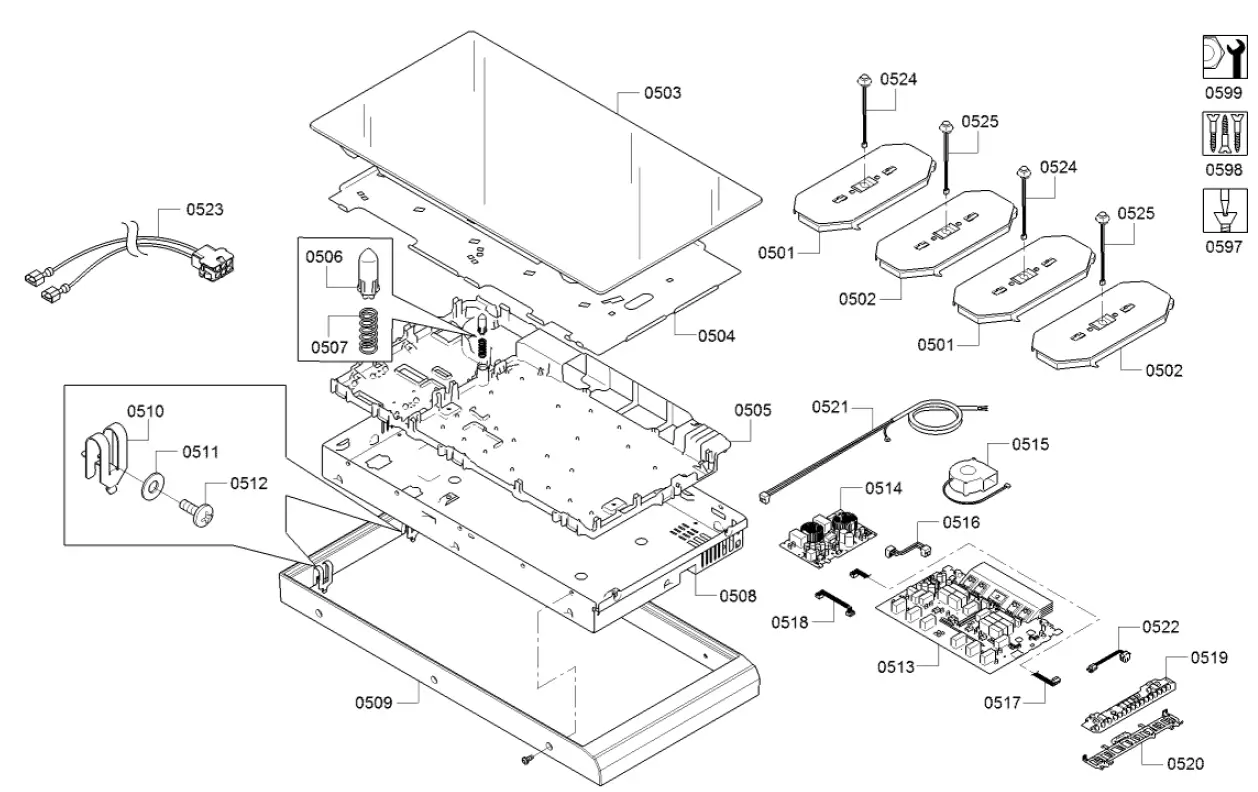

| Position ID | Part number. | Replaces: | Description |
| 0501 | 12009054 | Induction hotplate | |
| 0502 | 12009053 | Induction hotplate | |
| 0503 | 20000389 | Glass ceramic hob top | |
| 0504 | 11033017 | Case-bottom | |
| 0505 | 11033016 | Fixture | |
| 0506 | 00636575 | Cover | |
| 0507 | 00424665 | Spring | |
| 0508 | 20000388 | Frame | |
| 0509 | 12024441 | Frame | |
| 0510 | 00634163 | Clip | |
| 0511 | 10010298 | Washer | |
| 0512 | 10008224 | Screw | |
| 0513 | 11009412 | Power module programmed | |
| 0513 | 11029160 | Power module not programmed | |
| 0514 | 11019163 | 11031383 | PC board |
| 0515 | 12016115 | Fan | |
| 0516 | 10008080 | Connection piece | |
| 0517 | 10011946 | Connection piece | |
| 0518 | 10008081 | Connection piece | |
| 0519 | 11033019 | Operating module | |
| 0520 | 11008964 | Fixture | |
| 0521 | 11033020 | Connection piece | |
| 0522 | 10011947 | Connection piece | |
| 0523 | 12028662 | Cable harness | |
| 0524 | 12009077 | Sensor-NTC | |
| 0525 | 12009068 | Sensor-NTC | |
| 0597 | 00267971 | Sealing strip |
| 0598 | 00617227 | Screw-set | |
| 0598 | 00636637 | Screw | |
| 0598 | 00636638 | Screw | |
| 0599 | 00618647 | Lubricant | |
| 0599 | 00636639 | Screw | |
| 0599 | 00636640 | Screw | |
| 0599 | 00637156 | Screw | |
| 8010 | 00466148 | Microfiber E-Cloths | |
| 8011 | 00311945 | Care product | |
| 8012 | 00312007 | Care product | |
| 8013 | 00460770 | Cleaning Cloth | |
| 8014 | 00311896 | Hob detergent | |
| 8015 | 00311897 | Hob detergent | |
| 8016 | 00311898 | Hob detergent | |
| 8017 | 00311899 | Hob detergent | |
| 8018 | 00311900 | Ceramic glass care | |
| 8019 | 00311901 | Ceramic glass care | |
| 8020 | 00311902 | Ceramic glass care | |
| 8021 | 00311903 | Ceramic glass care | |
| 8022 | 15000432 | Auxiliary tool | |
| 8023 | 00311908 | 00312207 | Degreaser |
| 8024 | 00311946 | Stainless Steel Cleaning Powder | |
| 8025 | 00311964 | Care product |
| Position ID | Part number. | Replaces: | Description |
| 0401 | 11032438 | Gas tap | |
| 0402 | 11032439 | Gas tap | |
| 0403 | 11032863 | Gas tap | |
| 0404 | 11032862 | Gas tap | |
| 0405 | 11033111 | Gas tap | |
| 0406 | 11033112 | Gas tap | |
| 0410 | 00423093 | Valve | |
| 0412 | 10003806 | Valve | |
| 0413 | 10009155 | Valve | |
| 0414 | 00420807 | Screw | |
| 0415 | 20000265 | Manifold | |
| 0416 | 20000140 | Manifold | |
| 0417 | 10009569 | Bracket | |
| 0422 | 10010270 | Pipe connection piece | |
| 0423 | 11033113 | Gas tap | |
| 0424 | 00754658 | Regulator-pressure | |
| 0425 | 10010200 | Adapter | |
| 0426 | 11033031 | Hose-inlet | |
| 0427 | 10011592 | Extension for inlet | |
| 8010 | 00466148 | Microfiber E-Cloths | |
| 8011 | 00311945 | Care product | |
| 8012 | 00312007 | Care product | |
| 8013 | 00460770 | Cleaning Cloth | |
| 8014 | 00311896 | Hob detergent | |
| 8015 | 00311897 | Hob detergent | |
| 8016 | 00311898 | Hob detergent | |
| 8017 | 00311899 | Hob detergent |
| 8018 | 00311900 | Ceramic glass care | |
| 8019 | 00311901 | Ceramic glass care | |
| 8020 | 00311902 | Ceramic glass care | |
| 8021 | 00311903 | Ceramic glass care | |
| 8022 | 15000432 | Auxiliary tool | |
| 8023 | 00311908 | 00312207 | Degreaser |
| 8024 | 00311946 | Stainless Steel Cleaning Powder | |
| 8025 | 00311964 | Care product |
| Position ID | Part number. | Replaces: | Description |
| 0301 | 10004490 | Burner cap | |
| 0302 | 10004489 | Burner cap | |
| 0303 | 10004493 | Burner | |
| 0304 | 10004492 | Burner | |
| 0305 | 10004495 | Venturi nozzle | |
| 0306 | 10006471 | Electrode | |
| 0308 | 10004498 | Burner housing | |
| 0309 | 10004497 | Burner housing | |
| 0311 | 10006793 | Jet | |
| 0312 | 10006797 | Jet | |
| 0313 | 12007259 | Ignition device | |
| 0315 | 00687135 | Tray | |
| 0317 | 10006795 | Jet | |
| 8010 | 00466148 | Microfiber E-Cloths | |
| 8011 | 00311945 | Care product | |
| 8012 | 00312007 | Care product | |
| 8013 | 00460770 | Cleaning Cloth | |
| 8014 | 00311896 | Hob detergent | |
| 8015 | 00311897 | Hob detergent | |
| 8016 | 00311898 | Hob detergent | |
| 8017 | 00311899 | Hob detergent | |
| 8018 | 00311900 | Ceramic glass care | |
| 8019 | 00311901 | Ceramic glass care | |
| 8020 | 00311902 | Ceramic glass care | |
| 0307 | 10008211 | Screw | |
| 0310 | 10004531 | Screw | |
| 0314 | 00701902 | Rail |
| 8021 | 00311903 | Ceramic glass care | |
| 8022 | 15000432 | Auxiliary tool | |
| 8023 | 00311908 | 00312207 | Degreaser |
| 8024 | 00311946 | Stainless Steel Cleaning Powder | |
| 8025 | 00311964 | Care product | |
| 0316 | 12034075 | Heat shield |

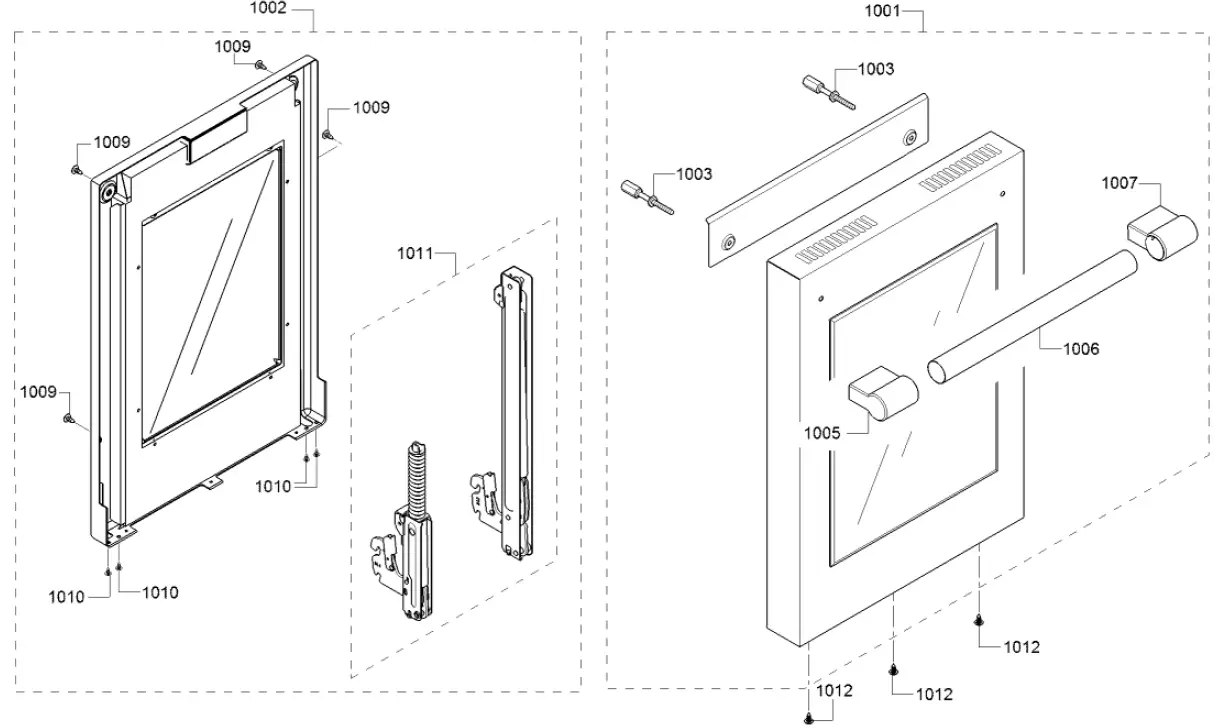

| Position ID | Part number. | Replaces: | Description |
| 1001 | 20000149 | Door-outer | |
| 1002 | 20000150 | Door-inner | |
| 1003 | 10011927 | Bolt | |
| 1005 | 10011397 | Handle-cap shaped | |
| 1006 | 12028711 | Handle-door | |
| 1007 | 10011397 | Handle-cap shaped | |
| 1009 | 10010274 | Screw | |
| 1010 | 10008228 | Screw | |
| 1011 | 11032542 | Hinge | |
| 1012 | 10011608 | Screw | |
| 8010 | 00466148 | Microfiber E-Cloths | |
| 8011 | 00311945 | Care product | |
| 8012 | 00312007 | Care product | |
| 8013 | 00460770 | Cleaning Cloth | |
| 8014 | 00311896 | Hob detergent | |
| 8015 | 00311897 | Hob detergent | |
| 8016 | 00311898 | Hob detergent | |
| 8017 | 00311899 | Hob detergent | |
| 8018 | 00311900 | Ceramic glass care | |
| 8019 | 00311901 | Ceramic glass care | |
| 8020 | 00311902 | Ceramic glass care | |
| 8021 | 00311903 | Ceramic glass care | |
| 8022 | 15000432 | Auxiliary tool | |
| 8023 | 00311908 | 00312207 | Degreaser |
| 8024 | 00311946 | Stainless Steel Cleaning Powder | |
| 8025 | 00311964 | Care product |

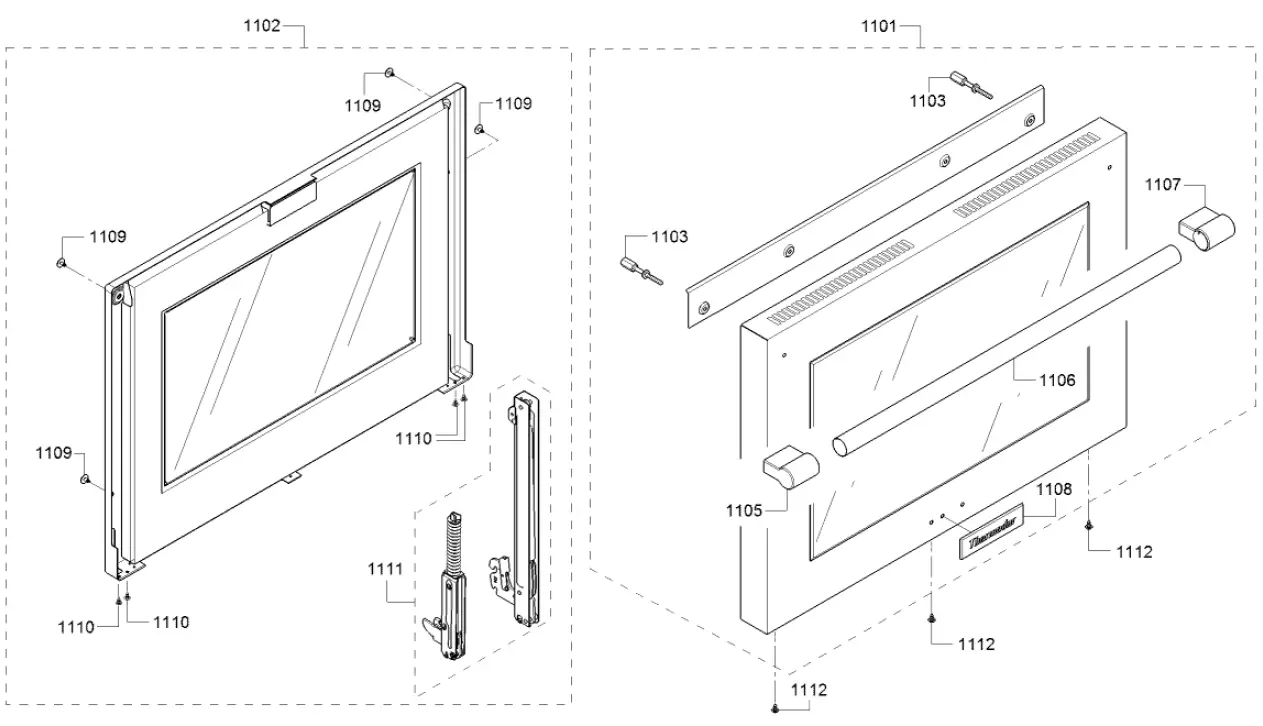

| Position ID | Part number. | Replaces: | Description |
| 1101 | 20000151 | Door-outer | |
| 1102 | 20000152 | Door-inner | |
| 1103 | 10011927 | Bolt | |
| 1105 | 10011397 | Handle-cap shaped | |
| 1106 | 11033033 | Handle-door | |
| 1107 | 10011397 | Handle-cap shaped | |
| 1108 | 10010271 | Plate | |
| 1109 | 10010274 | Screw | |
| 1110 | 10008228 | Screw | |
| 1111 | 11032543 | Hinge | |
| 1112 | 10011608 | Screw | |
| 8010 | 00466148 | Microfiber E-Cloths | |
| 8011 | 00311945 | Care product | |
| 8012 | 00312007 | Care product | |
| 8013 | 00460770 | Cleaning Cloth | |
| 8014 | 00311896 | Hob detergent | |
| 8015 | 00311897 | Hob detergent | |
| 8016 | 00311898 | Hob detergent | |
| 8017 | 00311899 | Hob detergent | |
| 8018 | 00311900 | Ceramic glass care | |
| 8019 | 00311901 | Ceramic glass care | |
| 8020 | 00311902 | Ceramic glass care | |
| 8021 | 00311903 | Ceramic glass care | |
| 8022 | 15000432 | Auxiliary tool | |
| 8023 | 00311908 | 00312207 | Degreaser |
| 8024 | 00311946 | Stainless Steel Cleaning Powder | |
| 8025 | 00311964 | Care product |

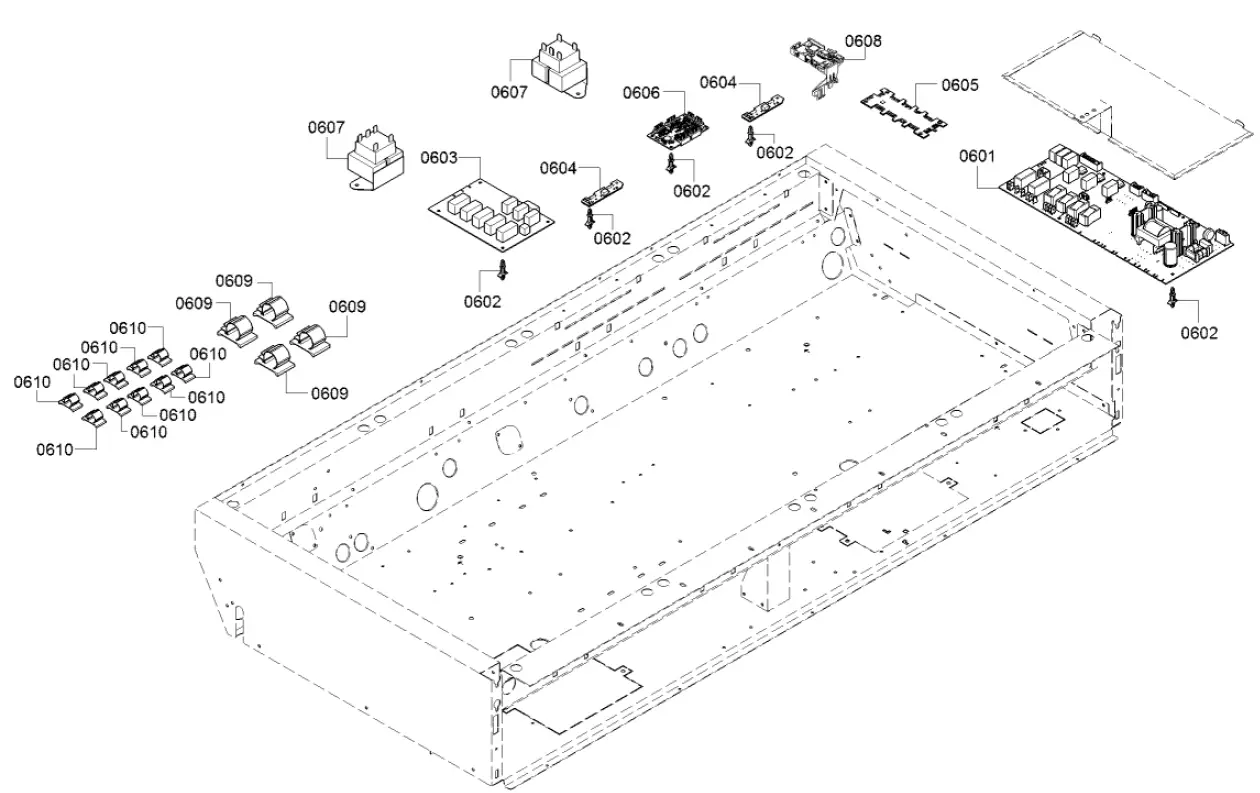

| Position ID | Part number. | Replaces: | Description |
| 0601 | 11032521 | Control module programmed | |
| 0601 | 12025831 | Control module not programmed | |
| 0602 | 00418283 | Support | |
| 0603 | 12024477 | 12034882 | Control module |
| 0604 | 12028138 | Limiter-temperature | |
| 0606 | 10005470 | Control module | |
| 0607 | 00489194 | Transformer | |
| 0609 | 10008933 | Clip | |
| 0610 | 10010202 | Clip | |
| 0611 | 10008207 | Ignition cable | |
| 0612 | 12024415 | Ignition cable | |
| 0613 | 12028088 | Cable harness | |
| 0614 | 12024414 | Cable harness | |
| 0615 | 12026845 | Cable harness | |
| 0616 | 12028077 | Cable harness set | |
| 0617 | 12026925 | Cable harness | |
| 0620 | 12026870 | Cable harness | |
| 0621 | 12028509 | Cable harness | |
| 0622 | 12024436 | Cable harness | |
| 0623 | 11032801 | Cable harness | |
| 0624 | 12028086 | Adapter | |
| 0625 | 12026872 | Cable harness | |
| 0626 | 12028087 | Cable harness | |
| 0627 | 12028082 | Cable harness | |
| 0628 | 12026869 | Cable harness | |
| 0630 | 12026867 | Cable harness | |
| 0635 | 12028664 | Cable harness |
| 0636 | 12028665 | Cable harness | |
| 0637 | 12028666 | Cable harness | |
| 0638 | 12028667 | Cable harness | |
| 8010 | 00466148 | Microfiber E-Cloths | |
| 8011 | 00311945 | Care product | |
| 8012 | 00312007 | Care product | |
| 8013 | 00460770 | Cleaning Cloth | |
| 8014 | 00311896 | Hob detergent | |
| 8015 | 00311897 | Hob detergent | |
| 8016 | 00311898 | Hob detergent | |
| 8017 | 00311899 | Hob detergent | |
| 8018 | 00311900 | Ceramic glass care | |
| 8019 | 00311901 | Ceramic glass care | |
| 8020 | 00311902 | Ceramic glass care | |
| 0605 | 12028663 | Control module | |
| 8021 | 00311903 | Ceramic glass care | |
| 8022 | 15000432 | Auxiliary tool | |
| 8023 | 00311908 | 00312207 | Degreaser |
| 8024 | 00311946 | Stainless Steel Cleaning Powder | |
| 8025 | 00311964 | Care product | |
| 0608 | 12031987 | Connectivity module |

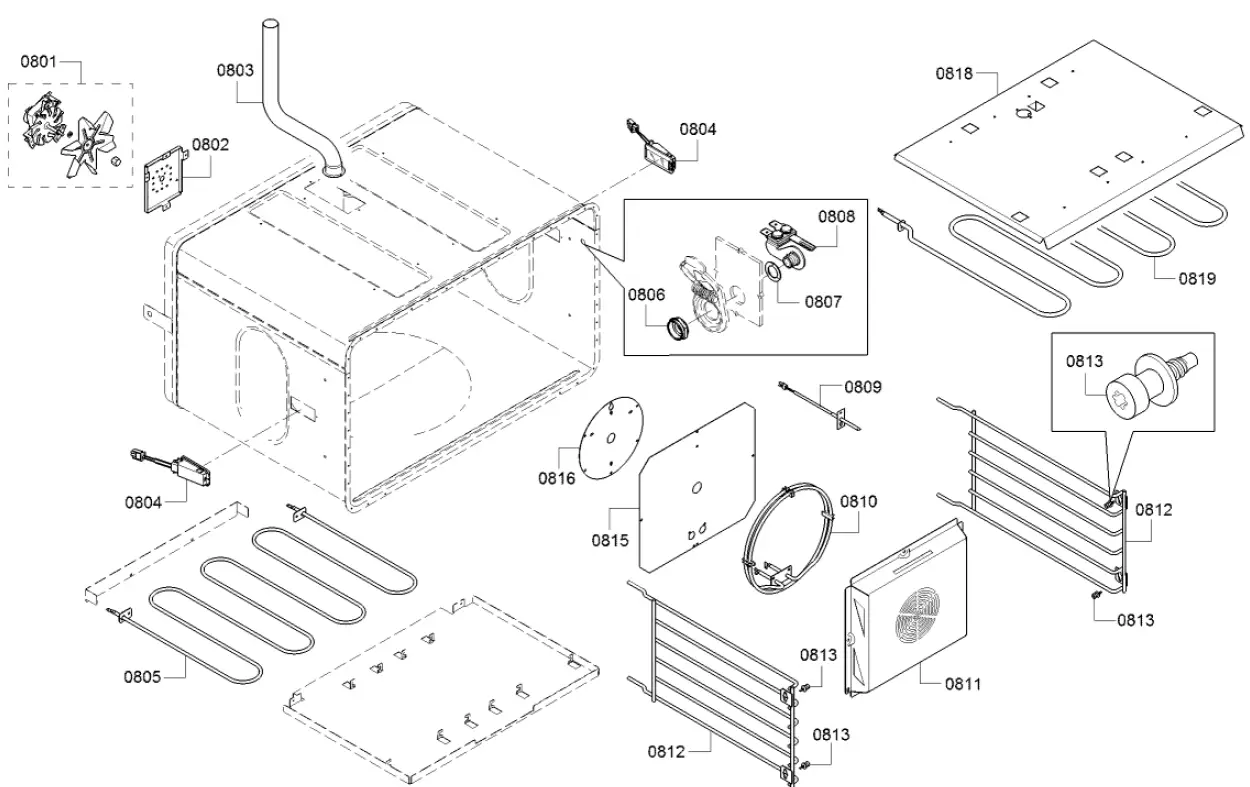

| Position ID | Part number. | Replaces: | Description |
| 0801 | 00497756 | Motor | |
| 0802 | 00489178 | Bracket | |
| 0803 | 00494383 | Pipe connection piece | |
| 0804 | 10007424 | Lamp | |
| 0805 | 00709468 | Heating element | |
| 0806 | 10010225 | Nut | |
| 0808 | 10008183 | Socket | |
| 0809 | 00627375 | Temperature sensor | |
| 0810 | 00640401 | Heating element | |
| 0811 | 20000143 | Cover | |
| 0812 | 11032546 | Support | |
| 0813 | 10011396 | Bolt | |
| 0814 | 12028136 | Adapter | |
| 0815 | 00706444 | Cover | |
| 0816 | 00479238 | Cover | |
| 0818 | 00687604 | Plate | |
| 0819 | 00431908 | Broil Element | |
| 8010 | 00466148 | Microfiber E-Cloths | |
| 8011 | 00311945 | Care product | |
| 8012 | 00312007 | Care product | |
| 8013 | 00460770 | Cleaning Cloth | |
| 8014 | 00311896 | Hob detergent | |
| 8015 | 00311897 | Hob detergent | |
| 8016 | 00311898 | Hob detergent | |
| 8017 | 00311899 | Hob detergent | |
| 8018 | 00311900 | Ceramic glass care | |
| 8019 | 00311901 | Ceramic glass care |
| 8020 | 00311902 | Ceramic glass care | |
| 0807 | 10010208 | Washer | |
| 8021 | 00311903 | Ceramic glass care | |
| 8022 | 15000432 | Auxiliary tool | |
| 8023 | 00311908 | 00312207 | Degreaser |
| 8024 | 00311946 | Stainless Steel Cleaning Powder | |
| 8025 | 00311964 | Care product |

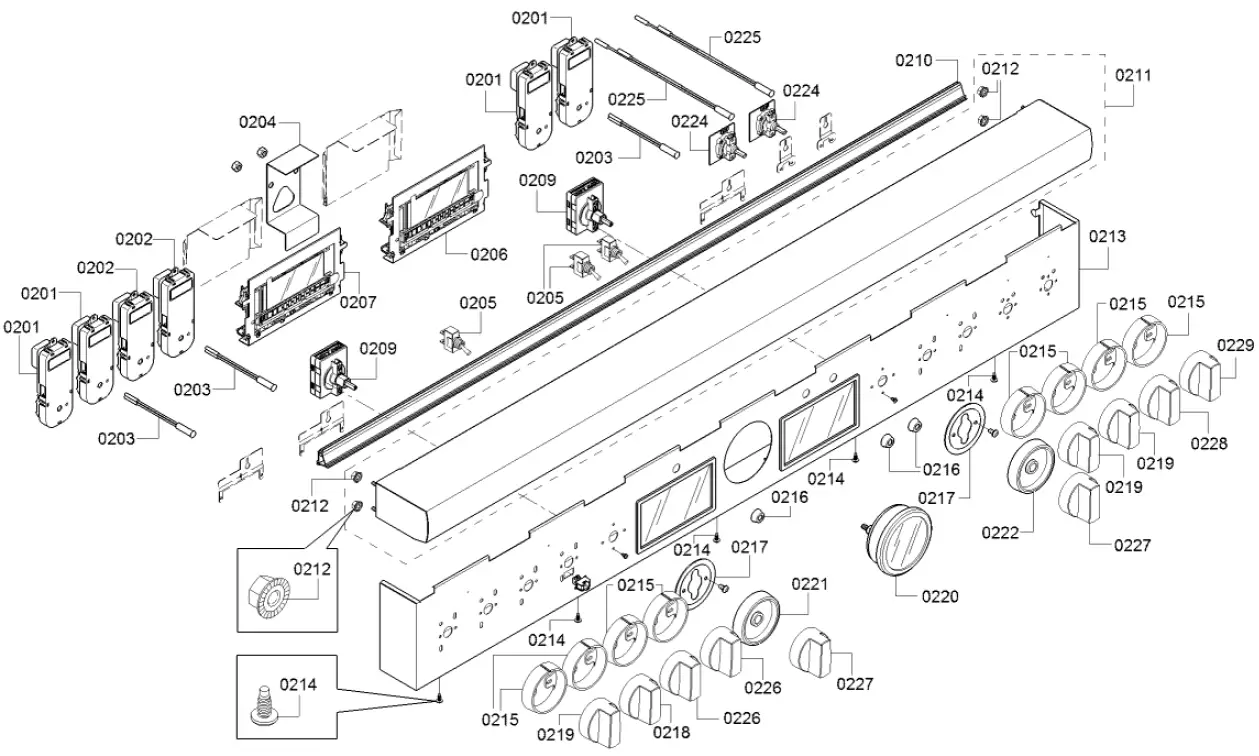

| Position ID | Part number. | Replaces: | Description |
| 0201 | 12024418 | Module-relay | |
| 0202 | 12024417 | Module-relay | |
| 0203 | 00617931 | Display | |
| 0204 | 11032519 | Bracket | |
| 0205 | 00609115 | Switch | |
| 0206 | 11032495 | Display module not programmed | |
| 0207 | 11032497 | Display module not programmed | |
| 0207 | 11032504 | Display module programmed | |
| 0209 | 10010232 | Encoder | |
| 0210 | 11033021 | Light bar | |
| 0211 | 23000468 | Support | |
| 0213 | 20000032 | Panel-facia | |
| 0214 | 10008212 | Screw | |
| 0215 | 10008201 | Ring | |
| 0216 | 00418122 | Ring | |
| 0217 | 10010231 | Encoder | |
| 0218 | 10011598 | Knob | |
| 0219 | 10008199 | Knob | |
| 0221 | 10011596 | Knob | |
| 0222 | 10010228 | Ring | |
| 0224 | 12028661 | Switch-selector | |
| 0225 | 00617886 | Display | |
| 0226 | 10008200 | Knob | |
| 0227 | 10010230 | Knob | |
| 0228 | 10011924 | Knob | |
| 0229 | 10011925 | Knob | |
| 8010 | 00466148 | Microfiber E-Cloths |
| 8011 | 00311945 | Care product | |
| 8012 | 00312007 | Care product | |
| 8013 | 00460770 | Cleaning Cloth | |
| 8014 | 00311896 | Hob detergent | |
| 8015 | 00311897 | Hob detergent | |
| 8016 | 00311898 | Hob detergent | |
| 8017 | 00311899 | Hob detergent | |
| 8018 | 00311900 | Ceramic glass care | |
| 8019 | 00311901 | Ceramic glass care | |
| 8020 | 00311902 | Ceramic glass care | |
| 0206 | 12028849 | Display module programmed | |
| 8021 | 00311903 | Ceramic glass care | |
| 8022 | 15000432 | Auxiliary tool | |
| 8023 | 00311908 | 00312207 | Degreaser |
| 8024 | 00311946 | Stainless Steel Cleaning Powder | |
| 8025 | 00311964 | Care product | |
| 0212 | 00623615 | Nut | |
| 0220 | 12034239 | Display-temperature |

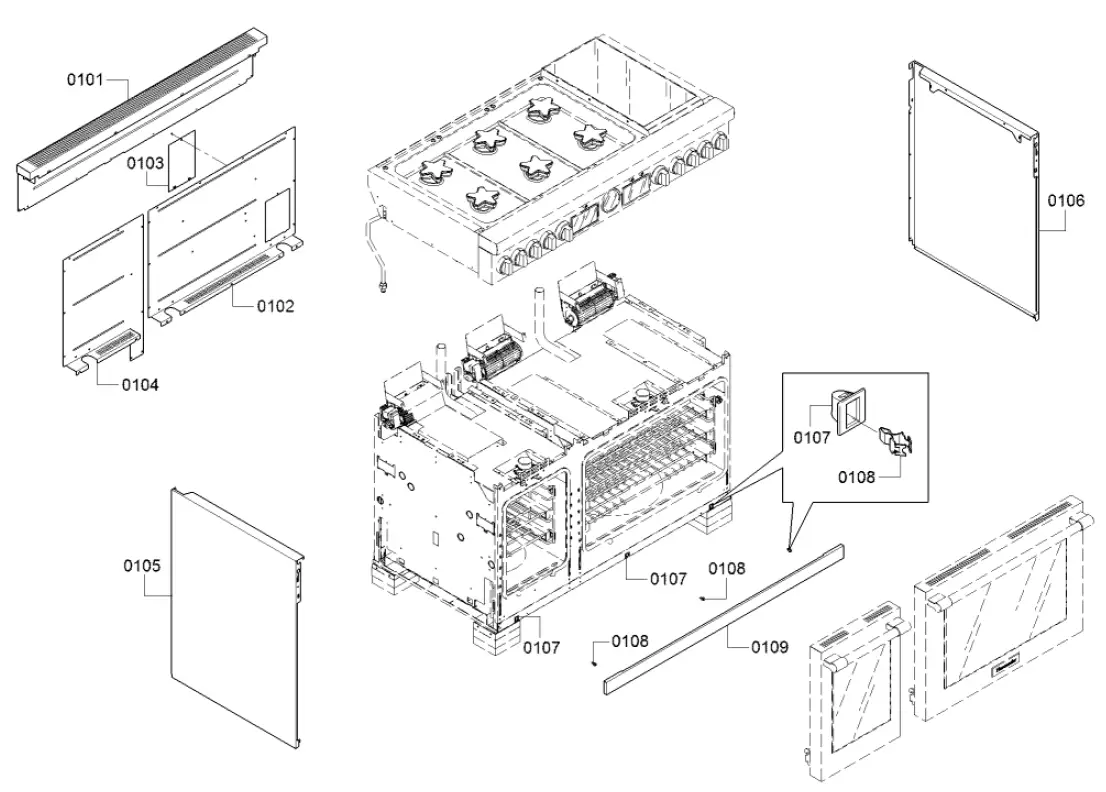

| Position ID | Part number. | Replaces: | Description |
| 0101 | 00146137 | Back wall panel | |
| 0102 | 23000092 | Back panel | |
| 0103 | 00649417 | 00752161 | Cover |
| 0104 | 12028699 | Back panel | |
| 0105 | 20000392 | Panel side | |
| 0106 | 20000393 | Panel side | |
| 0108 | 00619081 | Connection piece | |
| 0109 | 12028700 | Plate | |
| 8010 | 00466148 | Microfiber E-Cloths | |
| 8011 | 00311945 | Care product | |
| 8012 | 00312007 | Care product | |
| 8013 | 00460770 | Cleaning Cloth | |
| 8014 | 00311896 | Hob detergent | |
| 8015 | 00311897 | Hob detergent | |
| 8016 | 00311898 | Hob detergent | |
| 8017 | 00311899 | Hob detergent | |
| 8018 | 00311900 | Ceramic glass care | |
| 8019 | 00311901 | Ceramic glass care | |
| 8020 | 00311902 | Ceramic glass care | |
| 8021 | 00311903 | Ceramic glass care | |
| 8022 | 15000432 | Auxiliary tool | |
| 8023 | 00311908 | 00312207 | Degreaser |
| 8024 | 00311946 | Stainless Steel Cleaning Powder | |
| 8025 | 00311964 | Care product | |
| 0107 | 10013545 | Latch |

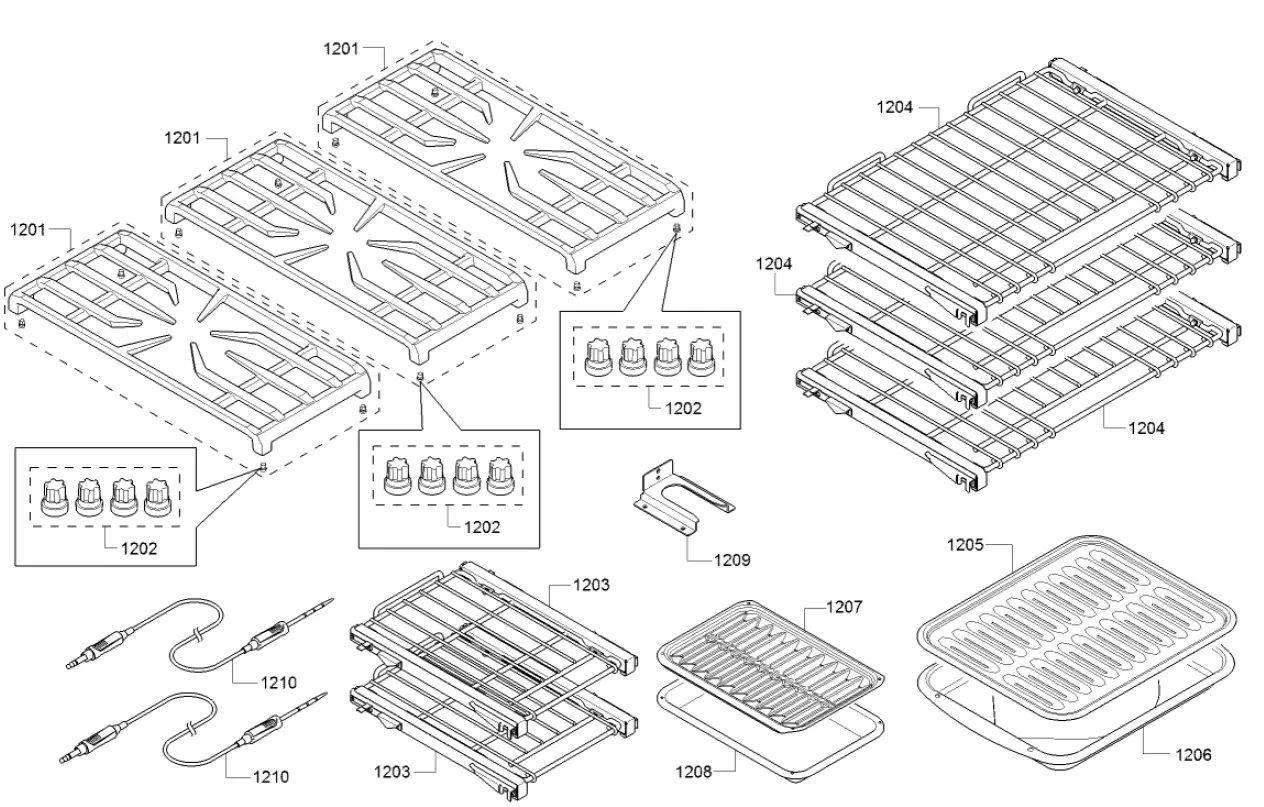

| Position ID | Part number. | Replaces: | Description |
| 1203 | 00774615 | 12” Telescopic Rack | |
| 1204 | 00774617 | 36” Telescopic Rack | |
| 1205 | 11013689 | Grill tray | |
| 1206 | 00484628 | 00449757 | Tray for Broiler Pan |
| 1207 | 00666710 | Broiler Pan | |
| 1208 | 00666709 | Tray for Broiler Pan | |
| 1209 | 10010207 | Bracket | |
| 1210 | 12022200 | Sensor | |
| 8010 | 00466148 | Microfiber E-Cloths | |
| 8011 | 00311945 | Care product | |
| 8012 | 00312007 | Care product | |
| 8013 | 00460770 | Cleaning Cloth | |
| 8014 | 00311896 | Hob detergent | |
| 8015 | 00311897 | Hob detergent | |
| 8016 | 00311898 | Hob detergent | |
| 8017 | 00311899 | Hob detergent | |
| 8018 | 00311900 | Ceramic glass care | |
| 8019 | 00311901 | Ceramic glass care | |
| 8020 | 00311902 | Ceramic glass care | |
| 1201 | 00145306 | Grill grid | |
| 1202 | 00637940 | Grate Foot Replacement Kit | |
| 8021 | 00311903 | Ceramic glass care | |
| 8022 | 15000432 | Auxiliary tool | |
| 8023 | 00311908 | 00312207 | Degreaser |
| 8024 | 00311946 | Stainless Steel Cleaning Powder | |
| 8025 | 00311964 | Care product |
