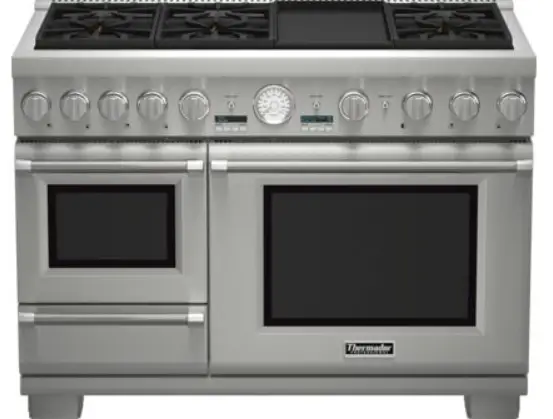

Thermador PRD48WDSGU-4 Dual Fuel Professional Range
Product Information
This product is a set of replacement parts for a kitchen appliance. The parts include door components, control modules, cable harnesses, heating elements, gas taps, and other miscellaneous parts. Each part has a unique ID number and description. The package also includes a hard water test strip.
List of Included Parts

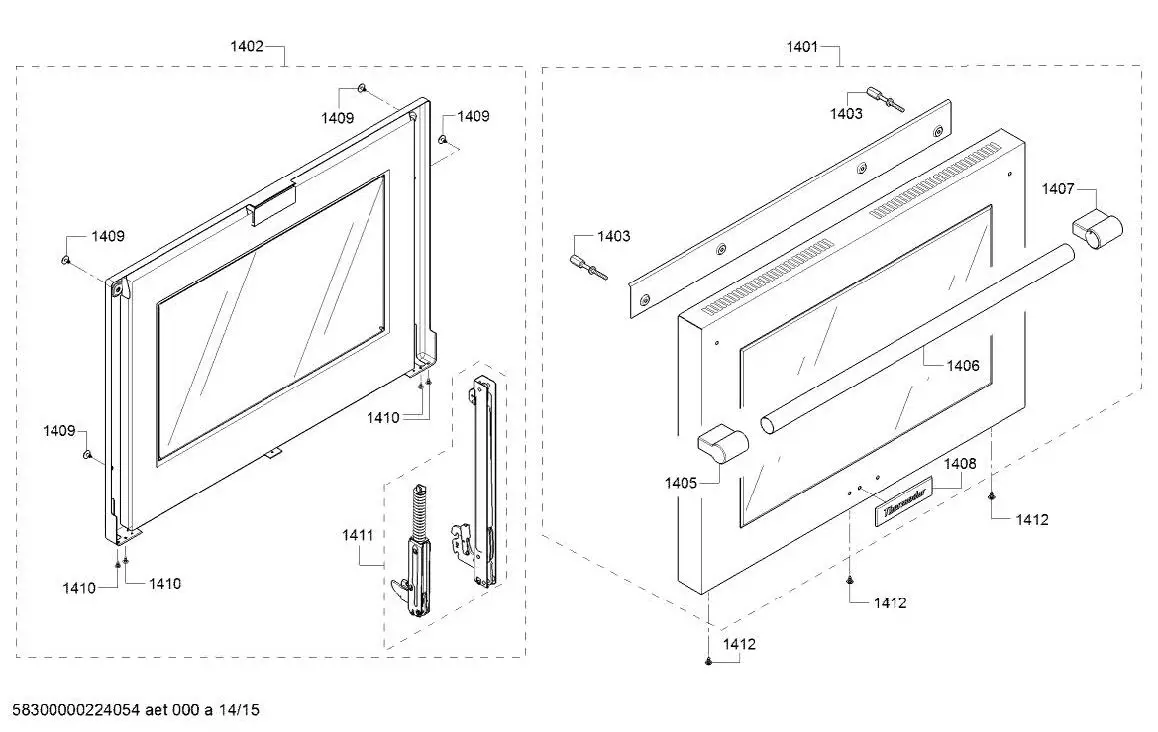

| Position ID number | Description |
|---|---|
| 1401 | Door-outer |
| 1402 | Door-inner |
| 1403 | Bolt |
| 1405 | Handle-cap shaped |
| 1406 | Handle-door |
| 1407 | Handle-cap shaped Plate Screw |
| 1408 | Screw |
| 1409 | Screw Hinge Screw |
| 1410 | Hard Water Test Strip |
| and more… | … |
Product Usage Instructions
When repairing or replacing parts in your kitchen appliance, refer to the user manual for specific instructions on how to safely and properly install each part. Follow these general guidelines:
- Turn off power to the appliance before attempting any repairs or replacements.
- Use caution when handling hot or sharp parts.
- Be sure to install each part in the correct position and orientation.
- Tighten screws and bolts securely, but do not overtighten.
- Test the appliance after making repairs or replacements to ensure proper functionality.
For specific instructions on how to install each part, refer to the user manual and locate the corresponding part ID number and description.
Assembly Instruction
| Position ID | Part number. | Replaces: | Description |
| 1401 | 20000153 | Door-outer | |
| 1402 | 20000154 | Door-inner | |
| 1403 | 10011927 | Bolt | |
| 1405 | 10011397 | Handle-cap shaped | |
| 1406 | 11033707 | Handle-door | |
| 1407 | 10011397 | Handle-cap shaped | |
| 1408 | 10010271 | Plate | |
| 1409 | 10010274 | Screw | |
| 1410 | 10008228 | Screw | |
| 1411 | 11032544 | Hinge | |
| 1412 | 00618862 | Screw | |
| 8130 | 00056317 | Hard Water Test Strip |

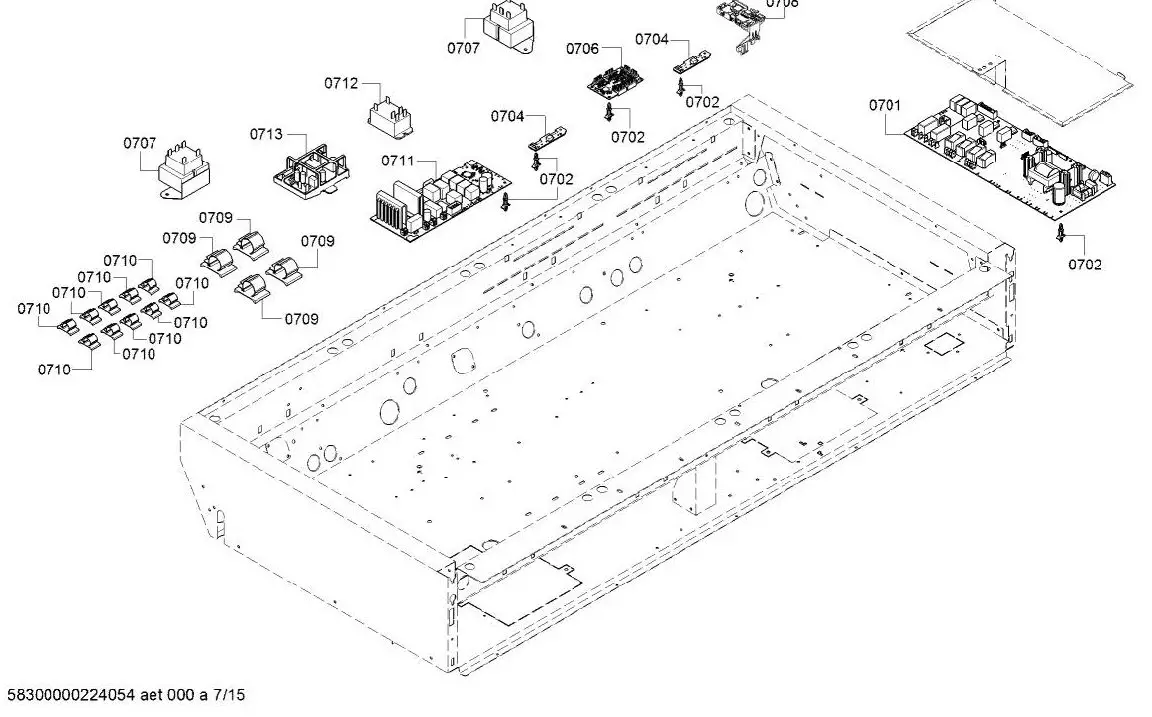

| Position ID | Part number. | Replaces: | Description |
| 0701 | 11032521 | Control module programmed | |
| 0701 | 12032176 | 12034869 | Control module not programmed |
| 0702 | 00418283 | Support | |
| 0704 | 12028138 | Limiter-temperature | |
| 0706 | 10005470 | Control module | |
| 0707 | 00489194 | Transformer | |
| 0708 | 12031987 | Connectivity module | |
| 0709 | 10008933 | Clip | |
| 0710 | 10010202 | Clip | |
| 0711 | 12028887 | Steam module not programmed | |
| 0711 | 12028888 | Steam module programmed | |
| 0712 | 10008169 | Relay | |
| 0713 | 12004817 | PC board assembly-mains power | |
| 0714 | 12024414 | Cable harness | |
| 0715 | 12026845 | Cable harness | |
| 0716 | 12028077 | Cable harness set | |
| 0717 | 12026925 | Cable harness | |
| 0718 | 12024436 | Cable harness | |
| 0720 | 12026870 | Cable harness | |
| 0721 | 12028509 | Cable harness | |
| 0723 | 12026868 | Cable harness | |
| 0724 | 12028086 | Adapter | |
| 0725 | 12028889 | Cable harness | |
| 0727 | 12028082 | Cable harness | |
| 0728 | 10008207 | Ignition cable | |
| 0729 | 12024415 | Ignition cable | |
| 0730 | 12026846 | Cable harness | |
| 0731 | 12028089 | Cable harness | |
| 0740 | 12028069 | Cable harness | |
| 0741 | 00655580 | Cable harness | |
| 0742 | 12028081 | Adapter | |
| 0743 | 12012945 | Adapter | |
| 0744 | 12028136 | Adapter | |
| 8130 | 00056317 | Hard Water Test Strip |

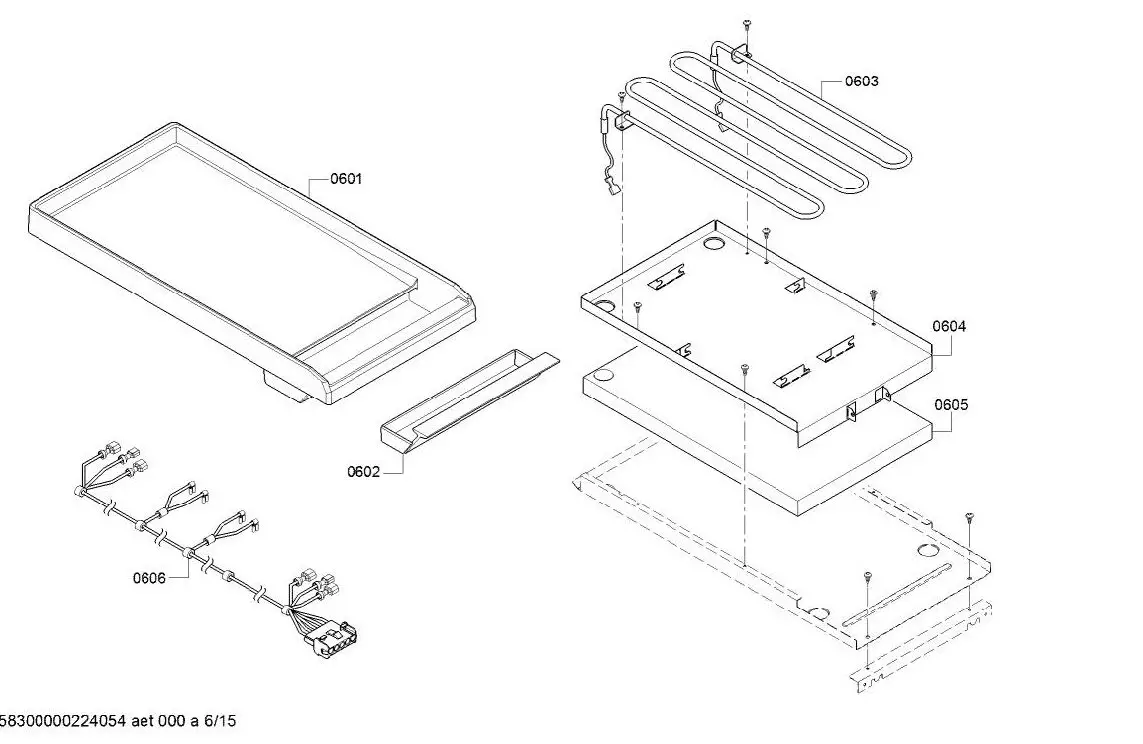

| Position ID | Part number. | Replaces: | Description |
| 0601 | 00778241 | Griddle | |
| 0602 | 12024437 | Tray | |
| 0603 | 12028074 | Heating element | |
| 0604 | 12024439 | Retaining plate | |
| 0605 | 12024438 | Insulating part | |
| 0606 | 12028085 | Cable harness | |
| 8130 | 00056317 | Hard Water Test Strip |

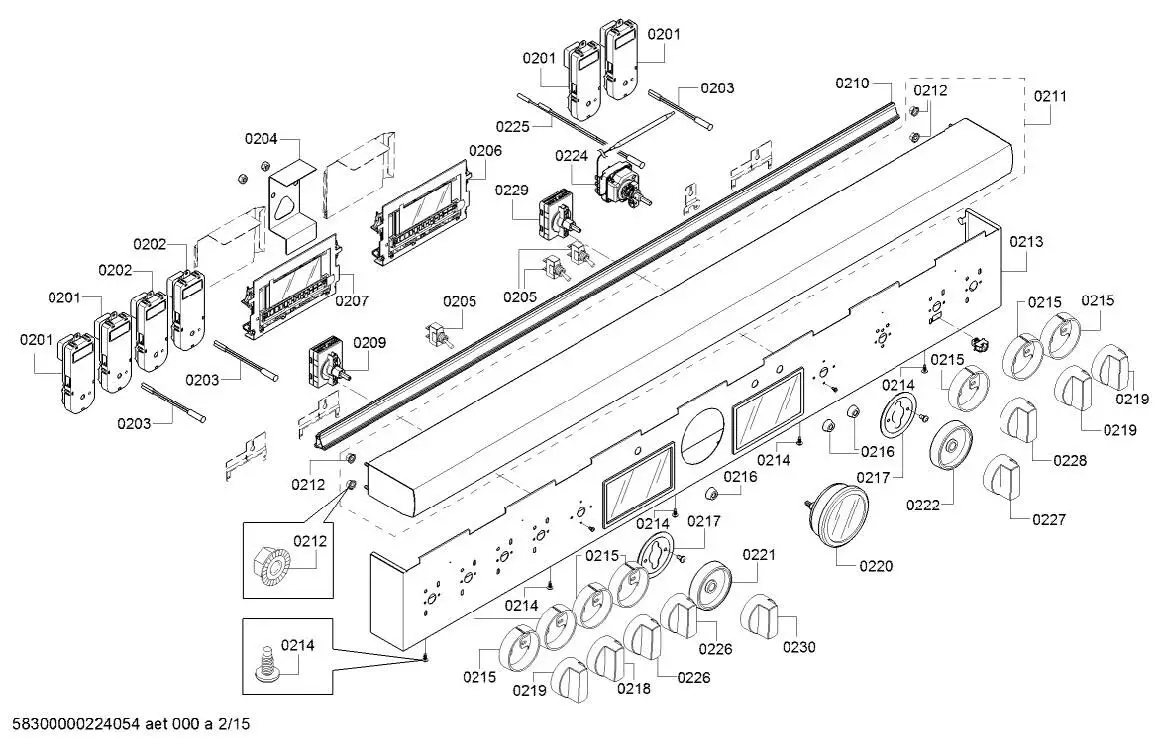

| Position ID | Part number. | Replaces: | Description |
| 0201 | 12024418 | Module-relay | |
| 0202 | 12024417 | Module-relay | |
| 0203 | 00617931 | Display | |
| 0204 | 11032519 | Bracket | |
| 0205 | 00609115 | Switch | |
| 0206 | 11032495 | Display module not programmed | |
| 0206 | 12028857 | Display module programmed | |
| 0207 | 11032497 | Display module not programmed | |
| 0207 | 11032506 | Display module programmed | |
| 0209 | 12028076 | Encoder | |
| 0210 | 11033021 | Light bar | |
| 0211 | 23000468 | Support | |
| 0212 | 00623615 | Nut | |
| 0213 | 20000034 | Panel-facia | |
| 0214 | 10008212 | Screw | |
| 0215 | 10008201 | Ring | |
| 0216 | 00418122 | Ring | |
| 0217 | 10010231 | Encoder | |
| 0218 | 10011598 | Knob | |
| 0219 | 10008199 | Knob | |
| 0221 | 10011597 | Knob | |
| 0222 | 10010228 | Ring | |
| 0224 | 10000773 | Regulator-temperature | |
| 0225 | 00617886 | Display | |
| 0226 | 10008200 | Knob | |
| 0227 | 10010230 | Knob | |
| 0228 | 10009568 | Knob | |
| 0229 | 10010232 | Encoder | |
| 0230 | 10011595 | Knob-temperature | |
| 0220 | 12034239 | Display-temperature | |
| 8130 | 00056317 | Hard Water Test Strip |

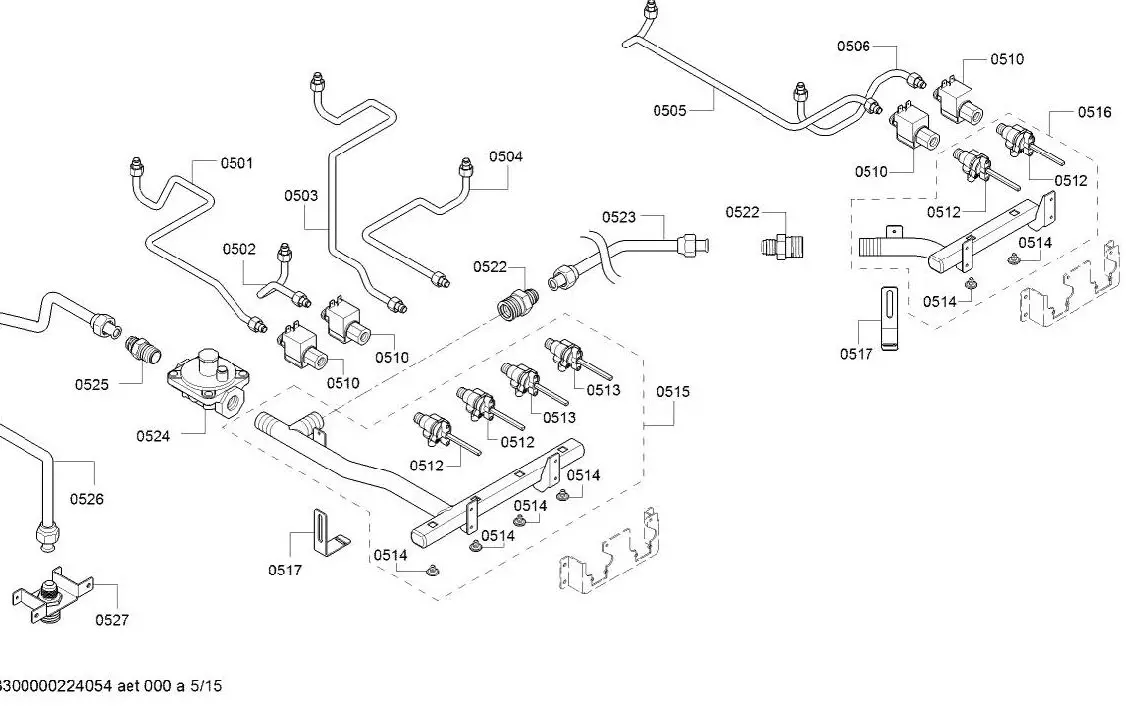

| Position ID | Part number. | Replaces: | Description |
| 0501 | 11032438 | Gas tap | |
| 0502 | 11032439 | Gas tap | |
| 0503 | 11032863 | Gas tap | |
| 0504 | 11032862 | Gas tap | |
| 0505 | 11032440 | Gas tap | |
| 0506 | 11032441 | Gas tap | |
| 0510 | 00423093 | Valve | |
| 0512 | 10003806 | Valve | |
| 0513 | 10009155 | Valve | |
| 0514 | 00420807 | Screw | |
| 0515 | 20000265 | Manifold | |
| 0516 | 20000140 | Manifold | |
| 0517 | 10009569 | Bracket | |
| 0522 | 10010270 | Pipe connection piece | |
| 0523 | 11033022 | Tub complete | |
| 0524 | 00754658 | Regulator-pressure | |
| 0525 | 10010200 | Adapter | |
| 0526 | 11033031 | Hose-inlet | |
| 0527 | 10011592 | Extension for inlet | |
| 8130 | 00056317 | Hard Water Test Strip |

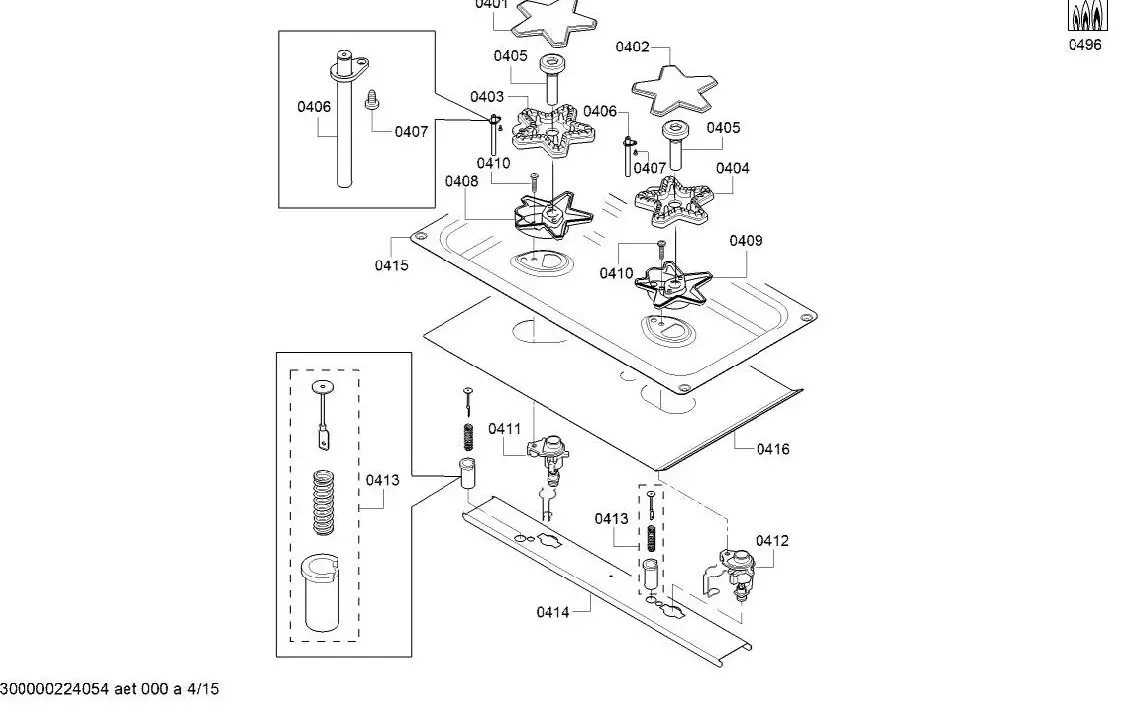

| Position ID | Part number. | Replaces: | Description |
| 0401 | 10004490 | Burner cap | |
| 0402 | 10004489 | Burner cap | |
| 0403 | 10004493 | Burner | |
| 0404 | 10004492 | Burner | |
| 0405 | 10004495 | Venturi nozzle | |
| 0406 | 10006471 | Electrode | |
| 0407 | 10008211 | Screw | |
| 0408 | 10004498 | Burner housing | |
| 0409 | 10004497 | Burner housing | |
| 0410 | 10004531 | Screw | |
| 0411 | 10006793 | Jet | |
| 0412 | 10006797 | Jet | |
| 0413 | 12007259 | Ignition device | |
| 0414 | 00701902 | Rail | |
| 0415 | 11013687 | Hob top | |
| 0416 | 10008221 | Heat shield | |
| 8130 | 00056317 | Hard Water Test Strip |
| Position ID | Part number. | Replaces: | Description |
| 1201 | 11032088 | Fan motor | |
| 1202 | 11032087 | Fan motor | |
| 1203 | 10011167 | Limiter-temperature | |
| 1204 | 00628372 | Terminal | |
| 1205 | 00651285 | Latch | |
| 1206 | 00618400 | Switch-door | |
| 1207 | 10001186 | Plate | |
| 1208 | 12013593 | Bolt | |
| 1209 | 10001351 | Foot | |
| 1210 | 12032338 | Cover | |
| 1211 | 12032339 | Cover | |
| 1212 | 12028141 | Cover | |
| 1214 | 00655554 | Receiver | |
| 1215 | 00623545 | Receiver | |
| 1216 | 00645704 | Seal-door | |
| 1217 | 12028892 | Seal | |
| 1218 | 20000144 | Seal-door | |
| 1230 | 00648862 | Cable harness | |
| 8130 | 00056317 | Hard Water Test Strip |

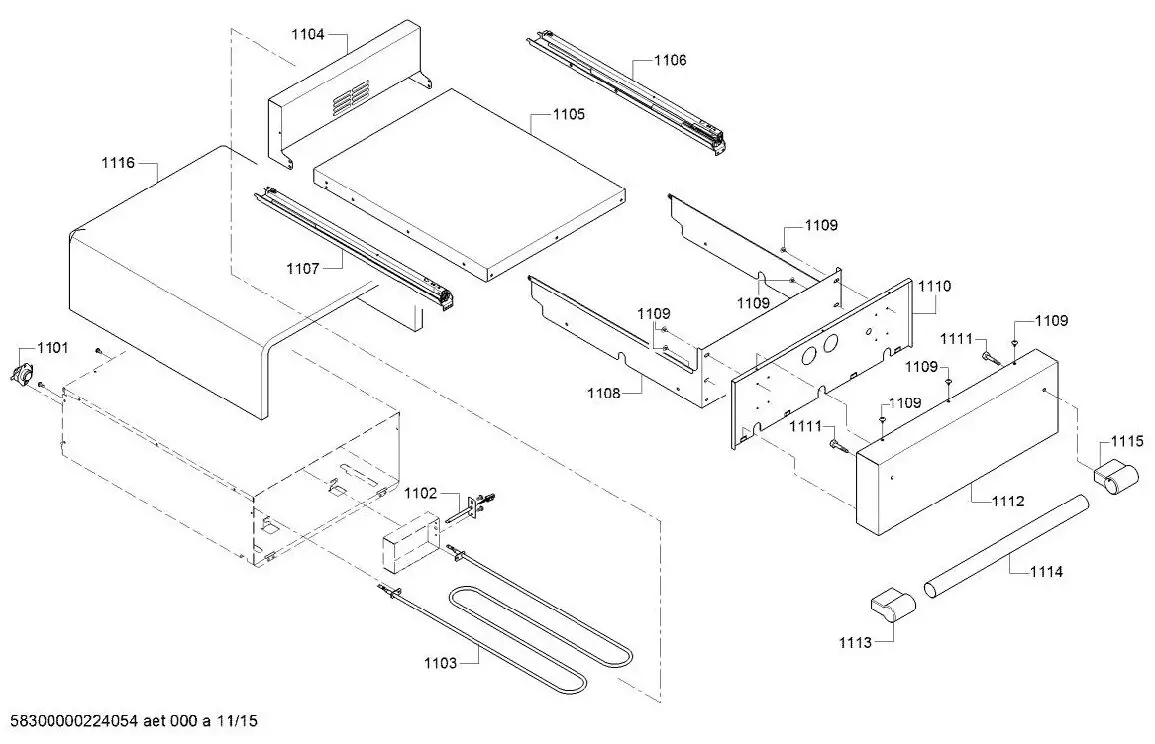

| Position ID | Part number. | Replaces: | Description |
| 1101 | 10011167 | Limiter-temperature | |
| 1102 | 00655613 | Temperature sensor | |
| 1103 | 11033217 | Heating element | |
| 1104 | 11033259 | Frame | |
| 1105 | 11033905 | Base | |
| 1106 | 00709841 | Slide | |
| 1107 | 00658253 | Slide | |
| 1108 | 11035739 | Frame | |
| 1109 | 10008224 | Screw | |
| 1110 | 11033219 | Retaining plate | |
| 1111 | 10010275 | Screw | |
| 1112 | 10012025 | Panel-facia | |
| 1113 | 10011397 | Handle-cap shaped | |
| 1114 | 12028890 | Handle-door | |
| 1115 | 10011397 | Handle-cap shaped | |
| 1116 | 12028891 | Insulating part | |
| 8130 | 00056317 | Hard Water Test Strip |

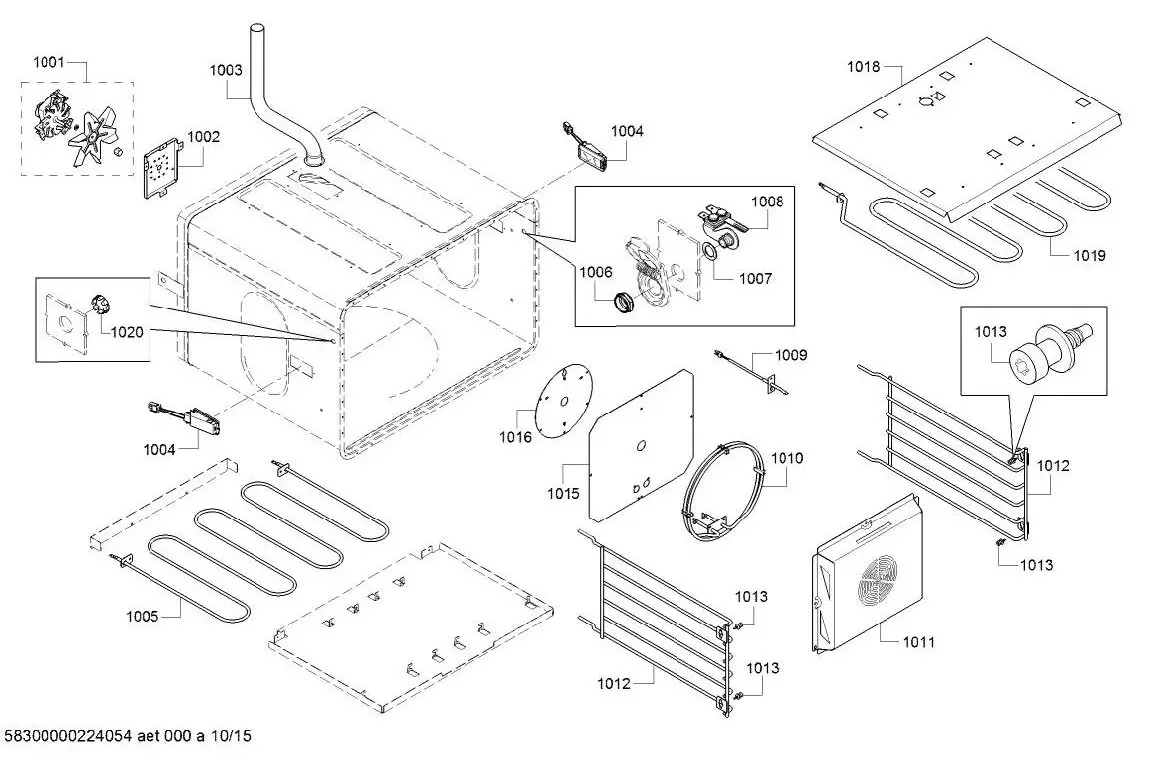

| Position ID | Part number. | Replaces: | Description |
| 1001 | 00497756 | Motor | |
| 1002 | 00489178 | Bracket | |
| 1003 | 00494383 | Pipe connection piece | |
| 1004 | 10007424 | Lamp | |
| 1005 | 00709468 | Heating element | |
| 1006 | 10010225 | Nut | |
| 1007 | 00605039 | Washer | |
| 1008 | 10008183 | Socket | |
| 1009 | 00627375 | Temperature sensor | |
| 1010 | 00640401 | Heating element | |
| 1011 | 20000143 | Cover | |
| 1012 | 20000159 | Guide | |
| 1013 | 10011396 | Bolt | |
| 1015 | 00706444 | Cover | |
| 1016 | 00479238 | Cover | |
| 1018 | 00774121 | Deflector | |
| 1019 | 12028075 | Heating element | |
| 8130 | 00056317 | Hard Water Test Strip |

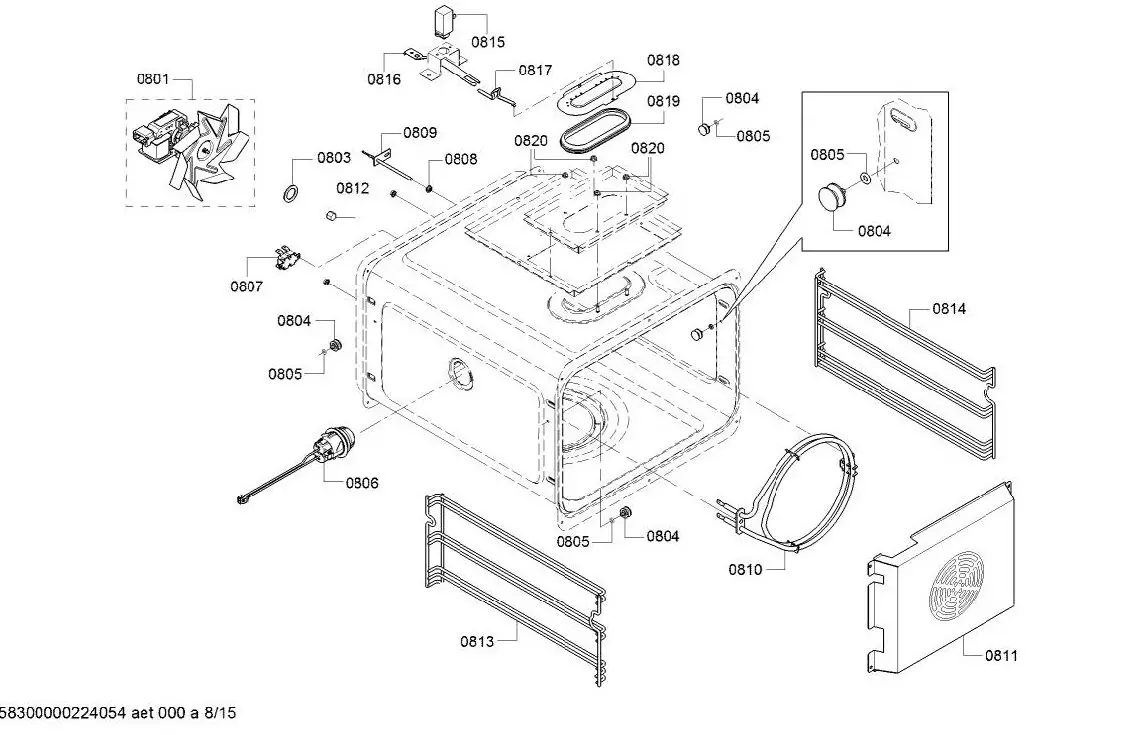

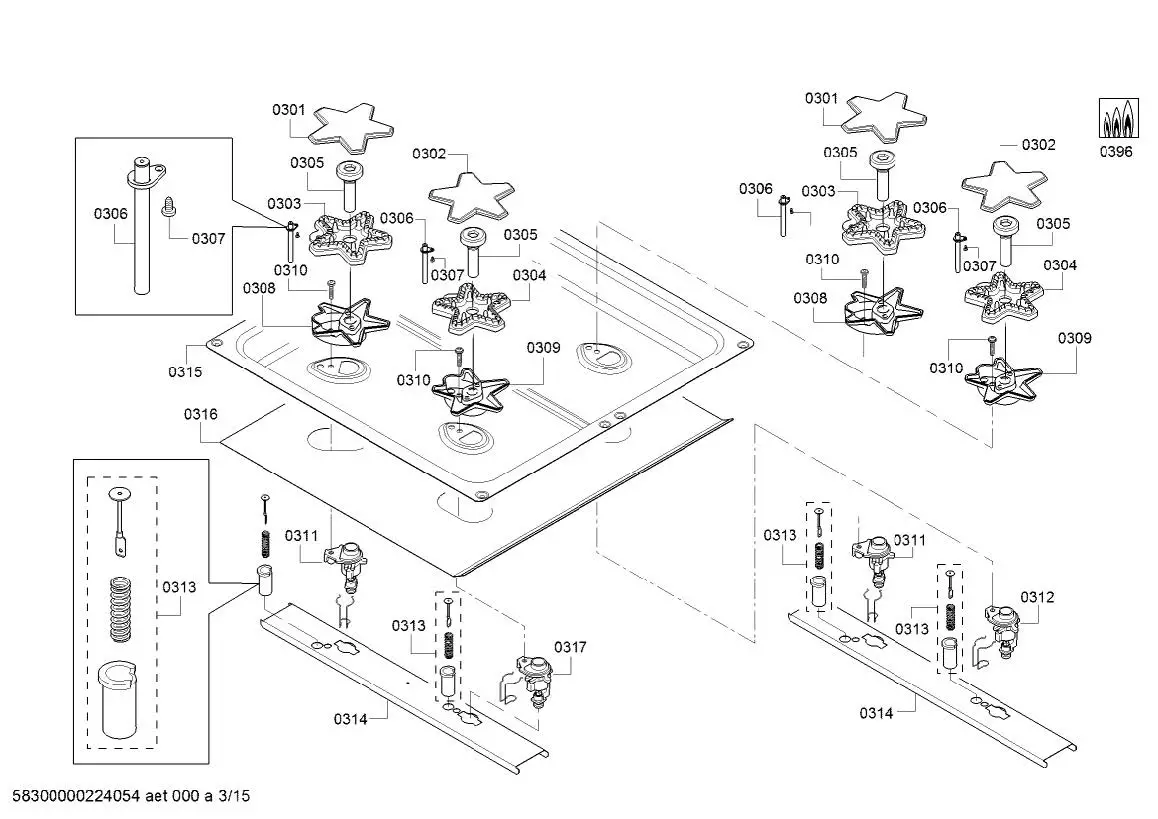

| Position ID | Part number. | Replaces: | Description |
| 0801 | 12022204 | Fan | |
| 0803 | 00655834 | Seal | |
| 0804 | 00623923 | Bolt | |
| 0805 | 00655835 | Seal | |
| 0806 | 00655759 | Lamp | |
| 0807 | 00429173 | Limiter-temperature | |
| 0808 | 00623543 | Seal | |
| 0809 | 00608933 | Temperature sensor | |
| 0810 | 00750884 | Heater-ring | |
| 0811 | 00706789 | Cover | |
| 0812 | 10012022 | Nut | |
| 0813 | 00741834 | Grille | |
| 0814 | 00741833 | Grille | |
| 0815 | 00614466 | Drive | |
| 0816 | 00655612 | Spring | |
| 0817 | 00623606 | Clip | |
| 0818 | 00659285 | Flap | |
| 0819 | 00623544 | Seal | |
| 0820 | 00623615 | Nut | |
| 8130 | 00056317 | Hard Water Test Strip |
| Position ID | Part number. | Replaces: | Description |
| 0301 | 10004490 | Burner cap | |
| 0302 | 10004489 | Burner cap | |
| 0303 | 10004493 | Burner | |
| 0304 | 10004492 | Burner | |
| 0305 | 10004495 | Venturi nozzle | |
| 0306 | 10006471 | Electrode | |
| 0307 | 10008211 | Screw | |
| 0308 | 10004498 | Burner housing | |
| 0309 | 10004497 | Burner housing | |
| 0310 | 10004531 | Screw | |
| 0311 | 10006793 | Jet | |
| 0312 | 10006797 | Jet | |
| 0313 | 12007259 | Ignition device | |
| 0314 | 00701902 | Rail | |
| 0315 | 00687075 | Tray | |
| 0316 | 12024446 | Heat shield | |
| 0317 | 10006795 | Jet | |
| 8130 | 00056317 | Hard Water Test Strip |

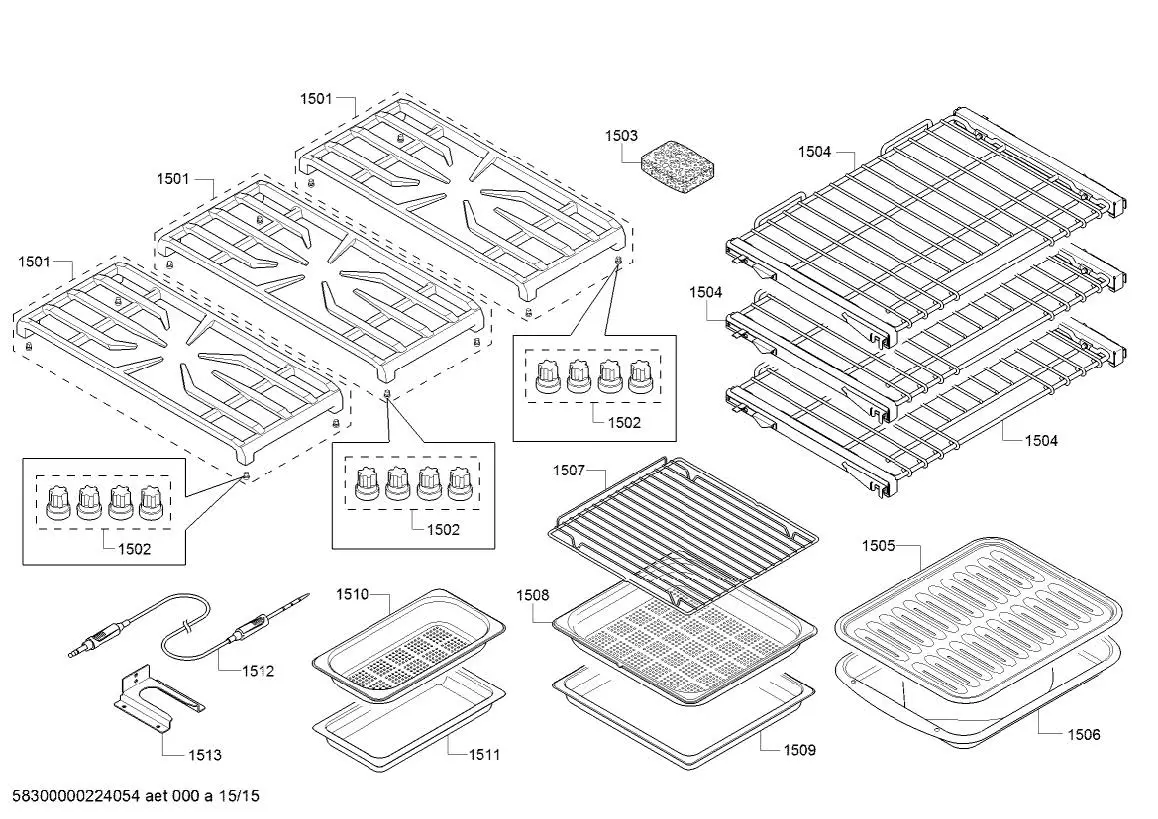

| Position ID | Part number. | Replaces: | Description |
| 1501 | 00145306 | Grill grid | |
| 1502 | 00637940 | Grate Foot Replacement Kit | |
| 1503 | 00623653 | Sponge for Steam Convection Ovens | |
| 1504 | 00774616 | 30” Telescopic Rack | |
| 1505 | 11013689 | Grill tray | |
| 1506 | 00484628 | 00449757 | Tray for Broiler Pan |
| 1507 | 11006670 | Wire Rack for Steam Ovens | |
| 1508 | 11014476 | Cooking dish GN | |
| 1509 | 00664949 | Unperforated Steam Oven Baking Tray (Large) | |
| 1510 | 00577553 | Perforated Steam Oven Pan (Small) | |
| 1511 | 00577552 | Unperforated Steam Oven Pan (Small) | |
| 1512 | 12022200 | Sensor | |
| 1513 | 10010207 | Bracket | |
| 8130 | 00056317 | Hard Water Test Strip |

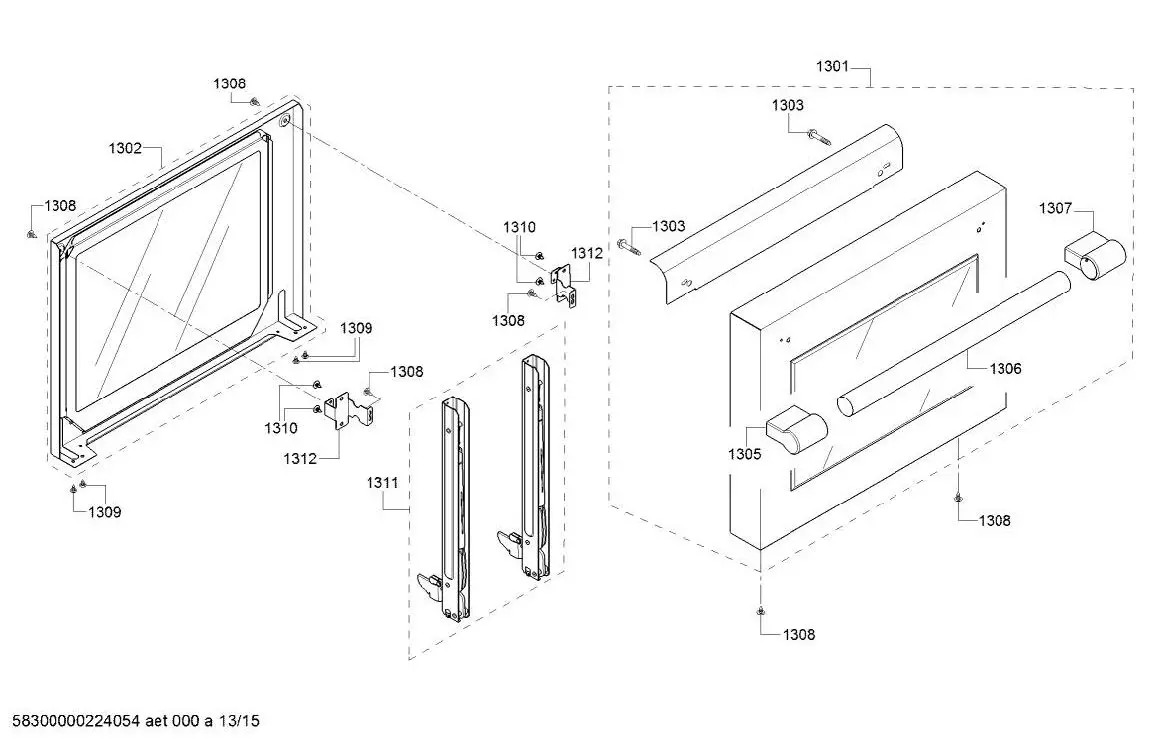

| Position ID | Part number. | Replaces: | Description |
| 1301 | 20000147 | Door | |
| 1302 | 20000637 | Glass plate door | |
| 1303 | 10011927 | Bolt | |
| 1305 | 10011397 | Handle-cap shaped | |
| 1306 | 12028890 | Handle-door | |
| 1307 | 10011397 | Handle-cap shaped | |
| 1308 | 00618862 | Screw | |
| 1309 | 10008228 | Screw | |
| 1310 | 10011608 | Screw | |
| 1311 | 11032540 | Hinge | |
| 1312 | 11033378 | Retaining plate | |
| 8130 | 00056317 | Hard Water Test Strip |

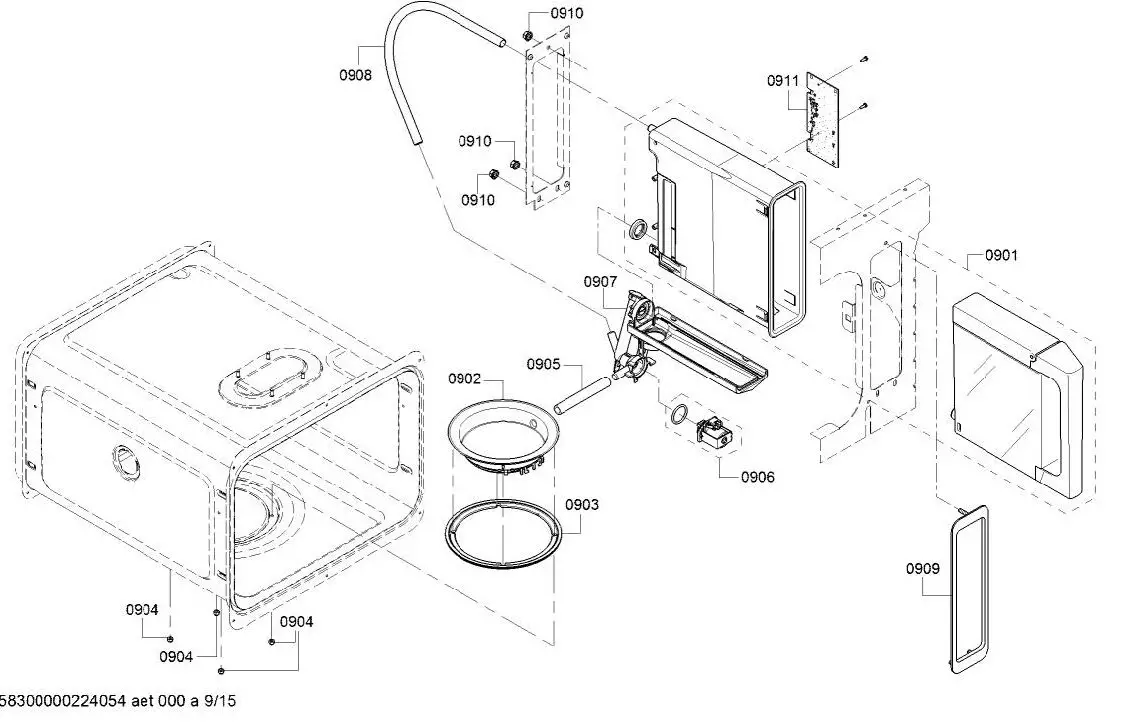

| Position ID | Part number. | Replaces: | Description |
| 0901 | 12028083 | Water tank | |
| 0902 | 12004447 | Salver | |
| 0903 | 00643179 | Sealing | |
| 0904 | 10012026 | Nut | |
| 0905 | 10012023 | Hose-inlet | |
| 0906 | 00608739 | Valve-magnet | |
| 0907 | 00644010 | Holder | |
| 0908 | 10012024 | Hose-vent | |
| 0909 | 00745311 | Trimplate | |
| 0910 | 00614780 | Nut | |
| 0911 | 00647003 | PC board | |
| 8130 | 00056317 | Hard Water Test Strip |
| Position ID | Part number. | Replaces: | Description |
| 0101 | 00146137 | Back wall panel | |
| 0102 | 23000093 | Back panel | |
| 0103 | 00649417 | 00752161 | Cover |
| 0104 | 11033216 | Panel | |
| 0105 | 20000392 | Panel side | |
| 0106 | 00146151 | Panel | |
| 0107 | 10013545 | Latch | |
| 0108 | 00619081 | Connection piece | |
| 0109 | 12028700 | Plate | |
| 8130 | 00056317 | Hard Water Test Strip |
