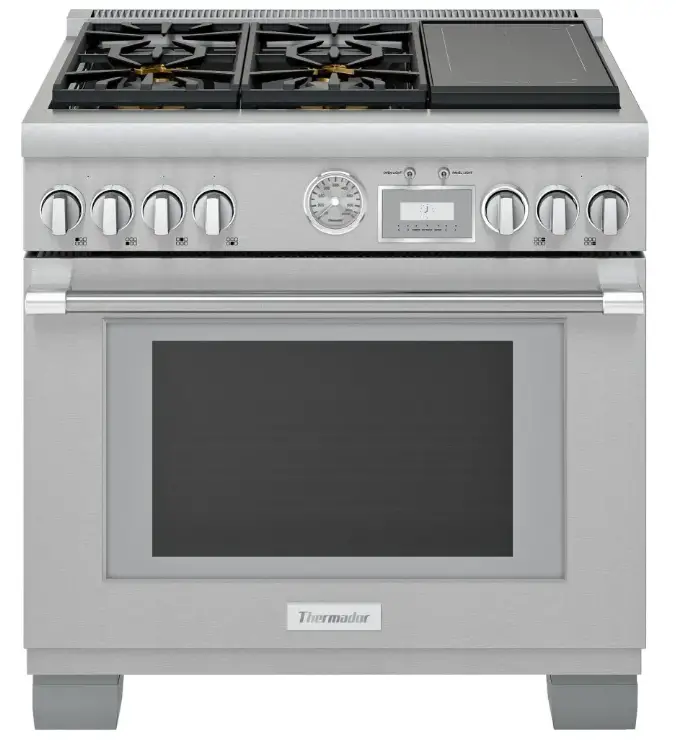

Thermador PRD364WIGU-4 Dual Fuel Professional Range
OPERATING INSTRUCTION

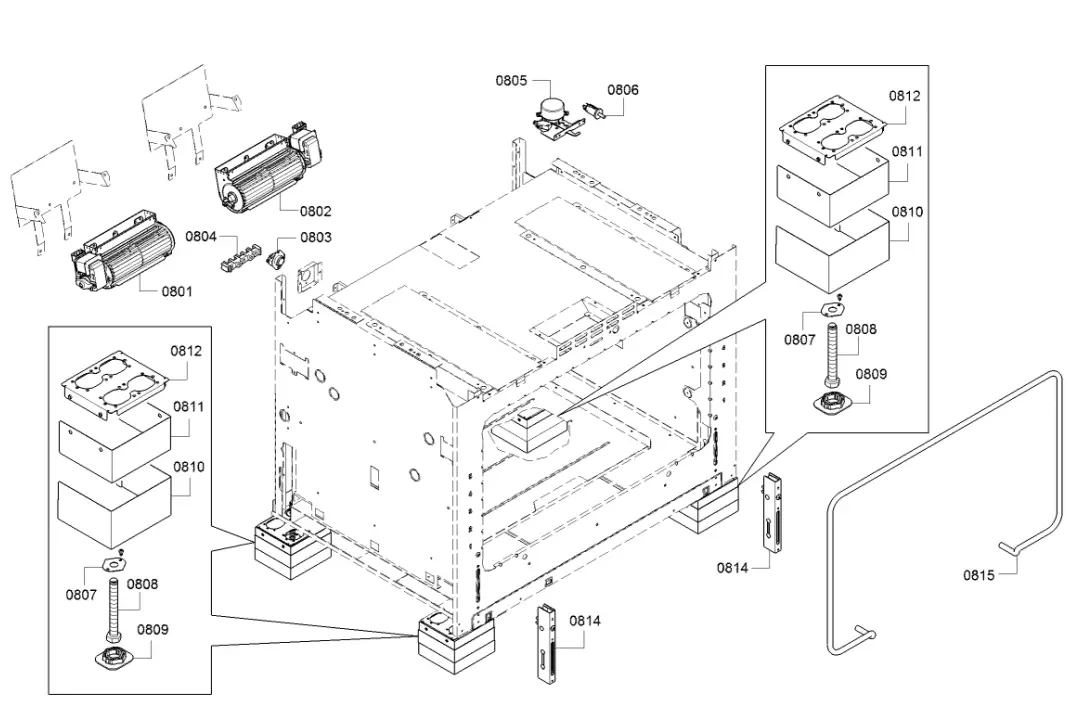

| Position ID | Part number. | Replaces: | Description |
| 0803 | 10011167 | Limiter-temperature | |
| 0804 | 00628372 | Terminal | |
| 0805 | 00651285 | Latch | |
| 0806 | 00618400 | Switch-door | |
| 0807 | 00634163 | Clip | |
| 0808 | 12013593 | Bolt | |
| 0809 | 10001186 | Plate | |
| 0810 | 12032338 | Cover | |
| 0811 | 12032339 | Cover | |
| 0812 | 12028141 | Cover | |
| 0814 | 00655554 | Receiver | |
| 0815 | 20000145 | Seal-door | |
| 0830 | 00648862 | Cable harness | |
| 8010 | 00466148 | Microfiber E-Cloths | |
| 8011 | 00311945 | Care product | |
| 8012 | 00312007 | Care product | |
| 8013 | 00460770 | Cleaning Cloth | |
| 8014 | 00311896 | Hob detergent | |
| 8015 | 00311897 | Hob detergent | |
| 8016 | 00311898 | Hob detergent | |
| 8017 | 00311899 | Hob detergent | |
| 8018 | 00311900 | Ceramic glass care | |
| 8019 | 00311901 | Ceramic glass care | |
| 8020 | 00311902 | Ceramic glass care | |
| 8021 | 00311903 | Ceramic glass care | |
| 8022 | 15000432 | Auxiliary tool | |
| 8023 | 00311908 | 00312207 | Degreaser |
| 8024 | 00311946 | Stainless Steel Cleaning Powder | |
| 8025 | 00311964 | Care product | |
| 0802 | 10020212 | Fan motor | |
| 0801 | 10020211 | Fan motor |

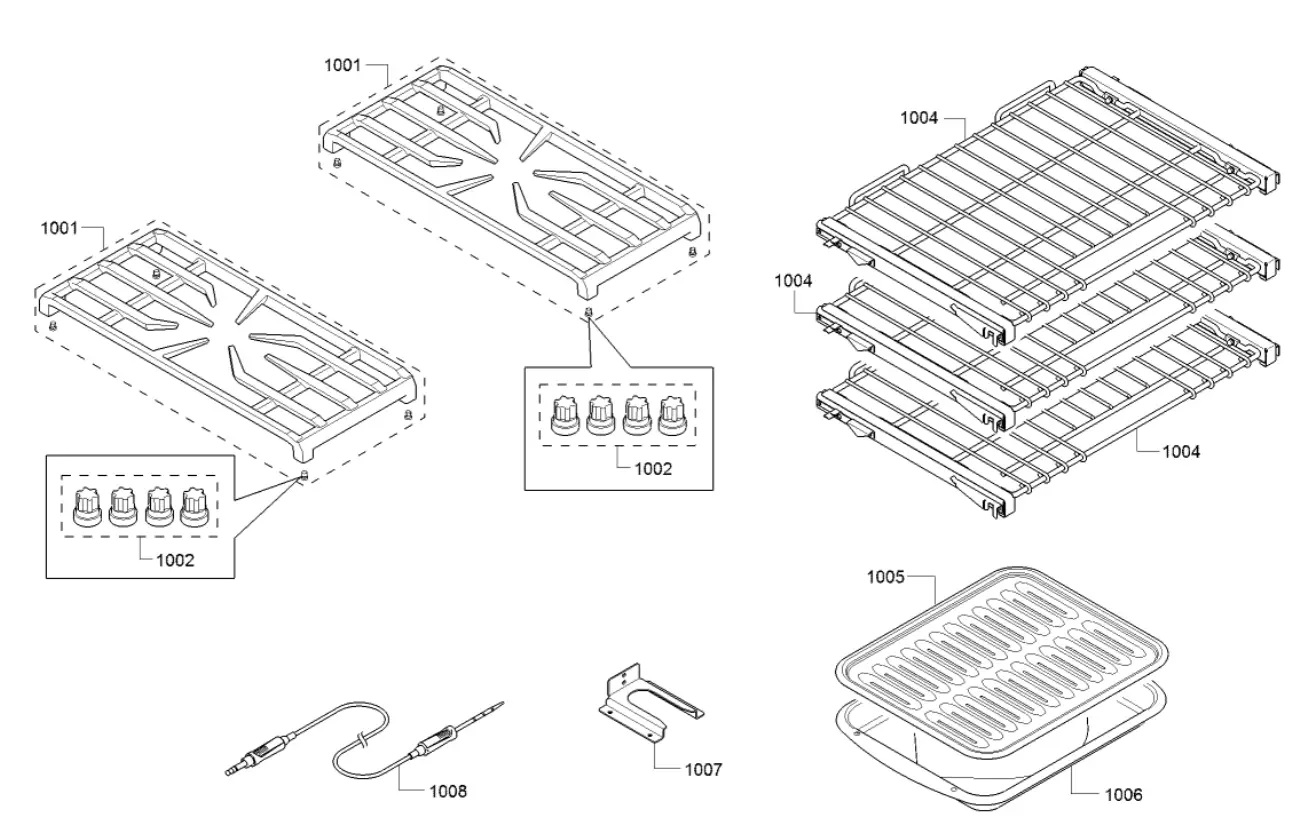

| Position ID | Part number. | Replaces: | Description |
| 1001 | 00145306 | Grill grid | |
| 1002 | 00637940 | Grate Foot Replacement Kit | |
| 1004 | 00774617 | 36” Telescopic Rack | |
| 1005 | 00484628 | 00449757 | Tray for Broiler Pan |
| 1006 | 11013689 | Grill tray | |
| 1007 | 10010207 | Bracket | |
| 1008 | 12022200 | Sensor | |
| 8010 | 00466148 | Microfiber E-Cloths | |
| 8011 | 00311945 | Care product | |
| 8012 | 00312007 | Care product | |
| 8013 | 00460770 | Cleaning Cloth | |
| 8014 | 00311896 | Hob detergent | |
| 8015 | 00311897 | Hob detergent | |
| 8016 | 00311898 | Hob detergent | |
| 8017 | 00311899 | Hob detergent | |
| 8018 | 00311900 | Ceramic glass care | |
| 8019 | 00311901 | Ceramic glass care | |
| 8020 | 00311902 | Ceramic glass care | |
| 8021 | 00311903 | Ceramic glass care | |
| 8022 | 15000432 | Auxiliary tool | |
| 8023 | 00311908 | 00312207 | Degreaser |
| 8024 | 00311946 | Stainless Steel Cleaning Powder | |
| 8025 | 00311964 | Care product |

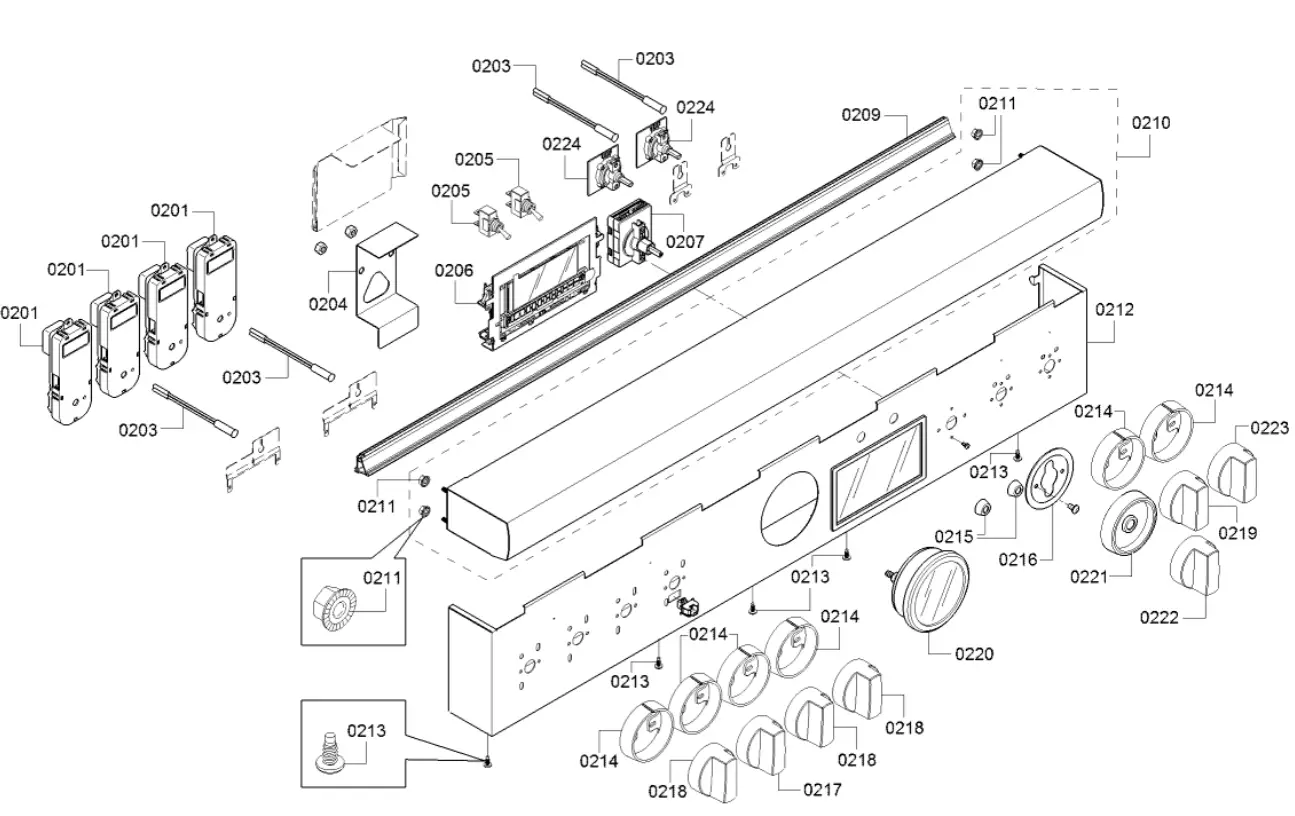

| Position ID | Part number. | Replaces: | Description |
| 0201 | 12024418 | Module-relay | |
| 0203 | 00617931 | Display | |
| 0204 | 11032519 | Bracket | |
| 0205 | 00609115 | Switch | |
| 0206 | 11032495 | Display module not programmed | |
| 0206 | 12028837 | Display module programmed | |
| 0207 | 10010232 | Encoder | |
| 0209 | 00687127 | Light bar | |
| 0210 | 23000467 | Support | |
| 0211 | 00623615 | Nut | |
| 0212 | 20000028 | Panel-facia | |
| 0213 | 10008212 | Screw | |
| 0214 | 10008201 | Ring | |
| 0215 | 00418122 | Ring | |
| 0216 | 10010231 | Encoder | |
| 0217 | 10011598 | Knob | |
| 0218 | 10008201 | Ring | |
| 0219 | 10011924 | Knob | |
| 0220 | 12034239 | Display-temperature | |
| 0221 | 10010228 | Ring | |
| 0222 | 10010230 | Knob | |
| 0223 | 10011925 | Knob | |
| 0224 | 12028661 | Switch-selector | |
| 0225 | 00617886 | Display | |
| 8010 | 00466148 | Microfiber E-Cloths | |
| 8011 | 00311945 | Care product | |
| 8012 | 00312007 | Care product | |
| 8013 | 00460770 | Cleaning Cloth | |
| 8014 | 00311896 | Hob detergent | |
| 8015 | 00311897 | Hob detergent | |
| 8016 | 00311898 | Hob detergent | |
| 8017 | 00311899 | Hob detergent | |
| 8018 | 00311900 | Ceramic glass care | |
| 8019 | 00311901 | Ceramic glass care | |
| 8020 | 00311902 | Ceramic glass care | |
| 8021 | 00311903 | Ceramic glass care | |
| 8022 | 15000432 | Auxiliary tool | |
| 8023 | 00311908 | 00312207 | Degreaser |
| 8024 | 00311946 | Stainless Steel Cleaning Powder | |
| 8025 | 00311964 | Care product |

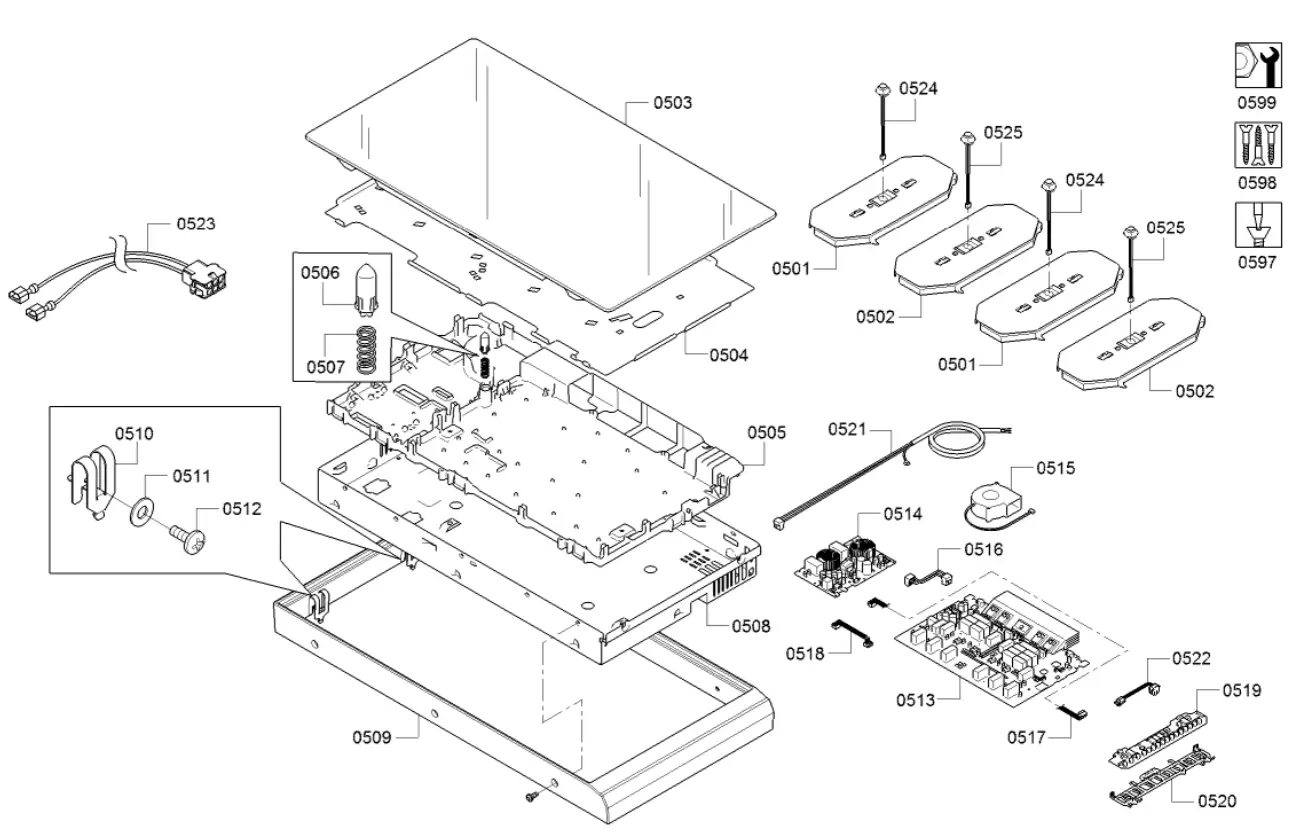

| Position ID | Part number. | Replaces: | Description |
| 0501 | 12009054 | Induction hotplate | |
| 0502 | 12009053 | Induction hotplate | |
| 0503 | 20000389 | Glass ceramic hob top | |
| 0504 | 11033017 | Case-bottom | |
| 0505 | 11033016 | Fixture | |
| 0506 | 00636575 | Cover | |
| 0507 | 00424665 | Spring | |
| 0508 | 20000388 | Frame | |
| 0509 | 12024441 | Frame | |
| 0510 | 00634163 | Clip | |
| 0511 | 00425408 | Washer | |
| 0512 | 10008224 | Screw | |
| 0513 | 11009412 | Power module programmed | |
| 0513 | 11029160 | Power module not programmed | |
| 0514 | 11019163 | 11031383 | PC board |
| 0515 | 12016115 | Fan | |
| 0516 | 10008080 | Connection piece | |
| 0517 | 10011946 | Connection piece | |
| 0518 | 10008081 | Connection piece | |
| 0519 | 11033019 | Operating module | |
| 0520 | 11008964 | Fixture | |
| 0521 | 11033020 | Connection piece | |
| 0522 | 10011947 | Connection piece | |
| 0523 | 12028662 | Cable harness | |
| 0524 | 12009077 | Sensor-NTC | |
| 0525 | 12009068 | Sensor-NTC | |
| 0597 | 00267971 | Sealing strip | |
| 0598 | 00617227 | Screw-set | |
| 0598 | 00636637 | Screw | |
| 0598 | 00636638 | Screw | |
| 0599 | 00618647 | Lubricant | |
| 0599 | 00636639 | Screw | |
| 0599 | 00636640 | Screw | |
| 0599 | 00637156 | Screw | |
| 8010 | 00466148 | Microfiber E-Cloths | |
| 8011 | 00311945 | Care product | |
| 8012 | 00312007 | Care product | |
| 8013 | 00460770 | Cleaning Cloth | |
| 8014 | 00311896 | Hob detergent | |
| 8015 | 00311897 | Hob detergent | |
| 8016 | 00311898 | Hob detergent | |
| 8017 | 00311899 | Hob detergent | |
| 8018 | 00311900 | Ceramic glass care | |
| 8019 | 00311901 | Ceramic glass care | |
| 8020 | 00311902 | Ceramic glass care | |
| 8021 | 00311903 | Ceramic glass care | |
| 8022 | 15000432 | Auxiliary tool | |
| 8023 | 00311908 | 00312207 | Degreaser |
| 8024 | 00311946 | Stainless Steel Cleaning Powder | |
| 8025 | 00311964 | Care product |

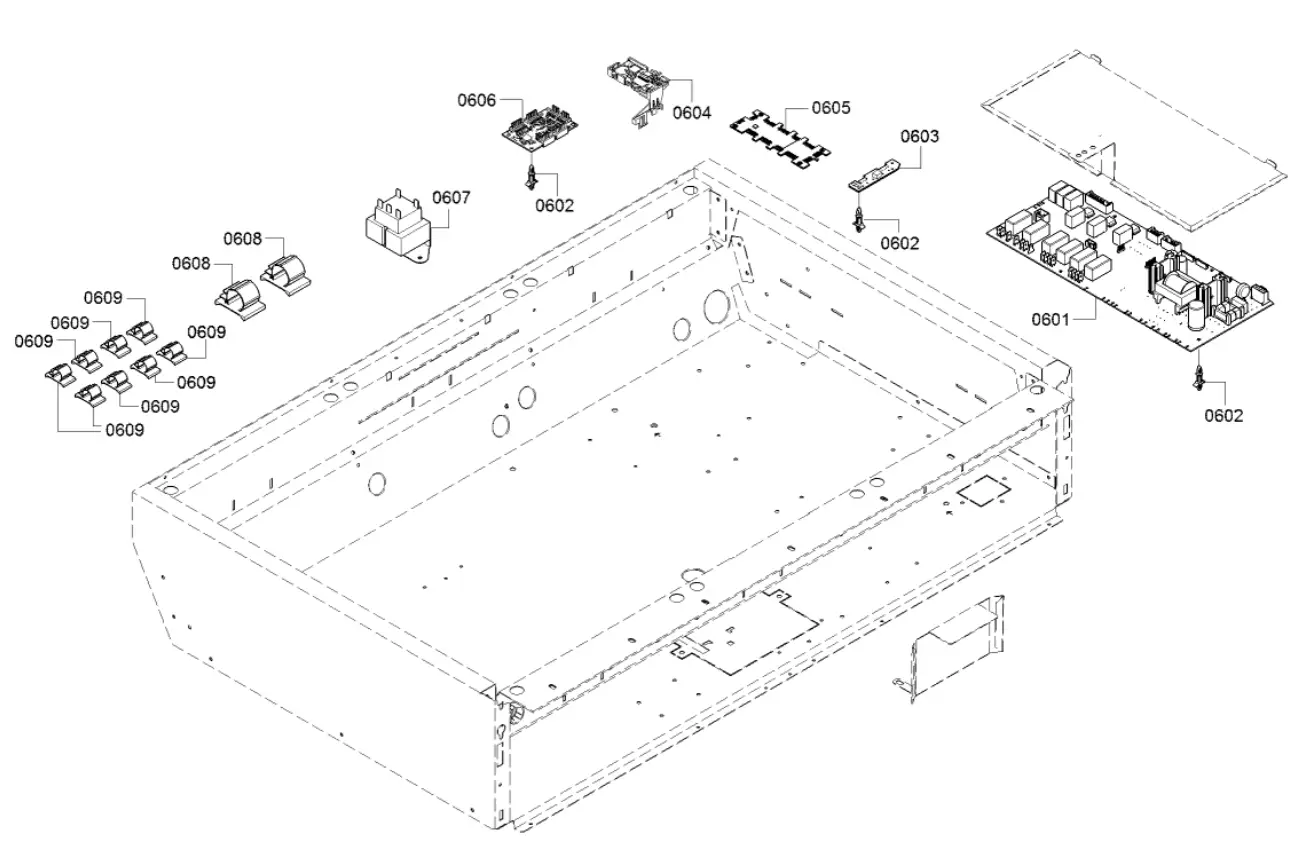

| Position ID | Part number. | Replaces: | Description |
| 0601 | 11032521 | Control module programmed | |
| 0601 | 12032176 | 12034869 | Control module not programmed |
| 0602 | 00418283 | Support | |
| 0603 | 12028138 | Limiter-temperature | |
| 0604 | 10014456 | Connectivity module | |
| 0605 | 12028663 | Control module | |
| 0606 | 10005470 | Control module | |
| 0607 | 00489194 | Transformer | |
| 0608 | 10008933 | Clip | |
| 0609 | 10010202 | Clip | |
| 0610 | 10008207 | Ignition cable | |
| 0611 | 12024415 | Ignition cable | |
| 0612 | 12026867 | Cable harness | |
| 0614 | 12024414 | Cable harness | |
| 0615 | 12026845 | Cable harness | |
| 0616 | 12028077 | Cable harness set | |
| 0617 | 12026925 | Cable harness | |
| 0620 | 11032800 | Cable harness | |
| 0621 | 12028509 | Cable harness | |
| 0623 | 11032801 | Cable harness | |
| 0623 | 12028082 | Cable harness | |
| 0624 | 12028086 | Adapter | |
| 0635 | 12028664 | Cable harness | |
| 0636 | 12028665 | Cable harness | |
| 0637 | 12028666 | Cable harness | |
| 0638 | 12028667 | Cable harness | |
| 8010 | 00466148 | Microfiber E-Cloths | |
| 8011 | 00311945 | Care product | |
| 8012 | 00312007 | Care product | |
| 8013 | 00460770 | Cleaning Cloth | |
| 8014 | 00311896 | Hob detergent | |
| 8015 | 00311897 | Hob detergent | |
| 8016 | 00311898 | Hob detergent | |
| 8017 | 00311899 | Hob detergent | |
| 8018 | 00311900 | Ceramic glass care | |
| 8019 | 00311901 | Ceramic glass care | |
| 8020 | 00311902 | Ceramic glass care | |
| 8021 | 00311903 | Ceramic glass care | |
| 8022 | 15000432 | Auxiliary tool | |
| 8023 | 00311908 | 00312207 | Degreaser |
| 8024 | 00311946 | Stainless Steel Cleaning Powder | |
| 8025 | 00311964 | Care product |

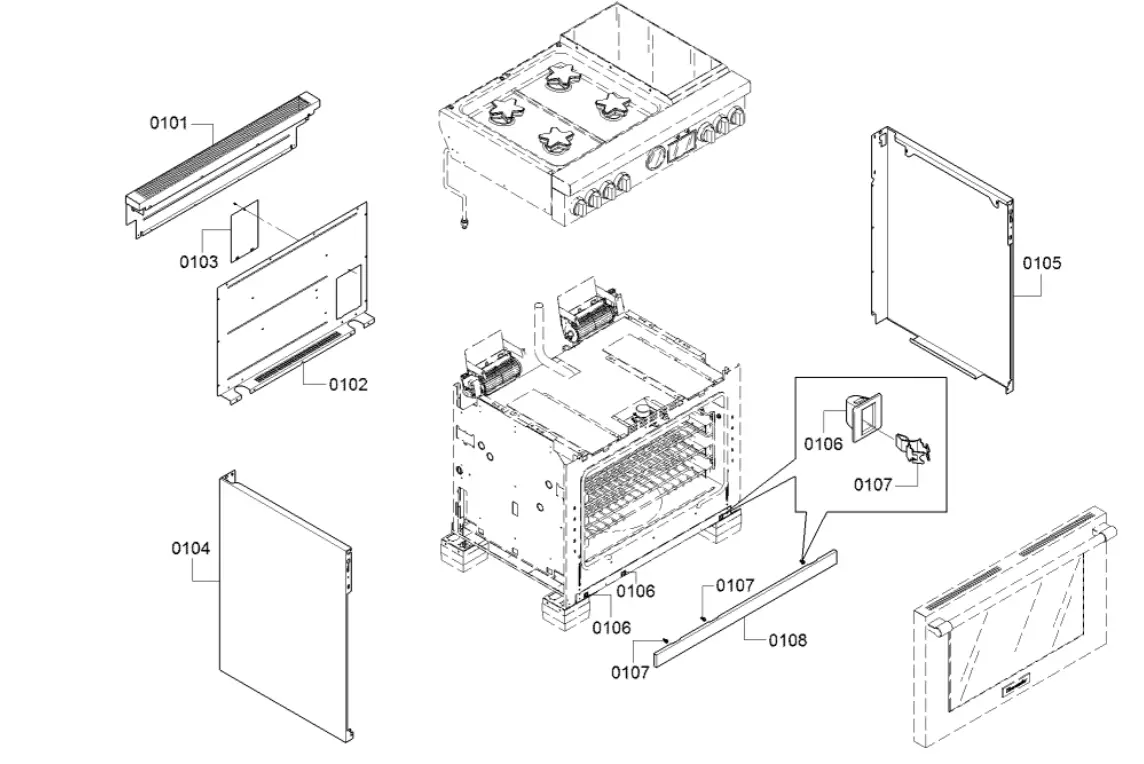

| Position ID | Part number. | Replaces: | Description |
| 0101 | 00146136 | Back wall panel | |
| 0102 | 23000092 | Back panel | |
| 0103 | 00649417 | 00752161 | Cover |
| 0104 | 23000263 | Panel side | |
| 0105 | 23000264 | Panel side | |
| 0106 | 10013545 | Latch | |
| 0107 | 00619081 | Connection piece | |
| 0108 | 20000278 | Panel | |
| 8010 | 00466148 | Microfiber E-Cloths | |
| 8011 | 00311945 | Care product | |
| 8012 | 00312007 | Care product | |
| 8013 | 00460770 | Cleaning Cloth | |
| 8014 | 00311896 | Hob detergent | |
| 8015 | 00311897 | Hob detergent | |
| 8016 | 00311898 | Hob detergent | |
| 8017 | 00311899 | Hob detergent | |
| 8018 | 00311900 | Ceramic glass care | |
| 8019 | 00311901 | Ceramic glass care | |
| 8020 | 00311902 | Ceramic glass care | |
| 8021 | 00311903 | Ceramic glass care | |
| 8022 | 15000432 | Auxiliary tool | |
| 8023 | 00311908 | 00312207 | Degreaser |
| 8024 | 00311946 | Stainless Steel Cleaning Powder | |
| 8025 | 00311964 | Care product |

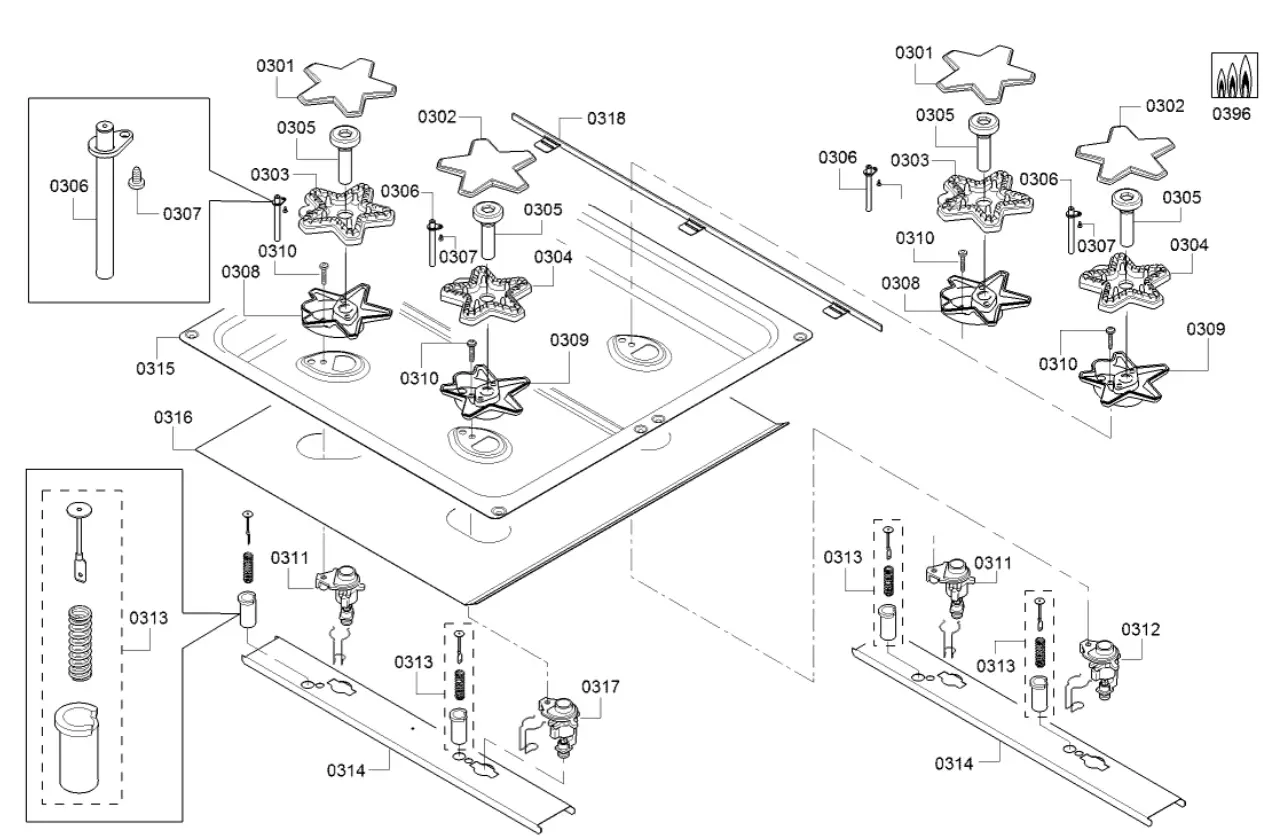

| Position ID | Part number. | Replaces: | Description |
| 0301 | 10004490 | Burner cap | |
| 0302 | 10004489 | Burner cap | |
| 0303 | 10004493 | Burner | |
| 0304 | 10004492 | Burner | |
| 0305 | 10004495 | Venturi nozzle | |
| 0306 | 10006471 | Electrode | |
| 0307 | 10008211 | Screw | |
| 0308 | 10004498 | Burner housing | |
| 0309 | 10004497 | Burner housing | |
| 0310 | 10004531 | Screw | |
| 0311 | 10006793 | Jet | |
| 0312 | 10006797 | Jet | |
| 0313 | 12007259 | Ignition device | |
| 0314 | 00701902 | Rail | |
| 0315 | 00687075 | Tray | |
| 0316 | 12024446 | Heat shield | |
| 0317 | 10006795 | Jet | |
| 0318 | 11034110 | Trimplate | |
| 8010 | 00466148 | Microfiber E-Cloths | |
| 8011 | 00311945 | Care product | |
| 8012 | 00312007 | Care product | |
| 8013 | 00460770 | Cleaning Cloth | |
| 8014 | 00311896 | Hob detergent | |
| 8015 | 00311897 | Hob detergent | |
| 8016 | 00311898 | Hob detergent | |
| 8017 | 00311899 | Hob detergent | |
| 8018 | 00311900 | Ceramic glass care | |
| 8019 | 00311901 | Ceramic glass care | |
| 8020 | 00311902 | Ceramic glass care | |
| 8021 | 00311903 | Ceramic glass care | |
| 8022 | 15000432 | Auxiliary tool | |
| 8023 | 00311908 | 00312207 | Degreaser |
| 8024 | 00311946 | Stainless Steel Cleaning Powder | |
| 8025 | 00311964 | Care product |

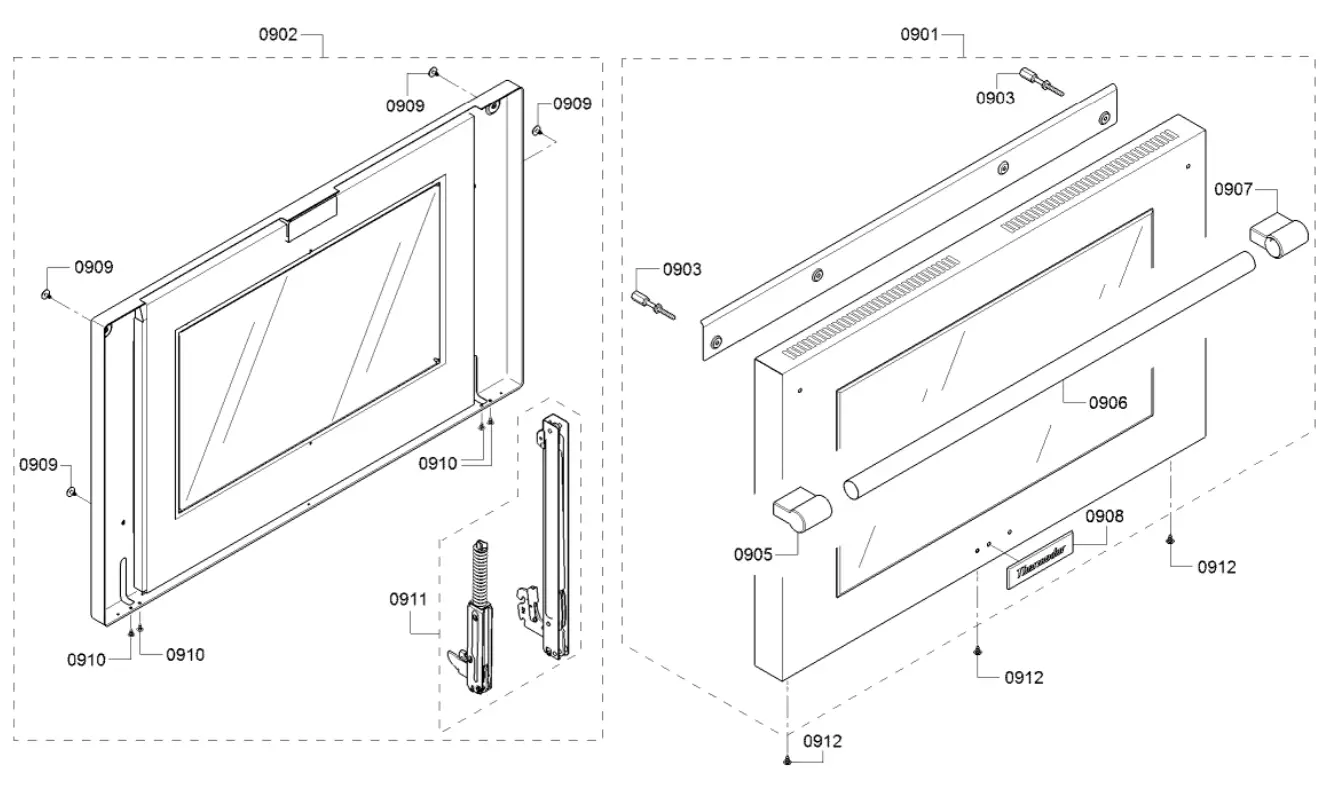

| Position ID | Part number. | Replaces: | Description |
| 0901 | 20000155 | Door-outer | |
| 0902 | 20000156 | Door-inner | |
| 0903 | 10011927 | Bolt | |
| 0905 | 10011397 | Handle-cap shaped | |
| 0906 | 11032802 | Handle-door | |
| 0907 | 10011397 | Handle-cap shaped | |
| 0908 | 10010271 | Plate | |
| 0909 | 10010274 | Screw | |
| 0910 | 10008228 | Screw | |
| 0912 | 10011608 | Screw | |
| 8010 | 00466148 | Microfiber E-Cloths | |
| 8011 | 00311945 | Care product | |
| 8012 | 00312007 | Care product | |
| 8013 | 00460770 | Cleaning Cloth | |
| 8014 | 00311896 | Hob detergent | |
| 8015 | 00311897 | Hob detergent | |
| 8016 | 00311898 | Hob detergent | |
| 8017 | 00311899 | Hob detergent | |
| 8018 | 00311900 | Ceramic glass care | |
| 8019 | 00311901 | Ceramic glass care | |
| 8020 | 00311902 | Ceramic glass care | |
| 8021 | 00311903 | Ceramic glass care | |
| 8022 | 15000432 | Auxiliary tool | |
| 8023 | 00311908 | 00312207 | Degreaser |
| 8024 | 00311946 | Stainless Steel Cleaning Powder | |
| 8025 | 00311964 | Care product |

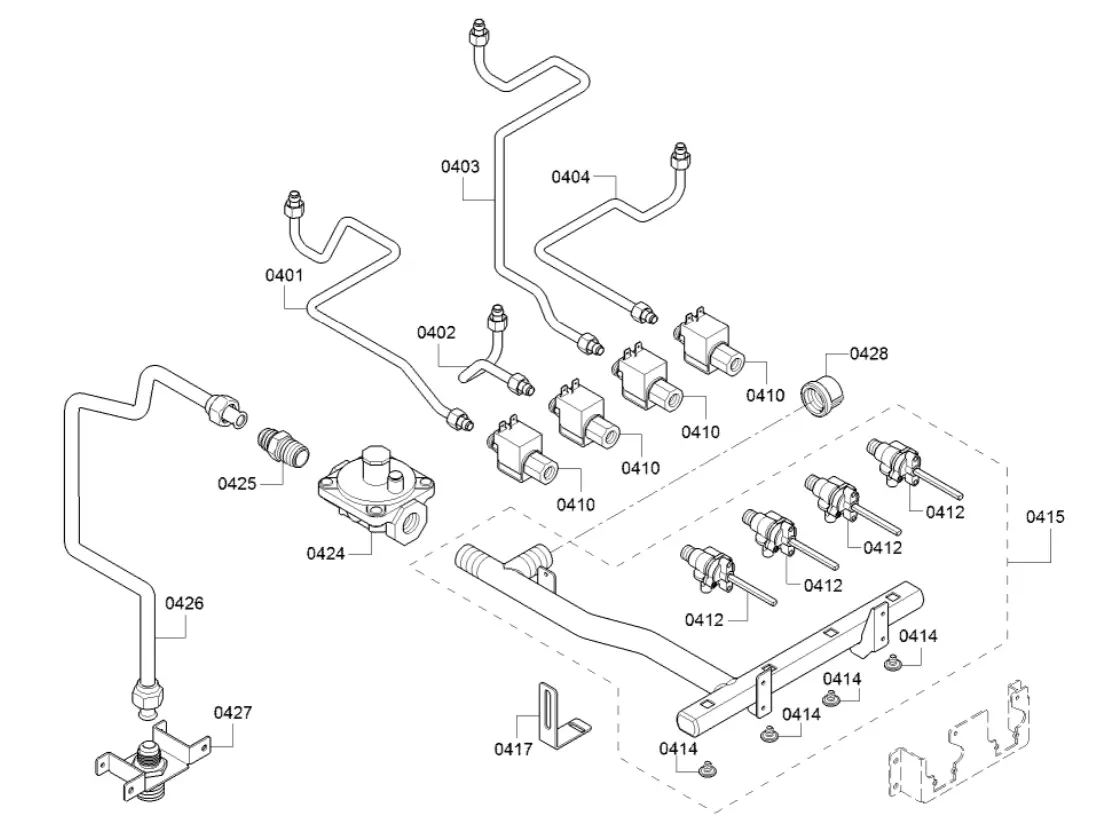

| Position ID | Part number. | Replaces: | Description |
| 0401 | 11032438 | Gas tap | |
| 0402 | 11032439 | Gas tap | |
| 0403 | 11032972 | Gas tap | |
| 0404 | 11032973 | Gas tap | |
| 0410 | 00423093 | Valve | |
| 0412 | 10003806 | Valve | |
| 0414 | 00420807 | Screw | |
| 0415 | 20000371 | Manifold | |
| 0417 | 10009569 | Bracket | |
| 0424 | 00754658 | Regulator-pressure | |
| 0425 | 10010200 | Adapter | |
| 0426 | 11032865 | Gas tap | |
| 0427 | 10011592 | Extension for inlet | |
| 0428 | 10011926 | Cap | |
| 8010 | 00466148 | Microfiber E-Cloths | |
| 8011 | 00311945 | Care product | |
| 8012 | 00312007 | Care product | |
| 8013 | 00460770 | Cleaning Cloth | |
| 8014 | 00311896 | Hob detergent | |
| 8015 | 00311897 | Hob detergent | |
| 8016 | 00311898 | Hob detergent | |
| 8017 | 00311899 | Hob detergent | |
| 8018 | 00311900 | Ceramic glass care | |
| 8019 | 00311901 | Ceramic glass care | |
| 8020 | 00311902 | Ceramic glass care | |
| 8021 | 00311903 | Ceramic glass care | |
| 8022 | 15000432 | Auxiliary tool | |
| 8023 | 00311908 | 00312207 | Degreaser |
| 8024 | 00311946 | Stainless Steel Cleaning Powder | |
| 8025 | 00311964 | Care product |
| Position ID | Part number. | Replaces: | Description |
| 0401 | 11032438 | Gas tap | |
| 0402 | 11032439 | Gas tap | |
| 0403 | 11032972 | Gas tap | |
| 0404 | 11032973 | Gas tap | |
| 0410 | 00423093 | Valve | |
| 0412 | 10003806 | Valve | |
| 0414 | 00420807 | Screw | |
| 0415 | 20000371 | Manifold | |
| 0417 | 10009569 | Bracket | |
| 0424 | 00754658 | Regulator-pressure | |
| 0425 | 10010200 | Adapter | |
| 0426 | 11032865 | Gas tap | |
| 0427 | 10011592 | Extension for inlet | |
| 0428 | 10011926 | Cap | |
| 8010 | 00466148 | Microfiber E-Cloths | |
| 8011 | 00311945 | Care product | |
| 8012 | 00312007 | Care product | |
| 8013 | 00460770 | Cleaning Cloth | |
| 8014 | 00311896 | Hob detergent | |
| 8015 | 00311897 | Hob detergent | |
| 8016 | 00311898 | Hob detergent | |
| 8017 | 00311899 | Hob detergent | |
| 8018 | 00311900 | Ceramic glass care | |
| 8019 | 00311901 | Ceramic glass care | |
| 8020 | 00311902 | Ceramic glass care | |
| 8021 | 00311903 | Ceramic glass care | |
| 8022 | 15000432 | Auxiliary tool | |
| 8023 | 00311908 | 00312207 | Degreaser |
| 8024 | 00311946 | Stainless Steel Cleaning Powder | |
| 8025 | 00311964 | Care product | |
| 8019 | 00311901 | Ceramic glass care | |
| 8020 | 00311902 | Ceramic glass care | |
| 8021 | 00311903 | Ceramic glass care | |
| 8022 | 15000432 | Auxiliary tool | |
| 8023 | 00311908 | 00312207 | Degreaser |
| 8024 | 00311946 | Stainless Steel Cleaning Powder | |
| 8025 | 00311964 | Care product |
