Lfeli48100h Leoeco Stackable Power System Owner's Manual

LFELI48100H LeoEco Stackable Power System

Product Information

The LeoEco Stackable Power System (LV) is a high-efficiency, scalable battery storage system designed for home energy storage. It features lithium iron phosphate battery cells, which are safe and provide a long cycle life. The stackable design allows for effortless installation and flexible sizing, with up to 12 battery modules connectable in parallel for a total capacity of 60 kWh. The system is integrated with an inverter to avoid compatibility problems and has the capability for high-powered emergency backup and off-grid function.

Technical Parameters

• Rated Power: 5-30 kWh
• Maximum PV Array Open Circuit Voltage: 500VDC
• MPPT Range: 120-450V
• Nominal Output Voltage: 220/230/240VAC
• Output Voltage Range: 184-265VAC
• Nominal Output Current: 25.5A/24.3A/23.3A
• Efficiency: Up to 93.5%
• Grid Input Voltage Range: 120-280VAC
• Grid Frequency Range: 50/60Hz (Auto Sensing)
• Maximum AC Charge Current: 120A
• Maximum Solar Charge Current: 120A
• Nominal DC Voltage: 48VDC
• Number of Modules: Up to 12 connectable in parallel
• Usable Energy: Max. 320 kWh
• Max Cont. Output Current: 100A
• Nominal Voltage: 51.2V
• Operating Voltage: 43.2-58.4V
• Operating Temperature: -10°C ~ 45°C
• Battery Cell Technology: Lithium Iron Phosphate
• Communication: CAN / RS485
• Enclosure Protection Rating: IP55
• Round-Trip Efficiency: 95%
• Scalability: Max. 64 Modules in Parallel (320 kWh)

Applications

The LeoEco Stackable Power System can be used for ON Grid + Backup or OFF Grid applications, providing power for everyapplication. It is tailored to fit each application, with flexiblesizing and the ability to extend anytime.

Product Usage Instructions

1. Ensure that the battery modules are placed in a well-ventilated area and away from direct sunlight.
2. The battery modules are connected in parallel and can be stacked up to a maximum of 12 modules for a total capacity of 60 kWh.
3. The system is integrated with an inverter, allowing for easy installation and compatibility with leading branded inverters.
4. The plug connection eliminates the need for additional wiring, making installation simple and efficient.
5. The system can be used for ON Grid + Backup or OFF Grid applications, providing power for every application.
6. To optimize self-consumption, adjust the settings according to your energy needs and usage patterns.
7. The system is capable of high-powered emergency backup and off-grid function.
8. If the battery modules are not used for an extended period, it is recommended to maintain a minimum charge level of 20-30%.

Product Introduction

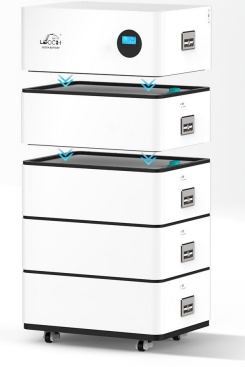

Battery Module

• 5.12 kWh per Module
• Modular and Stack Installation Design to simplify the maintenance
• Connect up to 64 module in parallel for a maximum size of 320 kWh.

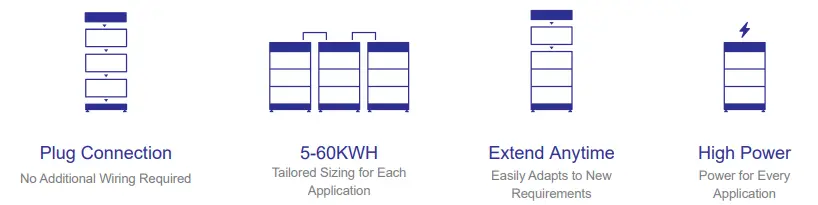

Home Energy Storage (Stackble Battery)

Flexible, Efficient, Simple

Technical Parameters

© LEOCH. All rights reserved.
Trademarks and logos are the property of LEOCH and its affiliates unless otherwise noted.Subject to revisions without prior notice E&OE.
Publication No.: LFELI48100H-DJ-ESS020
E-mail: [email protected]
Tel: +86-755-86036060
