TECHNICAL SPECIFICATION GUIDE
Assure Heat
Wall-hung heat-only gas boiler

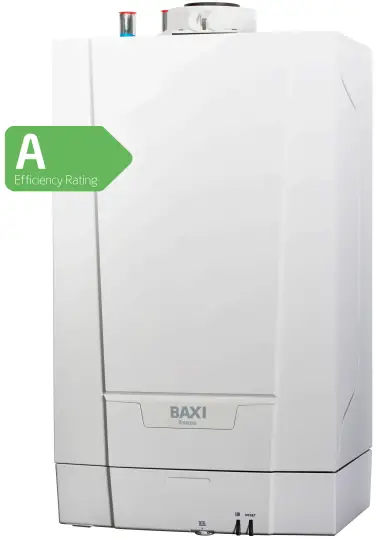

The light weight Baxi Assure heat-only gas boiler has a compact design and the discreet in-case rear flueing option gives an attractive, contemporary look that suits any modern interior. With no pump overrun it is easier & quicker to install saving time and money.
RANGE OF OUTPUTS NO PUMP OVERRUN
UK’S LIGHTEST BOILER COMPACT DESIGN
Versatile
- Available in outputs of 13, 16, 19, 25 and 30kW to suit most property types and sizes
- Up to 12 m top or rear flueing options when using 80/125 flue system
Easy to install
- One metre lead included, meaning access to the control box isn’t necessary
- Installed easily and discreetly in just about any kitchen cupboard
- With a lift weight from only 17.5 kg, it’s the UK’s lightest boiler#
- Comes with a secure locking wall-mounting bracket
- No permanent live or pump overrun needed, so installation is easier and quicker, saving time and money
Efficient
- Achieves optimum SAP and DER ratings for standard heat only boiler usage
- Compatible with the Baxi Assure range of hot water storage cylinders
User-friendly
- Front and side access makes it easy to service and maintain with minimal disruption
- Whisper-quiet operation so can be installed within living areas without causing disturbance to end users
Reliable
- Proven Baxi component technology with excellent reliability and peace of mind.
- Expertly manufactured in the UK by a trusted brand with over 150 years’ experience
- Covered by 2 years’ parts and labour warranty as standard, with extended options also available
* See baxi.co.uk for terms and conditions. # As of 1st January 2020
Technical details
| UNITS | 13 | 16 | 19 | 25 | 30 | |
| Product code | 7749446 | 7749447 | 7749448 | 7749449 | 7749450 | |
| Product Characteristics Database index number (PCDB) | 018748 | 018749 | 018750 | 018751 | 018752 | |
| CONTROLS | ||||||
| Operating mode selector switch with reset | Yes | Yes | Yes | Yes | Yes | |
| User adjustable CH temperature | Yes | Yes | Yes | Yes | Yes | |
| LED temp / status / fault diagnostic display | Yes | Yes | Yes | Yes | Yes | |
| GAS | ||||||
| Gas type (natural gas / LPG) | NG | NG | NG | NG | NG | |
| Inlet supply pressure (natural gas) | mbar | 20 | 20 | 20 | 20 | 20 |
| Heat input CH | kW max gross (QnHs) | 14.9 | 18.3 | 21.8 | 28.6 | 34.4 |
| kW min gross (QnHs) | 8.6 | 8.6 | 8.6 | 8.6 | 8.6 | |
| Heat output CH (non condensing) | kW max (Pn) | 13 | 16 | 19 | 25 | 30 |
| kW min (Pn) | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | |
| Maximum gas rate | m³ / hr | 1.42 | 1.75 | 2.07 | 2.73 | 3.27 |
| ErP PRODUCT INFORMATION | ||||||
| NOx | mg / kWh | 18 | 20 | 21 | 24 | 25 |
| NOx class | 6 | 6 | 6 | 6 | 6 | |
| Sound power level, indoors | LWA dB | 37 | 39 | 41 | 45 | 49 |
| SAP 2009 annual e!ciency (PCDB / SEDBUK) | % | 93 | 93 | 93 | 93 | 93 |
| Space heating e!ciency class | A | A | A | A | A | |
| ELECTRICAL | ||||||
| Electrical supply | Volts / Hz | 230 / 50 | 230 / 50 | 230 / 50 | 230 / 50 | 230 / 50 |
| Permanent live required | No | No | No | No | No | |
| Switched live | Yes | Yes | Yes | Yes | Yes | |
| Electrical power cable fitted as standard | 1m of 3 core | Yes | Yes | Yes | Yes | Yes |
| Power consumption | Watts | 17 | 20 | 23 | 33 | 44 |
| External fuse rating | Amps | 3 | 3 | 3 | 3 | 3 |
| Internal fuse rating | 1.6T | 1.6T | 1.6T | 1.6T | 1.6T | |
| Ingress protection rating | Approval category | IPX4D | IPX4D | IPX4D | IPX4D | IPX4D |
| Pump overrun | No | No | No | No | No | |
| MECHANICAL | ||||||
| Gas supply connection | mm | 22 | 22 | 22 | 22 | 22 |
| Central heating connections | mm | 22 | 22 | 22 | 22 | 22 |
| Condensate drain connection | mm | 21.5 | 21.5 | 21.5 | 21.5 | 21.5 |
| Top heating pipe connections | Yes | Yes | Yes | Yes | Yes | |
| HYDRAULIC | ||||||
| Compartment ventilation required | No | No | No | No | No | |
| CH system inhibitor required | Yes | Yes | Yes | Yes | Yes | |
| Heat exchanger material* AL – Aluminium | AL | AL | AL | AL | AL | |
| CONCENTRIC FLUE SYSTEMS | ||||||
| Standard horizontal flue kit length (60 / 100mm) | mm | 685 | 685 | 685 | 685 | 685 |
| Standard telescopic concentric flue | mm | 315-500 | 315-500 | 315-500 | 315-500 | 315-500 |
| Standard in-case rear telescopic concentric flue | mm | 220-345 | 220-345 | 220-345 | 220-345 | 220-345 |
| Max equivalent horizontal / vertical (60 / 100mm) | m | 6 | 6 | 6 | 6 | 6 |
| Max equivalent horizontal / vertical (80 / 125mm) | m | 12 | 12 | 12 | 12 | 12 |
| Equivalent length per 135° bend | m | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Equivalent length per 93° bend | m | 1 | 1 | 1 | 1 | 1 |
| WEIGHTS | ||||||
| Maximum installation lift weight | kg | 17. 5 | 17. 5 | 17. 5 | 17. 5 | 19.5 |
| Appliance packed gross weight (kg) | kg | 19.5 | 19.5 | 19.5 | 19.5 | 21.5 |

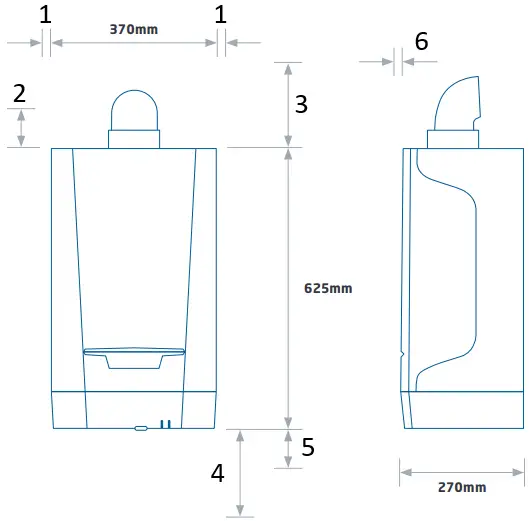

DIMENSIONS AND SERVICE CLEARANCES
- 5mm min
- 35mm (using rear flue)
- 190mm (using top flue)
- 120mm min when over surface 600mm deep
- 35mm min when in 300mm deep cupboard
- 5mm min in operation 500mm for servicing

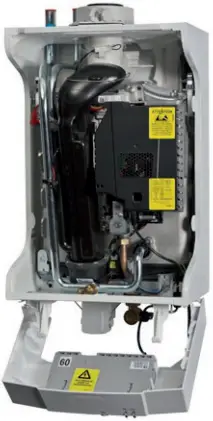

INSIDE THE BOILER
Service clearances shown here are the minimum recommended dimensions.
Greater clearance will aid installation and maintenance.
