FTHW Wall-Mounted Gas Condensing Heating Only Boiler

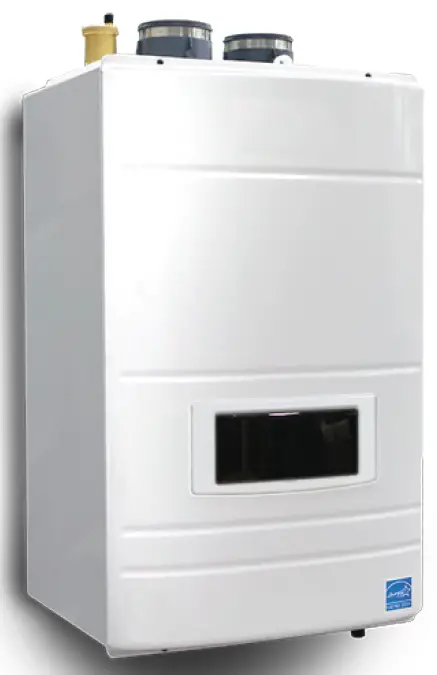

FTHW Wall-Mounted Gas Condensing Heating Only Boiler FIG 1

FOR YOUR SAFETY: This product must be installed and serviced by a professional service technician, qualified in hot water boiler and heater installation and maintenance. Improper installation and/or operation could create carbon monoxide gas in flue gases which could cause serious injury, property damage, or death. Improper installation and/or operation will void the warranty.

WARNING
If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

WHAT TO DO IF YOU SMELL GAS

  • Do not try to light any appliance.
  • Do not touch any electrical switch; do not use any phone in your building.
  • Immediately call your gas supplier from a nearby phone. Follow the gas supplier’s instructions.
  • If you cannot reach your gas supplier, call the fire department.

Installation and service must be performed by a qualified installer, service agency, or gas supplier.

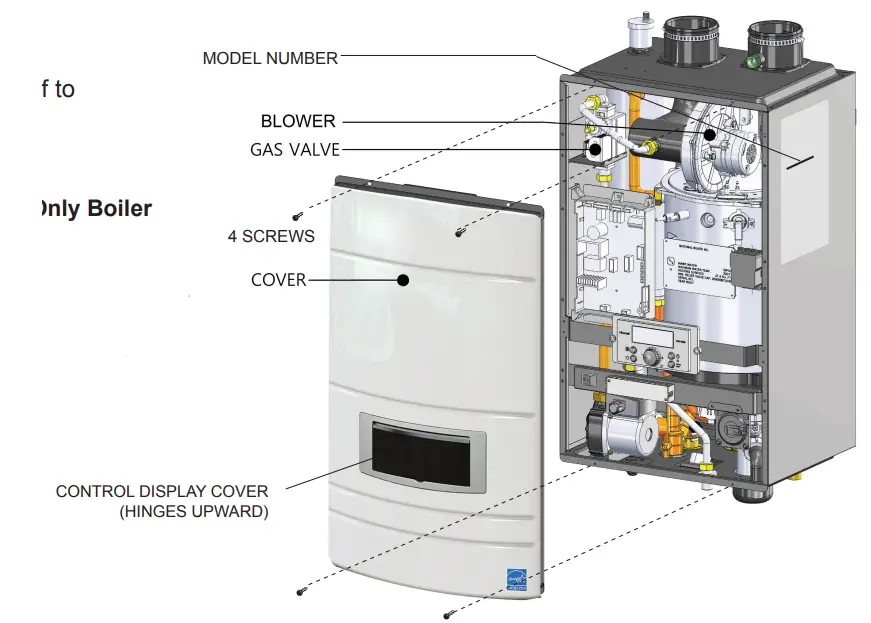

Familiarizing yourself to THE FTFTHW Wall-Mounted Gas Condensing Heating Only Boiler FIG 2

Heating Only Boiler

The FT is a highly efficient, wall mounted, condensing and fully modulating, residential boiler. This Users Manual will guide you into the basics of operating your FT
Please reference the Installation and Operation Manual for complete details. Doc # 1342

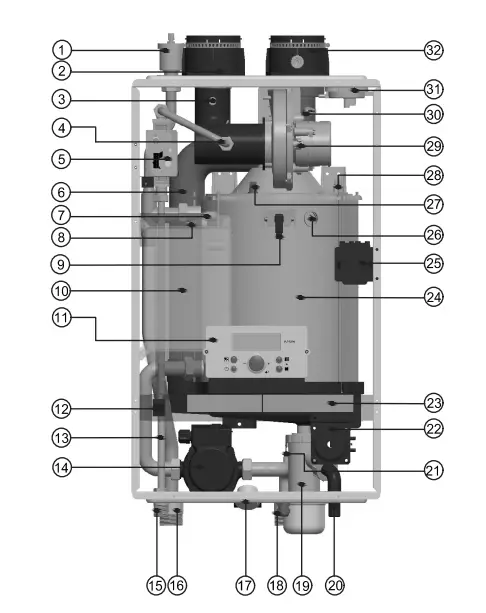

NOName of Component
1Air Vent (air eliminator)
2Air Intake Collar
3Air / Gas Mixing Pipe
4Gas Inlet Pipe 2
5Gas Valve
6Exhaust Duct
7Low Water Temperature Sensor
8OP Sensor
9Flame Detecting Sensor
10Main PCB
11Control Display
12Manual ON/OFF Power Switch
13Gas Inlet Pipe 1
14‘CH’ Internal Pump
15Gas Inlet Adapter
16‘CH’ Supply Adapter



NOName of Component
17CH Pressure Gauge
18‘CH’ Return Adapter
19Condensate Trap
20Condensate Adapter
21CH Return Temperature Sensor
22Condensate Air Pressure Switch
23Terminal Block
24Heat Exchanger
25Ignition Transformer
26Sight Glass
27Burner Overheat Switch
28Igniter
29BLDC Fan (blower)
30Exhaust Temperature Sensor
31Air Pressure Sensor
32Vent Pipe Collar

The FT, Heating Only, BoilerFTHW Wall-Mounted Gas Condensing Heating Only Boiler FIG 3

Shown is the FT Heating Only 140 MBH.
All sizes are very similar in component layout.

Caring For Your FT

Your FT will require very little maintenance.
However, as with any fine appliance there are certain steps that should be taken to ensure continuing optimum performance.

General Care
Keep the area around the FT clean and free from combustible materials, gasoline and other flammable liquids and vapors.
The FT must be completely isolated and protected from any source of corrosive chemical fumes such as trichlorethylene, perchlorethylene, chlorine, etc.
Keep bottom and top openings on the boiler free for proper ventilation of interior components.
Do not obstruct or block a free flow of air to the boiler to ensure proper ventilation.
If desired, clean the jacket surfaces with a damp cloth and mild detergent. Do not use flammable cleaning materials.
If sidewall vented, keep the vent terminal clear of obstructions — do not allow snow to cover the vent terminal. Clean the intake screen often, and then develop an appropriate maintenance schedule.

Annual Inspection of Flue and Vents
Visually inspect the vent pipe once a year. Should any deterioration exist, have the affected parts replaced by a qualified service person.

In the Event of a Power Failure
The FT can not be operated during an electrical power outage. If there is an extended power outage with danger from freezing, then the FT (and all other water systems) should be drained completely. When draining the boiler, turn off main electrical disconnect switch. When placing back in service, refer to Section 3 of this Manual for instruction. All draining and filling must only be done by a qualified service person.

Full Service Every Year
In addition to the annual visual inspections, a qualified service agency should conduct a detailed inspection of all flue product carrying areas of the boiler and its venting system.

Shutting Down the FT

  1. Turn off the main electrical disconnect switch.
  2. Close all manual gas valves.
  3. If freezing is anticipated, drain the FT and be sure to also protect building piping from freezing. All water must be removed from heat exchanger and condensate trap or else damage from freezing may occur. Please refer to the Install and Operating Manual.
    This step to be performed by a qualified service person.

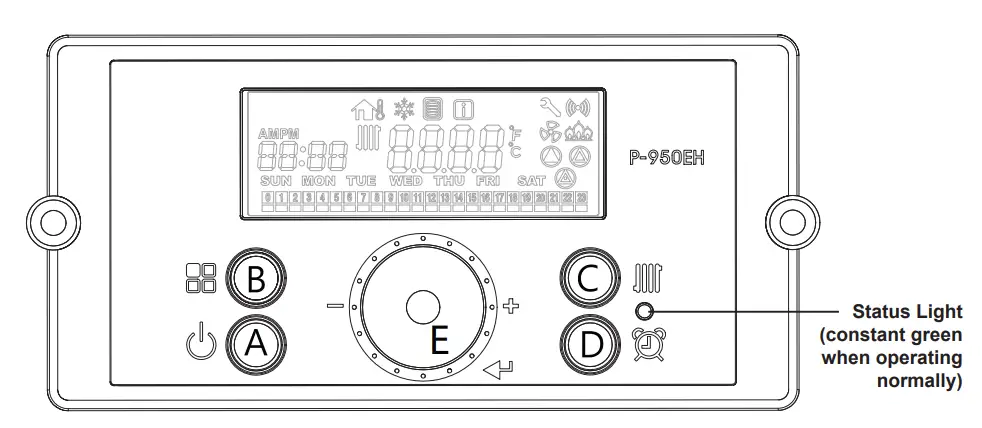

The Control Display and OperationFTHW Wall-Mounted Gas Condensing Heating Only Boiler FIG 4

The Control Display has a Control Dial (E), 4 buttons (A, B, C, D), and a Liquid Crystal Display (with 72 back-lit segments). This section of this manual gives instruction on how to navigate into the many functions of the FT and to change temperature set points, set system variables and controller parameters.

ButtonsFunctionality
PRESS (Tap)PRESS and HOLD (5 seconds)


A



Display Power

Turns Control Display ON/OFF


B



Modes



Tap to return to menu

(If Display Power was On ) Status Display Mode

(If Display Power was Off ) Installer Mode



C

Heating WaterCH set-point change mode (Maxium 82°C(180°F))


D

Time / Date Set

No Change



To SET: Year/Month/Week/Day/Time/Min



E



Scroll / Select

Menu select or value up(+)/down(-) or setting dial.

Temperature Specifi cations
Operating ambient Temperature Range : -10 to 60°C. Operating Relative Humidity up to: 90% at 40°C. Shipping & Storage Temperature Range of : -20 to 80°C.

The Control Display and Operation (continued)FTHW Wall-Mounted Gas Condensing Heating Only Boiler FIG 5

SymbolNameDescription
 Service Reminder modeService Reminder mode indication
 Outside Temperature ModeOutside Temp setting indication
 Anti-freeze modeAnti-freeze mode indication
 Storage modeStorage mode indication
 Information modeInformation mode indication
 Communication stateCommunication state indication
 Time setting modeTime /Dispaly/Install mode indication
 Fan operating modeFan operating mode indication
 Flame signalFlame Signal indication
 CH pump modeCH pump mode indication
 Storage pump modeStorage pump mode indication
 Internal recirculation modeInternal recirculation mode indication
 Celsius modeIndicated as Celsius temperature
 Fahrenheit modeIndicated as Fahrenheit temperature
 Heat demand modeHeat demand mode indication
 DAY modeCurrent day mode indication
 Cascade System connecting modeCascade System connecting mode indication
 Cascade System operating modeCascade System operating mode indication

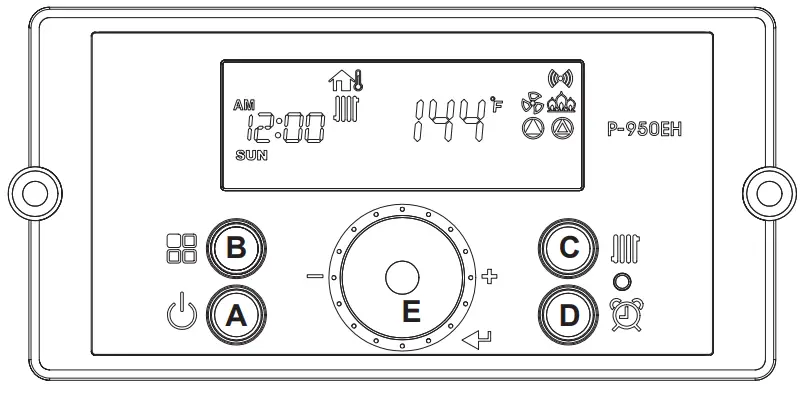

Operating Mode
After the Power is turned on, and/or the Control Display is turned on , the Control Display will go through a ‘Start Up’ checklist and briefl y show a sequence of diagnostic codes before entering into the ‘Operating Mode. It will then display the following information. FTHW Wall-Mounted Gas Condensing Heating Only Boiler FIG 6

IndicateIndicator


Current Operating Temperature Set-Point

If the Fan is operating
If a flame is detected
Celsius or Fahrenheitor
Date and Time indicator
If Outside Temperature Sensor is operating
If there is a Demand for Central Heat (CH)
If CH pump state is operating
If Internal recirculation pump is operating
If Communication state is activated

The Control Display can operate through user and service modes that have and dedicated controls:

  • Set-point change mode
  • Lock mode • Error mode
  • Status display mode
  • Outside Temperature mode
  • Installer mode

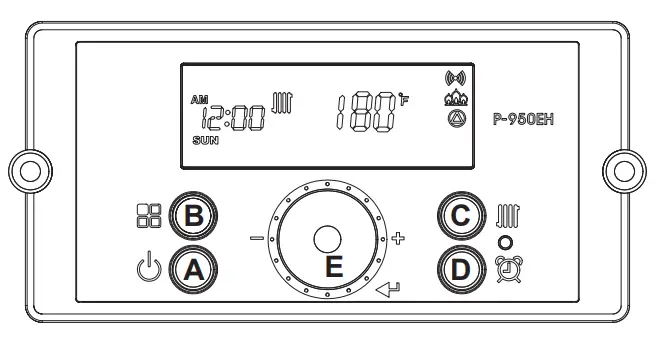

Control Display will not allow changing of button in case of lock mode activated.FTHW Wall-Mounted Gas Condensing Heating Only Boiler FIG 7

Setting the Clock

The P-950EH Control Display does NOT have a daily timer or programmable thermostat. Setting the Clock

  1. Press and hold the‘Clock button’ for about 5 seconds. Set the ‘Year’ by turning the dial E. And then, press the dial E to Save.
  2. Set the ‘MON’ (Month) by turning the dial E to the desired month number. Then press the dial E to Save.
  3. Set the ‘DATE’ (1-31, Day of the Month) by turning the dial E. Then press the dial E to Save.
  4. Set the ‘HOUR’ (1-24, Hour of the Day) by turning the dial E. Then press the dial E to Save.
  5. Set the ‘MIN’ (1-60, Minute of the Hour) by turning the dial E. Then press the dial E to Save.
  6. Set the ‘Day’ (Sun – Sat) by turning the dial E. Then press the dial E to Save.

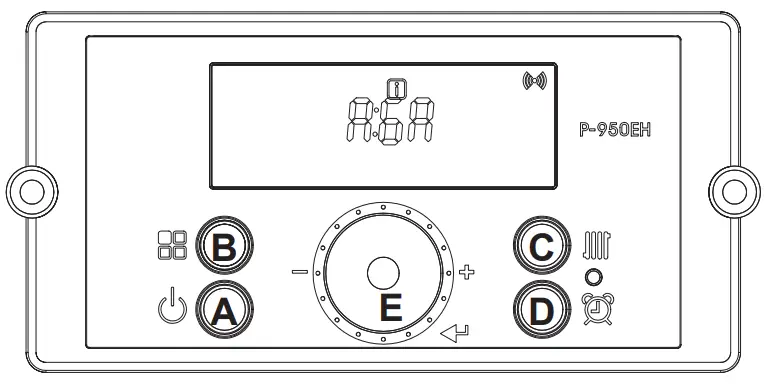

To Exit at any time, press and hold the ‘Clock button’ for about 5 seconds. FTHW Wall-Mounted Gas Condensing Heating Only Boiler FIG 8

To change CH Setpoint, press the C button. The CH Icon and current CH Setpoint will fl ash.

  • Turn the E dial clockwise to increase, and counterclockwise to decrease CH setpoint, until desired temperature is reached.
    Press E dial to save changes and to Exit.
IndicateIndicator
Current CH Temperature Set-Point
Celsius or Fahrenheitor
If Communication state is activated
If flame is detected
Date and Time indicator
If CH pump is operating
If there currently a Demand for Central Heat (CH)
  • The Default CH set-point is 180°F (82°C)
  • CH set-point range is 86°F ~180°F (30.0°C ~ 82.0°C)

To change any Status Parameter,
Press and Hold Button B to get into the Status Display Mode.
Rotate Dial E until you fi nd the Parameter that you wish to change. Tap Dial E to enter that Parameter. Adjust to the setting that you require and then press (tap) Dial E to save and to Exit.

Digital DisplayStatus Display ParameterDescription
O: otOutdoor temperatureCurrent outdoor sensor temperature
A: In0-10 V displayCurrent voltage of (0-10V input)
b: ttCH target temperature in cascade systemCurrent CH target temperature or Current System target temperature in a cascade system
C: ItCH return water temperatureCurrent CH return water temperature
d: FrFAN speed ( rpm)Current FAN speed ( RPM)
E: oPCH supply temperature (Operating temperature)Current heating temperature
F: EhExhaust gas temperatureCurrent exhaust gas temperature


H: dH

Indirect DHW tank temperature

* If temperature sensor is not connected then it will display with 0°F (0°C).



Current DHW tank temperature

I: oHOverheat water temperatureCurrent Overheat water temperature








L: rt

1: PH





Burner Operation Time

Time for supply power





L: rt on display on sub menu

Unit : 1000hour
2: rhTime for burner

operation

Unit : 1hour
3: rHTime for burner

operation

Unit : 1,000hour
4: ItCycle for ignitionCycle : 10 times the displayed unit
5: IHCycle for ignitionCycle : 10,000 times the displayed unit








M: CC

SELFPercentage of self units running.Percentage of self units running.




ALL





Capacity for all operating cascade units

Percentage of all cascade units running.

This screen shows the overal cascade power output. The range of this value of boilers communicating with theMaster x 100. For example, if 8 boilers are connected and communicating, the maximum cascade power is 800%.

Range: 0-100%

F1 – F 19Capacity for individual boilersPercentage of each cascade units running. Ex. F1, F2, ….


N: St

System Temperature (cascade mode) * If system temperature sensor is not connected then it will display with 0°F (0°C).

Current System Temperature (cascade mode)
