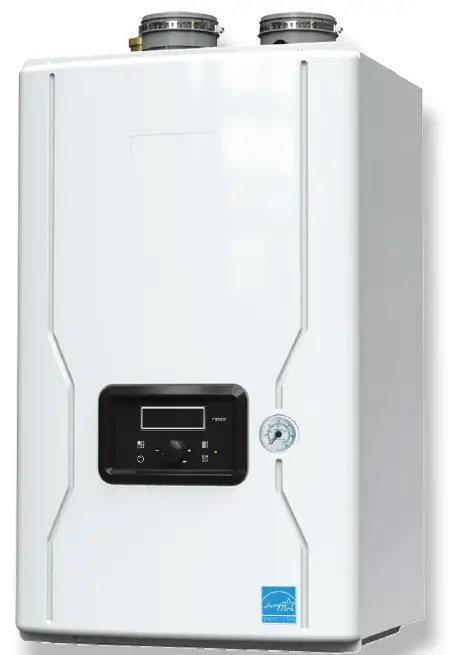

BRADFORD WHITE FTCW Wall-Mounted Modulating Gas Condensing Combination Boiler

BRADFORD WHITE FTCW Wall-Mounted Modulating Gas Condensing Combination Boiler-fig1

FOR YOUR SAFETY: This product must be installed and serviced by a professional service technician, qualified in hot water boiler and heater installation and maintenance. Improper installation and/or operation could create carbon monoxide gas in flue gases which could cause serious injury, property damage, or death. Improper installation and/or operation will void the warranty.

WARNING
If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life.

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

WHAT TO DO IF YOU SMELL GAS

  • Do not try to light any appliance.
  • Do not touch any electrical switch; do not use any phone in your building.
  • Immediately call your gas supplier from a nearby phone. Follow the gas supplier’s instructions.
  • If you cannot reach your gas supplier, call the fire department.

Installation and service must be performed by a qualified installer, service agency, or gas supplier.

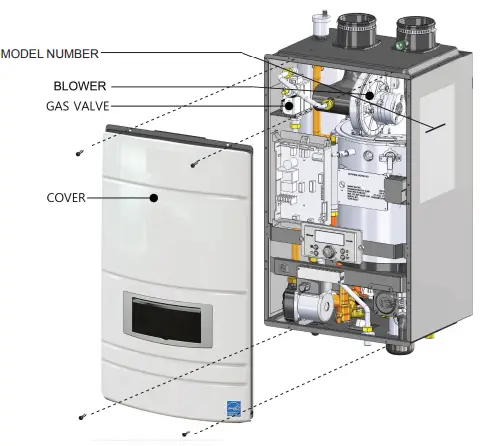

BRADFORD WHITE FTCW Wall-Mounted Modulating Gas Condensing Combination Boiler-fig2

Familiarizing yourself to THE FT

The combi FT is a wall mounted, condensing and fully modulating, residential boiler and water heater. This Users Manual will guide you into the basics of operating your FT Please reference the Installation and Operation Manual for complete details. Doc# 1318

Caring For Your FT

Your FT will require very little maintenance.However, as with any fine appliance there are certain steps that should be taken to ensure continuing optimum performance.

  • Your FT will require very little maintenance.
    However, as with any fine appliance there are certain steps that should be taken to ensure continuing optimum performance.
  • General Care
    • Keep the area around the FT clean and free from combustible materials, gasoline and other flammable liquids and vapors.
    • The FT must be completely isolated and protected from any source of corrosive chemical fumes such as trichlorethylene, perchlorethylene, chlorine, etc.
    • Keep bottom and top openings on the boiler free for proper ventilation of interior components.
    • Do not obstruct or block a free flow of air to the boiler to ensure proper ventilation.
    • If desired, clean the jacket surfaces with a damp cloth and mild detergent. Do not use flammable cleaning materials.
    • If sidewall vented, keep the vent terminal clear of obstructions — do not allow snow to cover the vent terminal. Clean the intake screen often, and then develop an appropriate maintenance schedule.
  • Annual Inspection of Flue and Vents
    Visually inspect the vent pipe once a year. Should any deterioration exist, have the affected parts replaced by a qualified service person.
  • In the Event of a Power Failure
    The FT can not be operated during an electrical power outage. If there is an extended power outage with danger from freezing, then the FT (and all other water systems) should be drained completely. When draining the boiler, turn off main electrical disconnect switch. When placing back in service, refer to Section 3 of this Manual for instruction. All draining and filling must only be done by a qualified service person.
  • Full Service Every Year
    In addition to the annual visual inspections, a qualified service agency should conduct a detailed inspection of all flue product carrying areas of the boiler and its venting system.

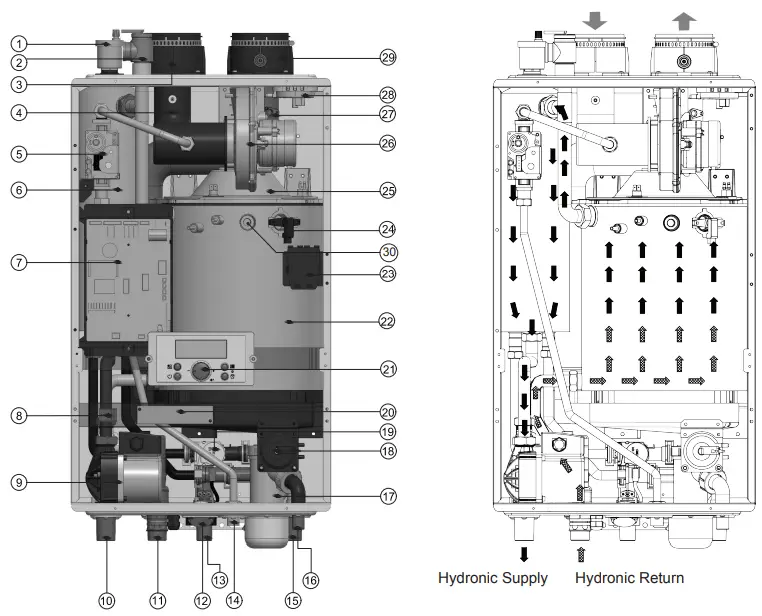

OVERVIEW

BRADFORD WHITE FTCW Wall-Mounted Modulating Gas Condensing Combination Boiler-fig3

#Name of Component
1Air Vent (air eliminator)
2Pressure Relief Valve
3Air Intake Collar
4Air Gas Mixing Pipe
5Gas Valve
6DHW Water Tank
7Main PCB
8Manual Power Switch (ON / OFF)
9Recirculation Pump DHW / CH Primary Pump
10‘CH’ Supply Connection
11‘CH’ Return Connection
12CH Pressure Gauge
13DHW Outlet Connection
14Gas Inlet Connection
15DHW Inlet Connection (filter and flow restrictor)
#Name of Component
16Condensate Connection
17Condensate Trap
18Air Pressure Switch (condensate)
19Mixing Valve
20Terminal Block
21Control Panel and Display
22Heat Exchanger
23Ignition Trans
24Flame Detecting Sensor
25Burner Case
26BLDC Fan
27Vent Pipe
28Air Pressure Switch
29Vent Pipe Collar
30Sight Glass

Shut Down and Restart

To Start the FT
If drained, please refer to the Install and Operating Manual to ensure that the complete ‘Setup’ procedure has been followed before starting this boiler. A complete ‘Setup’ must be performed by a qualified service person.

Shutting Down the FT

  1. Turn off the main electrical disconnect switch.
  2. Close all manual gas valves.
  3. If freezing is anticipated, drain FT and be sure to also protect building piping from freezing. All water must be removed from heat exchanger and condensate trap or else damage from freezing may occur. Please refer to the Install and Operating Manual.
    This step to be performed by a qualified service person.

The Control Display and Operation

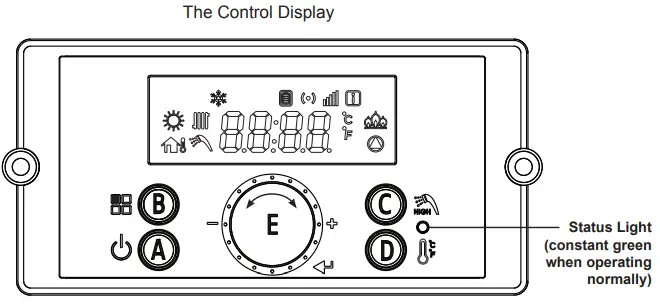

The Control Display

BRADFORD WHITE FTCW Wall-Mounted Modulating Gas Condensing Combination Boiler-fig4

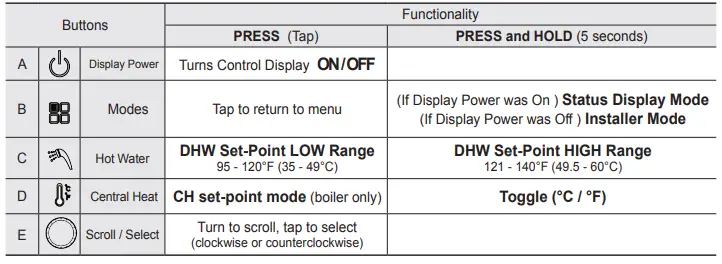

The Control Display has a Control Dial (E), 4 buttons (A, B, C, D), and a Liquid Crystal Display (with 72 back-lit segments). This section of this manual gives instruction on how to navigate into the many functions of the FT and to change temperature set points, set system variables and controller parameters.

BRADFORD WHITE FTCW Wall-Mounted Modulating Gas Condensing Combination Boiler-fig5

Temperature Specifications

Operating ambient Temperature Range : -10 to 60°C. Operating Relative Humidity up to: 90% at 40°C. Shipping & Storage Temperature Range of : -20 to 80°C.

BRADFORD WHITE FTCW Wall-Mounted Modulating Gas Condensing Combination Boiler-fig6

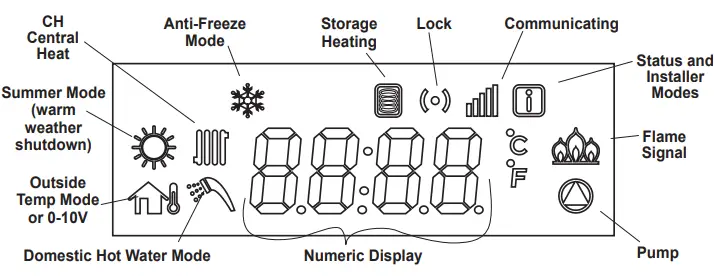

CH modeCentral Heat mode icon can be adjusted
Anti-freeze modeAnti-freeze mode icon
Storage Heating modeStored Water Being Heated, can be adjusted
Lock modeButtons-locked mode icon
CommunicationCommunication icon
Summer modeOnly DHW Mode, can be adjusted (warm weather shutdown)
Status and Installer modeThe Status Mode or the Installer Mode is Active (all parameters)
Flame signalFlame Signal icon
Pump iconWater pump operation (CH or DHW) icon
Numeric DisplayNumber and character display, to display all parameters
DHW modeCombination boiler Set Point, can be adjusted
Outside temp or 0-10 V modeOperating by outside temperature or 0-10V



The LCD will illuminate when a user action is detected (a button is pressed) and will turn back off after 20 seconds.
* NOTE: The display will not allow changes when the lock mode is activated. To exit the Lock mode, press theBRADFORD WHITE FTCW Wall-Mounted Modulating Gas Condensing Combination Boiler-fig13 button.

WARNING
Do not use this appliance if any part has been under water. Immediately call a qualified service technician to inspect the appliance and to replace any part of the control system and any gas control that may have been under water.

Operating Mode

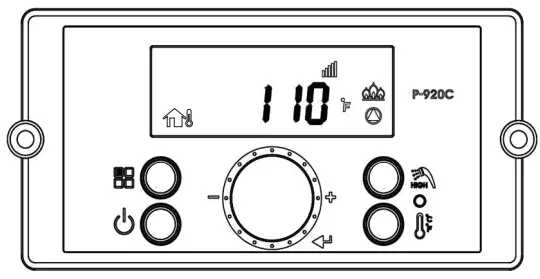

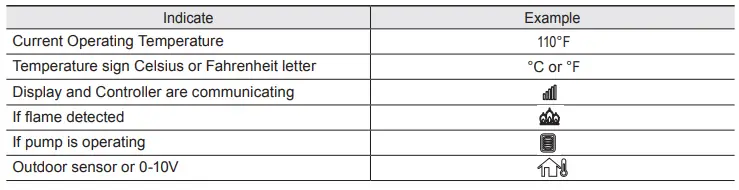

After the Power is turned on, and/or the Control Display is turned on , the Control Display will go through a ‘Start Up’ checklist and briefl y show a sequence of diagnostic codes before entering into the ‘Operating Mode. It will then display the following information.

BRADFORD WHITE FTCW Wall-Mounted Modulating Gas Condensing Combination Boiler-fig9

BRADFORD WHITE FTCW Wall-Mounted Modulating Gas Condensing Combination Boiler-fig10

BRADFORD WHITE FTCW Wall-Mounted Modulating Gas Condensing Combination Boiler-fig11BRADFORD WHITE FTCW Wall-Mounted Modulating Gas Condensing Combination Boiler-fig12

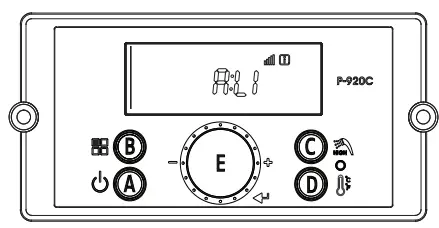

To change any of the above listed Status Parameters,
Press and Hold Button BRADFORD WHITE FTCW Wall-Mounted Modulating Gas Condensing Combination Boiler-fig13 to get into the Status Display Mode.
Rotate Dial E until you fi nd the Parameter that you wish to change. Tap Dial E to enter that Parameter. Adjust to the setting that you require and then press (tap) Dial E to save and to Exit.

  • DHW Set Point Change Modes

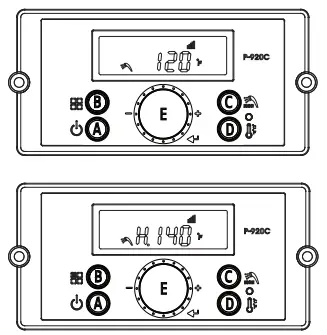

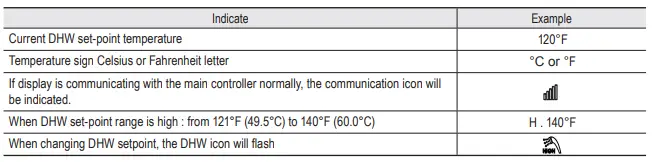

    The display shows the following information when changing water heating temperature set points.
  • Changing between Celsius and Fahrenheit When the button D BRADFORD WHITE FTCW Wall-Mounted Modulating Gas Condensing Combination Boiler-fig18 is pressed (for more than 5 seconds), temperature unit will toggle between °C and °F.

    BRADFORD WHITE FTCW Wall-Mounted Modulating Gas Condensing Combination Boiler-fig15
    BRADFORD WHITE FTCW Wall-Mounted Modulating Gas Condensing Combination Boiler-fig16
    * Default DHW set-point is 120°F (49°C)

  • DHW 95-120°F (35 – 49°C) LOW range (Default)
    • To change LOW range, press the C Button. The DHW icon and current DHW LOW will flash (a fl ashing value means it can be changed).
    • Turn dial E clockwise to increase and counterclockwise to decrease until desired temperature is reached.
    • Press dial E to save setpoint changes.
  • DHW 121 – 140°F (49.5 – 60°C) HIGH range
    • To change HIGH range, press and HOLD the C button for more than 5 seconds. The DHW icon and current DHW HIGH will flash (a fl ashing value means it can be changed).
    • Turn dial E clockwise to increase and counterclockwise to decrease until desired temperature is reached.
    • Press dial E to save setpoint changes and to Exit.
  • DANGER
    Scalding may occur within 5 seconds at a setting of 140°F (60°C). Water temperatures over 125°F can cause severe burns, or death from scalding. Children, disabled, and elderly are at highest risk of being scalded. Read all instructions before setting
    temperature at appliance. Feel water before bathing or showering.

    BRADFORD WHITE FTCW Wall-Mounted Modulating Gas Condensing Combination Boiler-fig17

  • Changing between Celsius and Fahrenheit
    When the button D is pressed (for more than 5 seconds), temperature unit will toggle between °C and °F.

    BRADFORD WHITE FTCW Wall-Mounted Modulating Gas Condensing Combination Boiler-fig19BRADFORD WHITE FTCW Wall-Mounted Modulating Gas Condensing Combination Boiler-fig20

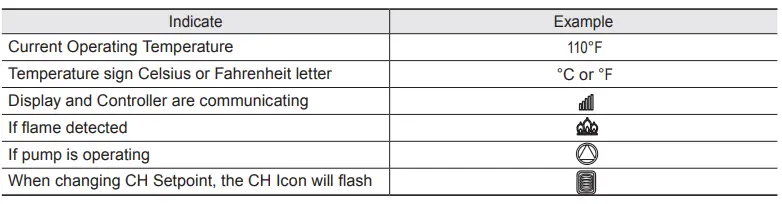

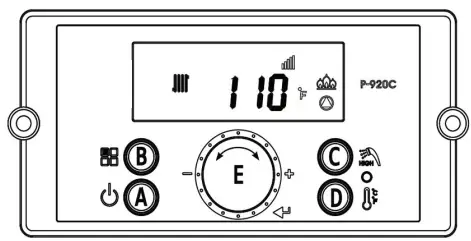

    Default CH set-point is 120°F (49°C)
    CH set-point range is 86 – 180°F (30.0 ~ 82.0°C)

  • To change CH Setpoint,
    • press the D button. The CH Icon and current CH Setpoint will fl ash.
    • Turn the E dial clockwise to increase, and counterclockwise to decrease CH setpoint, until desired temperature is reached.
    • Press E dial to save changes and to Exit.

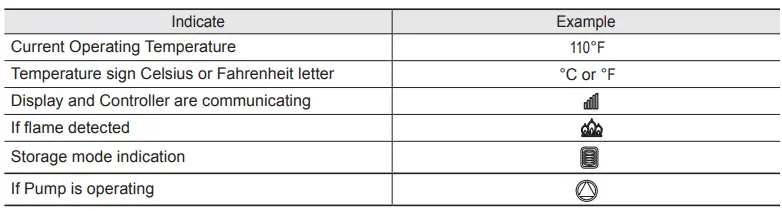

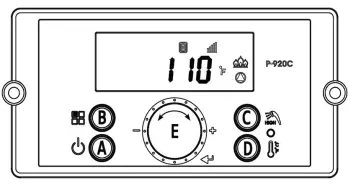

  • Storage Mode

    BRADFORD WHITE FTCW Wall-Mounted Modulating Gas Condensing Combination Boiler-fig21BRADFORD WHITE FTCW Wall-Mounted Modulating Gas Condensing Combination Boiler-fig22

  • To change Storage Mode Temp,
    • First turn OFF the power to the Control Display.
    • Then Press and Hold Button B to get into the Installer Mode.
    • Rotate Dial E until you find 5:St Tap Dial E to enter Storage Mode. Storage Mode indicates that the boiler is heating the water held in the internal storage tank. When Storage Mode is active, the display will appear as shown.
    • Turn the E dial clockwise to increase, and counterclockwise to decrease setting.
    • Press E dial to save changes and to Exit.

Dimensions and specifications subject to change without notice in accordance with our policy of continuous product improvement.
