INSTALLATION INSTRUCTION
LC1200/LC2400 SERIES LOCKS

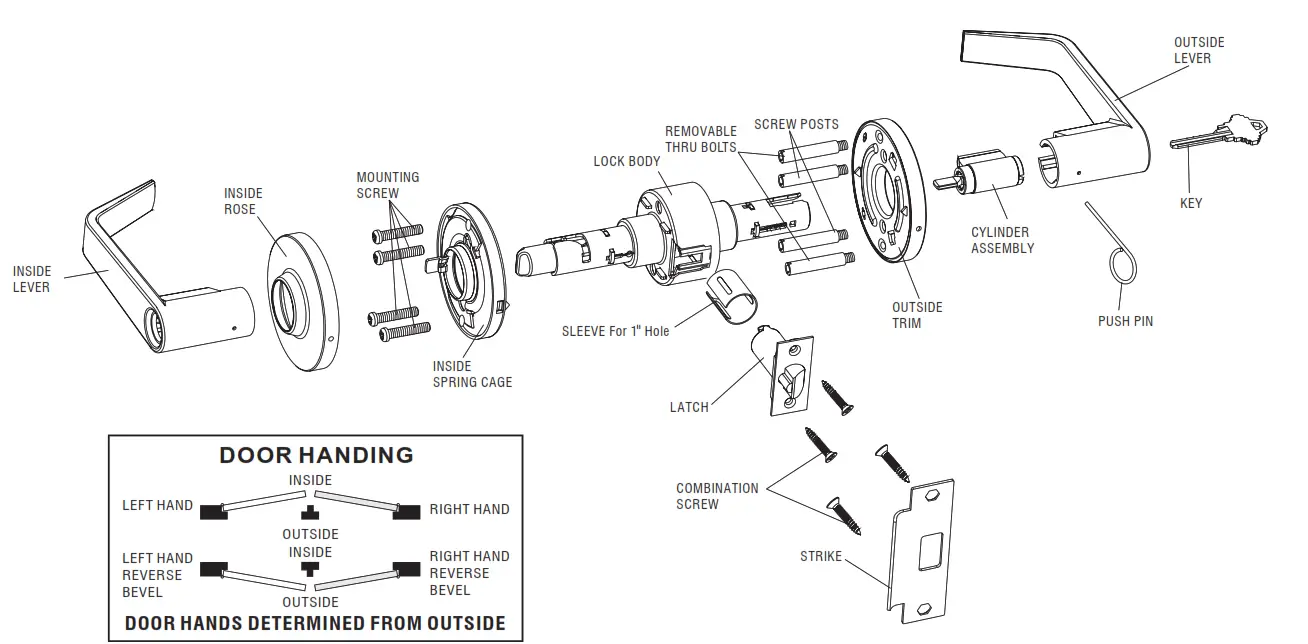

HOW TO INSTALL THIS CYLINDRICAL LEVERSET
LEVERSET IS SET FOR 1 3/4” THICK DOOR – BACKSET 2 3/4”
New Door Preparation

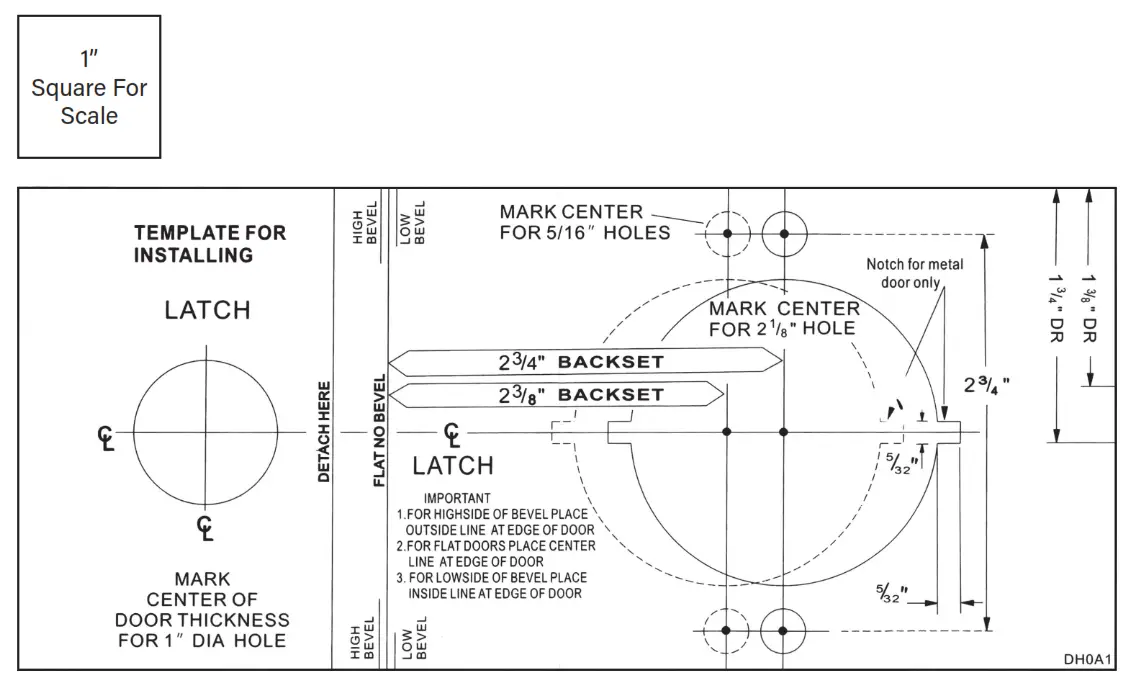

- Fold template over edge of door and mark holes.
- Drill a 2-1/8″ hole.
- Drill two 3/8″ thru bolt holes through face of door.(only if the thru bolts are being used).
- Drill a 1″ hole in edge of door.
- Cut 5/32″ notches on 2-1/8″ hole on both sides of door.
(very important if not using thr u bolts) - Mortise latch unit front
2-1/4″ x 1-1/8″ x 1/8″ for 2-3/4″ backset or 2-1/4″ x 1″ x 1/8″ for the optional 2-3/8″ backset
DISASSEMBLE INSIDE LEVER

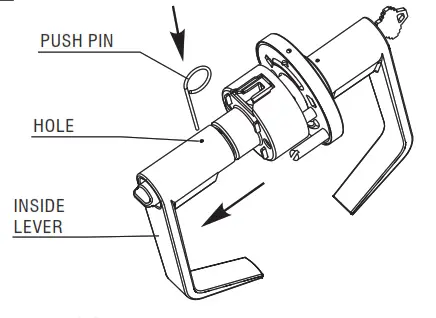

1A: Insert push pin into hole to depress catch and remove the lever.
INSTALL LEVERSET TO DOOR

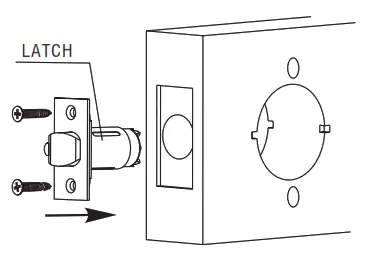

2A: Insert latchbolt and secure with combination screws.

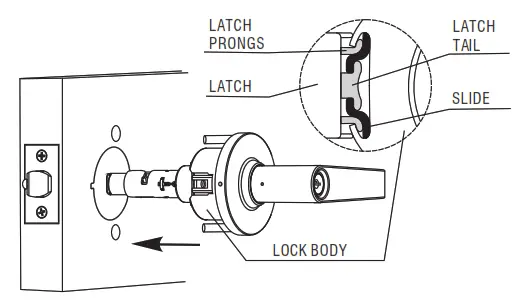

2B:Place lock body into position. Make sure that latch prongs engage chassis in housing, and slide engages latch tail.

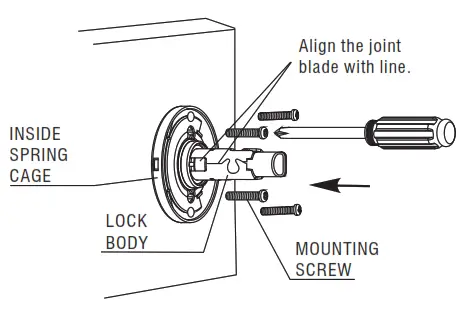

2C:Install inside spring cage , Screws should be hand tightened all the way down with a screwdriver.

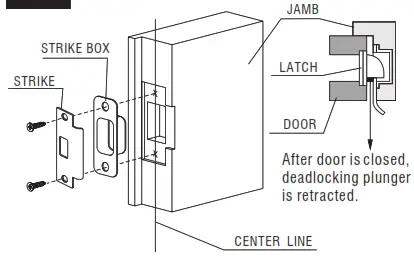

INSTALL STRIKE
INSTRUCTIONS FOR REMOVING AN INSTALLED LOCK FROM THE DOOR

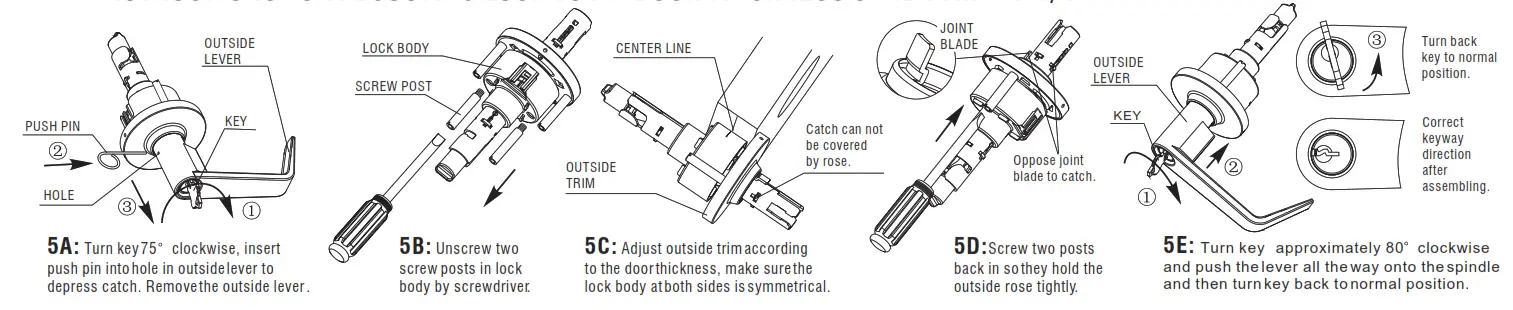

INSTRUCTIONS FOR ADJUSTING LOCK TO FIT DOOR THICKNESS OTHER THAN 1-3/4″
