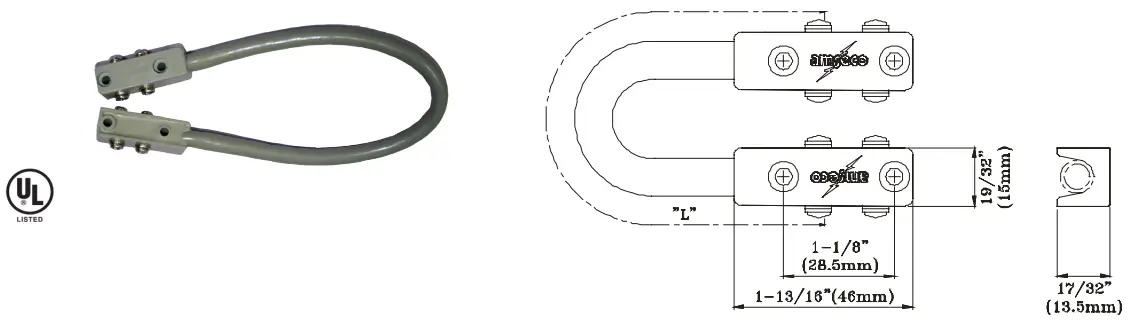

NDC/ADC SERIES
2 OR 4 CONDUCTOR TRANSFER CORD
Owner’s Manual

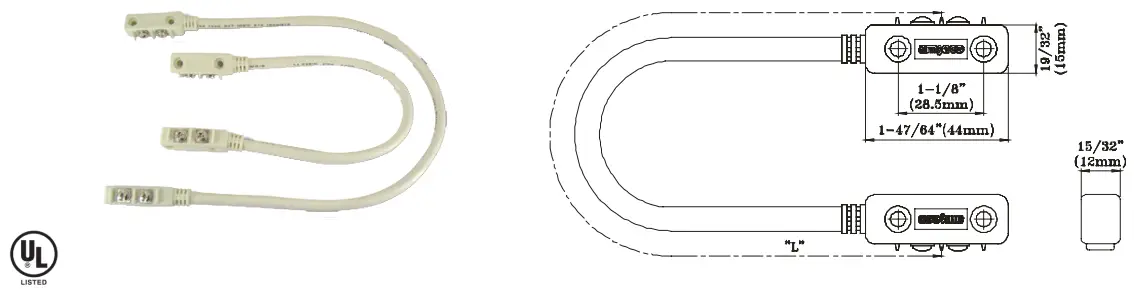

ADC Series 4 Conductor Transfer Cord
Specifications
| Model Number | Color | Stock Number | Number of Conductors | Cord Length | Voltage (Normal) | Voltage (Max) | Current Rating (Normal) | Current Rating (Max) |
| NDC’-2 1 2 | Brown | 4300023 | 2 | 12″ | 130V | 300V | 50mA | 2A |
| Gray | 4300024 | |||||||
| Ivory | 4300025 | |||||||
| NDC-218 | Brown | 4300026 | 18″ | |||||
| Gray | 4300027 | |||||||
| Ivory | 4300028 |
| Model Number | Color | Stock Number | Number of Conductors | Cord Length | Voltage (Normal) | Voltage (Max) | Current Rating (Normal) | Current Rating (Max) |
| ADC-412 | Brown | 4300014 | 4 | 12″ | 130V | 300V | 50mA | 2A |
| Gray | 4300015 | |||||||
| ADC-418 | Brown | 4300034 | 18″ | |||||
| Gray | 4300035 |
Potter Electric Signal Co., LLC • St. Louis, MO
• Cust Service: 866-240-1870 • Tech Support:866-956-1211
• Canada 888-882-1833
• www.pottersignal.com
MKT. #8880111 – REV B
