NRC SERIES Retractable Door Cord
Owner’s Manual
NRC-11
NRC SERIES
RETRACTABLE DOOR CORD
- UL and ULC listed
- Available in brown, gray, or ivory
Application
The NRC Series Retractable Door Cord is a UL listed door cord designed wth a retractable cord to provide flexibility while transfering protection onto movable objects such as a man doors, sliding doors, and windows.

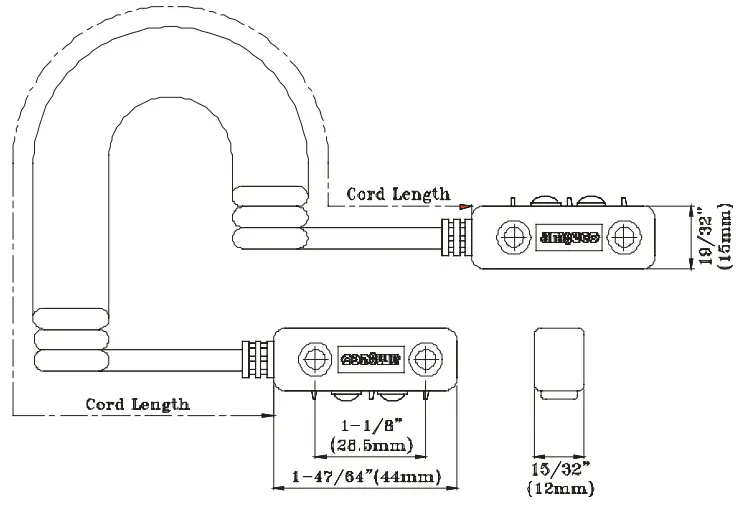

Dimensions
Specifications
| Model Number | Color | Stock Number | Length (Normal) | Length (Stretched) | Voltage (Normal) | Voltage (Max) | Current Rating (Normal) |
| NRC-11 | Brown | 4300002 | 24″ | 49″ | 130V | 300V | 50mA |
| Gray | 4300021 | ||||||
| Ivory | 4300022 | ||||||
| NRC-22 | Brown | 48″ | 98″ | ||||
| Gray | |||||||
| Ivory | 4300029 |
Potter Electric Signal Co., LLC
St. Louis, MO
Cust Service: 866-240-1870
Tech Support:866-956-1211
Canada 888-882-1833
www.pottersignal.com
PRINTED IN USA
MKT. #8880110 – REV B
