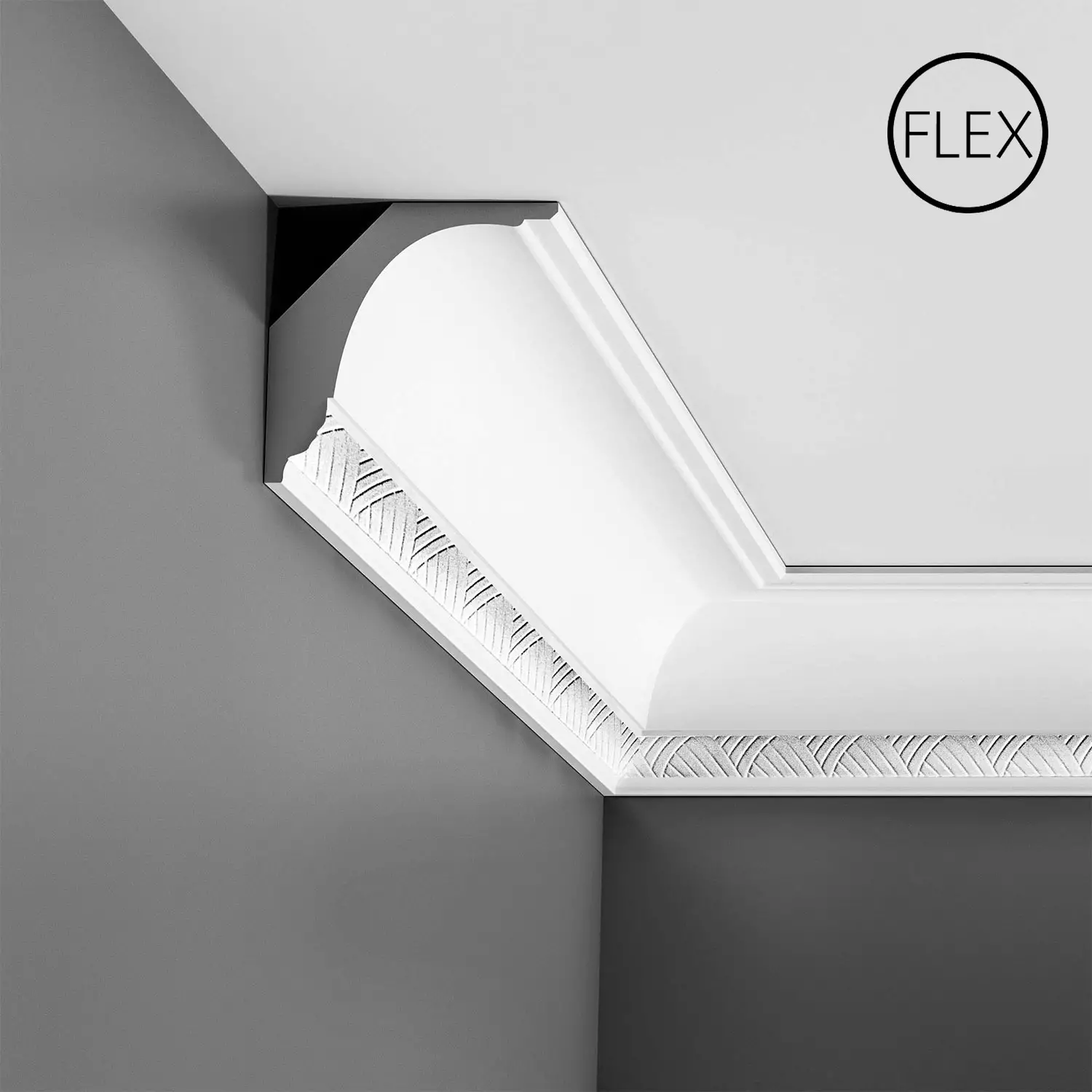

ORAC DECOR Flexible Mouldings
Ready?

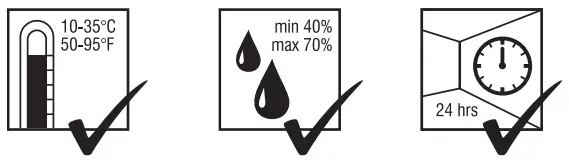

ATMOSPHERE & SURFACE
Storage and installation conditions: Store profiles and adhesives at room temperature and wait 24 hours before installing.
- Dust free
- Sand and wash surface
- Flat wall & ceilings
- Dry
- No grease
Set?
DECOFIX ADHESIVES
Online glue calculator
- Interior, porous and dry surface
- Heavy profiles
or
Exterior, non-porous or humid surface
- Seal wall/ceiling

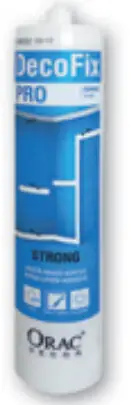

DecoFix Pro
Strong, water-based acrylic installation adhesive
FDP500 310ml | 7 > 8m
FDP600 4200ml | 65 > 110m
or

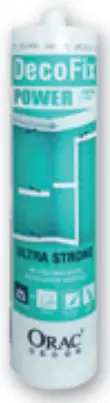

DecoFix Power
Very strong MS-Polymer-based installation adhesive
FDP700 290 ml | 7 > 8m
- Joints between mouldings

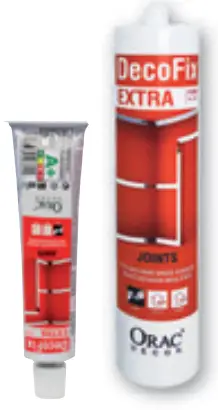

DecoFix Extra
Polyurethane-based adhesive
FX200 310ml | min. 80m
FX210 tube 80ml | min. 20m
- Finish seams with Decofiller

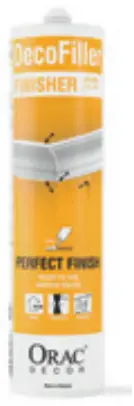

DecoFiller
Ready to use lightweight acrylic fi ller
FL300 310 ml | 30 m
Go!

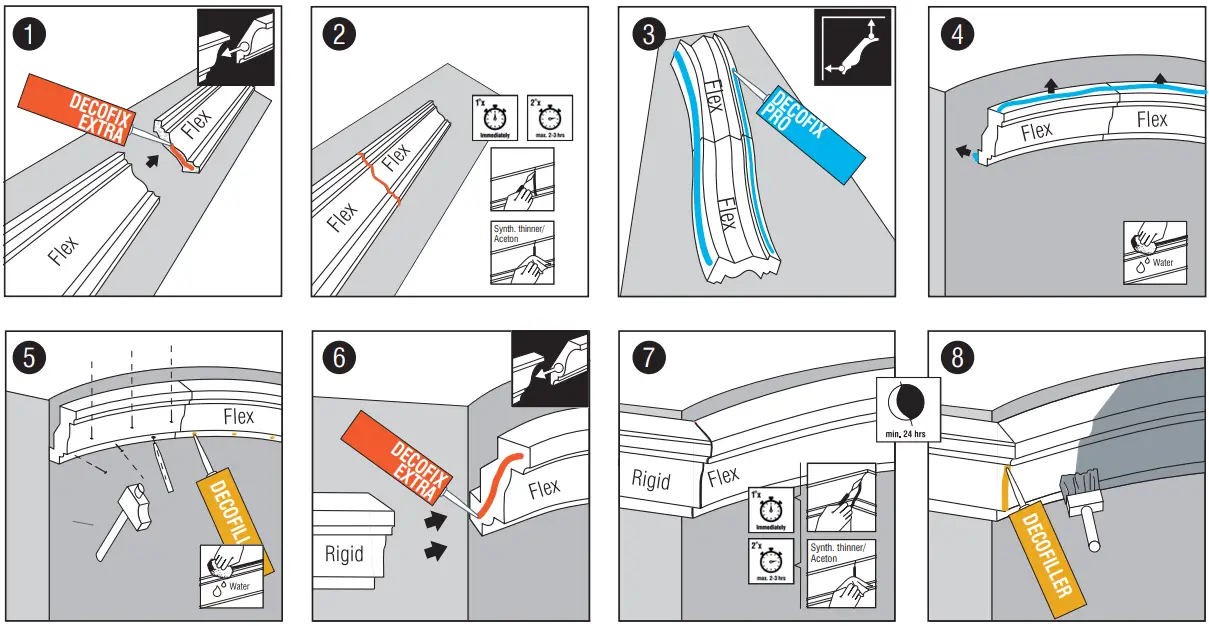

INSTALLATION
Also see general instructions for mounting
ONLY FULL GUARANTEE WITH DECOFIX
PRODUCT OVERVIEW FLEXIBLE MOULDINGS

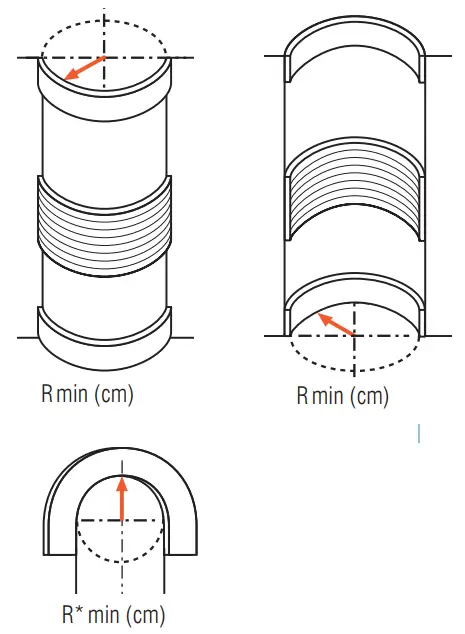

| Part # Profile | Min. Inside R | Min. Outside R | Min. Arch R* |
| CX100F | 6’7” | 6’7” | N/A |
| CX106F | 11’10” | 11’10” | N/A |
| CX109F | 5’3” | 5’3” | N/A |
| CX110F | 5’11” | 5’11” | N/A |
| CX123F | 9’3” | 9’3” | N/A |
| CX124F | 5’3” | 5’3” | N/A |
| CX127F | 7’11” | 7’11” | N/A |
| CX132F | 2’4” | 2’4” | N/A |
| CX148F | 5’11” | 5’11” | N/A |
| CX188F | 3’8” | 3’8” | N/A |
| CX189F | 3’ | 3’ | N/A |
| CX190F | 1’ | 1’ | 4’4” |
| CX199F | 6’7” | 6’7” | N/A |
| DX174F | 2’ | 2’ | 9’11” |
| FC200 | 5’3” | 5’3” | N/A |
| FC211 | 8’3” | 8’3” | N/A |
| FC212 | 4’ | 4’ | N/A |
| FC213 | 9’3” | 9’3” | N/A |
| FC215 | 5’3” | 5’3” | N/A |
| FC216 | 11’2” | 11’2” | N/A |
| FC217 | 12’6” | 12’6” | N/A |
| FC220 | 13’2” | 13’2” | N/A |
| FC230 | 5’ | 5’ | N/A |
| FC240 | 8’11” | 8’11” | N/A |
| FC250 | 2’4” | 2’4” | N/A |
| FC304 | 8’3” | 8’3” | N/A |
| FC321 | 4’8” | 4’8” | N/A |
| FC325 | 9’11” | 9’11” | N/A |
| FC326 | 16’5” | 16’5” | N/A |
| Part # Profile | Min. Inside R | Min. Outside R | Min. Arch R* |
| FC331 | 13’10” | 13’10” | N/A |
| FC333 | 9’11” | 9’11” | N/A |
| FC334 | 12’6” | 12’6” | N/A |
| FC339 | 12’6” | 12’6” | N/A |
| FC341 | 13’2” | 13’2” | N/A |
| FC373 | 3’4” | 3’4” | N/A |
| FC374 | 4’4” | 4’4” | N/A |
| FC402 | 9’11” | 9’11” | N/A |
| FC901 | 19’9” | 19’9” | N/A |
| FC902 | 19’9” | 19’9” | N/A |
| FP3020 | 1’8” | 1’8” | 5’11” |
| FP4020 | 1’4” | 1’4” | 6’7” |
| FP4025 | 2’4” | 2’4” | N/A |
| FP5021 | 8” | 8” | 2’4” |
| FP7020 | 1’ | 1’ | N/A |
| FP7070 | 1’ | 1’ | 7’7” |
| FP8020 | 1’4” | 1’4” | 4’4” |
| FP8030 | 8” | 8” | 2’4” |
| FP8040 | 1’ | 1’ | N/A |
| FP8050 | 2’8” | 2’8” | 6’7” |
| FP9010 | 1’4” | 1’4” | 10’3” |
| FP9050 | 8” | 8” | 2’ |
| FP9900 | 8” | 8” | 8’3” |
| PX103F | 8” | 8” | 2’8” |
| PX120F | 1’ | 1’ | 3’8” |
| PX144F | 8” | 8” | 7’3” |
| PX175F | 1’ | 1’ | 2’8” |
| PX201F | 1’ | 1’ | 2’8” |
| PX202F | 2’ | 2’ | 5’ |
| Part # Profile | Min. Inside R | Min. Outside R | Min. Arch R* |
| SX104F | 1’4” | 1’4” | N/A |
| SX105F | 1’ | 1’ | N/A |
| SX118F | 1’4” | 1’4” | N/A |
| SX137F | 1’4” | 1’4” | N/A |
| SX138F | 1’4” | 1’4” | N/A |
| SX155F | 1’ | 1’ | N/A |
| SX157F | 1’2” | 1’2” | 8’7” |
| SX162F | 8” | 8” | 2’8” |
| SX163F | 1’2” | 1’2” | N/A |
| SX165F | 1’4” | 1’4” | N/A |
| SX172F | 1’2” | 1’2” | N/A |
| SX173F | 1’6” | 1’6” | N/A |
| SX180F | 1’6” | 1’6” | N/A |
| SX182F | 1’2” | 1’2” | 3’4” |
| SX183F | 1’4” | 1’4” | N/A |
| SX184F | 1’6” | 1’6” | N/A |
| SX187F | 1’4” | 1’4” | N/A |
| SX194F | 10” | 10” | 2’8” |
| SX195F | 1’ | 1’ | N/A |

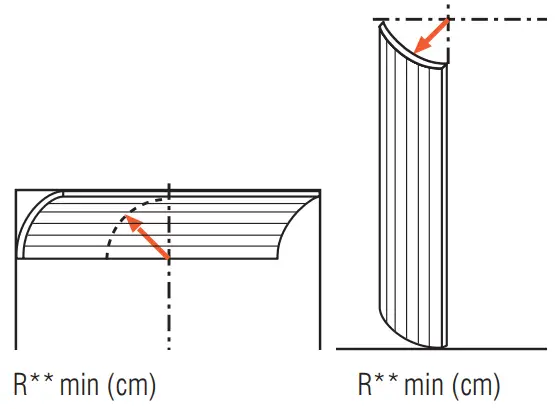

| Part # Profile | Min. Inside R** | Min. Outside R** | Min. Arch R* |
| W108F | 1’4” | 1’ | 1’ |
| W109F | 1’4” | 1’ | 1’ |
| W110F | 1’4” | 1’ | 1’ |
| W111F | 1’4” | 1’ | 1’ |
| W114F | 1’4” | 1’ | 1’ |
| W116F | 1’4” | 1’ | 1’ |
