INSTALLATION INSTRUCTIONS

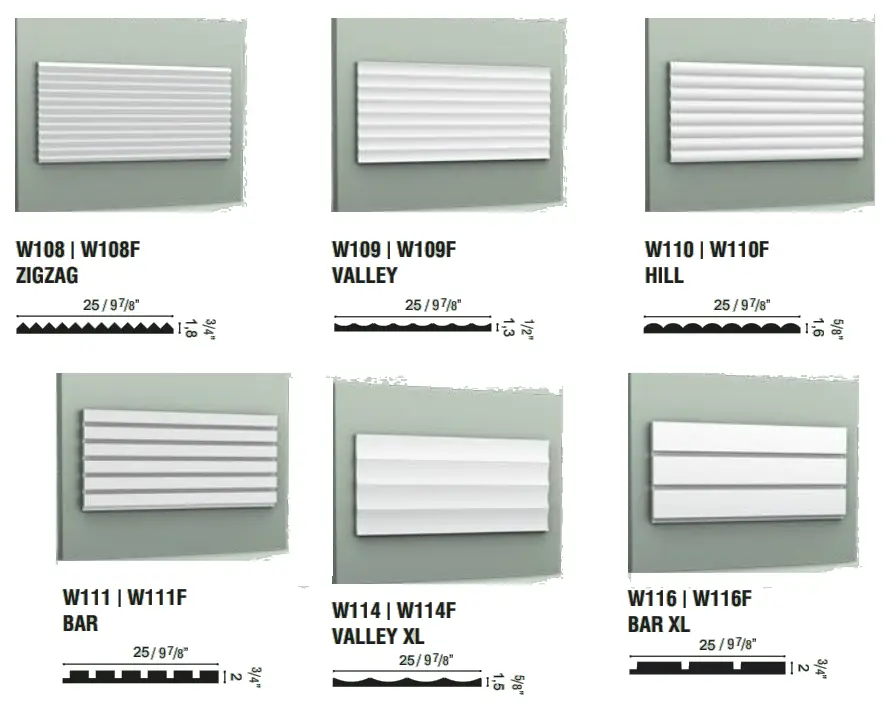

3D WALL COVERING
INSTALLATIE VAN 3D WALL COVERING
Length
WWW.ORACDECOR.COM
>> INSTALLATION
Ready? Set? Go!
INSTALLATION GUARANTEE
Storage and installation conditions: Store profiles and adhesives at room temperature and wait 24 hours before installing.
 |  |  |  |  |
| Dust free | Sand and wash surface | Flat wall & ceilings | Dry | No grease |
Online glue calculator
https://www.oracdecor.com/en/glue-calculator
ONLY FULL GUARANTEE WITH DECOFIX
 |  |  |
| Seal wall/ceiling | Connection between short sides of panels | Finish seams with Decofiller |
 |  |  |
| DecoFix Power Very strong MS-Polymer-based installation adhesive FDP700 290 ml | 7 > 8m | DecoFix Extra Polyurethane-based adhesive FX200 310ml | min. 80m FX210 tube 80ml | min. 20m | DecoFiller Ready to use lightweight acrylic filler FL300 310 ml | 30 m |
Non-porous or humid surface, interior
The finished lateral sides don’t require joint glue
READ CAREFULLY

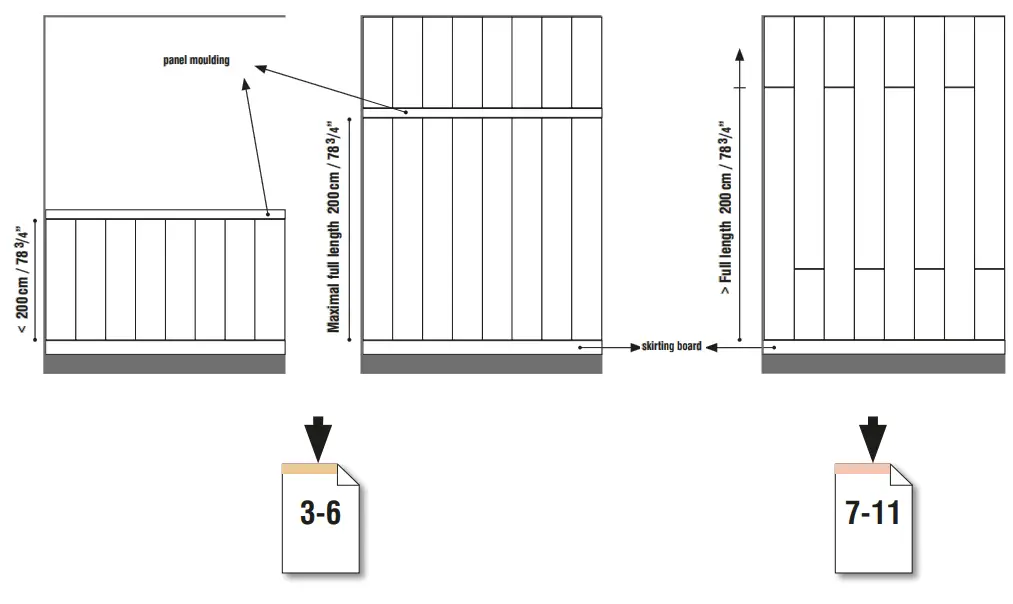

CHOOSE THE CONSTRUCTION

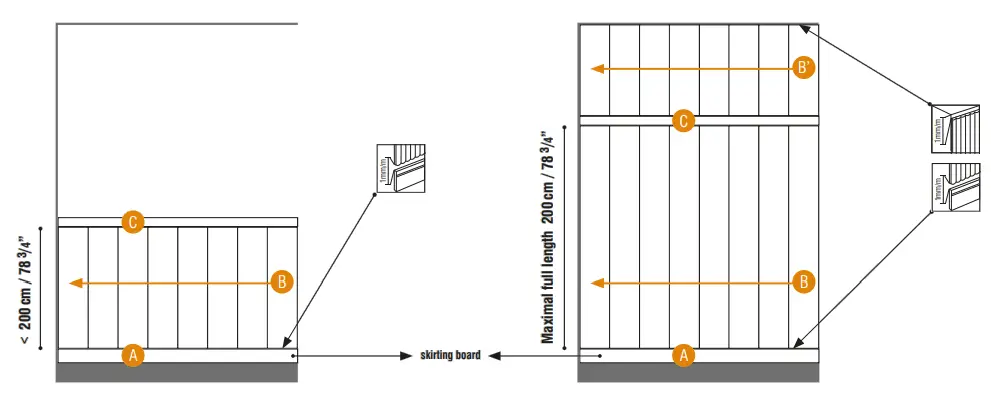

length < 200cm / 78 3 /4” (max. full length)
Using horizontally positioned (intermediate) profile
length > 200cm / 78 3/4”
Uniform wall covering
length < 200cm / 78 3 /4” (max. full length)
Using horizontally positioned (intermediate) profile
WORK METHOD
Always install a skirting board
Provide an expansion gap of 1mm/meter (3/64” per 39 3/8”) above the skirting board (and at the ceiling)
length < 200cm / 78 3/4” (max. full length)
Using horizontally positioned (intermediate) profile

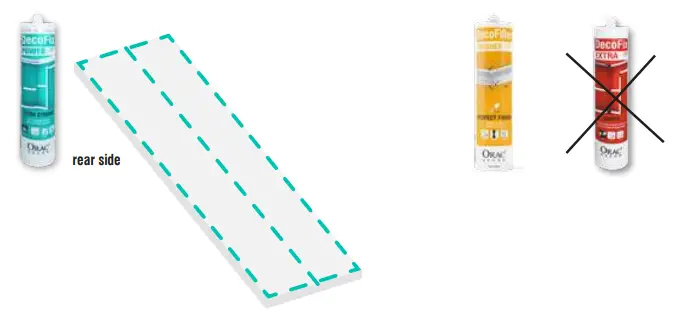

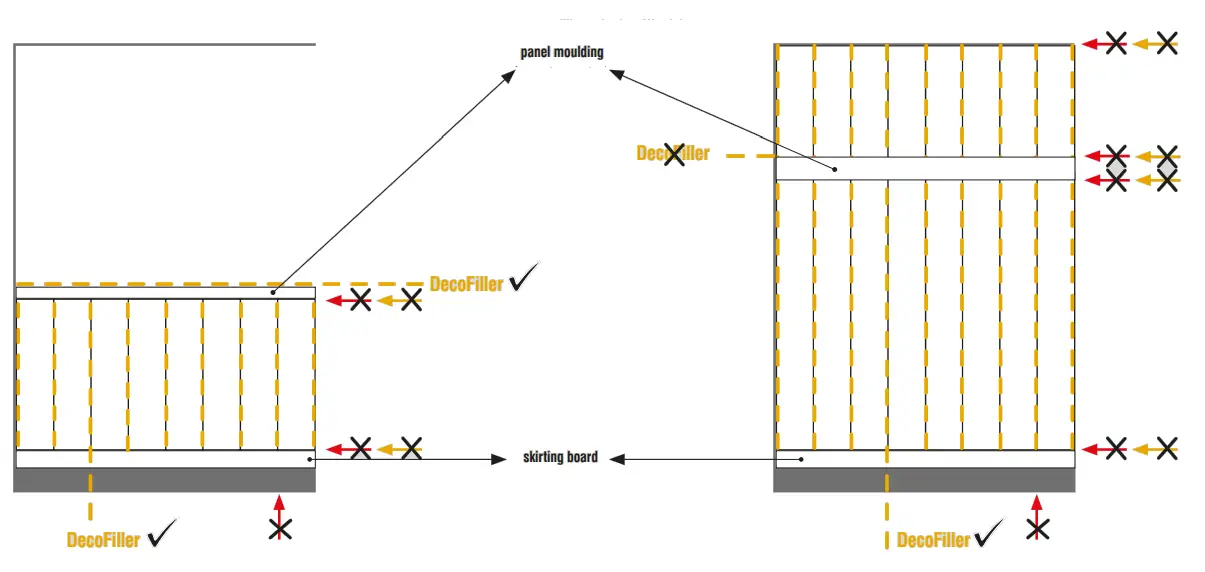

ADHESIVES + FILLER
Use DecoFiller for all vertical seams and for the top of a horizontal frame in the case of low panelling
Do not apply DecoFiller in expansion gaps
Do not apply DecoFix Extra
length < 200cm / 78 ¾” (max. full length)
Using horizontally positioned (intermediate) profile
INSTALLATION
Install a skirting board
See instructions
https://www.oracdecor.com/en_gb/installation

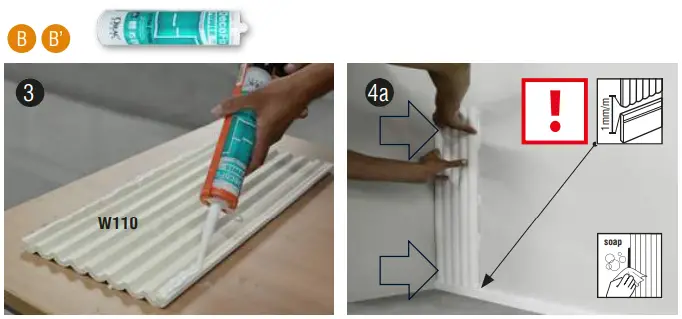

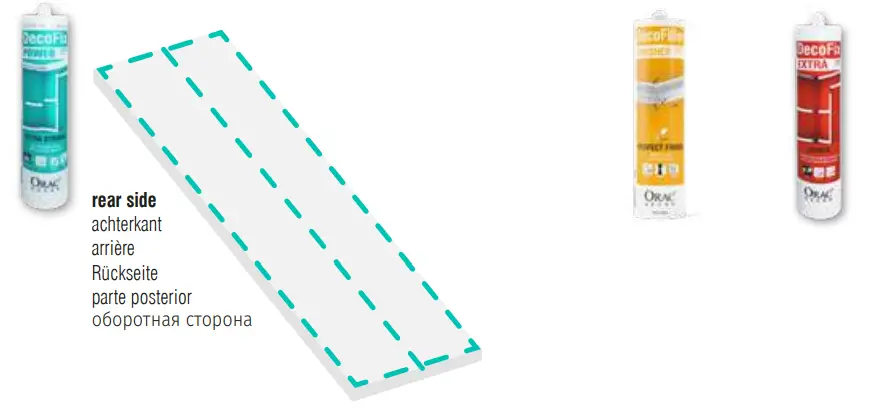

Apply DecoFix Power all around and on the length of the middle rib
Push firmly and remove excess glue
Provide expansion gap a rato 1mm/m (3/64” per 39 3/8”)

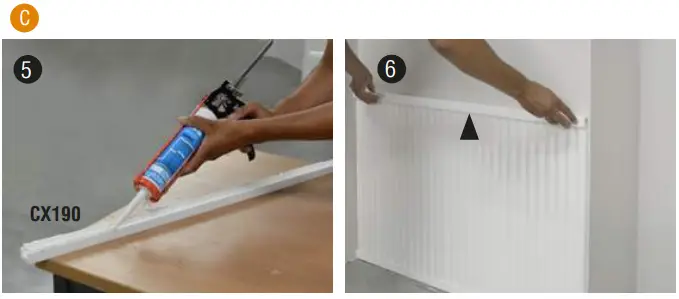

Install a finishing or intermediate profile
FINISH
Use DecoFiller to smooth out the visible joints and all vertical seams
Wait 15 minutes and sand gently
Paint the installed panels (with a spray gun)

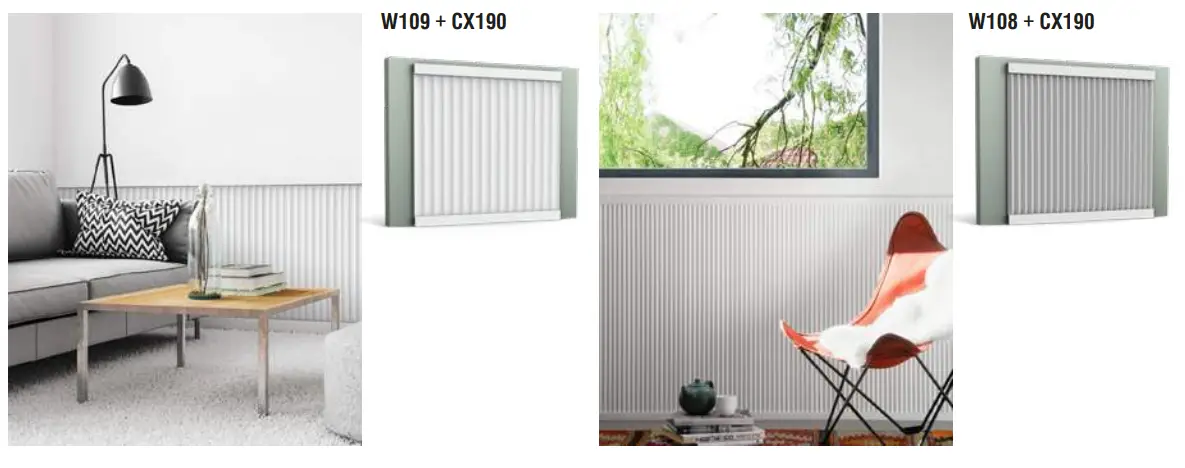

EXAMPLES

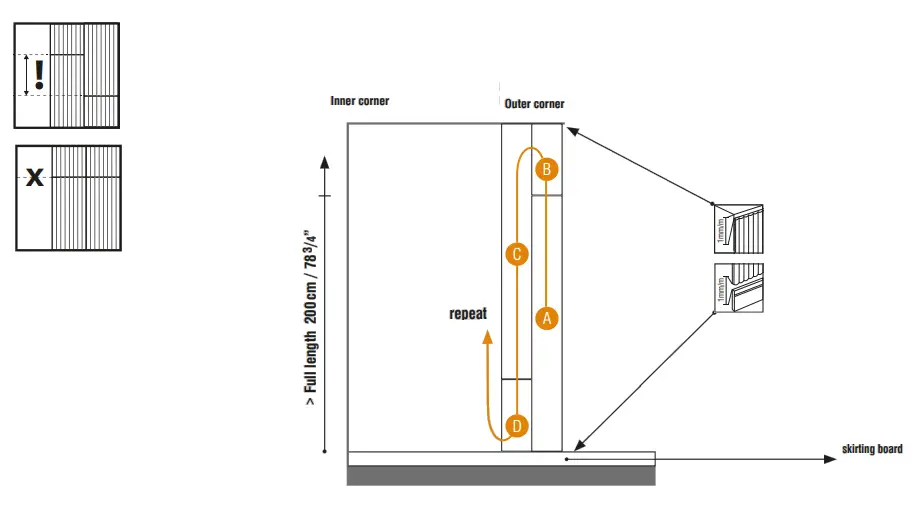

length > 200cm / 78 3/4”
Uniform wall covering
WORK METHOD
Always install a skirting board
Provide an expansion gap of 1mm/meter (33/64” per 39/8”) above the skirting board (and at the ceiling)
ADHESIVES + FILLER

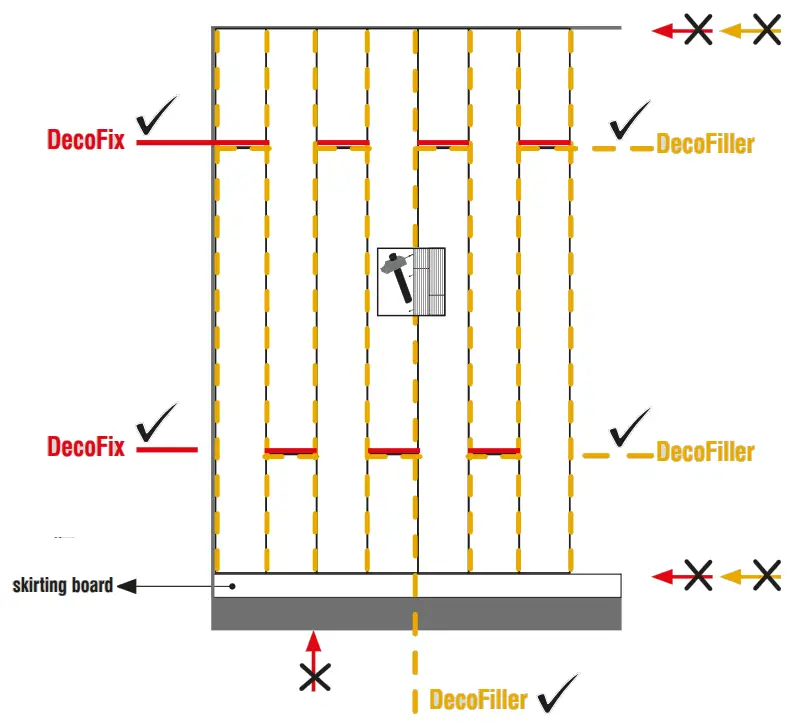

Use DecoFiller for ALL joints between the panels Use DecoFix Extra for all SHORT joints between the panels
Large areas: use headless nails on the side of the panel for extra fixation
Do not apply DecoFix Extra and DecoFiller in expansion gaps
INSTALLATION
 |  | ||
| Install a skirting board | See instructions | Apply DecoFix Power all around and on the length of the middle rib | Start by placing at the bottom, at an outer corner |
https://www.oracdecor.com/en_gb/installation
 |  | ||

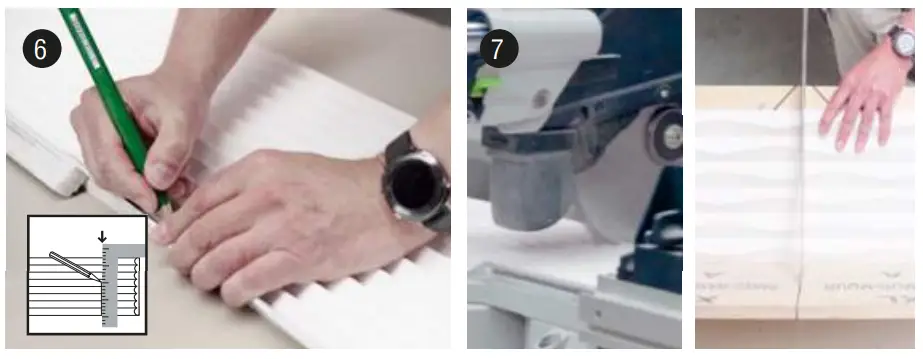

| Push firmly and remove excess DecoFix Power | Measure remaining length | Mark on the panel | Saw to size mechanically or manually |
 |  | ||

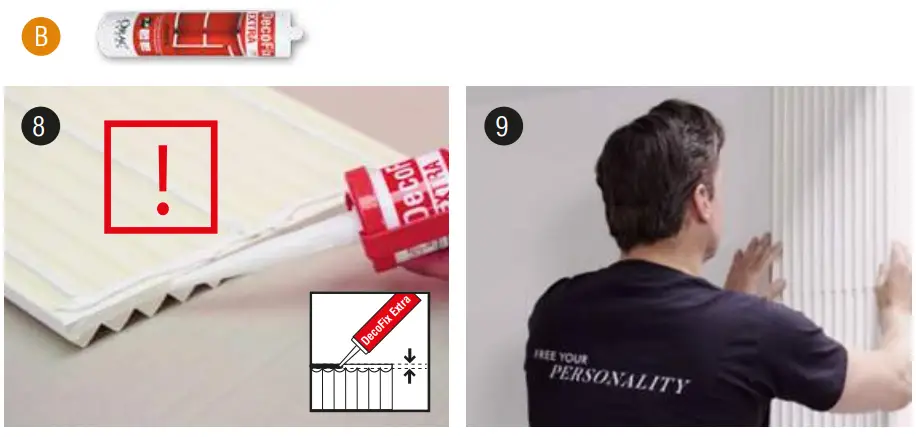

| Apply DecoFix Extra to the short seam of thepanel as close to the wallside as possible | Place the shortened piece above the first panel | Position the panels closely and carefully together | Push firmly |
 |  | ||

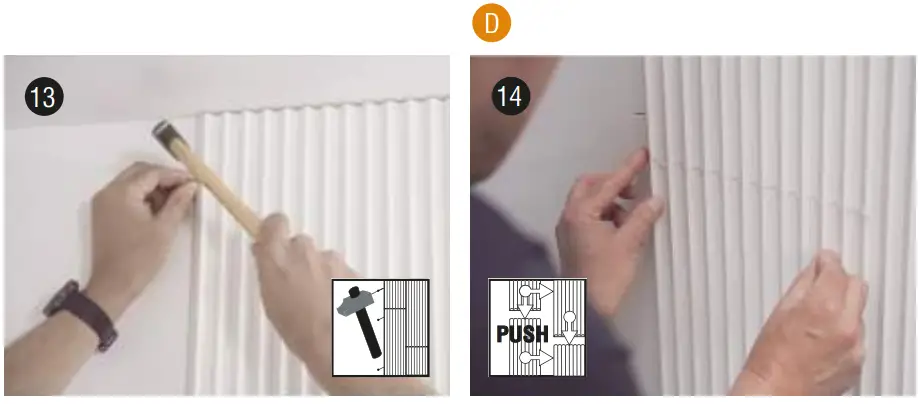

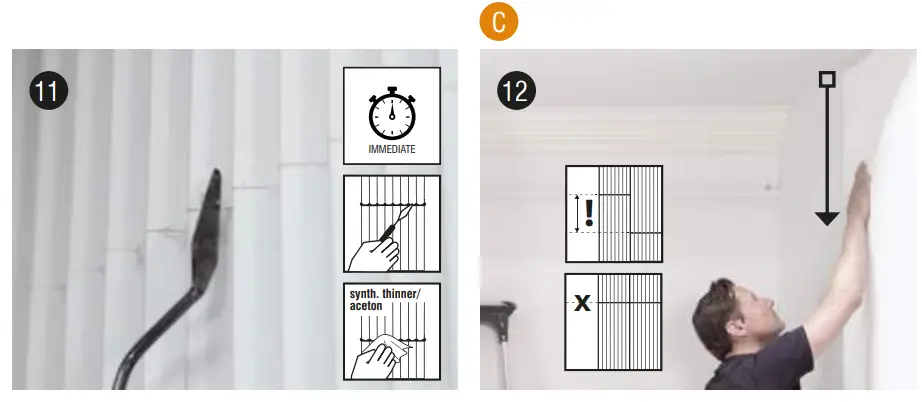

| Remove excess DecoFix Extra | Start second row (steps 1-10) by placing panels from ceiling down | Large areas: use headless nails on the side of the panel for extra fixation | Finish the full height of the 2nd row |

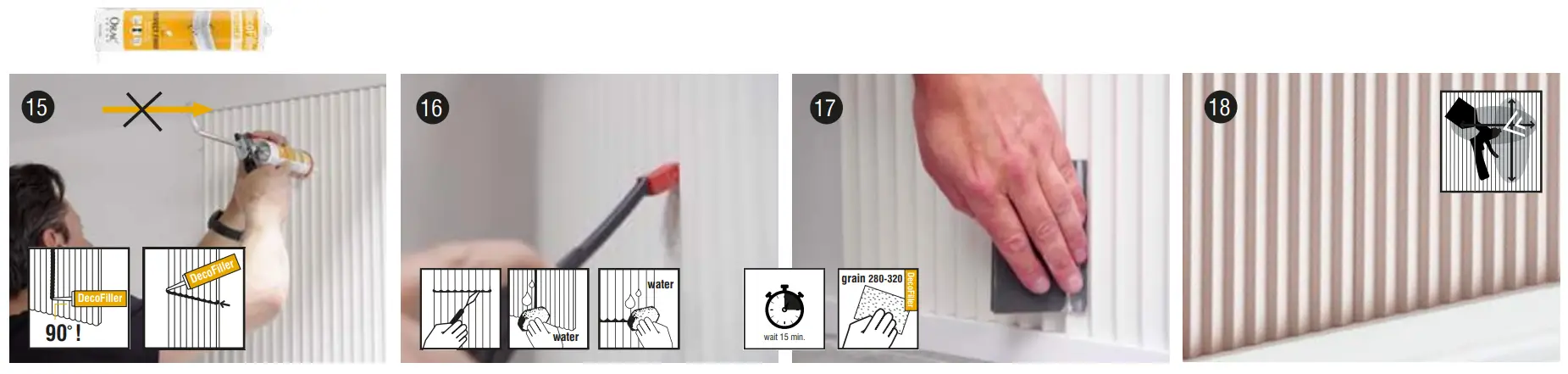

FINISH
 | |||
| inish all vertical seams (and the seams between the panels) with DecoFiller | Remove excess DecoFiller | Wait 15 minutes and sand gently | Paint the installed panels (with a spray gun) |
EXAMPLES
