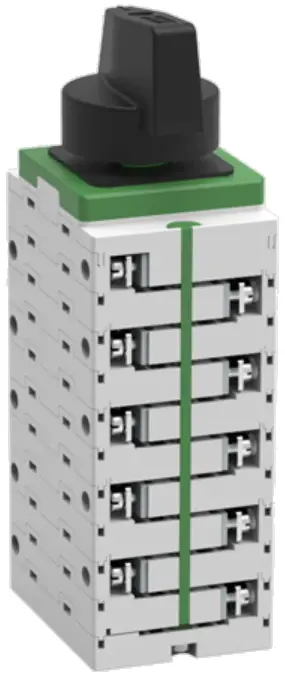

PROJOY electric PEDSH DC Isolator
Instructions for Installation and Operation
Cable Cross section
 | PEDS-32 | 4-10mm² |
| PEDS-55 & PEDSH | 4-16mm² |

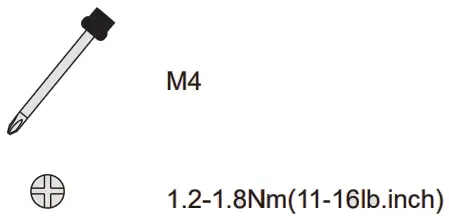

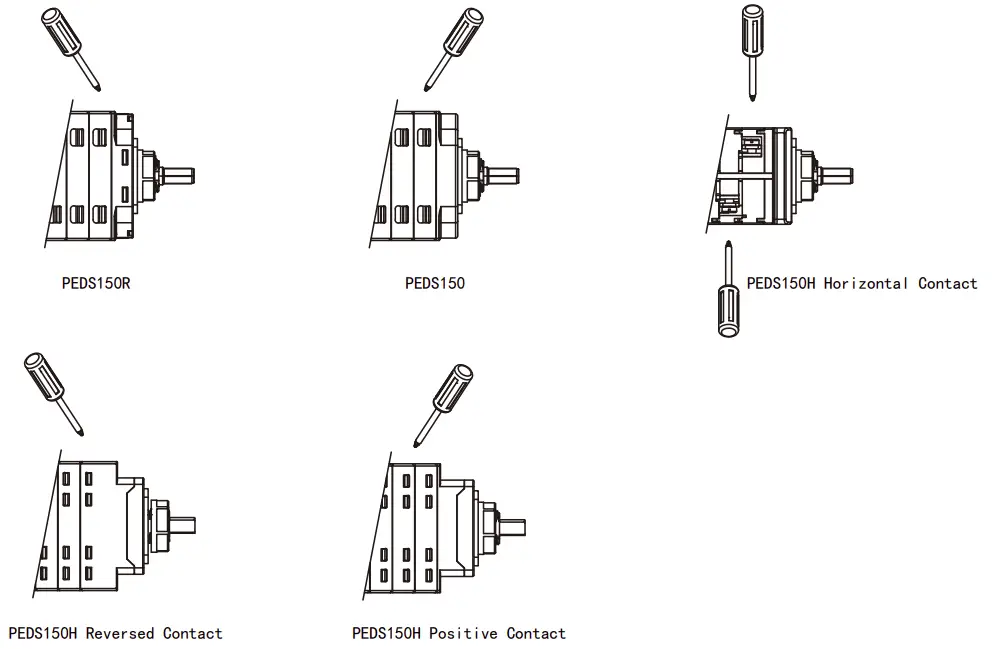

Screw driver, tightening Torque
Jumper for series and parallel switching of contacts
Type | A | B | C | D | E |
PEDS-J | PEDS-JL1 | PEDS-JL2 | PEDSH-JL1 | PEDSH-JL2 | |
 |  |  |  |  |
Choose jumpers based on the mode of connection and availability requirements of your application.

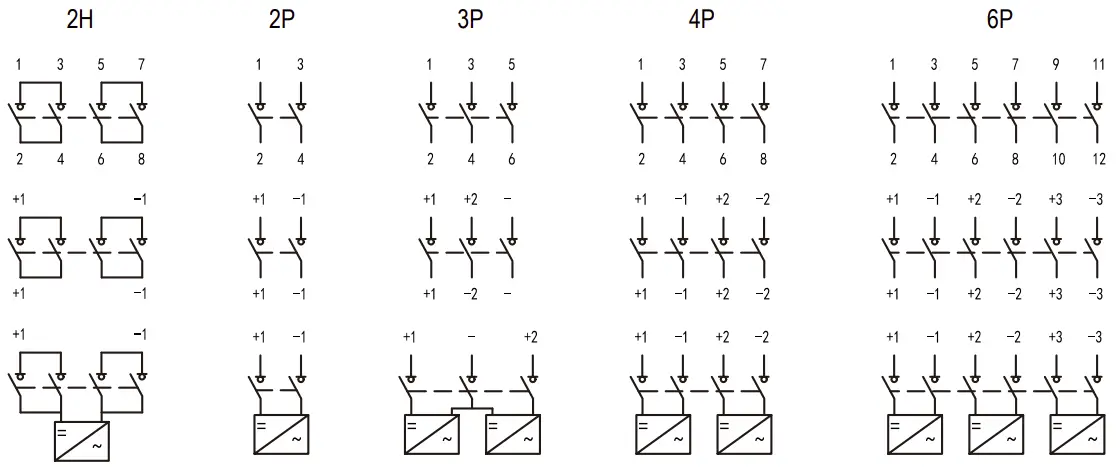

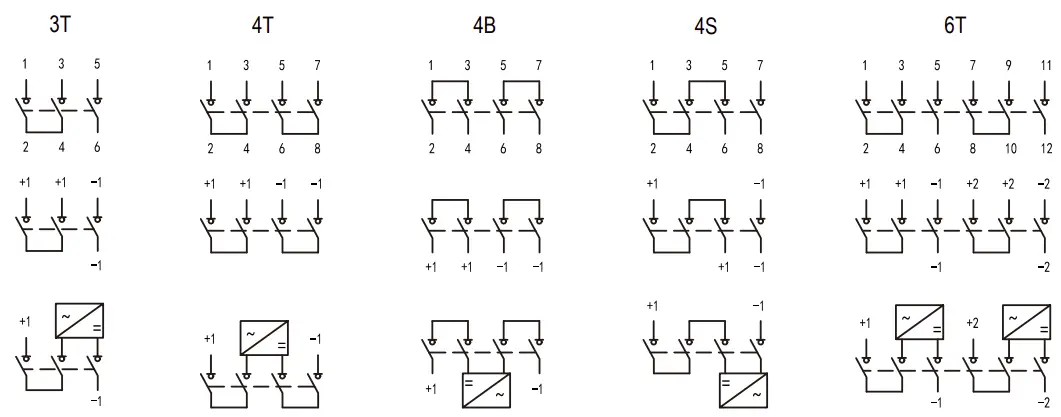

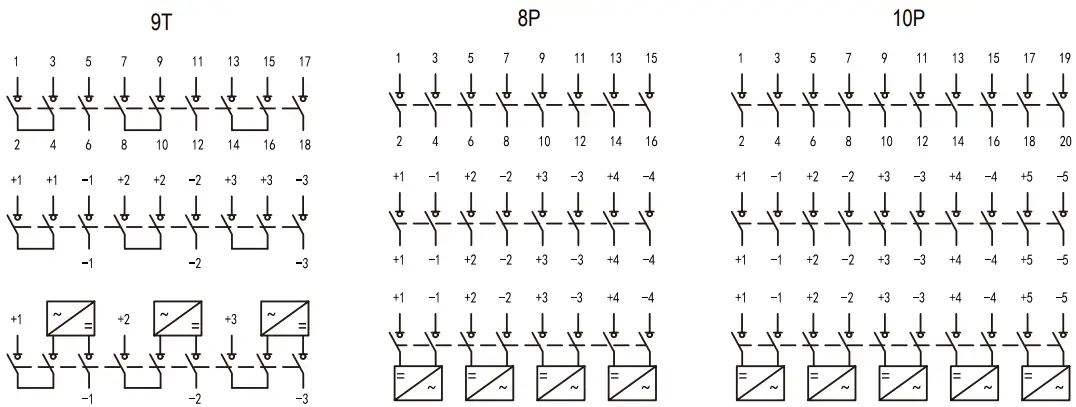

Wiring diagram / Switching examples
