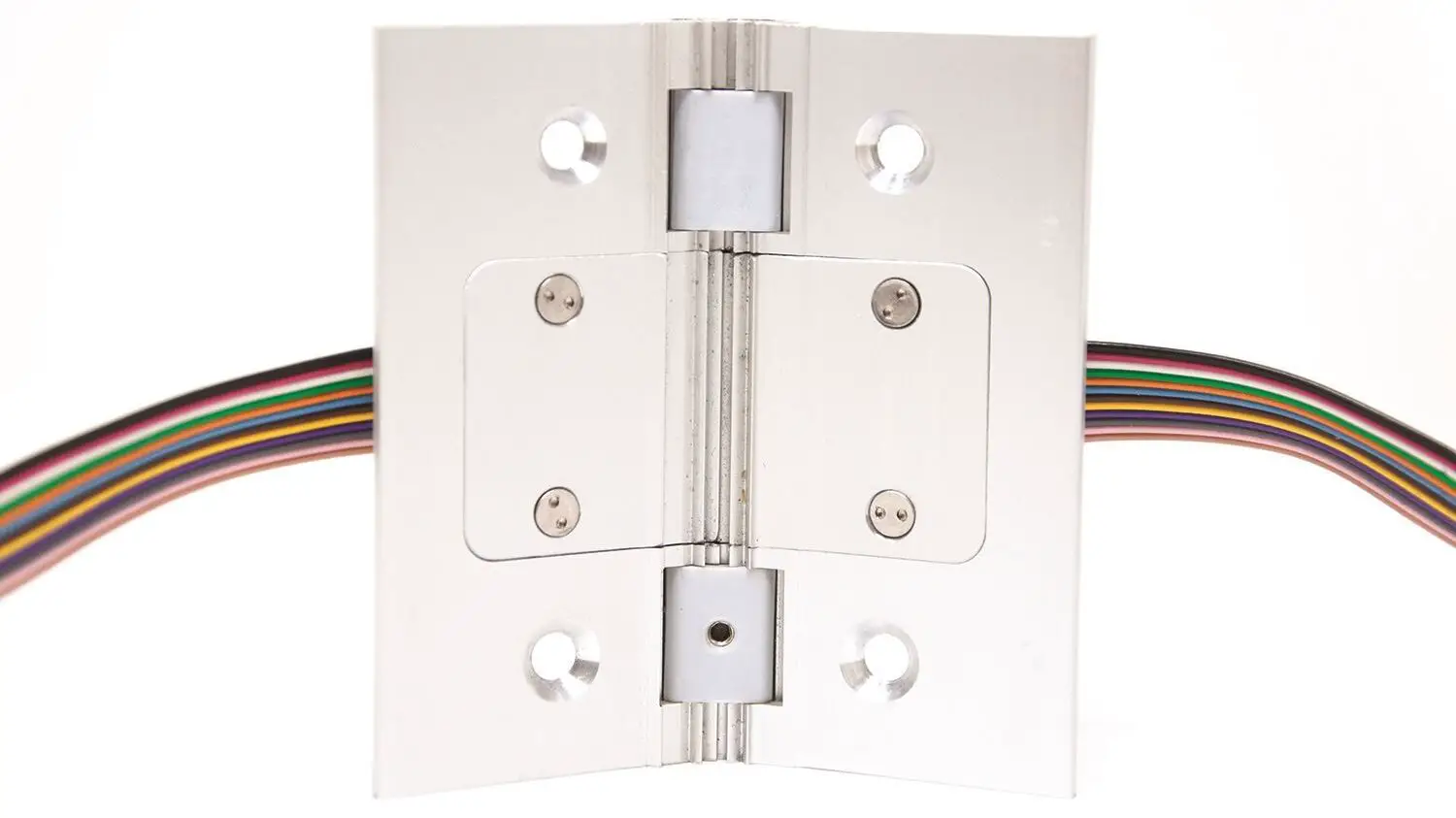

ABH MANUFACTURING INC 4 Inch Removable Electrified Continuous Hinge Section

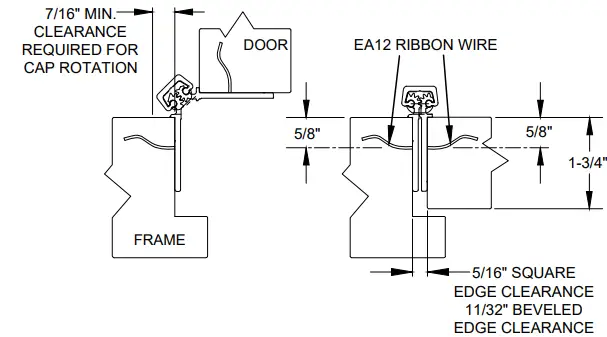

GEAR HINGE CONCEALED MODIFIED THRU WIRE 4″ REMOVABLE SECTION INSTALLATION, EA 12 RIBBON WIRE
FRAME
NOTES:

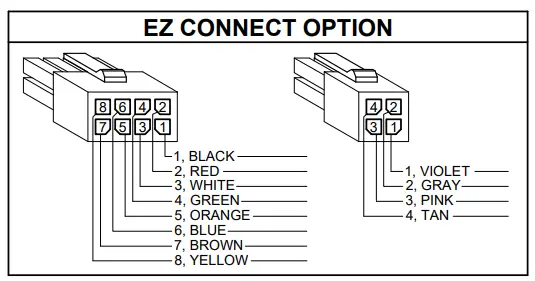

SPECIFY WIRE CONFIGURATION WHEN ORDERING, TEMPLATE REMAINS THE SAME
- EA12
- EA12EZ
SPECIFY ELECTRIFIED HARDWARE MANUFACTURER FOR CONNECTOR COMPABILITY.
SPECIFICATION
- DESCRIPTION: SINGLE CONDUCTOR #22 AWG MINIATURE HOOK-UP WIRE FOR APPLICATIONS REQUIRING EXTREME FLEXIBILITY.
- CONDUCTOR: #22 AWG 168/44 (0.002″) SOFT BARE COPPER LHL.
- INSULATION: PROPRIETARY FORMULATION PVC 0.010″ NOM. WALL MEETS VW-1 FLAME REQUIREMENT.
- DIAMETER: 0.053″ ± 0.003″.
- RESISTANCE: 16.7 OHMS MAX. @ 20°C, PER 1000 FT.
- VOLTAGE RATING: 600 VOLTS RMS, DEPENDING ON SPECIFICATION.
AVAILABLE AS RoHS COMPLIANT.

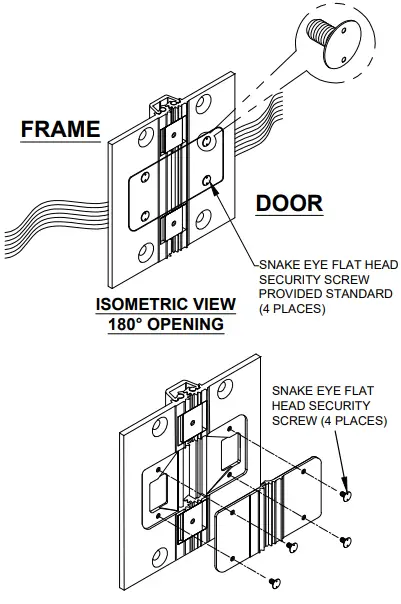

90° OPENING
WIRE TRANSFER VIEW
