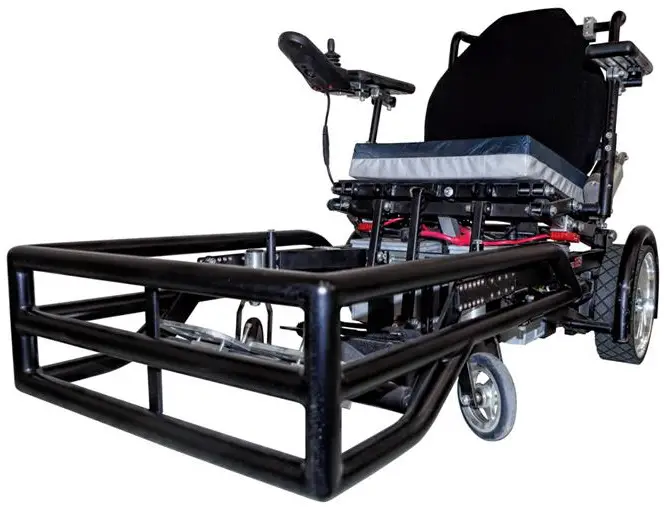

POWER SOCCER SHOP COM QM-ZM 710-310 Guard Mount
Guard Mouting

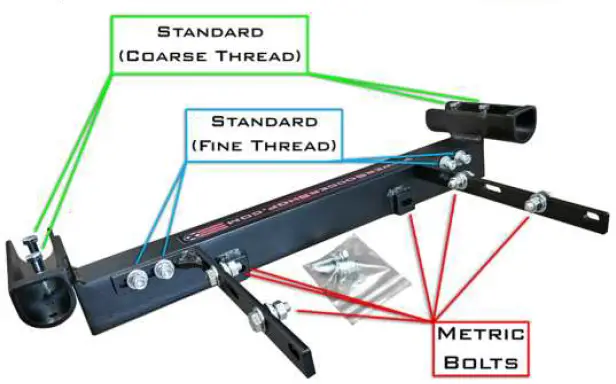

Note: Use the reference photo above to determine which bolts to use.
- First you we need to remove the tw10 thumb screws on the front of the chair (if available)
- Next, you will need to hold the g.uard mount in place while you install the two 1½” 1metrk bolts included with the kU, these bolts will be installed in the hole that the thumb screws were taken out of.
Screws replacing

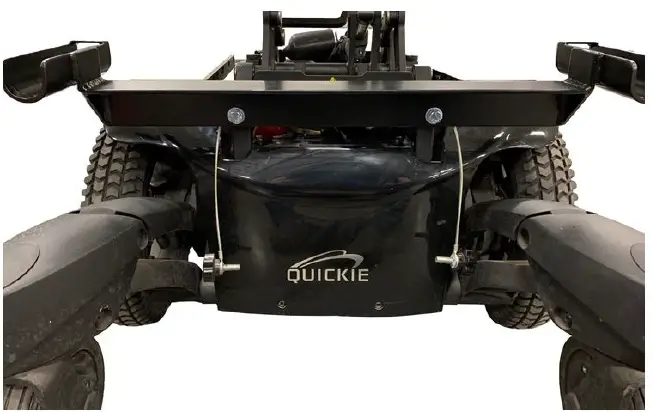

Photos showing thumb screws replaced with 1½” Metric Bolts.
- In the next step, you will need to install the four 1″ metric bolts into the frame on each side of the chair.

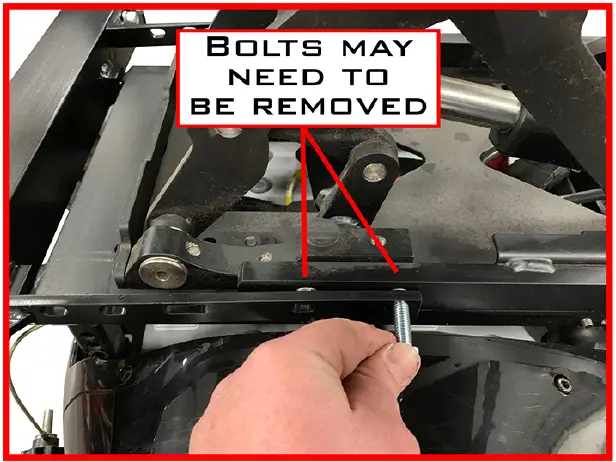

- Depending on if the chair has power options on not, you may need to remove and replace existing bolts if they are in the way.
- Lastly, you will need to tighten the four socket head bolts with a¼” Allen wrench to secure the two “L” brackets in place once all of the other bolts are installed.
