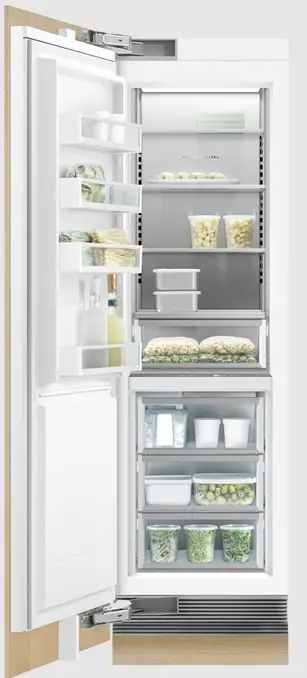

FISHER PAYKEL RS6121FLJK2 Vertical Freezer Instruction Manual
INTRODUCTION
| BRAND | VOLTAGE | MODEL | PRODUCT CODE |
| Fisher & Paykel | 220-240 50Hz | RS6121FLJK2 FP BI | 26149-B |
MODELS
The models covered by this manual are listed on the front cover. The information detailed in this manual is subject to change without notice. The latest version is indicated by the reprint date and replaces any earlier editions.
KIT PARTS
Where a part number is shown against the descriptions for kit components, they are also available as separate items. In addition, some parts may be supplied with these kits that are not available as separate items, and are therefore either not listed, or a part number is not shown against the part description in this manual.
PARTS LIST KEY
| NI | As a part reference, indicates the part is not illustrated on the diagram. |
| NOT USED | As a part number, indicates the diagram part reference is not used in this manual |
| NS | As a part number, indicates the part is not servicable. |
Fisher & Paykel Appliances Ltd UK
tel: 08000 886 605
fax: 08000 886 606
e-mail: [email protected]
www.fisherpaykel.com/uk/

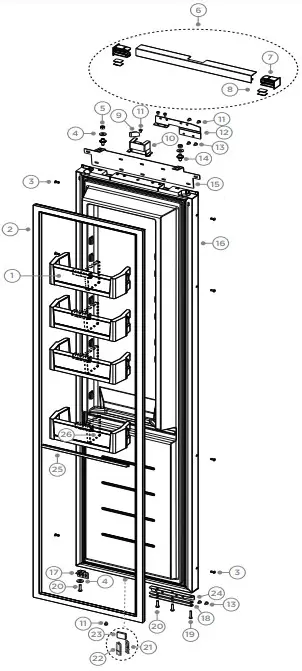

DOOR COMPONENTS
| REFERENCE | PART NUMBER | PART DESCRIPTION |
| 1 | 846511P | SHELF DR FC 24F ASSY |
| 2 | 849593P | GASKET DOOR RS24 |
| 3 | 845432P | SCREW M5X12MUSH PH MT ST PKT10 |
| 4 | 842456P | WASHER M8X21X1.6 ZP KIT |
| 5 | 838158P | NUT M8 HEX MS ZP KIT |
| 6 | 846516P | EXTRUSION DOOR TOP RS24 |
| includes 847229 | CAP EXTRUSION DOOR | |
| includes 846179 | STRIP 6 DUAL LOCK TABS | |
| 7 | 847229 | CAP EXTRUSION DOOR |
| 8 | 846179P | STRIP 6 DUAL LOCK TABS PKT 4 |
| 9 | 851724 | MAGNET DOOR |
| 10 | 844632 | BRACKET DOOR MAGNET |
| 11 | 841568P | SCREW MC M5X10 PAN PH MS ZP KI |
| 12 | 841982 | BRACKET ADAPT COL K05 LH |
| 13 | 847953P | SCREW MC M6X10 BTN HEX ZP PKT1 |
| 14 | 838153 | BOLT SKIN DOOR BI |
| 15 | 867830 | BRACKET PANEL DOOR RS24 PC |
| 16 | 865442P | DOOR VIP RS18F FOAMED ASSY |
| Includes 843660P | SEAL DIVIDER DOOR RS24 | |
| 17 | 842890 | BRACKET ADAPT K05 BTM LH |
| 18 | 845914 | BRACKET ADAPT SPACER BTM |
| 19 | 846155P | SCREW MC M5X30 PAN PH MS ZP PK |
| 20 | 846156P | SCREW MC M6X25 PAN PH MS ZP PK |
| 21 | 847957 | CAP FLOW DIVIDER |
| 22 | 848759 | DIVIDER MOUNT ASSEMBLY |
| 23 | 848730 | DUAL LOCK VELCRO TAB 1”X6” |
| 24 | 844897 | BRACKET DR PANEL LOCKING |
| 25 | 843660P | SEAL DIVIDER DOOR RS24 |
| 26 | 843900 | DIVIDER BOTTLE FC SHELF |

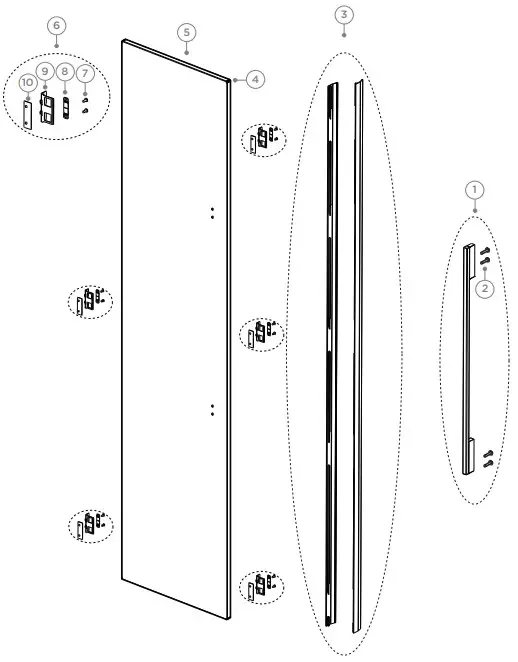

| REFERENCE | PART NUMBER | PART DESCRIPTION |
| 1 | 848302P | KIT HANDLE D3 852 ASSY |
| includes 842292P | SCREW WSH M5X25 KIT | |
| includes | ENDCAP | |
| 1 | 848304P | KIT HANDLE EVO 786 ASSY |
| includes 842292P | SCREW WSH M5X25 KIT | |
| includes | ENDCAP | |
| 1 | 848305P | KIT HANDLE EVO2 792 ASSY |
| includes 842292P | SCREW WSH M5X25 KIT | |
| includes | ENDCAP | |
| 1 | 848303P | KIT HANDLE RD3 852 ASSY |
| includes 842292P | SCREW WSH M5X25 KIT | |
| includes | ENDCAP | |
| 2 | 842292P | SCREW WSH M5X25 KIT |
| NI | 845432P | SCREW M5X12MUSH PH MT ST PKT10 (FOR SS PANEL) |
| 3 | 868349P | KIT DOOR TRIM V2 |
| includes | TRIM SIDE DOOR COLUMNS RHS | |
| includes | TRIM SIDE DOOR COLUMNS LHS | |
| 4 | 527679P | KIT CORNER FLAT DOOR PKT4 |
| 5 | 843278P | PANEL DOOR 2484L4D ASSY |
| 6 | 867900 | KIT BRACKET PANEL ATTACH V2 |
| Includes 840371P | SCREW 8GX16 MUSH WASHER HD | |
| Includes 867267 | SLIDER BRACKET SKIN DR 60CM | |
| Includes 864933 | BRACKET TRIM SIDE DOOR 60CM | |
| Includes 867266 | SPACER BRACKET SIDE DR 60CM | |
| 7 | 840371P | SCREW 8GX16 MUSH WASHER HD |
| 8 | 867267 | SLIDER BRACKET SKIN DR 60CM |
| 9 | 864933 | BRACKET TRIM SIDE DOOR 60CM |
| 10 | 867266 | SPACER BRACKET SIDE DR 60CM |

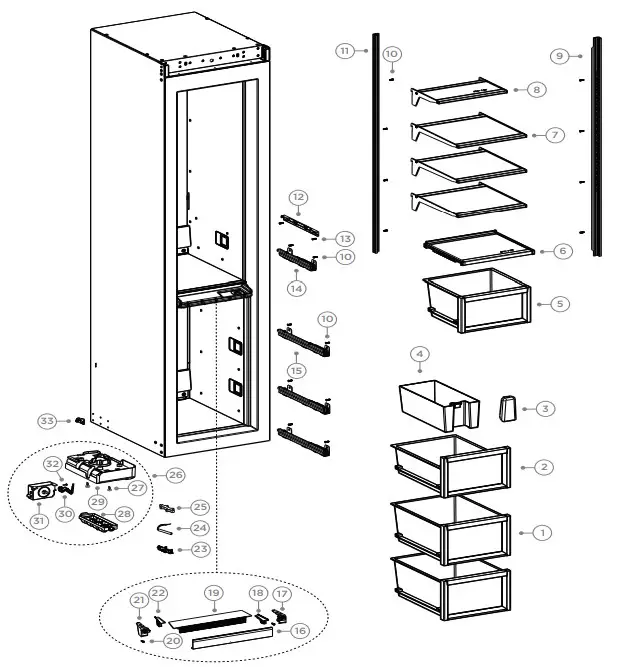

SHELVES & BINS AREA
| REFERENCE | PART NUMBER | PART DESCRIPTION |
| 1 | 847214P | BIN ASSY LWR RS24 |
| 2 | 847300P | BIN ASSY LWR ICE RS24 |
| 3 | 836929 | SCOOP ICE |
| 4 | 847283P | BIN ICE CONTAINER RS18 |
| 5 | 847212P | BIN ASSY UPR RS24F |
| 6 | 847874P | SHELF FIXED UPR RS24F ASSY |
| 7 | 846466P | SHELF CANTI 24S ASSY |
| 8 | 847596P | SHELF CANTI HALF ASSY RS24 |
| 9 | 844756 | RAIL CANTI RH |
| 10 | 847036P | SCREW TORX CSK SS 8X16 PKT10 |
| 11 | 843304 | RAIL CANTI LH |
| 12 | 846765 | BRACKET UPPER SHELF |
| 13 | 847532P | SCREW M4X16 PLASTITE PH T15 PKT10 |
| 14 | 843973 | SLIDE 224R SL |
| 843972 | SLIDE 224L SL | |
| 15 | 843977 | SLIDE 337R SL |
| 843976 | SLIDE 337L SL | |
| 16 | 846588 | COVER DIVIDER COLUMNS RS24 |
| 17 | 844971 | END CAP UI RH RS |
| 18 | 847484 | GASKET UI END CAP RS30 RH |
| 19 | 865132P | MOD DISP RS24F SVC |
| 20 | 611933P | SCREW ST 8X5/8TA MTS PH H5ZNPL |
| 21 | 844970 | END CAP UI LH RS |
| 22 | 847483 | GASKET UI END CAP RS30 LH |
| 23 | 837180 | CLIP SENSOR ICE TRAY |
| 24 | 321107 | ICEMAKER SENSOR LEAD WIRE KIT |
| 25 | 836909 | FOAM CLIP SENSOR |
| 26 | 841488 | KIT ICEMAKER ASSY |
| 27 | 817825P | SCREW #8X22 WAFER PH ST TV PKT10 |
| 28 | 820841 | TRAY ICE AUTO LARGE |
| 29 | 860391 | HOUSING ICE MAKER |
| 30 | 836910 | LEVER GEAR BOX ICE |
| 31 | 836934 | GEARBOX ICE MAKER |
| 32 | 836948P | SCREW 6X1/2 SS PAN PH PKT10 |
| 33 | 860640 | SPIGOT FILL ICE MAKER |

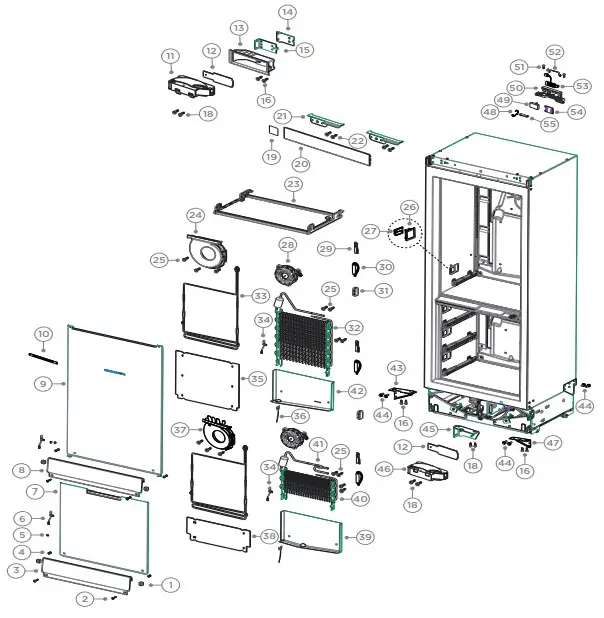

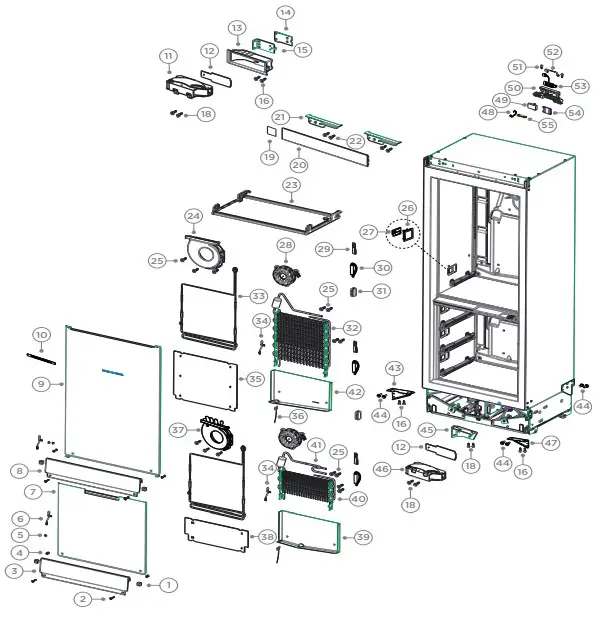

CABINET COMPONENTS
| REFERENCE | PART NUMBER | PART DESCRIPTION |
| 1 | 848128 | SPACER COVER DRAIN ASSY |
| 2 | 848120P | SCREW M4X35 PAN TX15 SS PKT10 |
| 3 | 848747 | COVER DRAIN LWR RS24 BRUSHED S |
| 4 | 840421P | SCREW ST #8X15-M6X12 WASHER KIT |
| 5 | 846732P | CLIP EDGE EARTH TAB AR EPF255 |
| 6 | 814460 | HARNESS EARTH 100MM |
| 7 | 849242P | DUCT CVR SEAL LWR SS RS24 ASSY |
| 8 | 848744 | COVER DRAIN UPR RS24 BRUSHED S |
| 9 | 862711P | KIT COVER DUCT UPR RS24W SS AS |
| includes | COVER DUCT UPR RS24W SS ASSY | |
| includes 847363 | NAMEPLATE FP CHROME LETTERS | |
| 10 | 847363 | NAMEPLATE FP CHROME LETTERS |
| 11 | 839474 | HINGE K05-B 115GRAD M6 “S” |
| 12 | 843720 | COVER POCKET HINGE |
| 13 | 843719 | POCKET HINGE TOP LH |
| 14 | 847537 | SPACER BRACKET HINGE TOP |
| 15 | 842944 | BRACKET HINGE TOP RS |
| 16 | 845428P | SCREW M5X12 CSK PH NP PKT10 |
| 18 | 839692P | SCREW M6X16CSK DIN965 PH MS ZP PKT10 |
| 19 | 847675P | TAPE DUALLOCK SJ3540 50MMX10MM |
| 20 | 846927 | TRIM TOP EXTRUSION RS24 |
| 21 | 847006 | BRACKET ALCOVE TOP LH |
| 22 | 845432P | SCREW M5X12MUSH PH MT ST PKT10 |
| 23 | 843759P | ASSY LIGHT CEILING PANEL RS24 |
| 24 | 844551 | HOUSING FAN CNTFGL D125 ASSY |
| 25 | 847532P | SCREW M4X16 PLASTITE PH T15 PK |
| 26 | 848428 | COVER INTEGRATED SIDE LIGHT GR |
| 27 | 849937P | MOD SIDE LIGHT-GR COVER KIT |
| includes | MOD SIDE LIGHT INT COL | |
| includes | COVER INTEGRATED SIDE LIGHT GR | |
| 28 | 844545P | FAN CNTFGL D125 ASSY |
| REFERENCE | PART NUMBER | PART DESCRIPTION |
| 29 | 845878 | CLIP SENSOR |
| 30 | 813822P | CABINET THERMISTOR KIT |
| 31 | 821745 | COVER PLUG TYCO |
| 32 | 865874P | EVAP EARTH TAB UPR CU CLEAR |
| 33 | 846242P | HEATER DEF 3PV 30 120V |
| 34 | 862917 | HARNESS EARTH DEFROST HEATER |
| 35 | 844107 | SHIELD HEAT 30 UPR FC |
| 36 | 847315 | WIRE DRAIN HEATER RS |
| 37 | 862891 | HOUSING FAN ASSY WHITE |
| 38 | 844108 | SHIELD HEAT 30 LWR FC |
| 39 | 844877 | SHIELD DRAIN LWR 30PC |
| 40 | 865873P | EVAP EARTH TAB LWR CU CLEAR |
| 41 | 847463 | TUBE ADAPTOR EVAP IN |
| 42 | 844876 | SHIELD DRAIN UPR 30 PC |
| 43 | 842883 | BRACKET PLINTH FRONT LEFT |
| 44 | 845515P | SCREW MC M5X12 HXW NIB ZP PKT10 |
| 45 | 843027 | BRACKET HINGE LOWER LH |
| 46 | 837842 | HINGE K05-A 115GRAD M6 “S” |
| 47 | 842882 | BRACKET PLINTH FRONT RIGHT |
| 48 | 846972 | HARNESS HUMIDITY SNSR |
| 49 | 563774P | MOD WIFI GEA3 LITE |
| 50 | 843872 | HOUSING SENSOR |
| 51 | 840371P | SCREW 8GX16 MUSH WASHER HD PKT10 |
| 52 | 862641 | HARNESS WIFI GEA WIRE |
| 53 | 851352P | MOD HALL SWITCH RS SVC |
| 54 | 864736P | MOD GEA COMMS V2 SVC |
| 55 | 851381P | MOD HUMIDITY SENSOR W SVC |

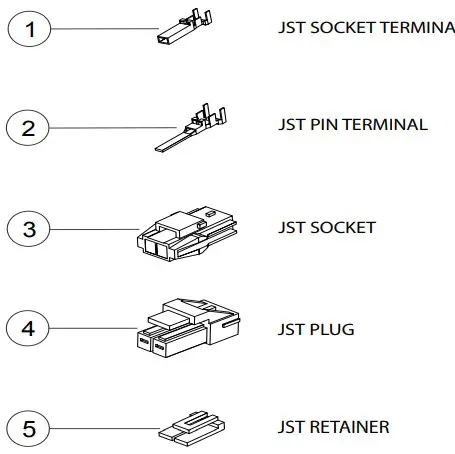

TERMINAL, PLUGS & SOCKETS
| REFERENCE | PART NUMBER | PART DESCRIPTION | COMMENTS |
| 1 | 819607P | TERMINAL SYF-01T PKT 10 | 26/20 AWG |
| 819608P | TERMINAL SYF-41T PKT 10 | 20/16 AWG | |
| 2 | 819609P | PIN/TERM SYM-01T PKT 10 | 26/20 AWG |
| 819610P | PIN/TERM SYM-41T PKT 10 | 20/16 AWG | |
| 3 | 819615 | JST SOCKET 2PIN YLR-02V | |
| 819616 | JST SOCKET 3PIN YLR-03V | ||
| 819617 | JST SOCKET 4PIN YLR-04V | ||
| 819618 | JST SOCKET 6PIN YLR-06VF | ||
| 819619 | JST SOCKET 8 PIN YLR-08V | ||
| 4 | 819611 | JST PLUG 2PIN YLP-02V | |
| 819612 | JST PLUG 4PIN YLP-04V | ||
| 819613 | JST PLUG 6PIN YLP-06V | ||
| 819614 | JST PLUG 8PIN YLP-08V | ||
| 5 | 819620 | RETAINER 2 WAY YLS-02V | |
| 819621 | RETAINER 3 WAY YLS-03V | ||
| 150807 | TERMINAL REMOVAL TOOL | ||
| NI | 855288 | EXTRACTION TOO MML AMP 1897271 | |

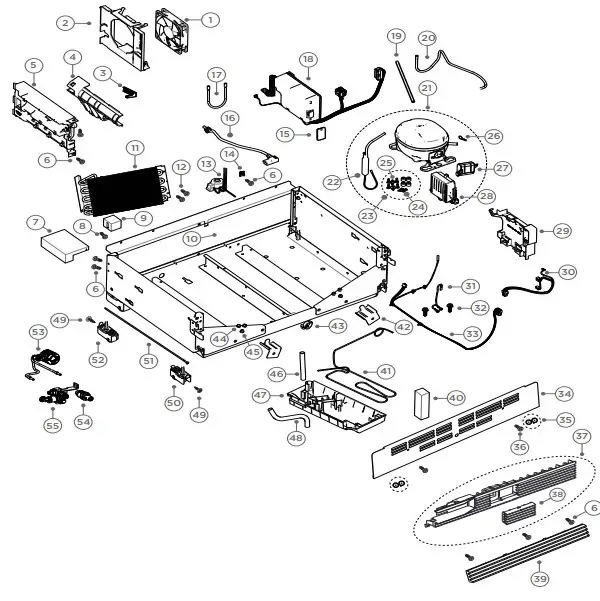

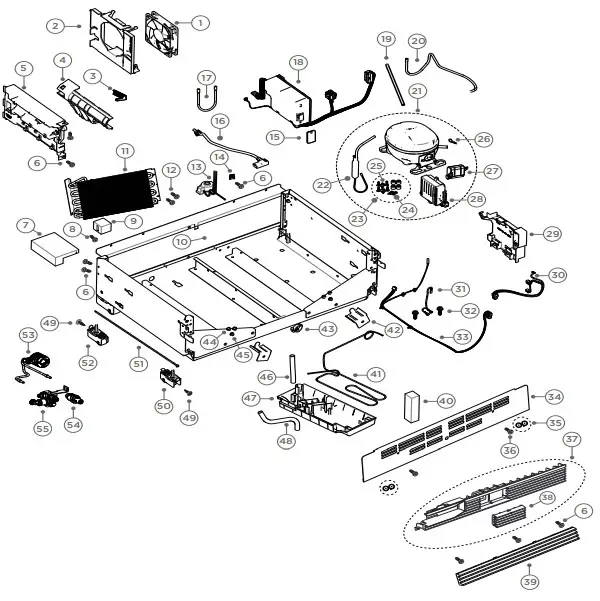

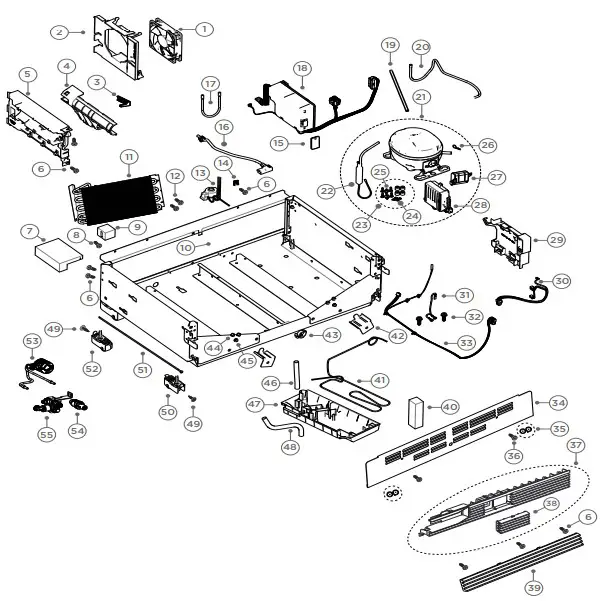

PLINTH COMPONENTS
| REFERENCE | PART NUMBER | PART DESCRIPTION |
| 1 | 838855P | FAN CONDENSER 120X25 |
| 2 | 843139 | DIVIDER PLINTH REAR |
| 3 | 847176 | TOOL FILTER WATER |
| 4 | 847033 | COVER DIVIDER FRONT |
| 5 | 842779 | DIVIDER PLINTH FRONT |
| 6 | 840371P | SCREW 8GX16 MUSH WASH (PKT10) |
| 7 | 845772 | BLOCKER CONDSR AIRFLOW BYPASS |
| 8 | 611977P | SCREW ST 8X1/2 SD TRS NIB PH P |
| 9 | 848130 | GROMMET CONDNSR AIR B/PASS |
| 10 | 846485 | LOCKING PLATE REAR PLINTH 24 |
| 11 | 847876P | CONDENSER FOT 260X177 1 PASS |
| 12 | 546692P | SCREW ST 8X12MM TAB MTS PKT10 |
| 13 | 846688P | VALVE SANKYO NSCE001RA9 |
| 14 | 841023P | CLIP SPIRE SIZE 8 |
| 15 | 884505 | COVER COMMS PORT |
| 16 | 851247 | HARNESS CORDSET IEC ASSY UK RS |
| 17 | 845861 | TUBE COPPER U-BEND |
| 18 | 868090P | ASSY CTRL RS WIFI WTR RX SVC |
| includes | ASSY CTRL RS WIFI WTR RX | |
| includes | COVER COMMS PORT | |
| 19 | 842972 | TUBE ADAPTOR PROCESS RS |
| 20 | 842989 | TUBE ADAPTOR SUCTION RS |
| 21 | 207429P | KIT COMPR EMB VESF9C KIT 230V |
| includes 207421 | INVERTER VESF9C 230V PFC FA | |
| includes 207310 | COVER PROTECTOR VEM | |
| includes 207419 | CLIP R COVER COMP M1.6 S4HPP16 | |
| includes 843824P | GROMMET 26MM KIT | |
| includes 845758P | FILTER DRYER DUAL 5G | |
| 22 | 845758P | FILTER DRYER DUAL 5G |
| 23 | 843824P | GROMMET 26MM KIT |
| includes 841291 | POST COMP MTG 26MM PKT X4 | |
| incudes | GROMMET 26MM X4 | |
| includes 855270 | CLIP FOOT COMPRESSOR X 4 |
| REFERENCE | PART NUMBER | PART DESCRIPTION |
| 24 | 855270P | CLIP FOOT COMPRESSOR (PKT 4) |
| 25 | 841291P | POST COMP MTG 26MM PKT X4 |
| 26 | 207419 | CLIP R COVER COMP M1.6 S4HPP16 |
| 27 | 207310 | COVER PROTECTOR VEM |
| 28 | 207421 | INVERTER VESF9C 230V PFC FA |
| 29 | 849714 | BRACKET INVERTER MOLEX CONN |
| 30 | 842765 | HARNESS INVERTER EMB RS |
| 31 | 846708 | HARNESS EARTH PLINTH |
| 32 | 556082P | SCREW ST M4X12 XTITE HXW PKT10 |
| 33 | 846709 | HARNESS REF VALVE SNSR RS |
| 34 | 846483 | MOUNTING PLATE KICK STRIP 24 |
| 35 | 866753 | KIT TOEKICK MAGNET (4 SETS) |
| Includes | SCREW WS 8X5/8 TWINFST | |
| Includes | MAGNET TOEKICK 36X7MM | |
| 36 | 845432P | SCREW M5X12MUSH PH MT ST PKT10 |
| 37 | 847373 | GRILLE FIXED ASSEMBLY RS24 LH |
| includes 843298 | COVER FILTER GRILLE | |
| 38 | 843298 | COVER FILTER GRILLE |
| 39 | 847542 | GRILLE MOVING ASSY RS24 |
| 40 | 846405 | BLOCKER AIR BYPASS KICKSTRIP |
| 41 | 846490 | TUBE DISCHARGE RS24 |
| 42 | 842018 | BRACKET KICK STRIP ADJUSTING |
| 43 | 845740P | CLIP HARNESS HT 151-000367 |
| 44 | 843453P | WASHER FLAT M6X12X1.2 PKT10 |
| 45 | 847984P | SCREW CAP M5X20 NZ PKT10 |
| 46 | 845859 | DRAIN PLINTH |
| 47 | 841476 | TRAY WATER EVAP COLUMNS |
| 48 | 845860 | DRAIN TUBE PLINTH UPPER RS24 |
| 49 | 849237P | SCREW AB #8X13 HEX PH PKT10 |
| 50 | 842085 | PLINTH SUPPORT RAIL ASSY |
| 51 | 843475 | ROD BK LEVELLING |
| 52 | 843478 | PLINTH SUPPORT RAIL ASSY BK |
| 53 | 847220 | HEAD FILTER WATER 90 DEG CL |
| 54 | 821756 | VALVE PRESS LIMIT 600KPA 85PSI |
| 55 | 847466 | VALVE BRACKET SINGLE ICEMAKER |
| REFERENCE | PART NUMBER | PART DESCRIPTION |
| NI | 851393 | KIT INSTALL FILTER WATER UK |
| Includes 847613 | ADAPTOR TAP 1/4 OD 3/4 BSP | |
| includes 847200 | FILTER WATER REF FWC3 | |
| includes 847700 | CLIP LOCKING I&W | |
| includes 836857 | TUBE FILTER WATER 1/4” 4 MTR | |
| NI | 847700 | CLIP LOCKING I&W |
| NI | 847613 | ADAPTOR TAP 1/4 OD 3/4 BSP |
| NI | 847200 | FILTER WATER REF FWC3 |
| NI | 836857 | TUBE FILTER WATER 1/4” 4 MTR |
SINGLE INSTALLATION COMPONENTS
| REFERENCE | PART NUMBER | PART DESCRIPTION |
| 1 | 868352P | KIT ALCOVE TRIM |
| includes | ASSY ALCOVE TRIM COLUMNS | |
| 2 | 843934 | BRACKET ANTI TIP ASSY |
| includes | ANTI TIP BRACKET | |
| includes | SCREW 10-12 X 35 WAFER PH ZN | |
| includes | PLUG MASONRY SP630#10X30MM | |
| NI | 867906 | KIT INSTALLATION RS V2 |
| Includes | BLOCKER AIR BYPASS KICKSTRIP | |
| Includes | BRACKET ANTI TIP ASSY | |
| Includes | KIT INSTALL FASTENERS | |
| Includes | CAP FLOW DIVIDER | |
| Includes | KIT BOLT LIMITING HINGE K05 | |
| Includes | KIT TOEKICK MAGNET | |
| Includes 867900 | KIT BRACKET PANEL ATTACH V2 | |
| NI | 867900 | KIT BRACKET PANEL ATTACH V2 |
| Includes | SCREW 8GX16 MUSH WASHER HD | |
| Includes | BRACKET TRIM SIDE DOOR 60CM | |
| Includes | SPACER BRACKET SIDE DR 60CM | |
| Includes | SLIDER BRACKET SKIN DR 60CM | |
| NI | 840371P | SCREW 8GX16 MUSH WASH (PKT10) |
| NI | 843662 | BOLT LIMITING HINGE K05 |
| NI | 848192 | KIT INSTALL FASTENERS |
| NI | 848188P | KIT HINGE CHANGE RS24 LH TO RH |
| includes | GRILLE FIXED ASSEMBLY RS24 RH | |
| includes | NUT M5 HEX MS ZP | |
| includes | BRACKET HINGE LOWER RIGHT | |
| includes | BRACKET ADAPT K05 BTM RH | |
| includes | BRACKET ADAPT COL K05 RH | |
| includes | POCKET HINGE TOP RH | |
| includes | BRACKET ALCOVE TOP RH |
DOUBLE INSTALLATION COMPONENTS
| REFERENCE | PART NUMBER | PART DESCRIPTION |
| 1 | 868352P | KIT ALCOVE TRIM |
| includes | ASSY ALCOVE TRIM COLUMNS | |
| 2 | 867910P | KIT DUAL INSTALL |
| includes | TRIM JOINER ASSY COL | |
| includes 867898 | KIT BRACKET JOINER V2 | |
| includes | NUT M6 HEX 10AF FS MS ZNPL | |
| includes | SCREW WSH M6X16 | |
| includes | FLANGE JOINER TRIM COL | |
| includes | JOINER SLEEVE TOP | |
| includes | SCREW M5 25 HEX PH LEAD | |
| 3 | 867898 | KIT BRACKET JOINER V2 |
| includes | NUT M6 HEX 10AF FS MS ZNPL | |
| includes | SCREW WSH M6X16 | |
| includes | FLANGE JOINER TRIM COL | |
| includes | JOINER SLEEVE TOP | |
| includes | SCREW M5 25 HEX PH LEAD | |
| 4 | 843934 | BRACKET ANTI TIP ASSY |
| includes | ANTI TIP BRACKET | |
| includes | SCREW 10-12 X 35 WAFER PH ZN | |
| includes | PLUG MASONRY SP630#10X30MM | |
| NI | 867900 | KIT BRACKET PANEL ATTACH V2 |
| Includes | SCREW 8GX16 MUSH WASHER HD | |
| Includes | BRACKET TRIM SIDE DOOR 60CM | |
| Includes | SPACER BRACKET SIDE DR 60CM | |
| Includes | SLIDER BRACKET SKIN DR 60CM | |
| NI | 847984P | SCREW CAP M5X20 NZ PKT10 |
| NI | 843662 | BOLT LIMITING HINGE K05 |
| NI | 848192 | KIT INSTALL FASTENERS |
| NI | 848188P | KIT HINGE CHANGE RS24 LH TO RH |
| includes | GRILLE FIXED ASSEMBLY RS24 RH | |
| includes | NUT M5 HEX MS ZP | |
| includes | BRACKET HINGE LOWER RIGHT | |
| includes | BRACKET ADAPT K05 BTM RH | |
| includes | BRACKET ADAPT COL K05 RH | |
| includes | POCKET HINGE TOP RH | |
| includes | BRACKET ALCOVE TOP RH |

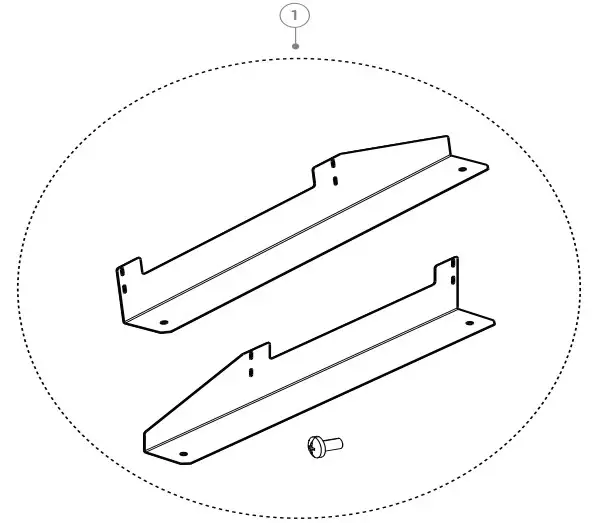

STABILITY COMPONENTS
| REFERENCE | PART NUMBER | PART DESCRIPTION |
| 1 | 847164P | KIT BRACE ANIT TIP |
| includes | BRACE ANTI TIP RH | |
| includes | BRACE ANTI TIP LH | |
| includes | SCREW AB #8X13 HEX PH X 10 |
FISHERPAYKEL.COM
© Fisher & Paykel Appliances 2022. All rights reserved.
The models shown in this guide may not be available in all markets
and are subject to change at any time.
The product specifications in this guide apply to the specific products and
models described at the date of issue. Under our policy of continuous product
improvement, these specifications may change at any time.
For current details about model and specification availability in your country,
please go to our website or contact your local Fisher & Paykel deale
PRODUCT CODE: 26149-B 06.22
Home Appliances | Fisher & Paykel USA
Home Appliances | Fisher & Paykel Ireland
