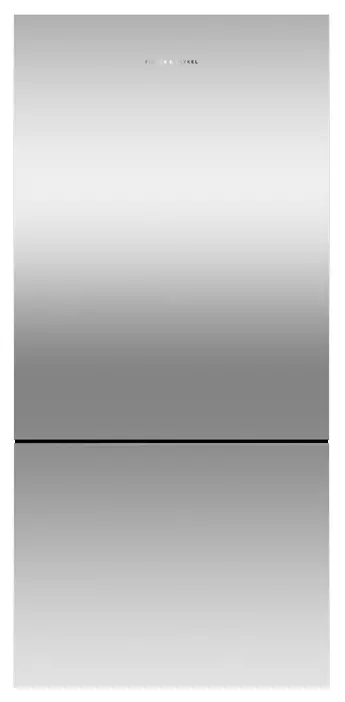

FISHER PAYKEL RF170BRPX6 Freestanding Refrigerator Freezer
INTRODUCTION
SPECIFICATION
| BRAND | VOLTAGE | MODEL | PRODUCT CODE |
| Fisher & Paykel | 110-120 60Hz | RF170BRPX6 N FP US | 25101-A |
MODELS
- The models covered by this manual are listed on the front cover.
- The information detailed in this manual is subject to change without notice. The latest version is indicated by the reprint date and replaces any earlier editions.
KIT PARTS
Where a part number is shown against the descriptions for kit components, they are also available as separate items. In addition, some parts may be supplied with these kits that are not available as separate items, and are therefore either not listed, or a part number is not shown against the part description in this manual.
PARTS LIST KEY
| NI | As a part reference, indicates the part is not illustrated on the diagram. |
| NOT USED | As a part number, indicates the diagram part reference is not used in this manual. |
| NS | As a part number, indicates the part is not servicable. |

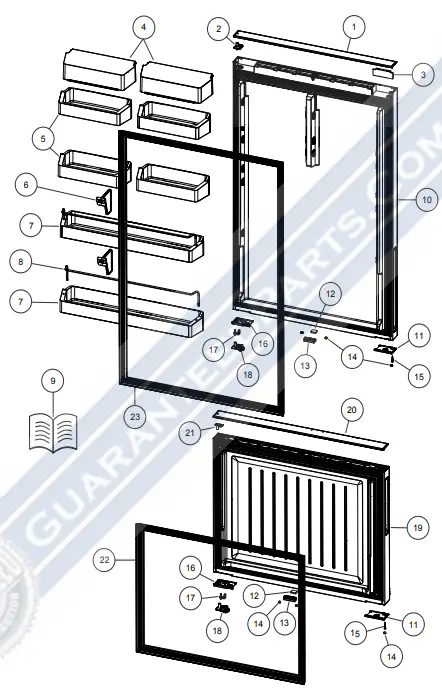

DOOR COMPONENTS
| REFERENCE | PART NUMBER | PART DESCRIPTION | ||
| 1 | 842125 | COVER DOOR SF TOP 790B GR | ||
| 2 | 839659 | BEARING HINGE WATER RH UD | ||
| 3 | 842103 | COVER DOOR TOP NONHINGE GR | ||
| 4 | 821467 | COVER SHELF RF522W | ||
| 5 | 839723 | SHELF DOOR SOLID 790 | ||
| 6 | 821805 | DIVIDER BOTTLE 522B | ||
| 7 | 821630 | SHELF DR BTM RF522W | ||
| 8 | 821465 | RAIL SHELF DOOR RF522W | ||
| 9 | 845266 | BOOK UUC AS U-DOOR USA CA | ||
| 10 | 848037P | DOOR PC 790X1052.5 P SX RH LGO | ||
| 11 | 842369P | COVER DOOR BOT NONHINGE RH GR | ||
| 12 | 883315 | MAGNET DOOR SWITCH ST4 | ||
| 13 | 842122 | COVER MAGNET DOOR UD GR | ||
| 14 | 842483P | PLUG DOOR BOTTOM GR | ||
| 15 | 817825P | SCREW #8X22 WAFER PH ST TV | ||
| 16 | 842372 | COVER DR BOT UD HINGE RH GR | ||
| 17 | 814537 | DOOR STOP ASSY | ||
| 18 | 843387 | CLOSING HOOK DR STOP RH GR NO | ||
| 19 | 842064P | DOOR FC 790X605 P SX RH | ||
| 20 | 842748 | COVER DOOR SF TOP 790B GR RH | ||
| 21 | 813931 | BEARING HINGE TOP GR | ||
| 22 | 841373P | GASKET FRAME PUSHIN 790B FC | ||
| 23 | 841362P | GASKET FRAME PUSHIN 522B PC |

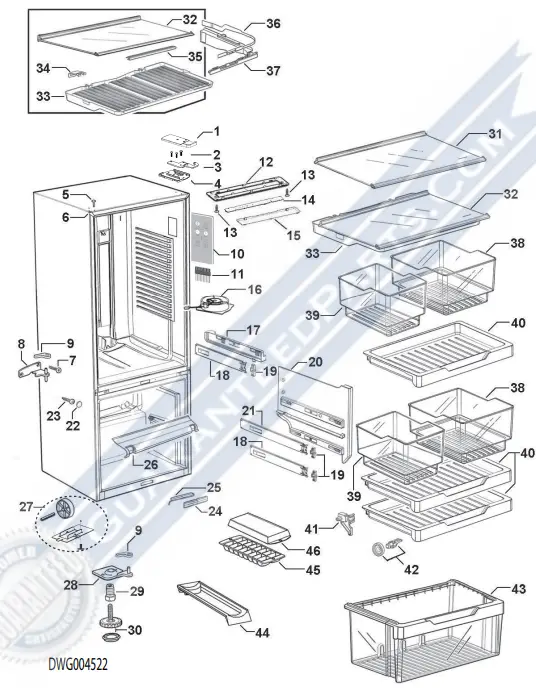

CABINET COMPONENTS
| REFERENCE | PART NUMBER | PART DESCRIPTION | ||
| 1 | 846778P | COVER HINGE LOW NIW GRY R | ||
| 2 | 817818P | SCREW M5X20 HEX PH ST TV (PKT 10) | ||
| 3 | 820717 | BRACKET HINGE IW RH | ||
| 4 | 846774P | SUPPORT HINGE LOW NIW | ||
| NI | 847437 | KIT COVER HINGE LOW GRY RH | ||
| Includes 846778P | COVER HINGE LOW NIW GRY R | |||
| Includes 846774P | SUPPORT HINGE LOW NIW | |||
| 5 | 883948P | PLUG TAPPED HOLE SILVER (PKT 3) | ||
| 6 | 883951 | TRIM CORNER SILVER 680/790 | ||
| 7 | 880656P | SCREW 10GX25CSK SQ SS (PKT 10) | ||
| 8 | 881283P | BRACKET CENTRE HINGE RH PKD | ||
| Includes 883988P | CAP DOOR CLOSING RH HGE BRKT | |||
| 9 | 883988P | CAP DOOR CLOSING RH HGE BRKT | ||
| 10 | 837327P | MOD DISP AS U2 INT 6 BUT SVC | ||
| 11 | 839618 | HARNESS MOLEX 5 WAY SPARES | ||
| 12 | 820736 | HOUSING FRONT LED PC | ||
| 13 | 817816P | SCREW 6 X12 AB TRUSS PH ST TV (PKT 10) | ||
| 14 | 845096P | MOD LAMP AS CEILING SVC | ||
| 15 | 820737 | WINDOW LED PC | ||
| 16 | 821183P | PC FAN ASSY JST/DCT | ||
| Includes | FAN HOUSING PC ASSY | |||
| Includes | DUCT JUNCTION | |||
| Includes | CONNECTOR IDC UP2 (2) | |||
| Includes | LABEL WARNING 12 VOLT DC | |||
| Includes | SHEET INSTRUCTION PC FAN ASSY | |||
| 17 | 836810 | RETAINER & SLIDE 790 RH ASSY | ||
| Includes | RETAINER SLIDE PC RH | |||
| Includes 836700 | SLIDE 305 RH ASSEMBLY | |||
| Includes 836520P | CLIP SLIDE | |||
| 836809 | RETAINER & SLIDE 790 LH ASSY | |||
| Includes | RETAINER SLIDE PC LH | |||
| Includes 836701 | SLIDE 305 LH ASSEMBLY | |||
| Includes 836520P | CLIP SLIDE | |||
| 18 | 836700 | SLIDE 305 RH ASSEMBLY | ||
| Includes 836520P | CLIP SLIDE | |||
| 836701 | SLIDE 305 LH ASSEMBLY | |||
| Includes 836520P | CLIP SLIDE |
| REFERENCE | PART NUMBER | PART DESCRIPTION | ||
| 19 | 836520P | CLIP SLIDE (PKT 2) | ||
| 20 | 836545 | RETAINER SLIDE FC RH | ||
| 836546 | RETAINER SLIDE FC LH | |||
| 21 | 836702 | SLIDE 350 RH ASSEMBLY | ||
| Includes 836520P | CLIP SLIDE | |||
| 836703 | SLIDE 350 LH ASSEMBLY | |||
| Includes 836520P | CLIP SLIDE | |||
| 22 | 883953P | CAP SCREW CROSS RAIL SILVER | ||
| 880595P | CAP SCREW CROSS RAIL WHT PKD | |||
| 23 | 817822P | SCREW #10X19 AB #2 SQ TV (PKT 10) | ||
| 24 | 884011 | COVER REED SWITCH ST4 SILVER | ||
| 881420 | COVER REED SWITCH ST4 WHITE | |||
| 25 | 814443P | SWITCH REED FIELD FIX KIT ST4 | ||
| Includes | HEATSHRINK 1/8” MW ADHESIVE LINED | |||
| 26 | 836595 | DUCT RETURN AIR FC 790 | ||
| 27 | 847316P | RETAINER WHEEL STEEL KIT | ||
| Includes | RETAINER WHEEL STEEL | |||
| Includes | SCREW 8-32X8 TY T PAN PH TV | |||
| Includes | ROLLER FOOT FRONT | |||
| Includes | PIN ROLLER PLATED | |||
| 28 | 814691P | BRACKET HINGE BASE RH PKD | ||
| Includes 883988P | CAP DOOR CLOSING RH HGE BRKT | |||
| 29 | 813481 | BOLT BLIND END HINGE BRACKET | ||
| 30 | 818535 | WHEEL LEVELING FOOT ASSY RC | ||
| Includes | SCREW M10 LEVELLING FOOT TV | |||
| Includes | BASE LEVELLING FOOT | |||
| 31 | 836751P | SHELF GLASS PC 790 ASSY SC | ||
| Includes | SHELF GLASS PC 790 | |||
| Includes | TRIM SHELF PC 790 SC | |||
| Includes | STIFFENER SHELF PC 790 SC | |||
| Includes 836569 | PLUG STIFFENER SHELF RH | |||
| Includes 836570 | PLUG STIFFENER SHELF LH | |||
| Includes 836567 | PLUG TRIM SHELF RH | |||
| Includes 836568 | PLUG TRIM SHELF LH |
| REFERENCE | PART NUMBER | PART DESCRIPTION | ||
| 32 | 836728P | SHELF GLASS HCL 790B ASSY SC | ||
| Includes | SHELF GLASS PC 790 | |||
| Includes | TRIM SHELF HCL 790 SC | |||
| Includes | STIFFENER SHELF PC 790 SC | |||
| Includes 836567 | PLUG TRIM SHELF RH | |||
| Includes 836568 | PLUG TRIM SHELF LH | |||
| Includes 836569 | PLUG STIFFENER SHELF RH | |||
| Includes 836570 | PLUG STIFFENER SHELF LH | |||
| Includes 819179 | RETAINER HCL FRONT 790 | |||
| Includes 881268 | BRACKET HCL SUPPORT B GL SH (2) | |||
| Includes 836574 | LID HUMIDITY CONTROL 790B | |||
| Includes 836631 | SLIDE CONTROL HUMIDITY RH | |||
| Includes 836633 | SLIDE CONTROL HUMIDITY LH | |||
| Includes 836632 | GUIDE CONTROL HUMIDITY RH | |||
| Includes 836634 | GUIDE CONTROL HUMIDITY LH | |||
| 33 | 836574 | LID HUMIDITY CONTROL 790B | ||
| 34 | 881268 | BRACKET HCL SUPPORT B GL SH | ||
| 35 | 836582 | RETAINER HCL FRONT 790 | ||
| 36 | 836631 | SLIDE CONTROL HUMIDITY RH | ||
| 836633 | SLIDE CONTROL HUMIDITY LH | |||
| 37 | 836632 | GUIDE CONTROL HUMIDITY RH | ||
| 836634 | GUIDE CONTROL HUMIDITY LH | |||
| 38 | 836524 | BIN SMALL 790 | ||
| 39 | 836522 | BIN SMALL | ||
| 40 | 821142 | TRAY 790 | ||
| 41 | 836585 | SKID TRAY RH | ||
| 836586 | SKID TRAY LH | |||
| 42 | 836517 | WHEEL & CHASSIS ASSEMBLY (PKT 2) | ||
| 43 | 836661 | BIN ASSEMBLY LARGE 790 | ||
| Includes | HANDLE BIN LARGE | |||
| 44 | 860593 | HOLDER BOTTLE SINGLE | ||
| 45 | 874107 | TRAY ICE BASE | ||
| 46 | 874108 | TRAY ICE LID |

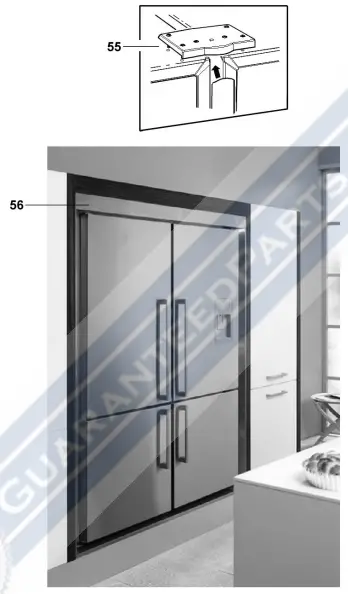

CABINET ACCESSORIES
| REFERENCE | PART NUMBER | PART DESCRIPTION | ||
| 55 | 819264 | KIT JOINER SILVER | ||
| 56 | 818758 | KIT SURROUND STAINLESS 790 LH | ||
| 818759 | KIT SURROUND STAINLESS 790 X2 |

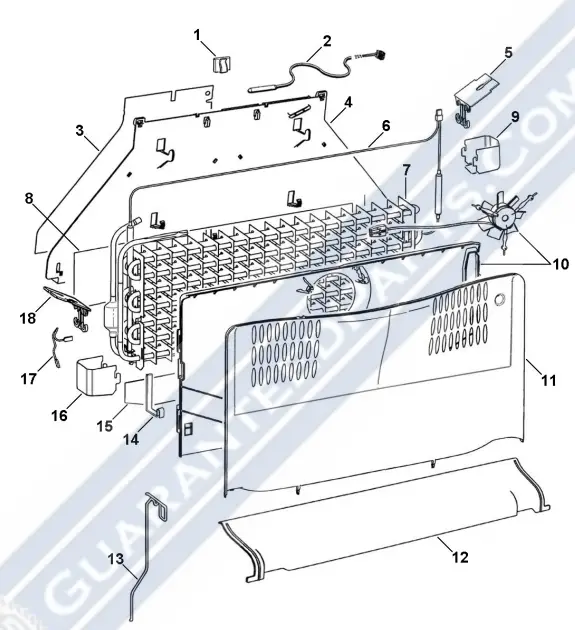

EVAPORATOR AREA COMPONENTS
| REFERENCE | PART NUMBER | PART DESCRIPTION | ||
| 1 | 900236 | CORD CLIP ACC – 3N | ||
| 2 | 855203P | SENSOR KIT ASSY ACTV SM | ||
| Includes | HEATSHRINK 25MM | |||
| Includes | HARNESS SENSOR PC | |||
| Includes | CONNECTOR BUTT (2) | |||
| Includes | SHEET INSTRUCTN BUTT CONNECTORS | |||
| 3 | 884315 | DEFLECTOR HEAT 790B | ||
| 4 | 814475 | CHASSIS EVAP 790B | ||
| 5 | 820604 | CLIP EVAP BAFFLE | ||
| 6 | 818980P | KIT HTR DEF PUR 120V 790 | ||
| NI | 821745 | COVER PLUG TYCO | ||
| 7 | 838859P | EVAP ASSY 790B R134A 120V | ||
| Includes | EVAPORATOR FINNED DENSE 790 | |||
| Includes 818980 | HEATER DEFROST 230V 790 | |||
| Includes 813992 | CLIP ACTIVE SMART BAFFLE | |||
| Includes 820604 | CLIP EVAP BAFFLE | |||
| Includes 814475 | CHASSIS EVAP 790B | |||
| Includes 814713 | SHIELD EVAP CHASSIS 790B | |||
| Includes 814708 | SHIELD HEATER LEFT HAND | |||
| Includes 814709 | SHIELD HEATER RIGHT HAND | |||
| Includes 884315 | DEFLECTOR HEAT 790B | |||
| 8 | 814713 | SHIELD EVAP CHASSIS 790B | ||
| 9 | 814709 | SHIELD HEATER RIGHT HAND | ||
| 10 | 306096P | FAN FC KIT 790 SERIES A TO D | ||
| Includes 880279 | SHIELD HEATER FC COVER 790 | |||
| Includes | COVER FAN FC REAR 790 | |||
| Includes | CONNECTOR IDC UP2 (2) | |||
| Includes | LABEL WARNING 12 VOLT DC | |||
| Includes | FAN DC SUSPENDED FC ASSY | |||
| 11 | 873395 | COVER FAN FC FRONT E790B | ||
| 12 | 836595 | DUCT RETURN AIR FC 790 | ||
| 13 | 838902 | WIRE DRAIN HEATER SINGLE B MEP |
| REFERENCE | PART NUMBER | PART DESCRIPTION | ||
| 14 | 814653 | CLIP DEFOST HEATER B EVAP | ||
| 15 | 883783 | SHIELD FC REAR COVER 790 | ||
| 16 | 814708 | SHIELD HEATER LEFT HAND | ||
| 17 | 814460 | HARNESS EARTH 100MM | ||
| 18 | 813992 | CLIP ACTIVE SMART BAFFLE |

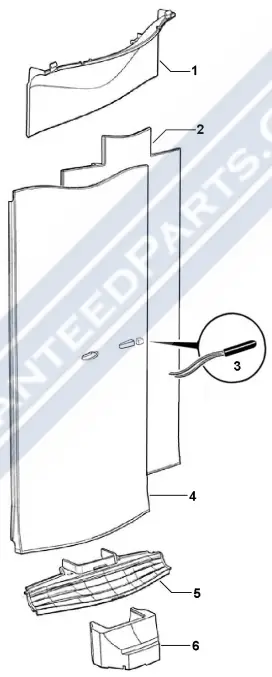

DUCT COVER COMPONENTS
| REFERENCE | PART NUMBER | PART DESCRIPTION | ||
| 1 | 837405 | COVER DUCT PC TOP B | ||
| 2 | 873950 | INSULATION COVER DUCT LONG B | ||
| 3 | 855203P | SENSOR KIT ASSY | ||
| Includes | CONNECTOR BUTT | |||
| Includes | HARNESS SENSOR PC | |||
| 4 | 836861 | COVER DUCT PC B LONG WATER | ||
| 5 | 813287 | GRILLE PC RETURN AIR B MODEL | ||
| 6 | 872823 | INSULATION INSERT PID |

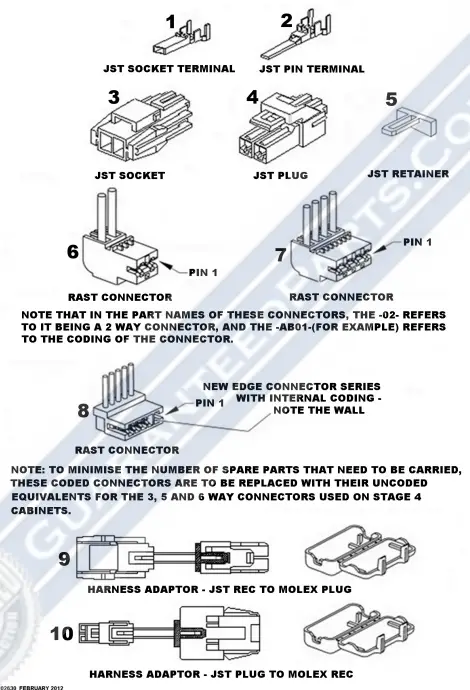

TERMINAL, PLUGS & SOCKETS
| REFERENCE | PART NUMBER | PART DESCRIPTION | COMMENTS | ||
| 1 | 819607P | TERMINAL SYF-01T PKT 10 | 26/20 AWG | ||
| 819608P | TERMINAL SYF-41T PKT 10 | 20/16 AWG | |||
| 2 | 819609P | PIN/TERM SYM-01T PKT 10 | 26/20 AWG | ||
| 819610P | PIN/TERM SYM-41T PKT 10 | 20/16 AWG | |||
| 3 | 819615 | JST SOCKET 2PIN YLR-02V | |||
| 819616 | JST SOCKET 3PIN YLR-03V | ||||
| 819617 | JST SOCKET 4PIN YLR-04V | ||||
| 819618 | JST SOCKET 6PIN YLR-06VF | ||||
| 819619 | JST SOCKET 8 PIN YLR-08V | ||||
| 4 | 819611 | JST PLUG 2PIN YLP-02V | |||
| 819612 | JST PLUG 4PIN YLP-04V | ||||
| 819613 | JST PLUG 6PIN YLP-06V | ||||
| 819614 | JST PLUG 8PIN YLP-08V | ||||
| 5 | 819620 | RETAINER 2 WAY YLS-02V | |||
| 819621 | RETAINER 3 WAY YLS-03V | ||||
| 6 | 881588 | CONNECTOR RAST 9290-02-AB01 | MAINS CORD | ||
| 881589 | CONNECTOR RAST 9290-02-BA01 | DEFROST HEATER | |||
| 881590 | CONNECTOR RAST 9290-02-EE01 | RUN CAPACITOR | |||
| 7 | 881591 | CONNECTOR RAST 9290-04-EF02 | COMPRESSOR CABLE | ||
| 8 | 873251 | CONNECTOR RAST 7234-003-500 | |||
| 873250 | CONNECTOR RAST 7234-004-500 | ||||
| 881135 | CONNECTOR RAST 7234-005-500 | ||||
| 873247 | CONNECTOR RAST 7234-006-500 | ||||
| 873279 | CONNECTOR RAST 7234-008-500 | ||||
| 873248 | CONNECTOR RAST 7234-010-500 | ||||
| 873243 | CONNECTOR RAST 7234-012-500 | ||||
| 881136 | CONNECTOR RAST 7234-014-500 | ||||
| 881137 | CONNECTOR RAST 7234-017-502 | ||||
| 9 | 820687P | ADAPTOR JST REC TO MOLEX KIT | |||
| Includes 884412 | COVER PLUG MOLEX | ||||
| 10 | 820688P | ADAPTOR JST PLUG TO MOLEX KIT | |||
| Includes 884412 | COVER PLUG MOLEX |
NOTE: THE NUMBERS IN THE DESCRIPTION OF THE RAST CONNECTOR DENOTES THE NUMBER OF
CONNECTIONS – EXAMPLE: 7234-017-502 =17 WAY CONNECTOR

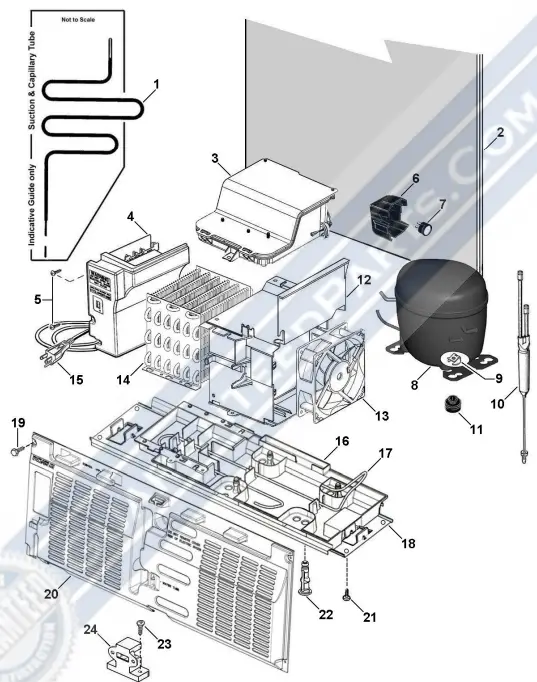

COMPRESSOR AREA COMPONENTS
| REFERENCE | PART NUMBER | PART DESCRIPTION | ||
| 1 | 883874 | SUCTION & CAPILLARY ASSY 790B | ||
| 2 | 878178 | PANEL BACK FORMED 790 | ||
| 3 | 820196 | MOD INV VCC AS 120V | ||
| 4 | 838197P | MOD CNTRL MT 120V SVC | ||
| 5 | 817829P | SCREW #8X16 SP PAN NIB ST TV (PKT 10) | ||
| 6 | 207342 | COVER PROTECTOR PAN EEI | ||
| 7 | 207341 | OVERLOAD PAN MM3-71CCY | ||
| 8 | 207339P | COMPR PAN EEI57C13DGH | ||
| Includes 207341 | OVERLOAD PAN MM3-71CCY | |||
| Includes 207342 | COVER PROTECTOR PAN EEI | |||
| Includes 820196 | MOD INV VCC AS 120V | |||
| Includes 207265 | GROMMET COMPR MTG 26MM (4) | |||
| Includes 838454 | PIN LOCKING COMP (4) | |||
| Includes 855270P | CLIP FOOT COMPRESSOR (4) | |||
| Includes 814843P | FILTER DRIER LONG TAIL XH9 12 GRM | |||
| 9 | 855270P | CLIP FOOT COMPRESSOR (PKT 4) | ||
| 10 | 814843P | FILTER DRIER LONG TAIL XH9 12GRM | ||
| 11 | 207265 | GROMMET COMPR MTG 26MM | ||
| 12 | 838644 | HOUSING FAN INV | ||
| 13 | 838855P | FAN CONDENSER | ||
| 14 | 838455 | CONDENSER EXT 6 PASS | ||
| 15 | 837802 | CORD SET USA MODEL | ||
| 16 | 838378 | HOUSING CONDENSER BASE | ||
| 17 | 839026 | TUBE EVAP TRAY FORM H_SHRINK | ||
| 18 | 838488 | TRAY COMP MNTG 790 | ||
| 19 | 817834P | SCREW #8X16 HEX (PKT 10) | ||
| 20 | 838484 | COVER COMP EXT COND 790 | ||
| 21 | 817829P | SCREW #8X16 SP PAN NIB ST TV (PKT 10) | ||
| 22 | 838454 | PIN LOCKING COMP | ||
| 23 | NOT USED | ITEM NOT USED IN THIS MODEL | ||
| 24 | NOT USED | ITEM NOT USED IN THIS MODEL |
