ELECTRIFIED HARDWARE
DPMS-75
DOOR POSITION
MONITORING SWITCH

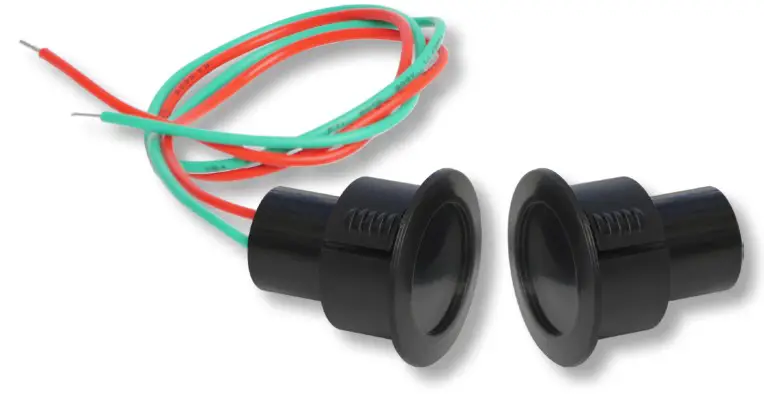

Door Position Monitoring Switch

FEATURES:

• Used for Door Status Monitoring
• Provides Normally Closed (SPST) Switch
• Easy Installation in Wood, Hollow Metal or Aluminum Doors and Frames
• Recessed Magnetic Contact
• Hole Prep: ¾” Diameter x 1″ Deep
• Color Options: Black or White

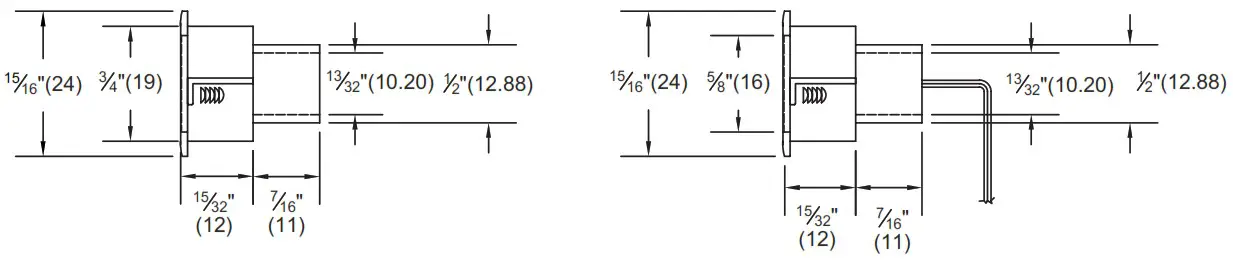

SPECIFICATIONS:

• Contact Rating: 0.5A @ 75VDC / 100VAC
• Wood Door / Frame Operating Distance: 9/16″ (15mm) max
• Metal Door / Frame Operating Distance: ½” (13mm) max
• Gap Width: ” (10.2mm)
• Wire Length: ± 9 13/16″ (249.9mm)
• Lifetime (Resistive Loads): 1,000,000 (75 VDC, 100mA)
• Operating Temperature: -40°~125°C

(800) 876-9258 | www.cal-royal.com | MAY 2022
