STEGO DS 013 Door Switch
WARNING
There is a risk of personal injury and equipment damage if the connection values are not observed or polarity is incorrect!

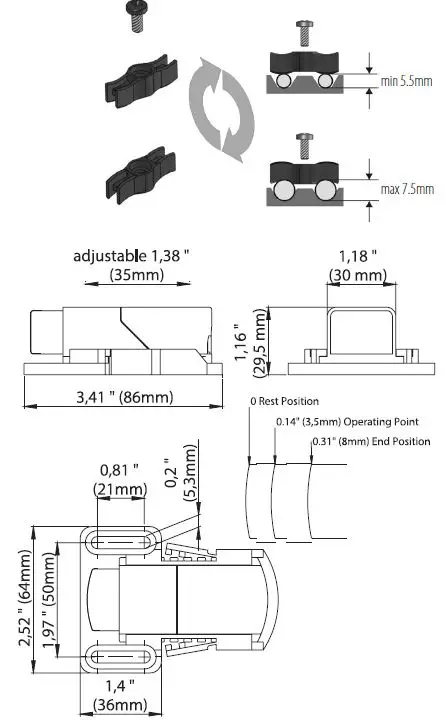

DIMENSION
TOOLS

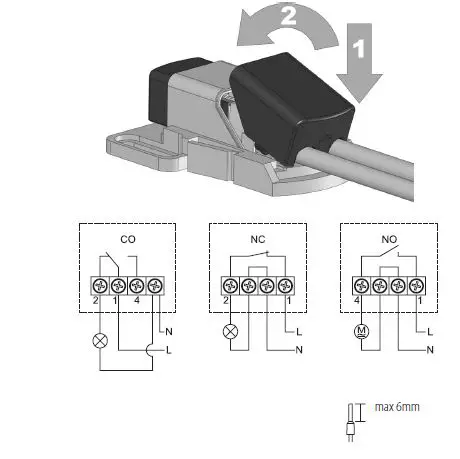

USAGE
The door switch monitors the status of the door (open or closed) and can signal this status to control units or connect electric loads directly.
Safety considerations
- Installation must only be performed by qualified electrical technicians in observation of the respective national power-supply guidelines (IEC 60364).
- The safety measures according to VDE 0100 are to be ensured.
- The technical specifications on the type plate must be strictly observed!
- No changes or modifications must be made to the device.
- In case of apparent damage or malfunction, the device may not be repaired or put into operation. (Dispose of device.)
Notice
The manufacturer accepts no liability in the case of failure to observe this brief instruction, improper use and changes or damage to the device.
STEGO Elektrotechnik GmbH-
Kolpingstraße 21-74523 Schwäbisch Hall – www.stego.de
