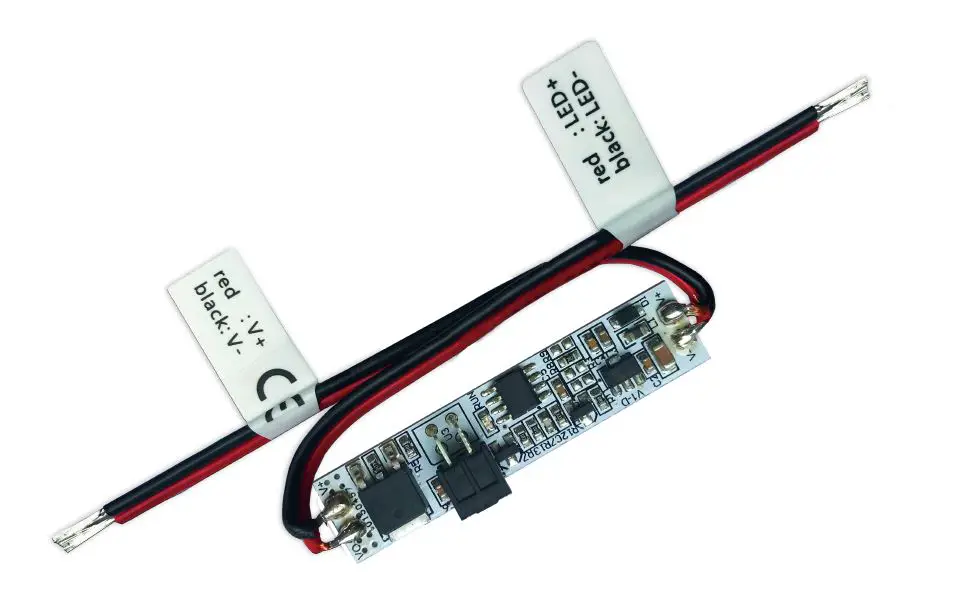

SKYDANCE E1-D Door Sensor Switch
Features
- Door sensor switch, connected directly to the low voltage LED strip.
- When the door open, or no obstacle ahead, the strip turn on gradually. When the door close, or obstacle ahead, the strip turn off gradually.
- Max 4A output current, max output power 96W@24V.
- Generally installed in the aluminum lamp strip housing.
- 3M paste in the bottom of the PCBA make easy installation and security.
- Low cost and high stability.
- Widely used in wardrobe lights.
Technical Parameters
| Input and Output | |
| Input voltage | 12-24VDC |
| Output voltage | 12-24VDC |
| Output power | Max. 48W@12V Max. 96W@24V |
| Sensor data | |
| Detective distance | 10cm |
| Detevtive angle | 15-30 |
| Safety and EMC | |
| EMC standard (EMC) | ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4 |
| Safety standard(LVD) | EN 62368-1:2020+A11:2020 |
| Certification | CE,EMC,LVD |
| Warranty and Protection | |
| Warranty | 5 years |
| Protection | Reverse Polarity |
| Environment | |
| Operation temperature | Ta: -30OC ~ +55OC |

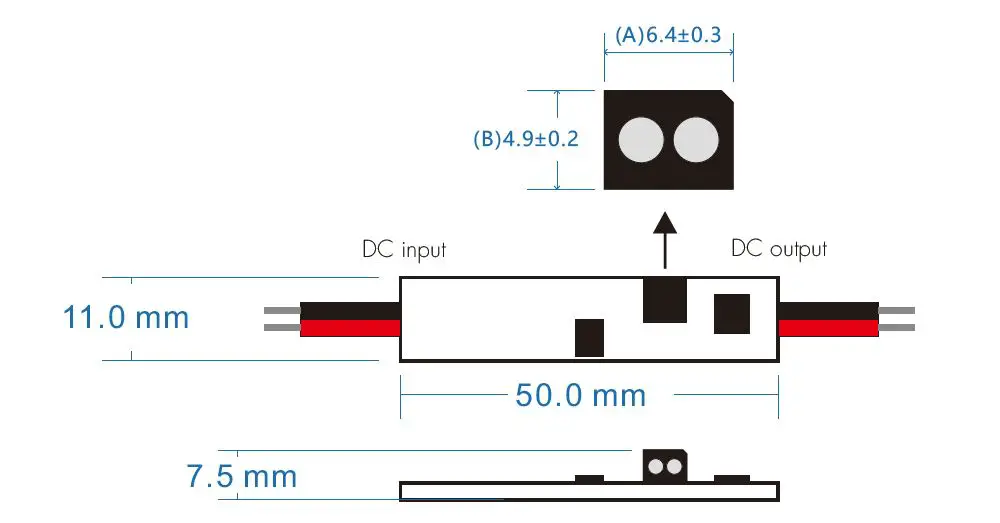

Dimension
Installation attention

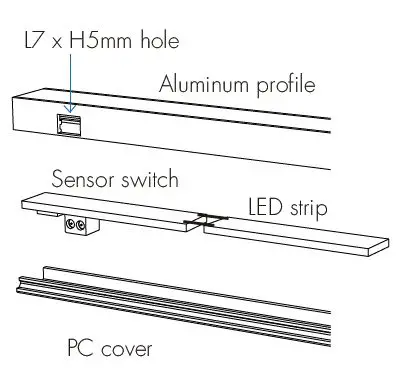

- Cut a hole in size L7 x H5mm on the side of the aluminum profile.
- Put mini sensor switch into profiles when power is off, put the detector head to the hole, detector head should face to the objects.

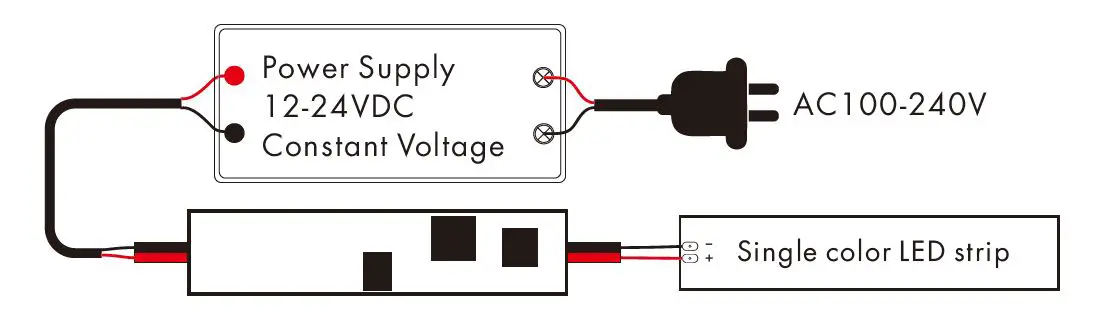

- Pay attention to power input and LED output polarity.
