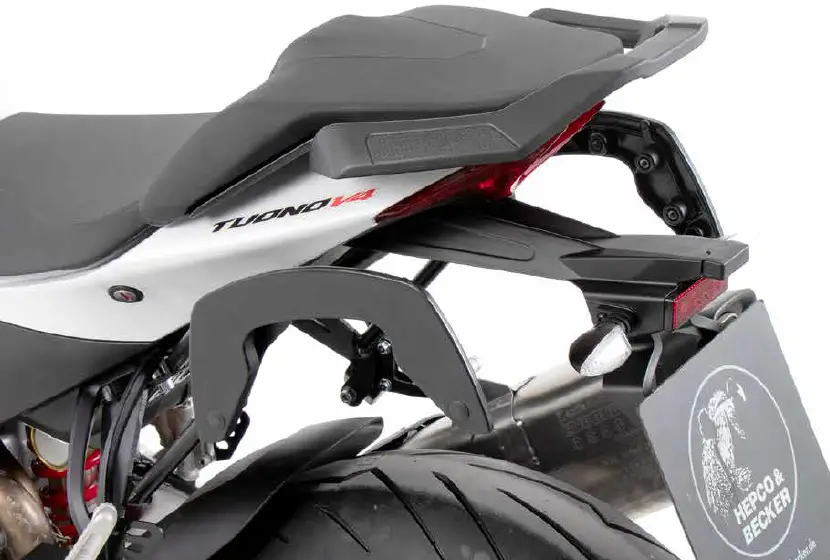

HEPCO BECKER 6307625 00 01 C-Bow Holder
Content
- 2x 700007063 C-Bow black
- 1x 700011834 Holder left
- 1x 700011835 Screw kit
- Allen screw M8x60
- Allen screw M8x20
- Alu spacer Ø13xØ9×16
- Alu spacer Ø18xØ9×7
- Hexagon bolt
- M6x16
- Washer Ø6,4
- Washer Ø8,4
The pillion suitability is limited. Only Royster bags possible. For assembly, a 2nd person is helpful.
Required tools
Set

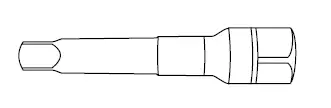

Extension

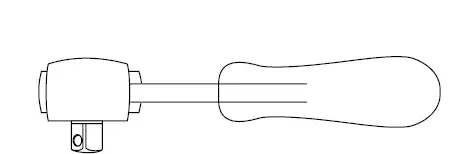

Ratche
Important
During installation, tighten all accessible screws loosely at first to ensure tension-free installation. When tightening the screws, observe the tightening torques.
Preparatory actions
Loosen the pillion footrests, screws are omitted.
Installation Instruction

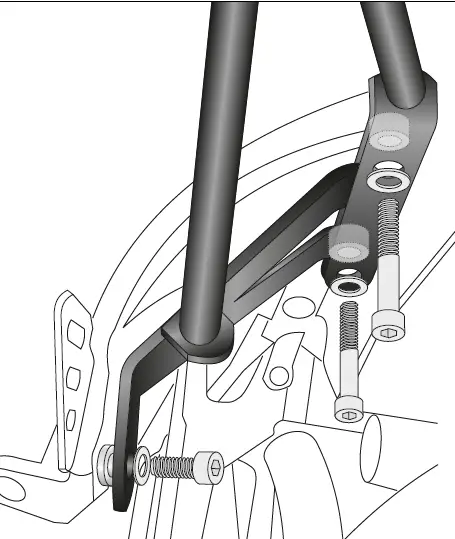

Fastening of the holder top right/left
Together with the pillion footrests on the now free threads, for this use the allen screws M8x60 and washers Ø8,4. Insert the alu spacers Ø13xØ9×16 between the holder and the footrests.
Fastening of the holder bottom right/left
On the free thread of the footrest. Use allen screw M8x20 and washer Ø8,4. Insert the alu spacers Ø18xØ9×7 between the holder and the footrests.
Tool Required
Installation Instruction

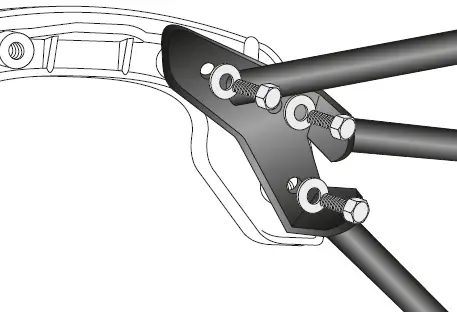

Fastening of the C-Bows right/left
- On the mounted holder.
- Use hexagon bolts M6x16 and washers Ø6,4.
Attention
Control all screw connections after the assembling for tightness. Reassemble the dismantled parts. More accessories for this model see www.hepco-becker.de
