DETECTO 0065-0824-08 Portable Stretcher Scale
UNPACKING
Before starting to assemble, please unpack and remove all wrappings and fillers. Carton contains:
| Item Description | Part Number | Qty. |
| 8500/8550 Guide Rail, Wheel Side | 0065-0824-08 | 2 |
| 8500/8550 Guide Rail, Handle Side | 0065-0825-08 | 2 |
| Screw Truss-Head Thread Cutting, 8-32 x .375 | 6021-1257 | 10 |
TOOLS REQUIRED
- No. 2 Philips screwdriver (power screwdriver recommended)
ASSEMBLY

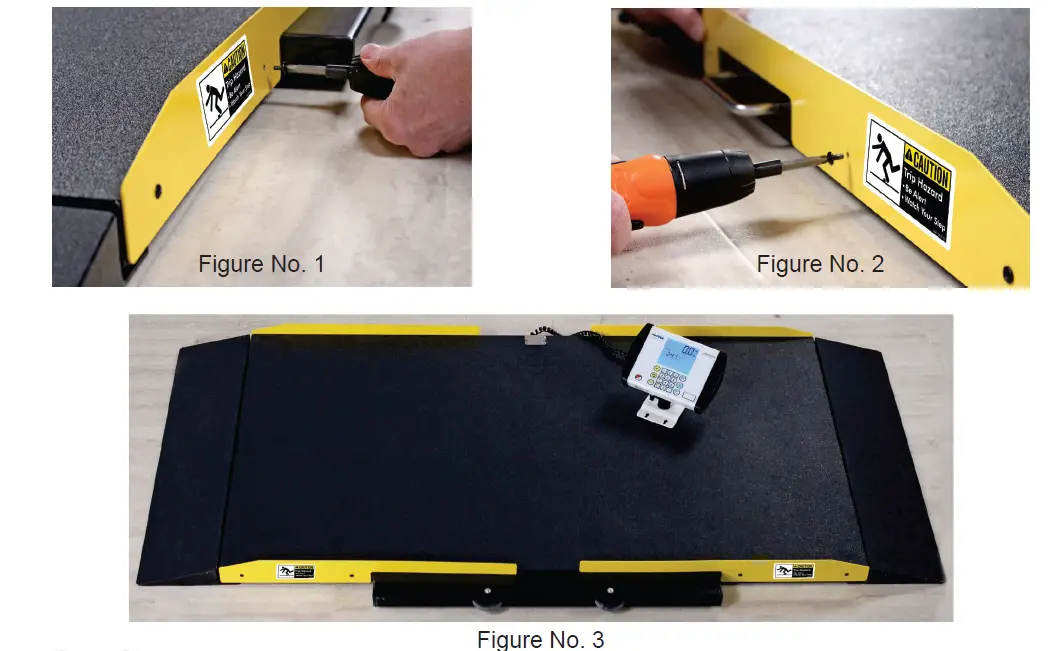

Refer to Figures No. 1, 2, and 3, then follow the instructions for attaching the Guide Rails.
- Place the platform on the floor in the storage position.
- Begin by holding a Wheel Side Guide Rail (with a caution label toward you) against the side of the platform (this is the longer of the two sets of guide rails). Install (2) thread-cutting screws through the holes in the guide rail, and into the holes of the platform. Securely tighten the screws. Refer to Figure No. 1.
- Repeat step 2 for the other Wheel Side Guide Rail.
- Next, hold a Handle Side Guide Rail (with a caution label toward you) against the side of the platform (this is the shorter of the two sets of guide rails). Install (3) thread-cutting screws through the holes in the guide rail, and into the holes of the platform. Securely tighten the screws. Refer to Figure No. 2.
- Repeat step 4 for the other Handle Side Guide Rail.
- The finished assembly should look like Figure No. 3
