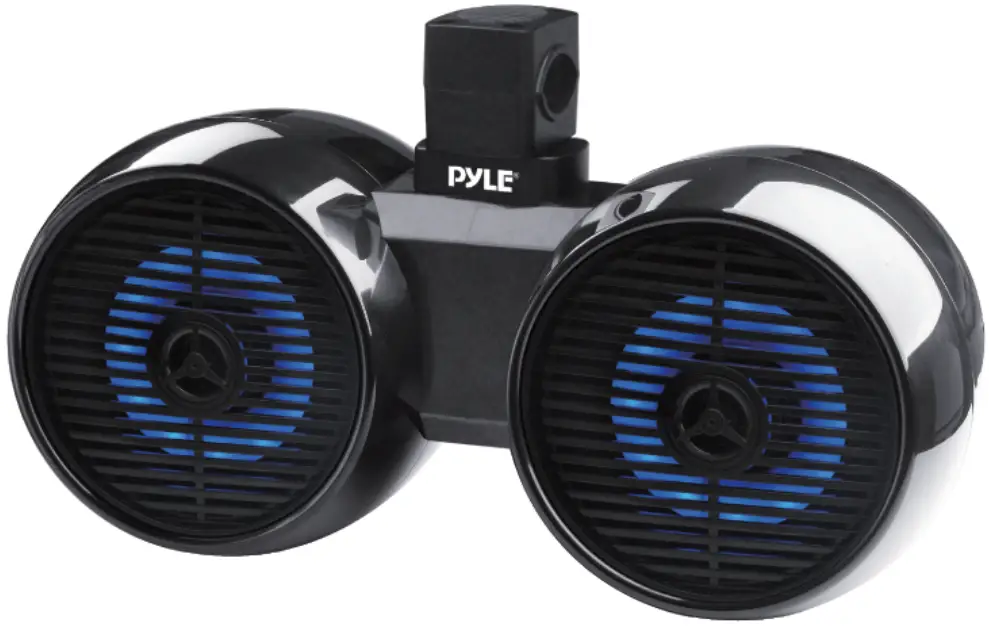

PYLE PLMRWK61WT Dual Marine Wakeboard Water Resistant Speaker User Guide
Technical Specs
| Model Number | Peak Power | RMS Power | Subwoofers Size | Tweeter | Frequency Response | Magnet | Impedance | Sensitivity | Dimensions HxWxD(mm) | Colour |
| PLMRWK61WT | 2×200 W | 2×100 W | 6.5” | 1.0” | 60-20 kHz | 10 Oz | 4 Ohm | 90 dB | 283x480x240 | White |
| PLMRWK61BK | 2×200 W | 2×100 W | 6.5” | 1.0” | 60-20 kHz | 10 Oz | 4 Ohm | 90 dB | 283x480x240 | Black |
| PLMRWK81WT | 2×300 W | 2×150 W | 8” | 1.0” | 40-20 kHz | 20 Oz | 4 Ohm | 91 dB | 340x577x290 | White |
| PLMRWK81BK | 2×300 W | 2×150 W | 8” | 1.0” | 40-20 kHz | 20 Oz | 4 Ohm | 91 dB | 340x577x290 | Black |
| Model Number | Peak Power | RMS Power | Subwoofers Size | Tweeter | Frequency Response | Magnet | Impedance | Sensitivity | Dimensions HxWxD(mm) | Colour |
| PLMRWKBT62WT | 2×200 W | 2×100 W | 6.5” | 1.0” | 60-20 kHz | 10 Oz | 4 Ohm | 90 dB | 283x480x240 | White |
| PLMRWKBT62BK | 2×200 W | 2×100 W | 6.5” | 1.0” | 60-20 kHz | 10 Oz | 4 Ohm | 90 dB | 283x480x240 | Black |
| PLMRWKBT82WT | 2×300 W | 2×150 W | 8” | 1.0” | 40-20 kHz | 20 Oz | 4 Ohm | 91 dB | 340x577x290 | White |
| PLMRWKBT82BK | 2×300 W | 2×150 W | 8” | 1.0” | 40-20 kHz | 20 Oz | 4 Ohm | 91 dB | 340x577x290 | Black |
| Model | PLMRWK61WT | PLMRWK61BK | PLMRWK81WT | PLMRWK81BK | PLMRWKBT62WT | PLMRWKBT62BK | PLMRWKBT82WT | PLMRWKBT82BK |
| Color | White | Black | White | Black | White | Black | White | Black |
| Built-in LED Lights |
|
|
|
|
|
|
|
|
| Wireless BT Streaming |
|
|
|
|
Installation instruction
Picture 1
- The base of the bracket.

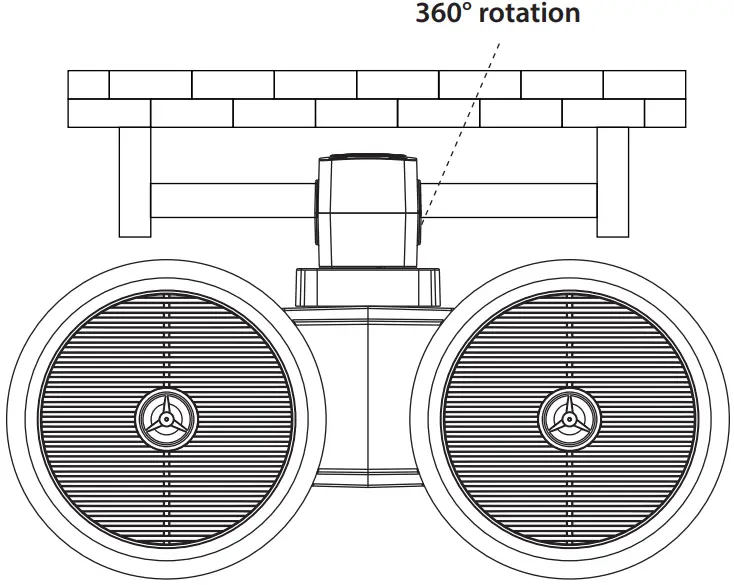

The connecting base of the bracket, 360° rotation, connect to picture 1. - The cover of the bracket is fixed by 4 mounting screws after picture 2 rotates to an angle.

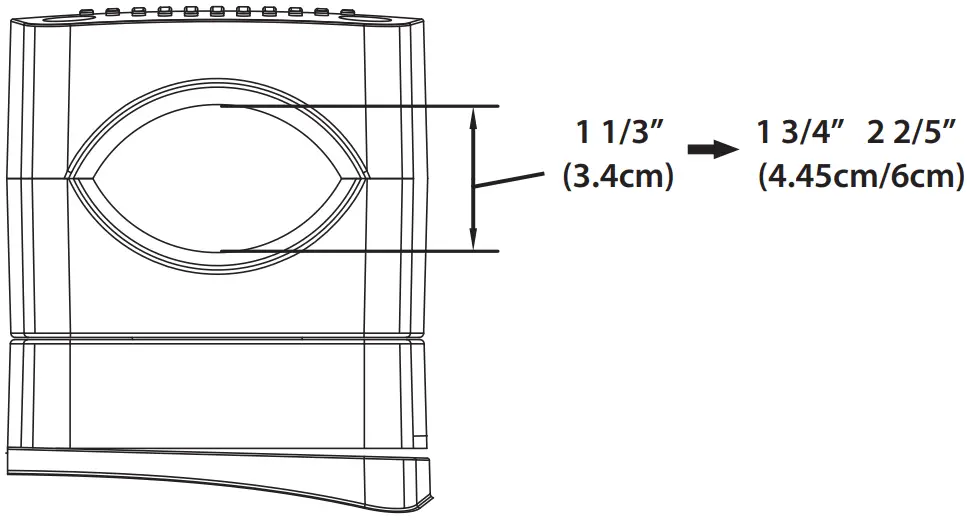

Mounting hole dimension
Picture 2.
Remark:
Two types of screws for choice: M5x65/M5x80
Wireless BT Connection Diagram

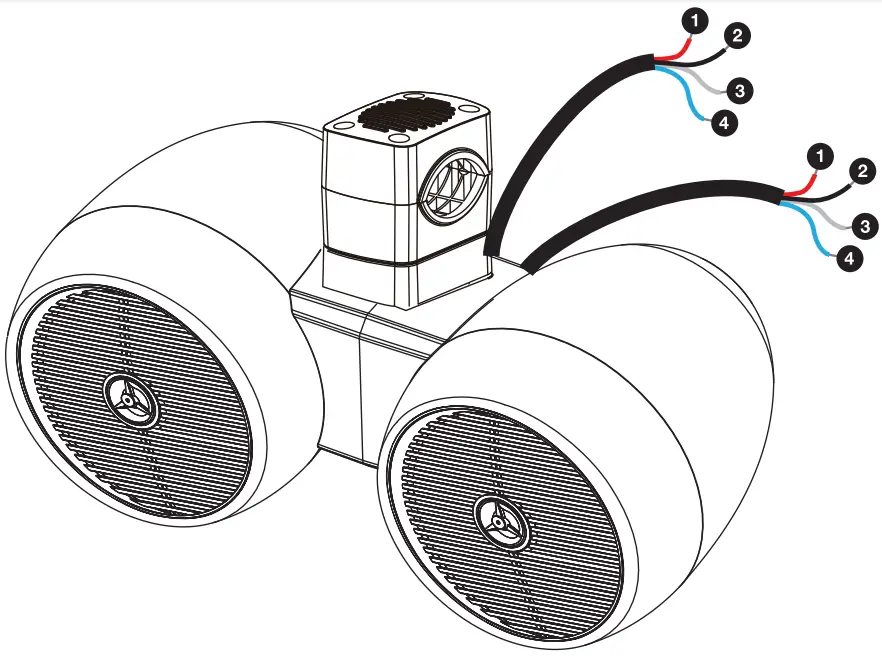

Picture 3.
PLMRWK61WT/PLMRWK61BK
PLMRWK81WT/PLMRWK81BK
- Speaker power +(red)
- Speaker power – (black)
- LED power + (white) – DC12V
- LED power – (blue) – DC12V

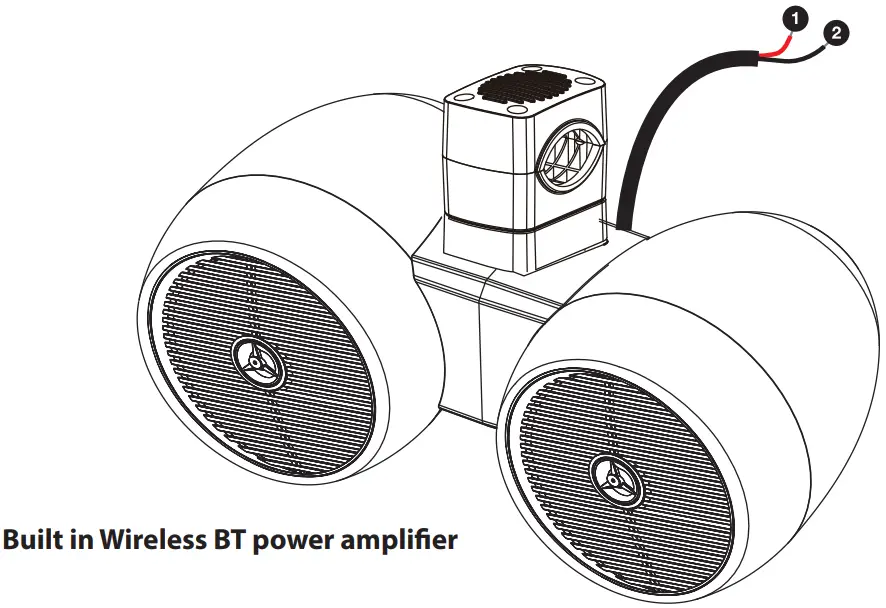

Picture 4.
PLMRWKBT62WT/PLMRWKBT62BK
PLMRWKBT82WT/PLMRWKBT82BK
- LED power + (Red) and Wireless BT – DC12V
- LED power – (Black) and Wireless BT – DC12V
Model: PLMRWK61WT, PLMRWK61BK
6.5″ -inch Speaker Box Pairs with Built-in LED Lights
Model: PLMRWK81WT, PLMRWK81BK
8″ -inch Speaker Box Pairs with Built-in LED Lights
Model: PLMRWKBT62WT, PLMRWKBT62BK
6.5″ -inch Speaker Box Pairs with Built-in LED Lights and Wireless BT
Model: PLMRWKBT82WT, PLMRWKBT82BK
8″ -inch Speaker Box Pairs with Built-in LED Lights and Wireless BT
