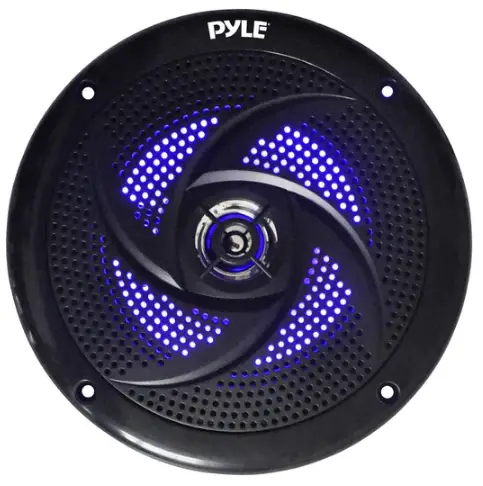

PYLE PLMRS83BL LOW-PROFILE MARINE SPEAKER SYSTEM
What’s in the Box
- (2) Marine Speakers
- (2) Speaker Connection Wires, 9.8’ ft.
Technical Specs
- Voice Coil Type: Aluminum
- Construction Material:
- Engineered ABS
- Impedance: 4 Ohm
These speakers were designed and manufactured for your installation needs andhave been thoroughly tested to ensure consistent and reliable performance. For further information, installation assistance or product troubleshooting visit us on PyleUSA.com
| Model: PLMRS4W – PLMRS4B 4″ -inch Speaker Pairs |
| Model: PLMRS43WL – PLMRS43BL 4″ -inch Speaker Pairs with Built-in LED Lights |
| Model: PLMRS5W – PLMRS5B 5.25” -inch Speaker Pairs |
| Model: PLMRS53WL – PLMRS53BL 5.25” -inch Speaker Pairs with Built-in LED Lights |
| Model: PLMRS6W – PLMRS6B 6.5” -inch Speaker Pairs |
| Model: PLMRS63WL – PLMRS63BL 6.5” -inch Speaker Pairs with Built-in LED Lights |
| Model: PLMRS8W – PLMRS8B 8” -inch Speaker Pairs |
| Model: PLMRS83WL – PLMRS83BL 8” -inch Speaker Pairs with Built-in LED Lights |
Speakers & Options
| Model Number | Speaker Size | Max Output Power | LED Light Bulb | Cut-Out Diameter | Mounting Depth |
| PLMRS4W | 4” | 100 Watt | 3.7” | 0.9” | |
| PLMRS4B | 4” | 100 Watt | 3.7” | 0.9” | |
| PLMRS43WL | 4” | 100 Watt | Blue Illumination | 3.7” | 0.9” |
| PLMRS43BL | 4” | 100 Watt | Blue Illumination | 3.7” | 0.9” |
| PLMRS5W | 5.25” | 180 Watt | 4.7” | 0.9” | |
| PLMRS5B | 5.25” | 180 Watt | 4.7” | 0.9” | |
| PLMRS53WL | 5.25” | 180 Watt | Blue Illumination | 4.7” | 0.9” |
| PLMRS53BL | 5.25” | 180 Watt | Blue Illumination | 4.7” | 0.9” |
| PLMRS6W | 6.5” | 240 Watt | 5.3” | 0.92” | |
| PLMRS6B | 6.5” | 240 Watt | 5.3” | 0.92” | |
| PLMRS63WL | 6.5” | 240 Watt | Blue Illumination | 5.3” | 0.92” |
| PLMRS63BL | 6.5” | 240 Watt | Blue Illumination | 5.3” | 0.92” |
| PLMRS8W | 8” | 320 Watt | 7.5” | 0.94” | |
| PLMRS8B | 8” | 320 Watt | 7.5” | 0.94” | |
| PLMRS83WL | 8” | 320 Watt | Blue Illumination | 7.5” | 0.94” |
| PLMRS83BL | 8” | 320 Watt | Blue Illumination | 7.5” | 0.94” |
| Model Number | Total Speaker Diameter | Total Speaker Depth | Magnet | Frequency Response | Speaker Weight |
| PLMRS4W | 5.2’’ -inches | 1.5’’ -inches | 3.4 Oz | 90Hz-18khz | 0.66 lbs.(Each) |
| PLMRS4B | 5.2’’ -inches | 1.5’’ -inches | 3.4 Oz | 90Hz-18khz | 0.66 lbs.(Each) |
| PLMRS43WL | 5.2’’ -inches | 1.5’’ -inches | 3.4 Oz | 90Hz-18khz | 0.66 lbs.(Each) |
| PLMRS43BL | 5.2’’ -inches | 1.5’’ -inches | 3.4 Oz | 90Hz-18khz | 0.66 lbs.(Each) |
| PLMRS5W | 6.4” – inches | 1.6” – inches | 5.4 Oz | 80Hz-18khz | 0.88 lbs.(Each) |
| PLMRS5B | 6.4” – inches | 1.6” – inches | 5.4 Oz | 80Hz-18khz | 0.88 lbs.(Each) |
| PLMRS53WL | 6.4” – inches | 1.6” – inches | 5.4 Oz | 80Hz-18khz | 0.88 lbs.(Each) |
| PLMRS53BL | 6.4” – inches | 1.6” – inches | 5.4 Oz | 80Hz-18khz | 0.88 lbs.(Each) |
| PLMRS6W | 7.3” – inches | 1.6” – inches | 5.4 Oz | 60Hz-18khz | 0.95 lbs.(Each) |
| PLMRS6B | 7.3” – inches | 1.6” – inches | 5.4 Oz | 60Hz-18khz | 0.95 lbs.(Each) |
| PLMRS63WL | 7.3” – inches | 1.6” – inches | 5.4 Oz | 60Hz-18khz | 0.95 lbs.(Each) |
| PLMRS63BL | 7.3” – inches | 1.6” – inches | 5.4 Oz | 60Hz-18khz | 0.95 lbs.(Each) |
| PLMRS8W | 9.4” – inches | 2.0” – inches | 8 Oz | 40Hz-18khz | 0.95 lbs.(Each) |
| PLMRS8B | 9.4” – inches | 2.0” – inches | 8 Oz | 40Hz-18khz | 0.95 lbs.(Each) |
| PLMRS83WL | 9.4” – inches | 2.0” – inches | 8 Oz | 40Hz-18khz | 0.95 lbs.(Each) |
| PLMRS83BL | 9.4” – inches | 2.0” – inches | 8 Oz | 40Hz-18khz | 0.95 lbs.(Each) |
Features
- Includes (2) Component Speakers
- Waterproof & Weather-Resistant Design
- Rugged Marine Grade Construction
- Low-Profile Slim Style Speaker Housing
- 2-Way Full Range Stereo Sound Reproduction
- Molded ABS Machined Basket and Grill
- Universal Standard OEM Replacement Size
- For Boat, Marine Watercraft & Off-Road Vehicles
Speaker Wiring
Models:
- PLMRS4W – PLMRS4B
- PLMRS5W – PLMRS5B
- PLMRS6W – PLMRS6B
- PLMRS8W – PLMRS8B
Speaker Pairs
- Connect the red and black cables to their respective positive and negative terminals.
- Speakers ‘A’ and ‘B’ connect to an amplifier source ‘C’
Models:
- PLMRS43WL – PLMRS43BL
- PLMRS53WL – PLMRS53BL
- PLMRS63WL – PLMRS63BL
- PLMRS83WL – PLMRS83BL

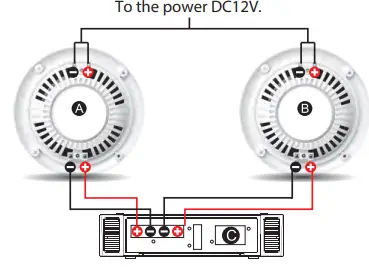

Speaker Pairs Built-in LED Lights
- Connect the red and black cables to their respective positive and negative terminals.
- Speakers ‘A’ and ‘B’ connect to an amplifier source ‘C’
