PYLE PLMRS4W LOW-PROFILE MARINE SPEAKER SYSTEM

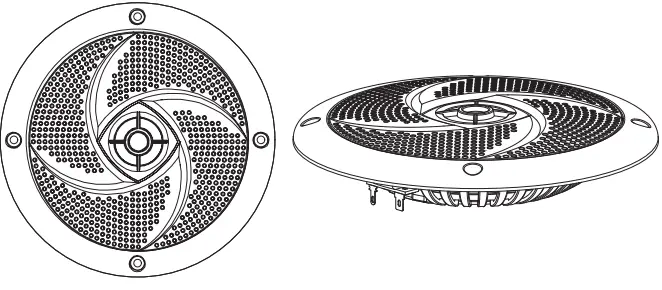

These speakers were designed and manufactured for your installation needs and have been thoroughly tested to ensure consistent and reliable performance. For further information, installation assistance or product troubleshooting visit us on PyleUSA.com

Speakers & Options:

Model Number	Speaker Size	Max Output Power	LED Light Bulb	Cut-Out Diameter	Mounting Depth
PLMRS4W	4”	100 Watt		3.7”	0.9”
PLMRS4B	4”	100 Watt		3.7”	0.9”
PLMRS43WL	4”	100 Watt	Blue Illumination	3.7”	0.9”
PLMRS43BL	4”	100 Watt	Blue Illumination	3.7”	0.9”

PLMRS5W	5.25”	180 Watt		4.7”	0.9”
PLMRS5B	5.25”	180 Watt		4.7”	0.9”
PLMRS53WL	5.25”	180 Watt	Blue Illumination	4.7”	0.9”
PLMRS53BL	5.25”	180 Watt	Blue Illumination	4.7”	0.9”

PLMRS6W	6.5”	240 Watt		5.3”	0.92”
PLMRS6B	6.5”	240 Watt		5.3”	0.92”
PLMRS63WL	6.5”	240 Watt	Blue Illumination	5.3”	0.92”
PLMRS63BL	6.5”	240 Watt	Blue Illumination	5.3”	0.92”

PLMRS8W	8”	320 Watt		7.5”	0.94”
PLMRS8B	8”	320 Watt		7.5”	0.94”
PLMRS83WL	8”	320 Watt	Blue Illumination	7.5”	0.94”
PLMRS83BL	8”	320 Watt	Blue Illumination	7.5”	0.94”

Model Number	Total Speaker Diameter	Total Speaker Depth	Magnet	Frequency Response	Speaker Weight
PLMRS4W	5.2’’ -inches	1.5’’ -inches	3.4 Oz	90Hz-18khz	0.66 lbs.(Each)
PLMRS4B	5.2’’ -inches	1.5’’ -inches	3.4 Oz	90Hz-18khz	0.66 lbs.(Each)
PLMRS43WL	5.2’’ -inches	1.5’’ -inches	3.4 Oz	90Hz-18khz	0.66 lbs.(Each)
PLMRS43BL	5.2’’ -inches	1.5’’ -inches	3.4 Oz	90Hz-18khz	0.66 lbs.(Each)

PLMRS5W	6.4” – inches	1.6” – inches	5.4 Oz	80Hz-18khz	0.88 lbs.(Each)
PLMRS5B	6.4” – inches	1.6” – inches	5.4 Oz	80Hz-18khz	0.88 lbs.(Each)
PLMRS53WL	6.4” – inches	1.6” – inches	5.4 Oz	80Hz-18khz	0.88 lbs.(Each)
PLMRS53BL	6.4” – inches	1.6” – inches	5.4 Oz	80Hz-18khz	0.88 lbs.(Each)

PLMRS6W	7.3” – inches	1.6” – inches	5.4 Oz	60Hz-18khz	0.95 lbs.(Each)
PLMRS6B	7.3” – inches	1.6” – inches	5.4 Oz	60Hz-18khz	0.95 lbs.(Each)
PLMRS63WL	7.3” – inches	1.6” – inches	5.4 Oz	60Hz-18khz	0.95 lbs.(Each)
PLMRS63BL	7.3” – inches	1.6” – inches	5.4 Oz	60Hz-18khz	0.95 lbs.(Each)

PLMRS8W	9.4” – inches	2.0” – inches	8 Oz	40Hz-18khz	0.95 lbs.(Each)
PLMRS8B	9.4” – inches	2.0” – inches	8 Oz	40Hz-18khz	0.95 lbs.(Each)
PLMRS83WL	9.4” – inches	2.0” – inches	8 Oz	40Hz-18khz	0.95 lbs.(Each)
PLMRS83BL	9.4” – inches	2.0” – inches	8 Oz	40Hz-18khz	0.95 lbs.(Each)

Features:

Includes (2) Component Speakers
Waterproof & Weather-Resistant Design
Rugged Marine Grade Construction
Low-Profile Slim Style Speaker Housing
2-Way Full Range Stereo Sound Reproduction
Molded ABS Machined Basket and Grill
Universal Standard OEM Replacement Size
For Boat, Marine Watercraft & Oﬀ-Road Vehicles

What’s in the Box:

(2) Marine Speakers
(2) Speaker Connection Wires, 9.8’ ft.

Technical Specs:

Voice Coil Type: Aluminum
Construction Material: Engineered ABS
Impedance: 4 Ohm

Speaker Wiring

Models:

PLMRS4W – PLMRS4B
PLMRS5W – PLMRS5B
PLMRS6W – PLMRS6B
PLMRS8W – PLMRS8B
Speaker Pairs

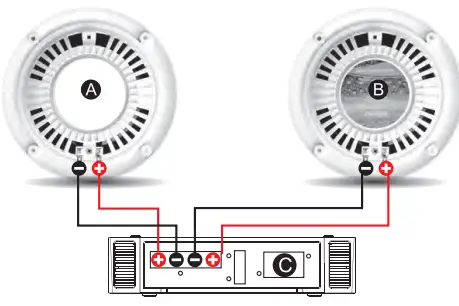

- Connect the red and black cables to their respective positive and negative terminals.
- Speakers ‘A’ and ‘B’ connect to an amplifier source ‘C’

Speaker Wiring

Models:

PLMRS43WL – PLMRS43BL
PLMRS53WL – PLMRS53BL
PLMRS63WL – PLMRS63BL
PLMRS83WL – PLMRS83BL
Speaker Pairs Built-in LED Lights
- Connect the red and black cables to their respective positive and negative terminals.
- Speakers ‘A’ and ‘B’ connect to an amplifier source ‘C’
