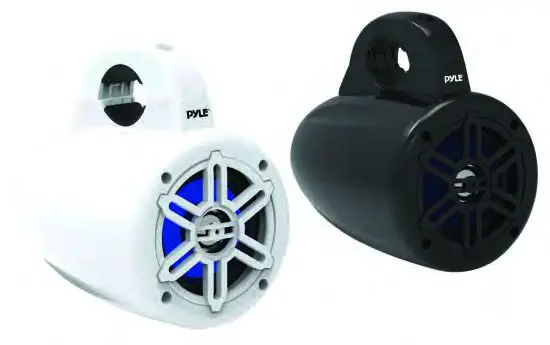

PLMRWB45W 4 Inch Waterproof Rated Marine Tower Speakers
User Guide
| MODEL | PLMRWB45W / PLMRWB45B |
| PLMRLEWB46W / PLMRLEWB46B | |
| PLMRLEWB47WB / PLMRLEWB47BB |
| Numeral | Characterization of Ingress Limit |
| 0 or X | Not evaluated |
| 1 | Dripping water: vertical |
| 2 | Dripping water: 15° tilt |
| 3 | Spraying water |
| 4 | Splashing water |
| 5 | Jetting water |
| 6 | Powerful Jetting water |
| 7 | Temporary immersion |
| 8 | Continuous immersion |
| Table II. The second numeral in an IP code indicates the degree of protection from moisture. | |

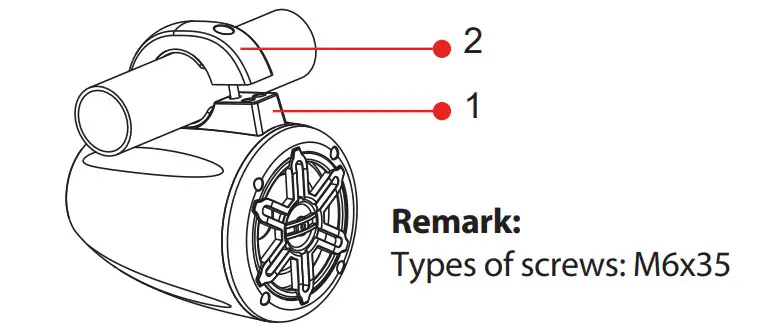

Picture 1.
- The base of the bracket.
- The cover of the bracket is fixed by 2 mounting screws.

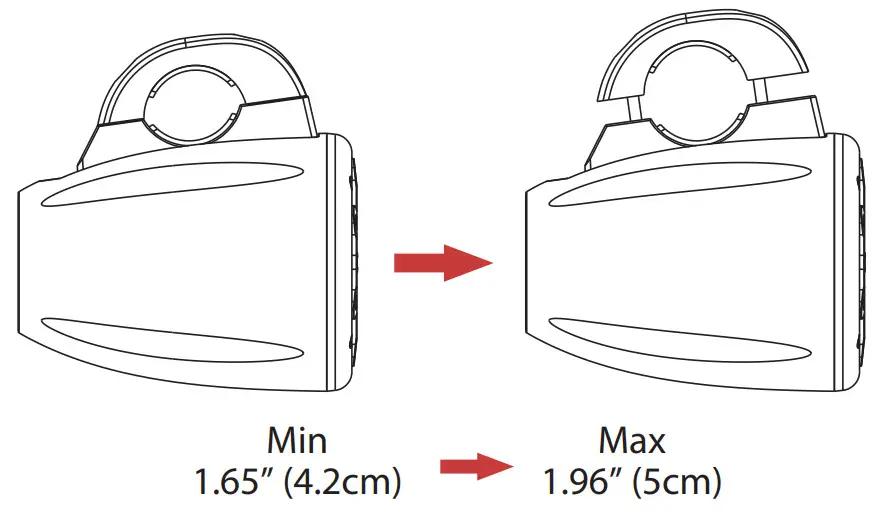

Picture 2.
Mounting hole dimension
| MODEL | PLMRWB45W | PLMRW64513 | PLMRLEWB46W | PLMRLEWB46B | PLMRLEWB47WB | PLMRLEW647136 |
| Power Output | 300 Watt MAX | |||||
| Sound System | 4″ Subwoofers 1.0″ Tweeters | |||||
| Color | White | Black | White | Black | White | Black |
| Built |  | | | | ||
| Wireless BT Streaming | | | ||||

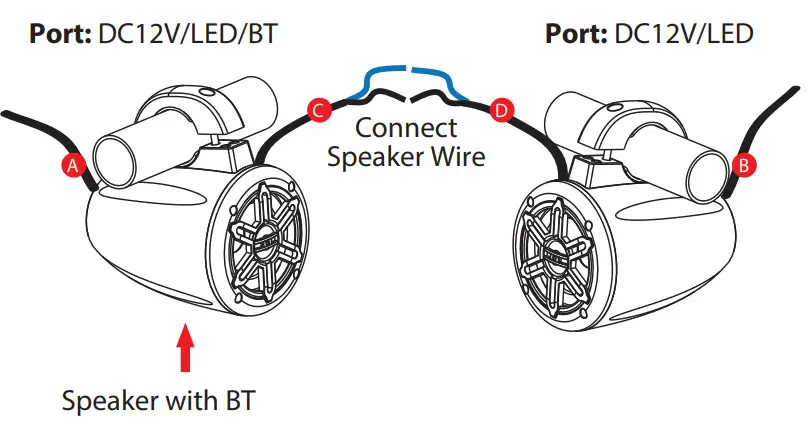

Wiring Diagram
- As shown in the pictures, the A port is DC12V/LED/BT POWER, B port is LED POWER
- A and B Connect to DC12V Power.
As shown in the pictures, will be the first two speakers docking, C and D is Speaker Wire, Connect C’s Positive to D’s Positive, C’s Negative to D’s Negative, Black Wire is Negative, and Blue Wire is Positive. - The connection is complete.
How to connect Wireless BT?
Search the device on your phone\tablet (device name Pyle), and enter the password (0000), when a beep sound is heard, the connection is successful.
Now you can play music.
Features
- Includes (2) Wakeboard Tower Speakers
- Waterproof Marine Grade Rated Construction
- Rugged & Weather-Resistant Housing
- Compact Mountable Design
- 2-Way Full Range Audio Speaker System
- Titanium Dome Tweeters
- Long Excursion Subwoofers
- Anti-Corrosion, UV Resistant Coating
- Integrated Universal Roll Bar Mounting Clamps
Technical Specifications:
- Waterproof Marine Grade Rating: IP-44
- Boat Roll Cage / Roll Bar Support Size: Up to 1.96” (5cm)
- Tweeter Type: Titanium Dome
- Frequency Response: 70hz-20kHz
- Impedance: 4 Ohms
- Magnet: 10 Oz
- Sensitivity: 90 dB
- Construction Material: Engineered ABS Grills
- Speaker Housing Dimensions (L x W x H): 5.4” x 5.4” x 7.0′-inches
- Speaker Housing Size (L x W x H): 5.4” x 7.6” x 7.0′-inches (with Mounting Bracket)
What’s in the Box:
- (2) Marine LED Speakers
- Integrated Mounting Clamps
