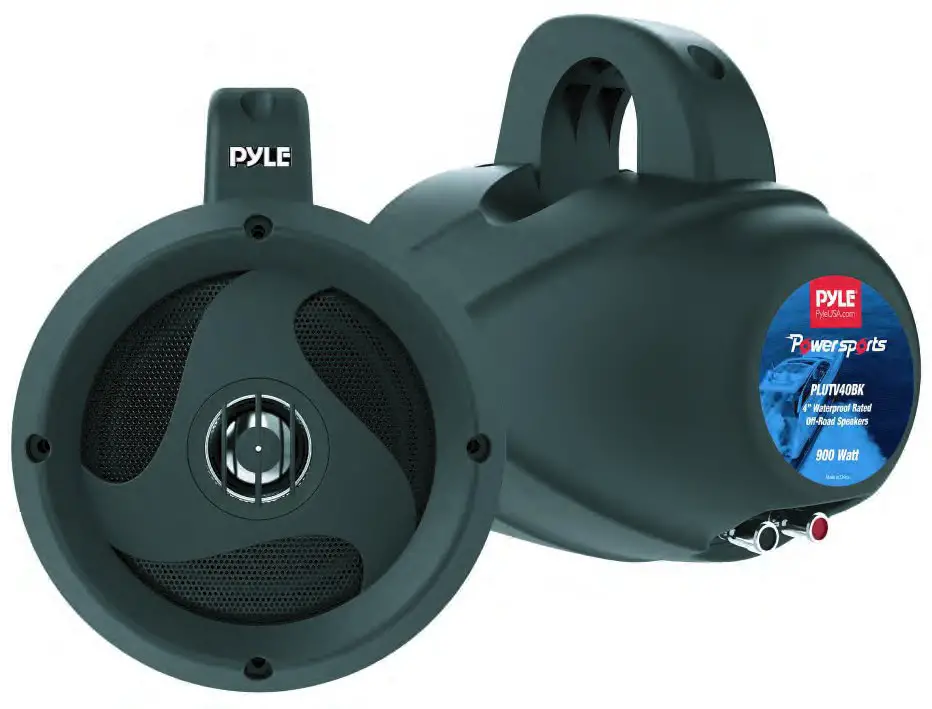

PLUTV40BK4”
Waterproof Rated Off-Road Speakers
900W Compact Power Sport Vehicle
Speaker System for ATV, UTV, 4×4, Jeep (Pair)
User Manual
PLUTV40BK Installation
Please note:
The below instructions refer to the most common bar sizes: 1.5”, 1.75” and 2”. But using the supplied rubber pads will allow you to mount these speakers on any bar size measured between 1.5” and 2”.

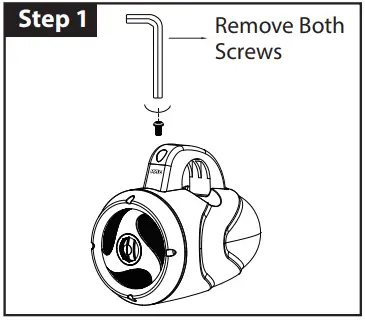

 | Remove the two screws from the bracket to separate the speaker pod and the bracket. |

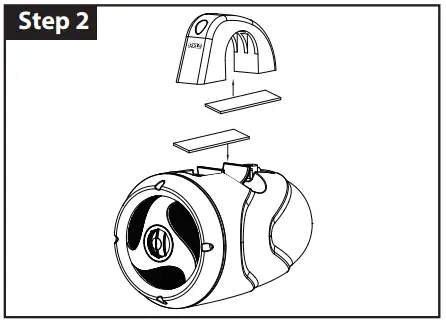

 | The rubber pads will need to be cut to length, so they ft the speaker pod and the bracket. After the rubber pads have been cut, remove the white protective layer and stick them to the speaker pod and the bracket. |

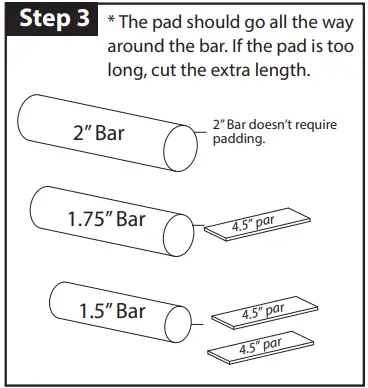

 | Remove the backing of the pad and wrap it around the bar. |

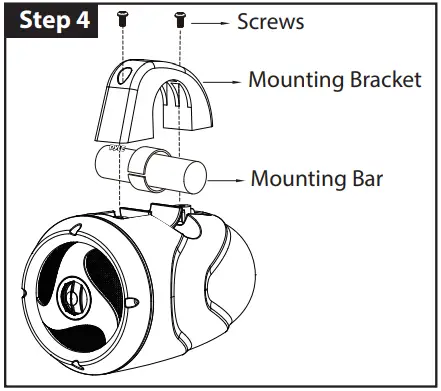

 | Screw the two screws evenly, until snug. Once the position is verified, tighten the screws another half-turn. DO NOT OVERTIGHTEN! |
Features:
- Pro Audio Power Sport Speakers
- Compact & High-Powered Output
- Marine Grade Waterproof Rated Construction
- Weatherproof & Water-Resistant Housing
- Sound System: (2) x 4” Woofers + (2) x 1” Tweeters
- 2-Way Full Range Stereo Sound Reproduction
- Impressive Bass Response
- Sleek Design, Machine Molded Speaker Cabinet Housing
- Rugged, Universal Mount Bracket Design for Roll-Bar / Roll-Cage
- Used for Of-Road Outdoor Vehicles: ATV, UTV, 4×4, Jeeps, Marine Watercraft
- Quick Nickel Plated Push-in Terminal for Speaker Wiring
What’s in the Box:
- (2) Of-Road Speakers
- (6) Rubber Pads 4.53” x 1.18” x 0.12” -inches
Technical Specs:
- Power Output: 900 Watt MAX
- Marine Grade Waterproof Rating: IP-X5
- Speaker Size: 4” -inch (Each)
- Speaker Style: Passive Speakers
- Speaker Type: Polypropylene Cone, Butyl Rubber Surround (x2)
- Tweeter Type: Neodymium Dome (x2)
- Frequency Response: 105Hz-20kHz
- Impedance: 4 Ohm
- Magnet Type: 30 oz. Circuit
- Mid-Woofer Voice Coil Type: 1.0”, KSV
- Sensitivity: 90 dB +/- 2 dB @ 1M/1W
- Universal Mounting Brackets Roll-Bar / Roll-Cage
- Diameter: 1.5” ~ 2.0” -inches
- Speaker Dimensions: 5.7” x 8.0” x 7.4” -inches, with Bracket (Each)
WARNING: This product can expose you to a chemical or group of chemicals, which may include “Di (2-Ethylhexyl) phthalate (DEHP)” which is known in the state of California to cause cancer, birth defects, or other reproductive harm. For more info, go to https://www.p65warnings.ca.gov/.
