PYLE PLUTV41BK 4 Inch Waterproof Rated Off-Road Speakers
PLUTV41BK Installation
Speaker Mounting suggestion as below:

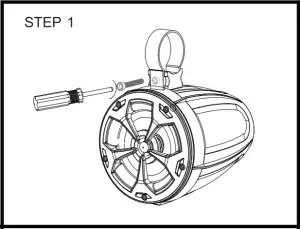

Step 1: Unbolting the mounting bracket

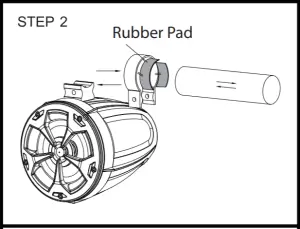

Step 2: Slide in the buckle with rubber pad attached to the bracket stand of the speaker Attach the set to handle bar of vehicle / ship

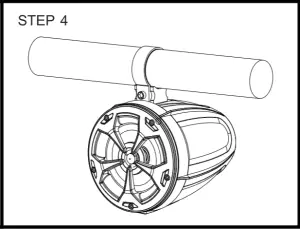

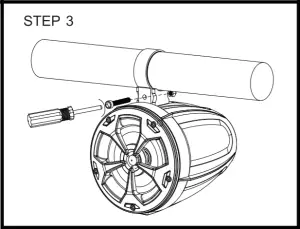

Step 3/4: Attach screw to lock the buckle
Step 5: Using accessories of Butt Connector to Connect Speaker wires (See Illustration 1,2,3)

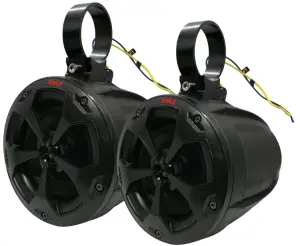

PLUTV41BK
4” Waterproof Rated Off-Road Speakers
Compact PowerSport Vehicle Speaker System for ATV, UTV, 4×4, Jeep (800 Watt) (Pair)
Features
- Pro Audio PowerSport Speakers
- Compact & High-Powered Output
- Marine Grade Waterproof Rated Construction
- Weatherproof & Water-Resistant Housing
- Sound System: (2) x 4.0” Woofers + (2) x 0.5” Tweeters
- 2-Way Full Range Stereo Sound Reproduction
- Impressive Bass Response
- Integrated Speaker Wiring for Quick Connection
- Sleek Design, Machine Molded Speaker Cabinet Housing
- Rugged, Universal Mount Bracket Design for Roll-Bar / Roll-Cage
- Used for Off-Road Outdoor Vehicles: ATV, UTV, 4×4, Jeeps, Marine Watercraft
What’s in the Box
- (2) 4” -inch ATV/UTV Speakers
- Speaker Connection Wires, 6.5′ ft.
- Wire Butt Connectors, 16-22 AWG
- EVA Mounting Pads
Technical Specs:
- Power Output: 800 Watt MAX
- Marine Grade Waterproof Rating: IP-X5
- Speaker Size: 4” -inch (Each)
- Speaker Style: Passive Speakers
- Speaker Type: Polypropylene Cone, Butyl Rubber Surround (x2)
- Tweeter Type: Neodymium Dome (x2)
- Frequency Response: 85Hz-20kHz · Impedance: 4 Ohm · Magnet Type: 20 oz. Circuit
- Mid-Woofer Voice Coil Type: 1.0”, Aluminum
- Sensitivity: 90 dB +/- 2 dB @ 1M/1W
- Universal Mounting Brackets Roll-Bar / Roll-Cage Diameter: 1.25” ~ 2.0” -inches
- Speaker Dimensions: 5.6” x 8.4” x 7.3” -inches, with Bracket (-Each)
- Sold as: Pair
