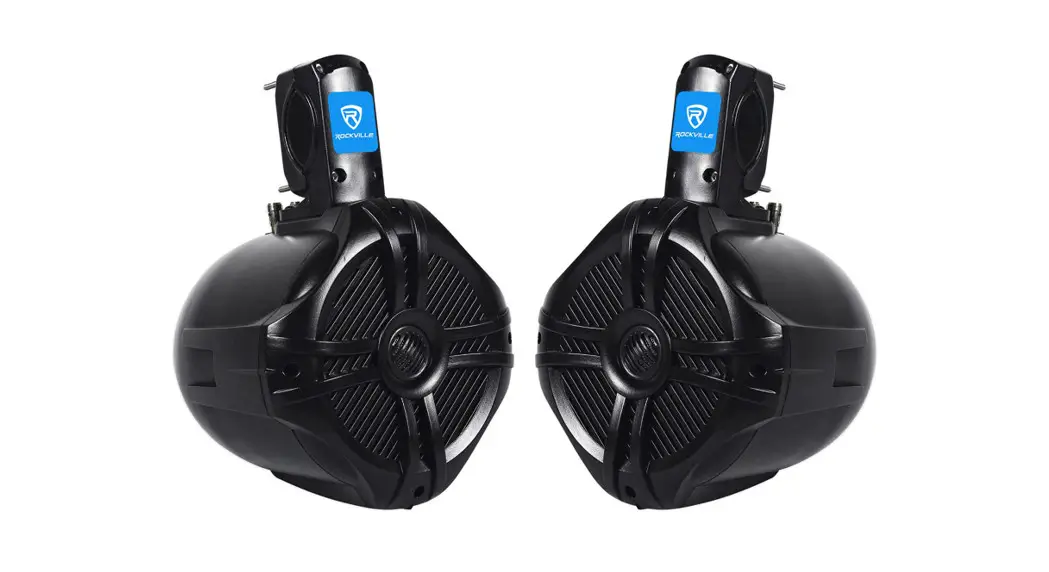

Rockville WB65 Metal Marine Wakeboard Tower Speakers-Owner’s Manual
Rockville WB65 Metal Marine Wakeboard Tower Speakers-Owner’s Manual

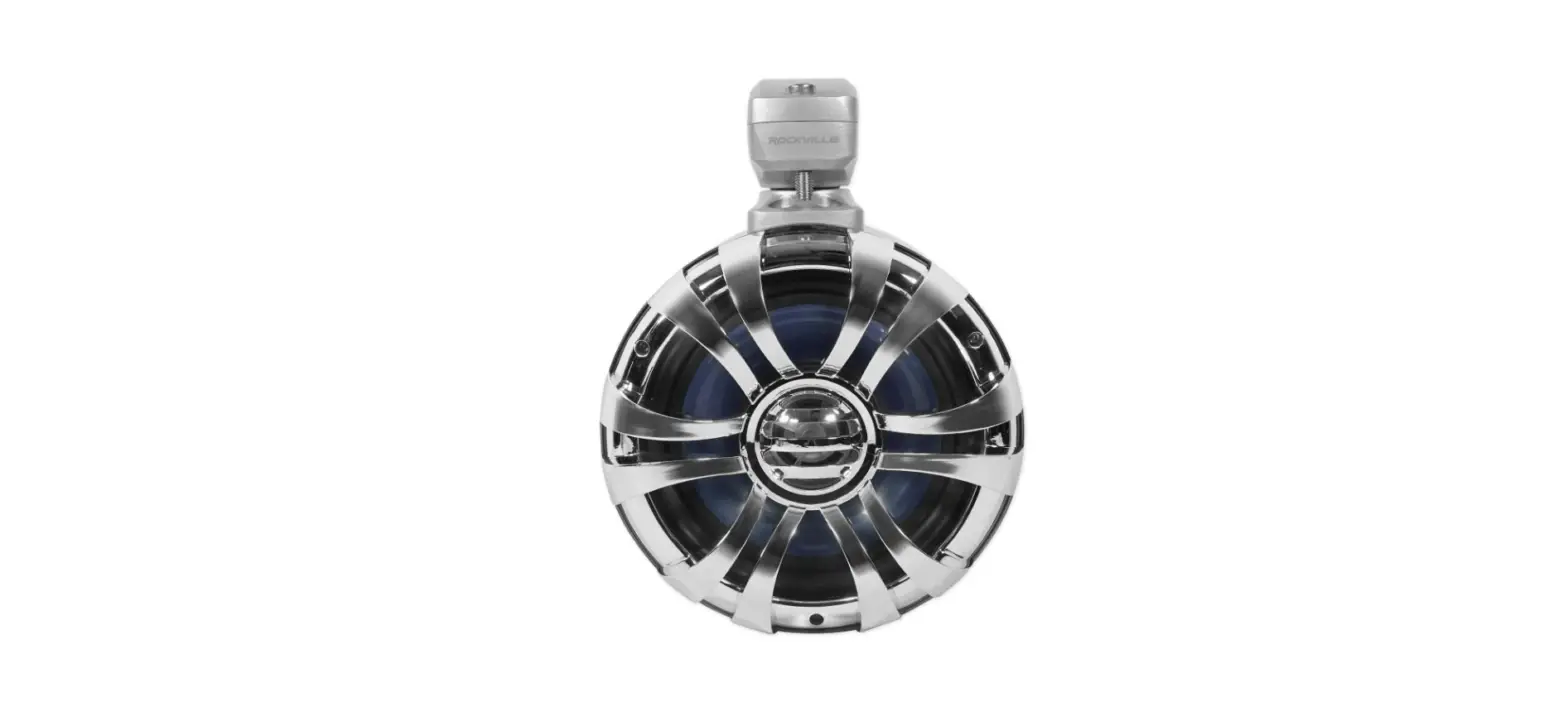

INTRODUCTION
Please read this guide carefully for proper use of your WB65 6.5″ wakeboard tower speakers. Should you need assistance please call our technical help line at 1-646-758-0144, Monday through Thursday, 9am -10pm EST, and Fridays, 9am to 3pm EST.
Missing items? If you ordered a bundle that includes more than one product and you are missing part of your bundle, then it just means your order shipped from two different warehouses. You will receive the remaining items very soon. If you have any concerns or inquiries, feel free to call our customer support center at the number listed above.

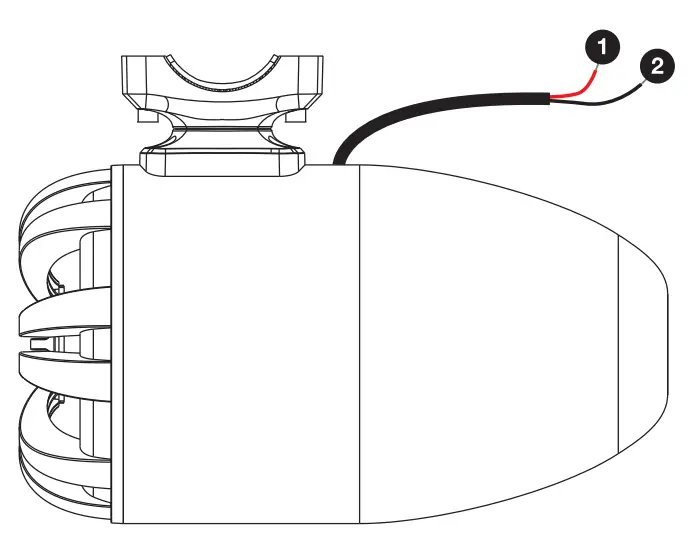

WIRING
- Speaker power + (red)
- Speaker power – (black)
- Connect the speaker positive and negative cables to the corresponding output terminals on the amplifier or receiver.
Please note: Make sure that the wires are properly inserted into the appropriate terminals and that no bare wire is exposed or making contact with other wires. Be sure to observe proper polarity.

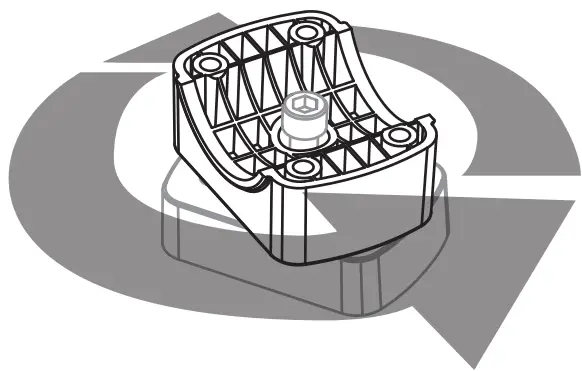

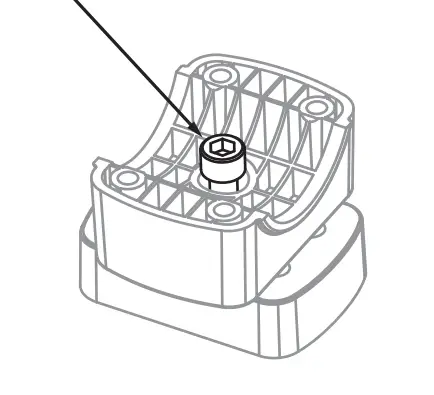

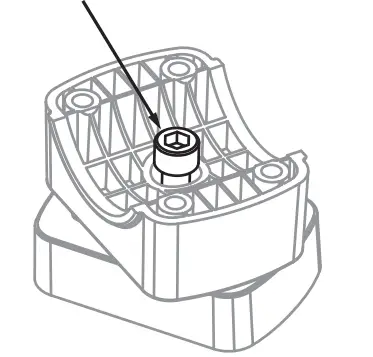

360° ROTATION FUNCTION
- Use an alien wrench to loosen the rotation adjustment screw.
- Rotate the lower mounting bracket to the desired position.
- Tighten the rotation adjustment screw. Do not over-tighten.

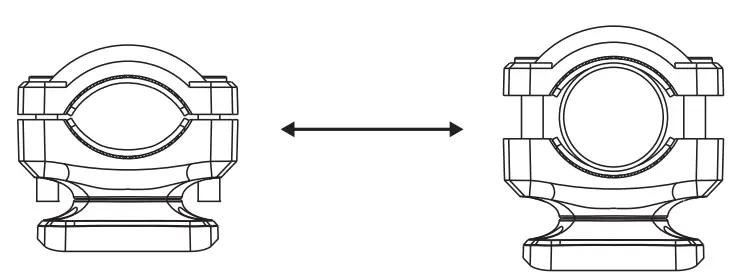

MOUNTING BRACKET
Bracket expands from 1. 75″ to 2.5″ to fit a variety of wakeboard tower tube diameters. When making adjustments, use an allen wrench to loosen and tighten the screws.

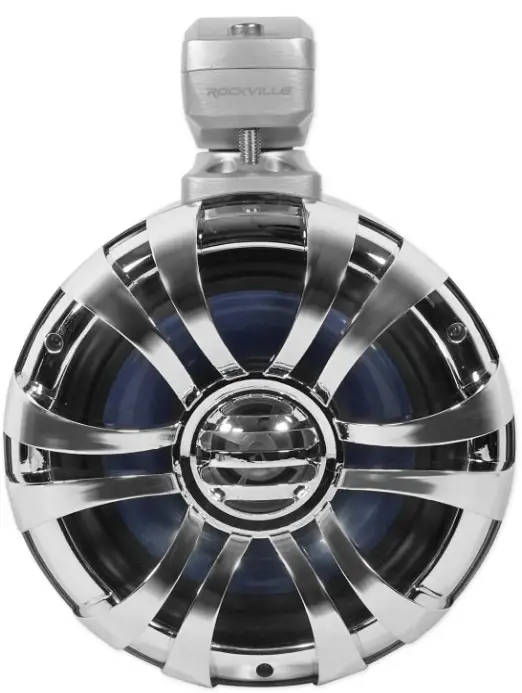

FEATURES
- Peak power handling per speaker: 300 Watts
- RMS power handling per speaker: 150 Watts
- Frequency response: 500Hz – 20KHz
- Sound pressure level: 90dB
- Impedance: 4 Ohms
- Steel enclosure
- Aluminum mounting bracket
- Quick and easy speaker angle adjustment
- Bracket rotates 360°
- 1″ titanium dome tweeter
- Fully marinized against salt & fresh water conditions
- Completely resistant to water, rust, and UV rays
- Polypropylene mica injected cone with rubber surround
- 1 5oz high density magnet
- 1″voice coil
- CE and RoHS certified
- These wakeboard speakers fit bars ranging from 1.75″ – 2.5″
- Dimensions per speaker (H x W x D): 7.8″x 7Jrx 11.8″
- Weight per speaker: 5.3 lbs.
- Available Colors: Polished Silver and Black
FAQs
Do you need an amp for Rockville WB65 wakeboard tower speakers?
They lack the power to play loudly in front of a boat that is moving quickly on their own. Distortion could be caused by the quick sound dispersion. And this can make wakeboarding unpleasant. Fortunately, by employing the appropriate marine amplifier, you can maximise the performance of these tower speakers.
How do Rockville WB65 tower speakers connect to a boat?
Most towers have holes in the crossbars where the speakers will be mounted. To thread the speaker wire through these openings, use a tiny pick or hook. You may occasionally need to drill new holes or enlarge the ones that are already there.
Do Rockville WB65 marine tower speakers have bass?
The 6.5 “Because tower speakers are enclosed in a sealed enclosure, they often have better bass response than coaxial speakers. Having said that, we often advise selecting 8 “for tower speaker s, or greater
Do I need a subwoofer if I have Rockville WB65 tower speakers?
Most tower speakers do not require a subwoofer because they produce adequate bass on their own. However, a subwoofer would be a wise addition to your system if you want to hear deep, room-shaking bass. Floorstanding speakers will perform at their peak in the mid- and high-range frequencies when used with a subwoofer.
How much power do Rockville WB65 tower speakers need?
A lot depends on how well you listen and how well you speak. If your speakers are 90 dB efficient and you enjoy listening to loud, uncompressed music, 200 Watts should be more than plenty for you. 50 Watts is sufficient if all you listen to is jazz and light classical music and you don’t expect them to rock the house.
Why do Rockville WB65 tower speakers have two inputs?
Dual-input terminals are provided by manufacturers so that customers can bi-wire their home theatre systems to increase audio fidelity and produce a more expansive sonic environment. One dedicated cable should be run from the amplifier to each speaker by default in many home theatre configurations.
Why do my Rockville WB65 tower speakers have 4 terminals?
Four terminals on speakers enable bi-wiring connections. Four-terminal speakers allow for split connections, which divides the speaker into two pieces. First, one set of terminals is used for the mid and high-frequency drivers, while the other set is used for the low-frequency drivers.
What are Rockville WB65 tower speakers good for?
Tower speakers are generally able to produce deeper, more impactful bass than standalone bookshelf speakers because of their larger size, which allows them to move more air through the drivers than desktop or bookshelf speakers. Additionally, towers typically have more woofer drivers, which produces even more bass.
Do Rockville WB65 boat tower speakers need an amp?
Without amplifiers to support them, speakers have a propensity to become distorted and drain power from the onboard radio system. For single and double barrel speakers, amplifiers are advised because you’ll want to crank the volume up while riding, at the party cove, or when you’re just lounging on the water.
Do you need an amp for Rockville WB65 marine speakers?
Without amplifiers to support them, speakers have a propensity to become distorted and drain power from the onboard radio system. For single and double barrel speakers, amplifiers are advised because you’ll want to crank the volume up when riding, at the party cove, or when you’re just lounging on the water.
Can you use Rockville WB65 marine speakers in a car?
Since marine speakers are not specifically made for your car, they will obviously not fit there exactly. You may need to make room in your car if your marine speaker is too large, or it may not mount at all. The same issue may arise if you use your vehicle’s speakers for your vessel.
How can I make my Rockville WB65 boat speakers louder?
The system can play deeper bass with more detail and at higher volume levels thanks to the subwoofer. Most customers are unaware that adding a sub will improve the sound quality and volume of your boat’s midrange speakers because they won’t have to work as hard.
Do Rockville WB65 wakeboard tower speakers have good bass?
Even when placed far from the source over water, these models still produce a wide spectrum of sound. They don’t sacrifice clarity and deliver strong highs and deep bass. This pair is a great option every time you need wakeboard tower speakers with bass and swivel clamps.
Can Rockville WB65 marine speakers get wet?
Products that are Marine Grade or Marine Rated can endure marine environments. Marine grade components can be exposed to the sun and wind as well as moisture (although not necessarily submersion). They can withstand high ambient temperatures and won’t burn if a little water is splashed on them.
What is a Rockville WB65 two way marine speaker?
In order to handle the high frequencies and accurately reproduce the sound spectrum of your music, two-way, or coaxial, speakers have a separate tweeter housed inside the woofer. For added fullness and realism, three-way, or triaxial, speakers combine a midrange driver with a separate woofer and tweeter.
Do you need an amp for Rockville WB65 wakeboard tower speakers?
They lack the power to play loudly in front of a boat that is moving quickly on its own. Distortion could be caused by the quick sound dispersion. And this can make wakeboarding unpleasant. Fortunately, by employing the appropriate marine amplifier, you can maximize the performance of these tower speakers.
