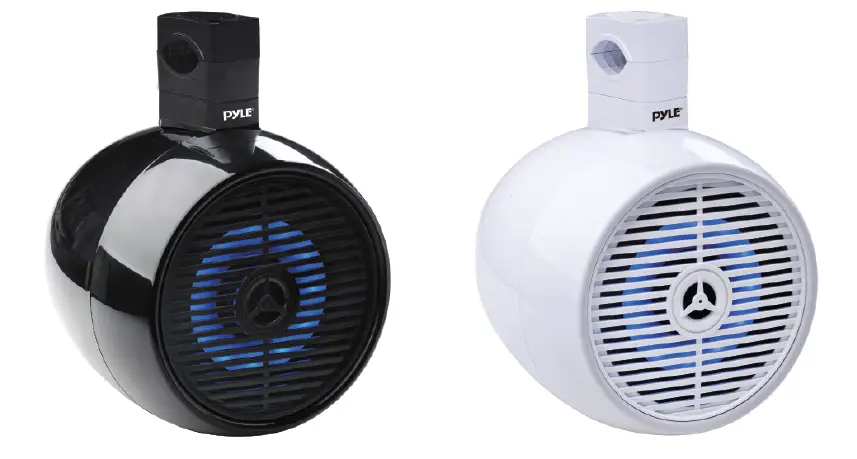

PYLE PLMRWK63WT Marine Wakeboard Water Resistant Speaker
Model: PLMRWK63WT, PLMRWK63BK
6.5″ -inch Speaker Box Pairs with Built-in LED Lights
Model: PLMRWK83WT, PLMRWK83BK
8″ -inch Speaker Box Pairs with Built-in LED Lights
Model: PLMRWKBT65WT, PLMRWKBT65BK
6.5″ -inch Speaker Box Pairs with Built-in LED Lights and Wireless BT
Model: PLMRWKBT65WT, PLMRWKBT65BK
8″ -inch Speaker Box Pairs with Built-in LED Lights and Wireless BT
Technical Specs:
| Model Number | Peak Power | RMS Power | Subwoofers Size | Tweeter | Frequency Response | Magnet | Impedance | Sensitivity | Dimensions HxWxD(mm) | Colour |
| PLMRWK63WT | 200 Watt | 100 Watt | 6.5” | 1.0” | 60-20 kHz | 10 Oz | 4 Ohm | 90 dB | 317x213x240 | White |
| PLMRWK63BK | 200 Watt | 100 Watt | 6.5” | 1.0” | 60-20 kHz | 10 Oz | 4 Ohm | 90 dB | 317x213x240 | Black |
| PLMRWK83WT | 300 Watt | 150 Watt | 8” | 1.0” | 40-20 kHz | 20 Oz | 4 Ohm | 91 dB | 362x260x290 | White |
| PLMRWK83BK | 300 Watt | 150 Watt | 8” | 1.0” | 40-20 kHz | 20 Oz | 4 Ohm | 91 dB | 362x260x290 | Black |
| Model Number | Peak Power | RMS Power | Subwoofers Size | Tweeter | Frequency Response | Magnet | Impedance | Sensitivity | Dimensions HxWxD(mm) | Colour |
| PLMRWKBT65WT | 200 Watt | 100 Watt | 6.5” | 1.0” | 60-20 kHz | 10 Oz | 4 Ohm | 90 dB | 317x213x240 | White |
| PLMRWKBT65BK | 200 Watt | 100 Watt | 6.5” | 1.0” | 60-20 kHz | 10 Oz | 4 Ohm | 90 dB | 317x213x240 | Black |
| PLMRWKBT85WT | 300 Watt | 150 Watt | 8” | 1.0” | 40-20 kHz | 20 Oz | 4 Ohm | 91 dB | 362x260x290 | White |
| PLMRWKBT85BK | 300 Watt | 150 Watt | 8” | 1.0” | 40-20 kHz | 20 Oz | 4 Ohm | 91 dB | 362x260x290 | Black |
| Model | PLMRWK63WT | PLMRWK63BK | PLMRWK83WT | PLMRWK83BK | PLMRWKBT65WT | PLMRWKBT65BK | PLMRWKBT85WT | PLMRWKBT85BK |
| Color | White | Black | White | Black | White | Black | White | Black |
| Built-in LED Lights | ||||||||
| Wireless BT Streaming |

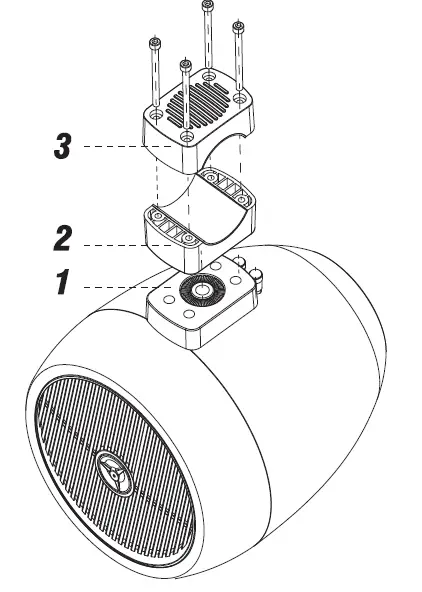

INSTALLATION INSTRUCTION
- The base of the bracket.
- The connecting base of the bracket, 360° rotation, connect to picture1.
- The cover of the bracket is fixed by 4 mounting screws after picture 2 rotates to an angle.
Remark:
Two types of screws for choice: M5x65/M5x80

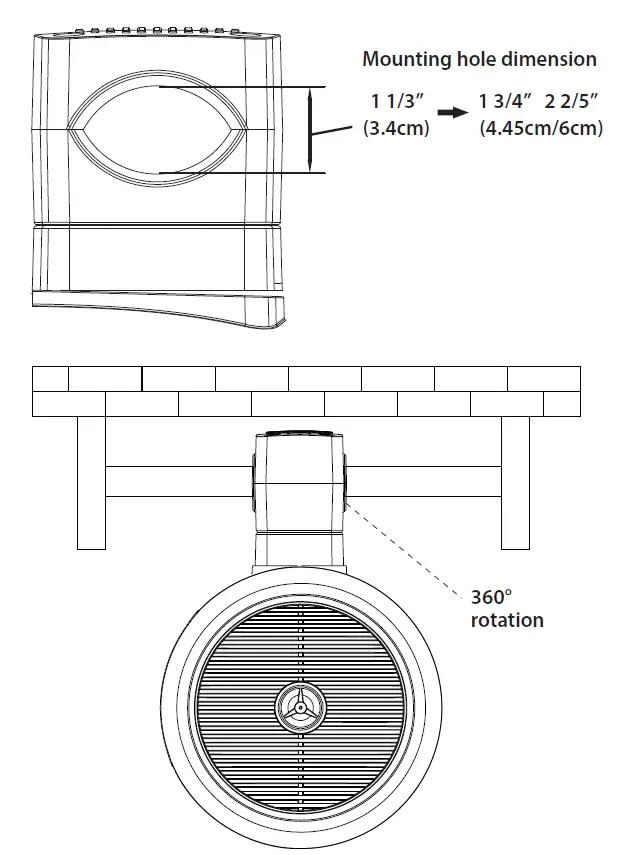

Mounting hole dimension
WIRE CONNCTIONS
Wireless BT Connection Diagram
- Speaker power + (red)
- Speaker power – (black)
- LED power + (white) and Wireless BT – DC12V
- LED power – (blue) – DC12V
