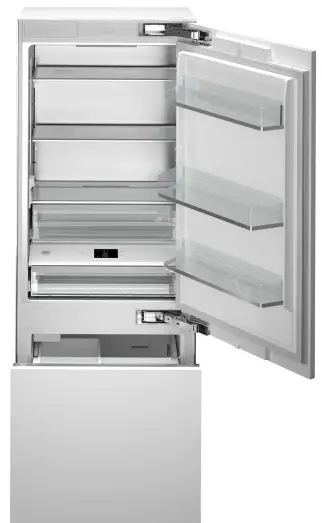

Bertazzoni REF30BMBZPNV 30 Inch Built-In Reversible Door Refrigerator
REF30BMBZPNV
REFRIGERATOR 30” BUILT-IN BOTTOM MOUNT PANEL READY WITH ICE MAKER
- Energy Star rated refrigerator & freezer with 16 cu.ft of total storage capacity.
- Flush or proud installation in 84″ high kitchen cabinets.
- Precise temperature control for optimal food preservation: powered by variable-speed compressor.
- Automatic ice maker.
- Internal water dispenser with inline filter for hygienically clean drinking water and ice.
- Digital LED touch interface with user-friendly controls for temperature, speed-freeze and ice making.
- Soft close crispers. Metal freezer bins.
- Reversible doors for left or right swing configuration.
- 2 years parts & labor warranty.
- ADA compliant.
PRODUCT FEATURES
- Size W 30”
- Volume Ref 11.5 cu.ft / Frz 4.5 cu.ft
- Door finish Panel ready
- User interface Internal digital LED touch interface
- Lighting Top and sidewall LED lights
- Refrigerator shelves 1 stationary + 2 height-adjustable
- Refrigerator crispers 1 + 1 with separate temperature control
- Freezer compartment 2 drawers
- Door storage 1 gallon sized + 2 height adjustable bins
- Ice maker Automatic ice maker 3.9 lbs / 24 hrs
- Settings Super cool, Super freeze, Ice maker, Water filter replacement alarm, Water dispenser, Eco mode, Vacation mode, Sabbath mode
TECHNICAL SPECIFICATIONS
- Electrical supply 115 V 60 HZ – 2.6 Amp
- Power connection NEMA 5-15P with 98” power cord
- Sound rating 43 dbA
- Water connection 1/4” waterline with shut-off valve
- Water supply pressure 25-80 PSI (1.7-5.5 BAR)
- Energy consumption 551.0 kwh/yr
- Certification ADA Compliant,CEC,ETL
- Warranty 2 years parts & labor
- Packaging dimensions W 32 5/16” H 90 9/16” D 26 3/8”
- Weight 386.0 lbs
ACCESSORIES
- Z370001 Replacement Water Filter
- PROHK30PI Handle Kit – Professional Series
- MASHK30PI Handle Kit – Master Series
- HERHK30PI Handle Kit – Heritage Series
- CTBMPV Connection Trim for Side-by-Side Installation

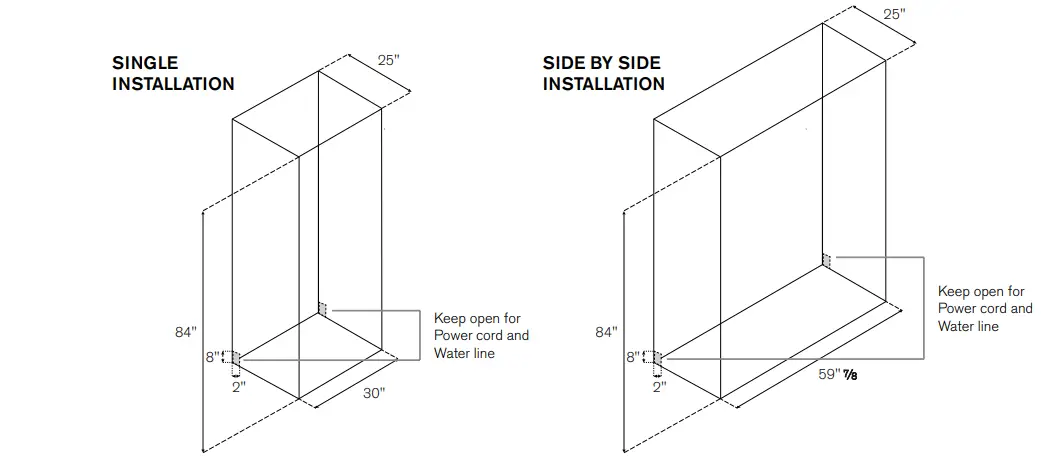

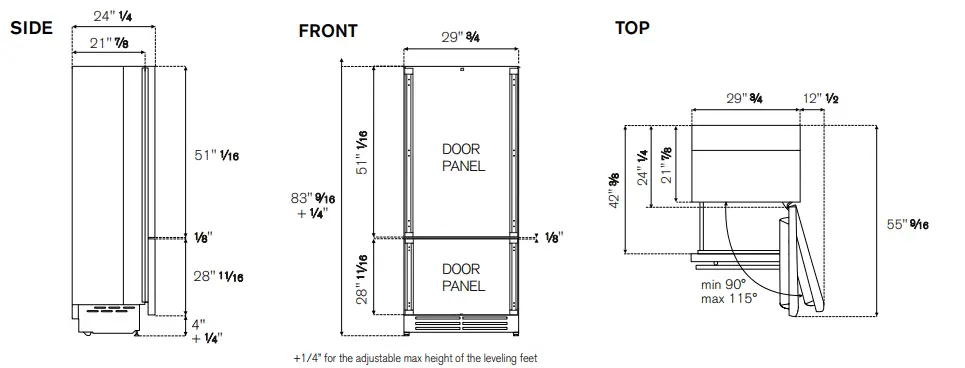

CUTOUT DIMENSIONS

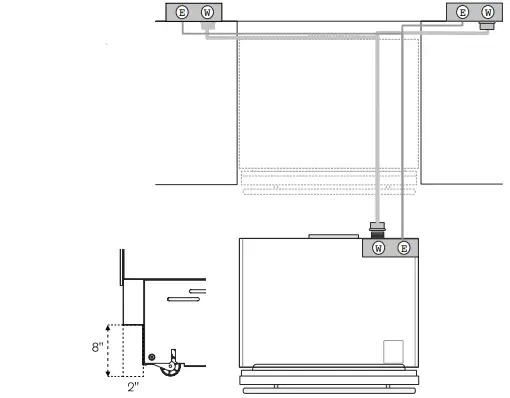

ELECTRICAL & WATER CONNECTION
A properly-grounded, electrical receptacle should be installed. A separate circuit breaker servicing only this appliance is recommended. Do not use a multi-purpose socket with other electrical appliances. To connect to the water supply system, use a 1/4″ waterline with accessible shut-off valve with a length of 60″.
INSTALLATION REQUIREMENTS
If the appliance(s) is not connected through the side profile trims to secured cabinetry, anti-tip brackets must be installed.
The max weight for the cabinet panel is 35 lbs (16kg) for the refrigerator door and 20 lbs (9kg) for the freezer door.
Disclaimer
while every effort has been made to ensure the accuracy of the information contained in this document, Fratelli Bertazzoni reserves the right to change it at any time without notice. For detailed installation instructions, consult the installation manual. Fratelli Bertazzoni, Bertazzoni and the winged wheel brand icon are registered trademarks of Bertazzoni Spa.
version: 1
