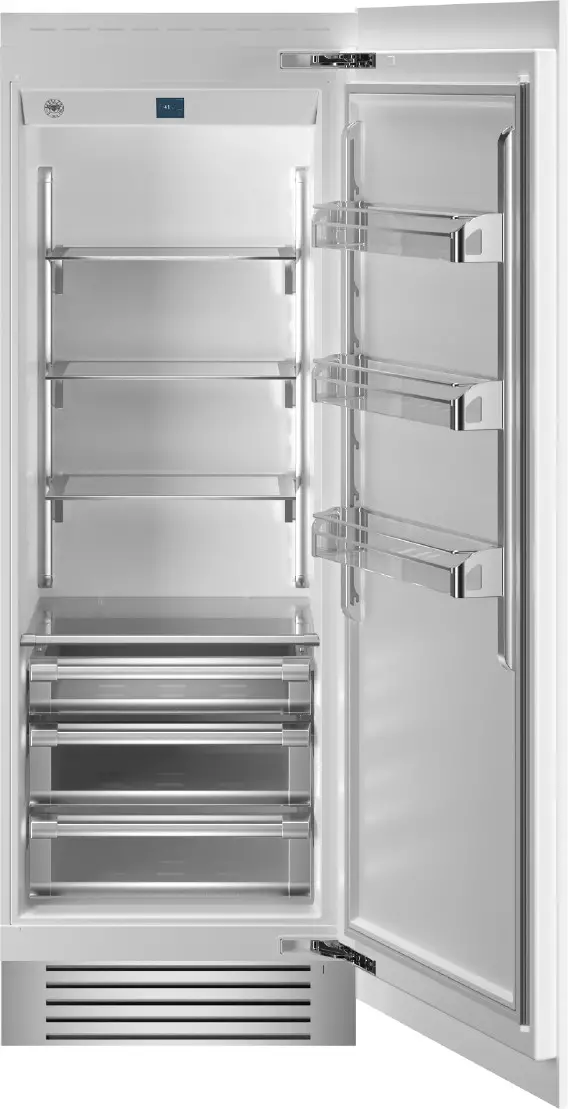

Bertazzoni REF30RCPRR23 Refrigerator Instruction Manual

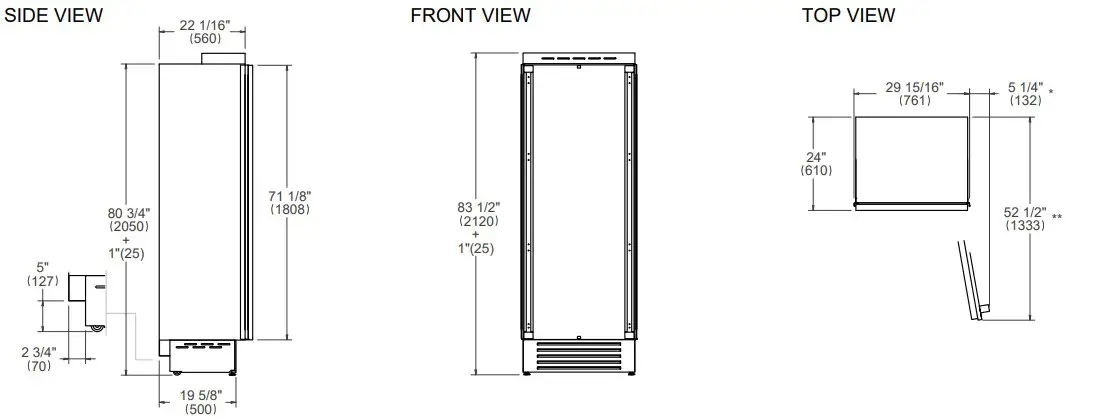

PRODUCT DIMENSIONS
* Maximum Overall Handle Dimension
** Width of 3/4” (19mm) Door Panel

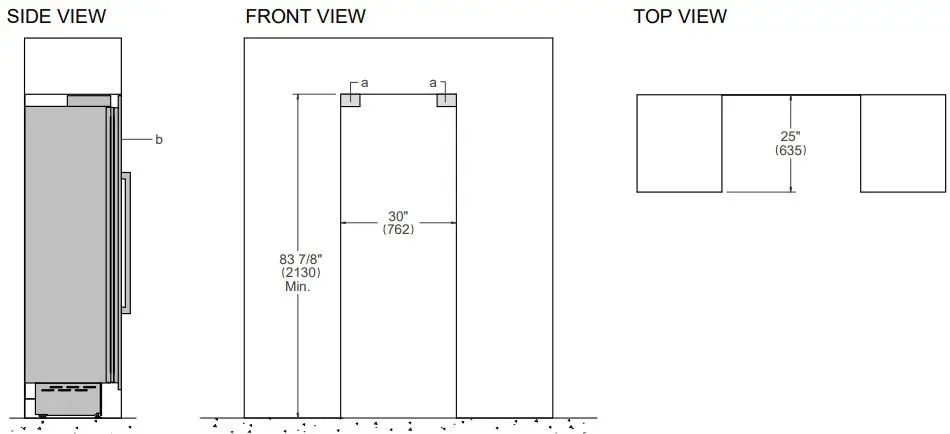

CUTOUT DIMENSIONS
(a) Area to be left clear for the anti-tipping brackets 3”1/2×5” (82x127mm)
(b) Panel dimensions available on Built-in Food Preservation Design Guide or Installation Manual

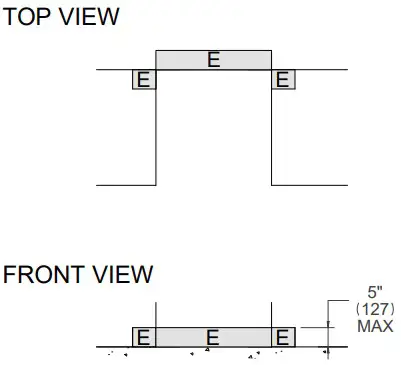

ELECTRICAL CONNECTION
A properly-grounded, horizontally-mounted electrical receptacle should be installed according to this drawing.
Connection(s) placement within the opening may require additional cabinet depth.
A separate circuit breaker servicing only this appliance is recommended.
For installation of multiple products in combination, refer to the Built-in Food Preservation Design Guide.
Dimensions in parentheses are millimeters unless otherwise specified.
INSTALLATION REQUIREMENTS
If the appliance(s) is not connected through the side profile trims to secured cabinetry anti-tip brackets must be installed.
