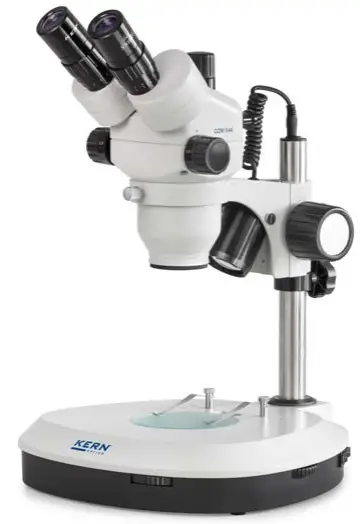

KERN OZM-5 Stereo Zoom Microscope
LAB LINE
First-class optics and strong illumination combined with a high level of flexibility
Features
- The KERN OZM series is a range of excellent stereo zoom microscopes with above-average optical features
- The ergonomic shape allows a simple, effortless working over a period of several hours
- The extraordinarily strong and continuously dimmable 3 W LED reflected and transmitted illumination ensures a flexible and particularly good level of illumination for your sample
- With its large working distance, an extra large field of view and its brilliant resolution, the KERN OZM provides sharp, high-contrast, colour-true images
- The zoom objective gives you continuous magnification from 7,5×–45×
- There is a choice of a binocular model as well as a trinocular model for connecting a camera for documentation purposes and for quality reports
- The pillar stand is particularly flexible due to its variable and sturdy adjustment mechanism and therefore enables ergonomic working procedures
- A large selection of eyepieces, (universal) stands, a darkfield kit, external illumination units as well as auxiliary objectives and more are available as accessories
- A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery
- A C-mount adapter is required to connect a camera to the trinocular version. You can select this adapter from the following model outfit list
- [Please find detailed information in the following model outfit list
Scope of application
- In vitro fertilisation, detection of parasites, zoology and botany, tissue preparation, section, quality control, electronics and semiconductor industry, assembly and repair
Applications/Samples
- Samples with focus on three-dimesnional impression, zoom with variable magnification (depth, thickness), e.g. insects, seeds, circuit boards, components
Technical data
- Optical system: Greenough optics
- Brightness adjustable (separate)
- Tube 45° inclined
- Magnification ratio: 6,4:1
- Light distribution OZM 543/544: 50:50
- Interpupillary distance 52 – 76 mm
- Diopter adjustment: Both-sided
- Overall dimensions W×D×H 330×285×440 mm
- Net weight approx. 4,5 kg
STANDARD
| Model
KERN | Standard configuration | ||||||
| Tube | Eyepiece | Field of view mm | Objective Zoom | Stand | Illumination | ||
| OZM 542 | Binocular | HSWF 10×/∅ 23 mm | ∅ 32,8 – 5,1 | 0,7× – 4,5× | Pillar style | 3 W LED (incident); 3 W LED (transmitted) | |
| OZM 544 | Trinocular | HSWF 10×/∅ 23 mm | ∅ 32,8 – 5,1 | 0,7× – 4,5× | Pillar style | 3 W LED (incident); 3 W LED (transmitted) | |
Stereo zoom microscope KERN OZM-5
| Eyepiece | Specifications – Objectives | |||||
| Magnification | Standard 1,0× | Auxiliary objectives | ||||
| 0,5× | 0,7× | 1,5× | 2× | |||
| HSWF 10× | Total magnification | 7× – 45× | 3,5× – 22,5× | 4,9× – 31,5× | 10,5× – 67,5× | 14× – 90× |
| Field of view mm | ∅ 32,8 – 5,1 | ∅ 65,7 – 10,2 | ∅ 46,9 – 7,3 | ∅ 21,9 – 3,4 | ∅ 16,4 – 2,6 | |
| SWF 15× | Total magnification | 10,5× – 67,5× | 5,3× – 33,8× | 7,4× – 47,2× | 15,8× – 101,3× | 21× – 135× |
| Field of view mm | ∅ 24,3 – 3,8 | ∅ 48,6 – 7,6 | ∅ 34,7 – 5,4 | ∅ 16,2 – 2,5 | ∅ 12,1 – 1,9 | |
| SWF 20× | Total magnification | 14× – 90× | 7× – 45× | 9,8× – 63× | 21× – 135× | 28× – 180× |
| Field of view mm | ∅ 20 – 3,1 | ∅ 40 – 6,2 | ∅ 28,6 – 4,4 | ∅ 13,3 – 2,1 | ∅ 10 – 1,6 | |
| SWF 30× | Total magnification | 21× – 135× | 10,5× – 67,5× | 14,7× – 94,5× | 31,5× – 202,5× | 42× – 270× |
| Field of view mm | ∅ 12,9 – 2 | ∅ 25,7 – 4 | ∅ 18,4 – 2,9 | ∅ 8,6 – 1,6 | ∅ 6,4 – 1 | |
| Working distance | 110 mm | 195 mm | 145 mm | 50 mm | 35 mm | |
| Maximum sample height | 130 mm | 30 mm | 65 mm | 160 mm | 175 mm | |
| Model outfit | Model KERN | Order number | |||
| OZM 542 | OZM 544 | ||||
|
Eyepieces (30,0 mm) | HSWF 10×/∅ 23 mm | OZB-A5503 | |||
| SWF 15×/∅ 17 mm | OZB-A5504 | ||||
| SWF 20×/∅ 14 mm | OZB-A5505 | ||||
| SWF 30×/∅ 9 mm | OZB-A5506 | ||||
| HSWF 10×/∅ 23 mm (reticule 0,1 mm) | OZB-A5512 | ||||
| SWF 15×/∅ 17 mm (reticule 0,05 mm) | OZB-A5513 | ||||
| SWF 20×/∅ 14 mm (reticule 0,05 mm) | OZB-A5514 | ||||
|
Achromatic auxiliary objectives | 0,5× | OZB-A5612 | |||
| 0,7× | OZB-A5613 | ||||
| 1,5× | OZB-A5615 | ||||
| 2,0× | OZB-A5616 | ||||
| Soldering protection lens | OZB-A5614 | ||||
|
C-Mount | 0,3× (focus adjustable) | OZB-A5701 | |||
| 0,5× (focus adjustable) | OZB-A5702 | ||||
| 1,0× (focus adjustable) | OZB-A5703 | ||||
| 1,0× (with micrometer) only in combination with OZB-A5703 | OZB-A5704 | ||||
| for SLR cameras (Nikon) | OZB-A5706 | ||||
| for SLR cameras (Olympus) | OZB-A5707 | ||||
| for SLR cameras (Canon) | OZB-A5708 | ||||
| Darkfield unit | Darkfield unit | OZB-A4601 | |||
| Object clamp | Object clamp | OBB-A6205 | |||
| Stand | Pillar style, without illumination | ||||
| Pillar style, with 3 W LED illumination (transmitted + incident) | |||||
| Please find more stands in the catalogue on page 79 and on the internet | |||||
| Stage plate | Frosted glass/∅ 94,5 mm | OZB-A5192 | |||
| Black-white/∅ 94,5 mm | OZB-A5191 | ||||
| Clear glass/∅ 94,5 mm | OZB-A5190 | ||||
| Mechanical stage (Pre-assembling on request) | Stage size W×D 188×160 mm, Travel 76×65 mm, for transmitted and incident illumination | OZB-A5781 | |||
| Stage size W×D 180×175 mm, Travel 100×86 mm, for incident illumination only | OZB-A5782 | ||||
| External illumination | Please find the information about external illumination units in the catalogue on page 83 and on the internet | ||||
Pictograms
360° rotatable microscope head
Monocular Microscope
For the inspection with one eye
Binocular Microscope
For the inspection with both eyes
Trinocular Microscope
For the inspection with both eyes and the additional option for the connection of a camera
Abbe Condenser
With high numerical aperture for the
concentration and the focusing of light
Halogen illumination
For pictures bright and rich in contrast
LED illumination
Cold, energy-saving and especially long-life illumination
Incident illumination
For non-transparent objects
Transmitting illumination
For transparent objects
Fluorescence illumination
For stereomicroscopes
Fluorescence illumination
for compound microscopes
With 100 W mercury lamp and filter
Fluorescence illumination
for compound microscopes With 3 W LED illumination and filter
Phase contrast unit
For a higher contrast
Darkfield condenser/unit
For a higher contrast due to indirect illumination
Polarising unit
To polarise the light
Infinity system
Infinity corrected optical system
Zoom magnification
For stereomicroscopes
Auto-focus
For automatic control of the focus level
Parallel optical system
For stereomicroscopes, enables fatigue-proof working
Integrated scale
In the eyepiece
SD card
For data storage
USB 2.0 digital camera
For direct transmitting of the picture to a PC
USB 3.0 digital camera
For direct transmitting of the picture to a PC
WLAN data interface
For transmitting of the picture to a mobile display device
HDMI digital camera
For direct transmitting of the picture to a display device
PC software
To transfer the measurements from the device to a PC
Automatic temperature compesation
For measurements between 10 °C and 30 °C
Protection against dust and water splashes IPxx: The type of protection is shown in the pictogram cf. DIN EN 60529:2000-09,
IEC 60529:1989+A1:1999+A2:2013
Battery operation
Ready for battery operation. The battery type is specified for each device.
Battery operation rechargeable
Prepared for a rechargeable battery operation
Plug-in power supply
230V/50Hz in standard version for EU.
On request GB, AUS or USA version.
Integrated power supply unit
Integrated in microscope. 230V/50Hz standard EU. More standards e.g. GB, AUS or USA on request.
Package shipment
The time required to manufacture the product internally is shown in days in the pictogram.
Abbreviations
C-Mount: Adapter for the connection of a camera to a trinocular microscope
FPS: Frames per second
H(S)WF: High (Super) Wide Field (Eyepiece with high eye point for wearers of glasses)
LWD: Long Working Distance
N.A.: Numerical Aperture
SLR: Single-Lens Reflex camera
camera
SWF: Super Wide Field (Field number at least ∅ 23 mm for 10× eyepiece)
W.D: Working Distance
WF: Wide Field (Field number up to ∅ 22 mm for 10× eyepiece)
