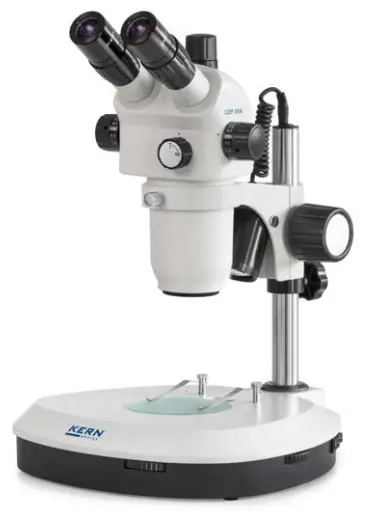

KERN OZP 556 Stereo Zoom Microscope

LAB LINE: Professional and powerful – thanks to its extremely large magnification range, strong illumination and first-class optics

Features

• The KERN OZP stereo zoom microscope stands out through its above-average magnification range and its robust shape which is also ergonomic, it enables effortless, simple working over a period of several hours.
• The KERN OZP series is available as a strong, continuously adjustable 3 W LED reflected and transmitted light variant for the very best illumination of your sample or as a variant without illumination
• With its large working distance, an extra large field of view and brilliant resolution, the KERN OZP provides sharp, high-contrast and colour-true images
• The extremely large, continuously adjustable magnification range from 6 to 55 times magnification means that you can work quickly and effectively
• There is a choice of a binocular model as well as a trinocular model for connecting a camera for documentation purposes and for quality reports
• The pillar stand is particularly flexible due to its variable and sturdy adjustment mechanism and therefore enables ergonomic working procedures
• A large selection of eyepieces, (universal) stands, a darkfield kit, external illumination units as well as auxiliary objectives and more are available as accessories
• A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery
• A C-mount adapter is required to connect a camera to the trinocular version. You can select this adapter from the following model outfit list
• Please find detailed information in the following model outfit list

Scope of application

• Zoology and botany, quality control, electronics and semiconductor industry, assembly and repair

Applications/Samples

• Samples with focus on three-dimesnional impression, zoom with variable magnification (depth, thickness), e.g. insects, seeds, circuit boards, components

Technical data

• Optical system: Greenough optics
• Brightness: adjustable (separate)
• Tube: 35° inclined
• Magnification ratio: 9,2:1
• Light distribution OZP 557/558: 50:50
• Interpupillary distance: 52 – 76 mm
• Diopter adjustment: Both-sided
• Overall dimensions: W×D×H 330×285×470 mm
• Net weight approx:. 4,5 kg

Stereo zoom microscope KERN OZP-5

Pictograms

• 360° rotatable
  microscope head
• Monocular Microscope
  For the inspection with one eye
• Binocular Microscope
  For the inspection with both eyes
• Trinocular Microscope
  For the inspection with both eyes and the additional option for the connection of a camera
• Abbe Condenser
  With high numerical aperture for the concentration and the focusing of light
• Halogen illumination
  For pictures bright and rich in contrast
• LED illumination
  Cold, energy-saving and especially long-life illumination
• Incident illumination
  For non-transparent objects
• Transmitting illumination
  For transparent objects
• Fluorescence illumination
  For stereomicroscopes
• Fluorescence illumination for compound microscopes
  With 100 W mercury lamp and filter

• Fluorescence illumination for compound microscopes
  With 3 W LED illumination and filter
• Phase contrast unit
  For a higher contrast
• Darkfield condenser/unit
  For a higher contrast due to indirect illumination
• Polarising unit
  To polarise the light
• Infinity system
  Infinity corrected optical system
• Zoom magnification
  For stereomicroscopes
• Auto-focus
  For automatic control of the focus level
• Parallel optical system
  For stereomicroscopes, enables fatigue-proof working
• Integrated scale
  In the eyepiece
• SD card
  For data storage
• USB 2.0 digital camera
  For direct transmitting of the picture to a PC

• USB 3.0 digital camera
  For direct transmitting of the picture to a PC
• WLAN data interface
  For transmitting of the picture to a mobile display device
• HDMI digital camera
  For direct transmitting of the picture to a display device
• PC software
  To transfer the measurements from the device to a PC
• Automatic temperature compesation
  For measurements between 10 °C and 30 °C
• Protection against dust and water splashes IPxx: The type of protection is shown in the pictogram cf. DIN EN 60529:2000-09,
  IEC 60529:1989+A1:1999+A2:2013
• Battery operation
  Ready for battery operation. The battery type is specified for each device.
• Battery operation rechargeable
  Prepared for a rechargeable battery operation
• Plug-in power supply
  230V/50Hz in standard version for EU. On request GB, AUS or USA version.
• Integrated power supply unit
  Integrated in microscope. 230V/50Hz standard EU. More standards e.g. GB, AUS or USA on request.
• Package shipment
  The time required to manufacture the product internally is shown in days in the pictogram.

Abbreviations

• C-Mount: Adapter for the connection of a  camera to a trinocular microscope
• FPS: Frames per second
• H(S)WF: High (Super) Wide Field (Eyepiece with high eye point for wearers of glasses)
• LWD Long Working Distance
• N.A: Numerical Aperture
• SLR camera: Single-Lens Reflex camera
• SWF: Super Wide Field (Field number at least ∅ 23 mm for 10× eyepiece)
• W.D: Working Distance
• WF: Wide Field (Field number up to ∅ 22 mm for 10× eyepiece)
