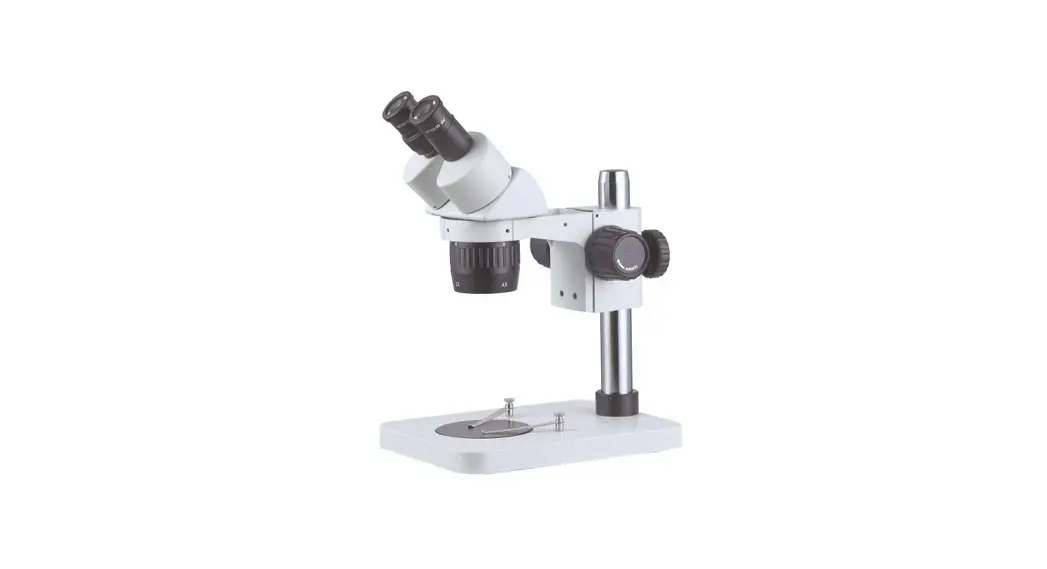

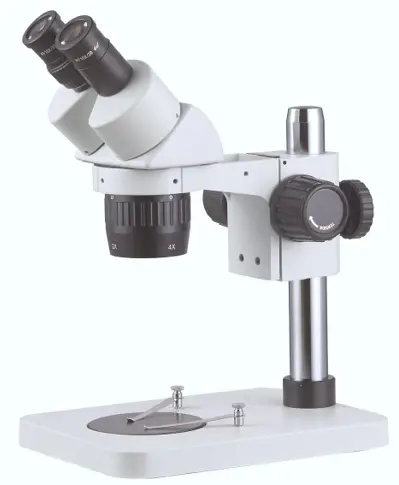

A22.3660 2X/4X Step Zoom Stereo Microscope
User Guide
Product Details

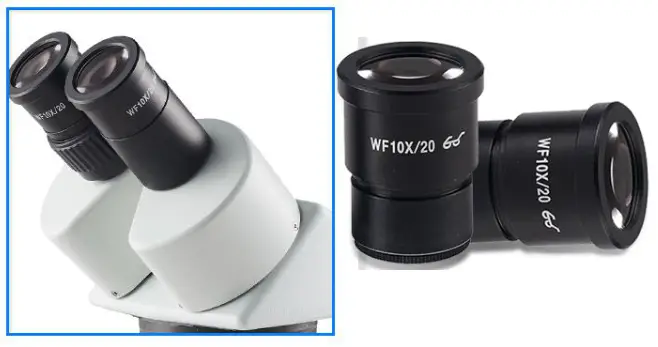

WF10x/20mm Wide Field, High Eyepoint+

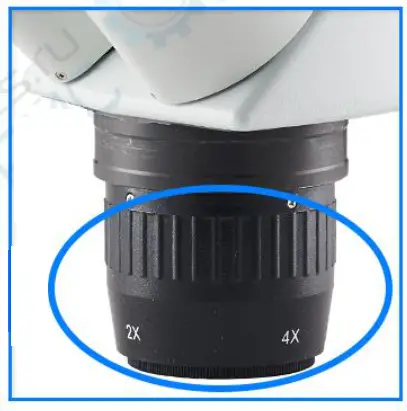

20x/40x, Magnification Up To 10x.80x With Optional Eyepieces And 1X2X, 1X3X, 2X4X, Objectives
| Head | Binocular Head, 45° Inclined, 360° Rotatable, Interpupillary Distance 54-76mm, Right Eyepiece Tube Diopter Adjustable +/-5° |
| Eyepiece | WF10x/20mm Wide Field, High Eyepoint |
| Objective | Turret Objective 2x/4x, Standard |
| Turret Objective 1x/2x Optional | |
| Turret Objective 1x/3x Optional | |
| Magnification | 20x/40x, Up To 10x-80x With Optional Eyepieces & Objectives |

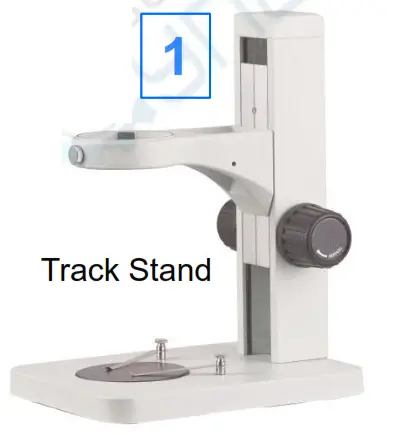

| Focusing | Pole Stand Coarse Focusing Range 50mm, Tension Adjustable Track Stand Coarse Focusing Range 74mm, Tension Adjustable |
| Working Distance | 100mm |
| Stand | 35 Kinds Stand Optional, Details See A54.3630 Choose Model According To Cata. No. Like: A22.3660-B1, A22.3660N-B1 Means Binocular Head With B1 Stand |

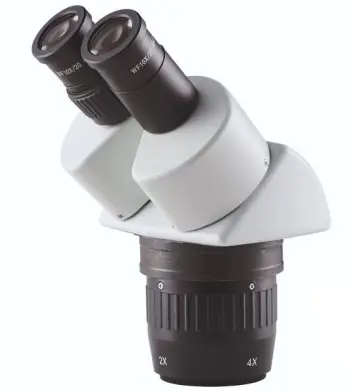

A22.3660 Head
A53.3660-B
Binocular Head +WF10x Eyepiece

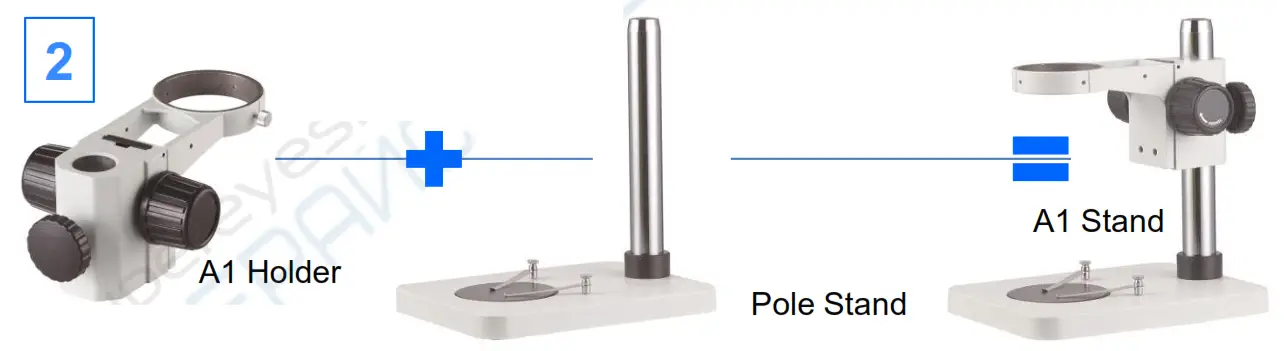

35 Kinds Stand Optional
35 Kinds Stand Optional, Details See A54.3630
Choose Model According To Catalogue No. Like: A22.3660-B1 Means Binocular Head With B1 Stand

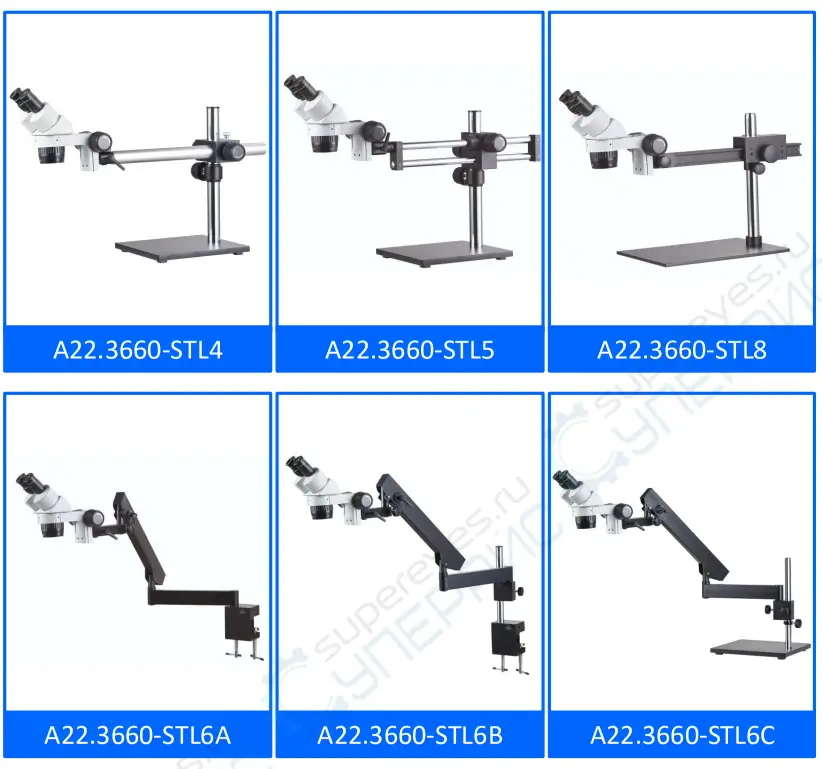

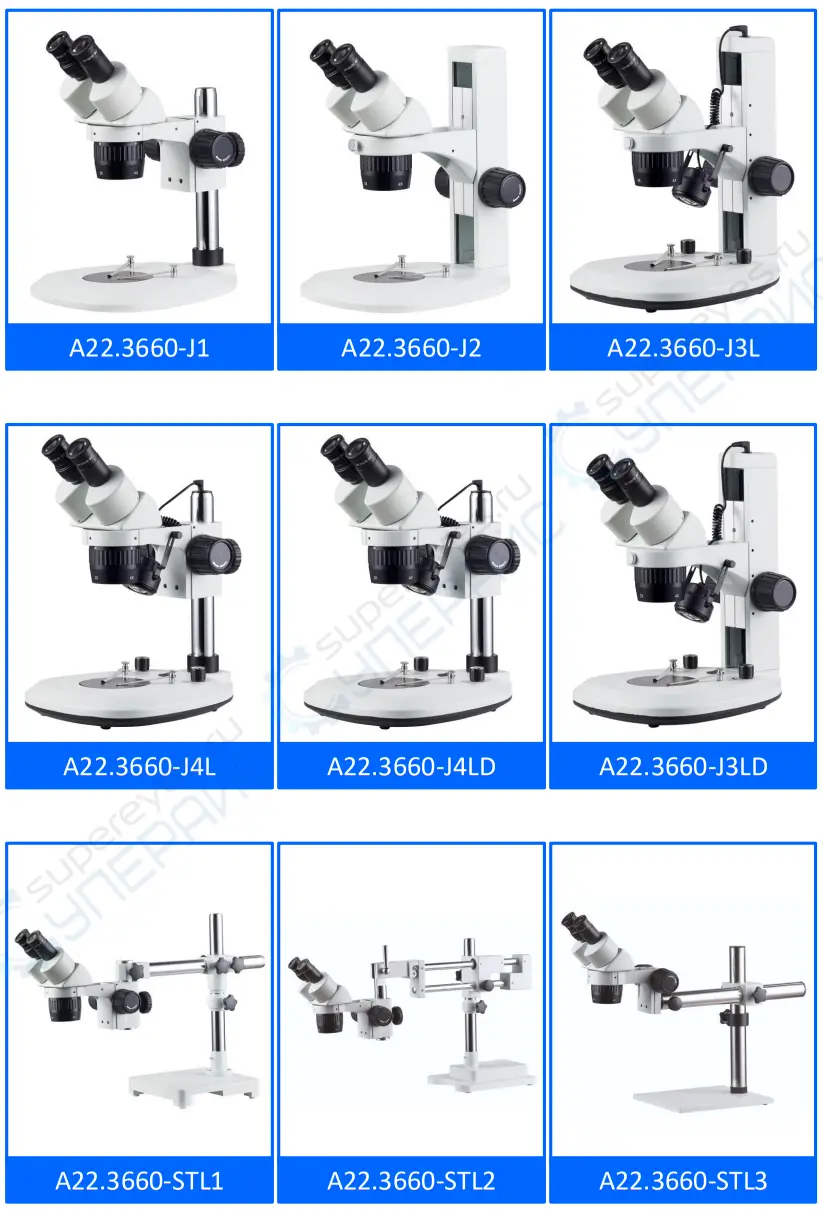

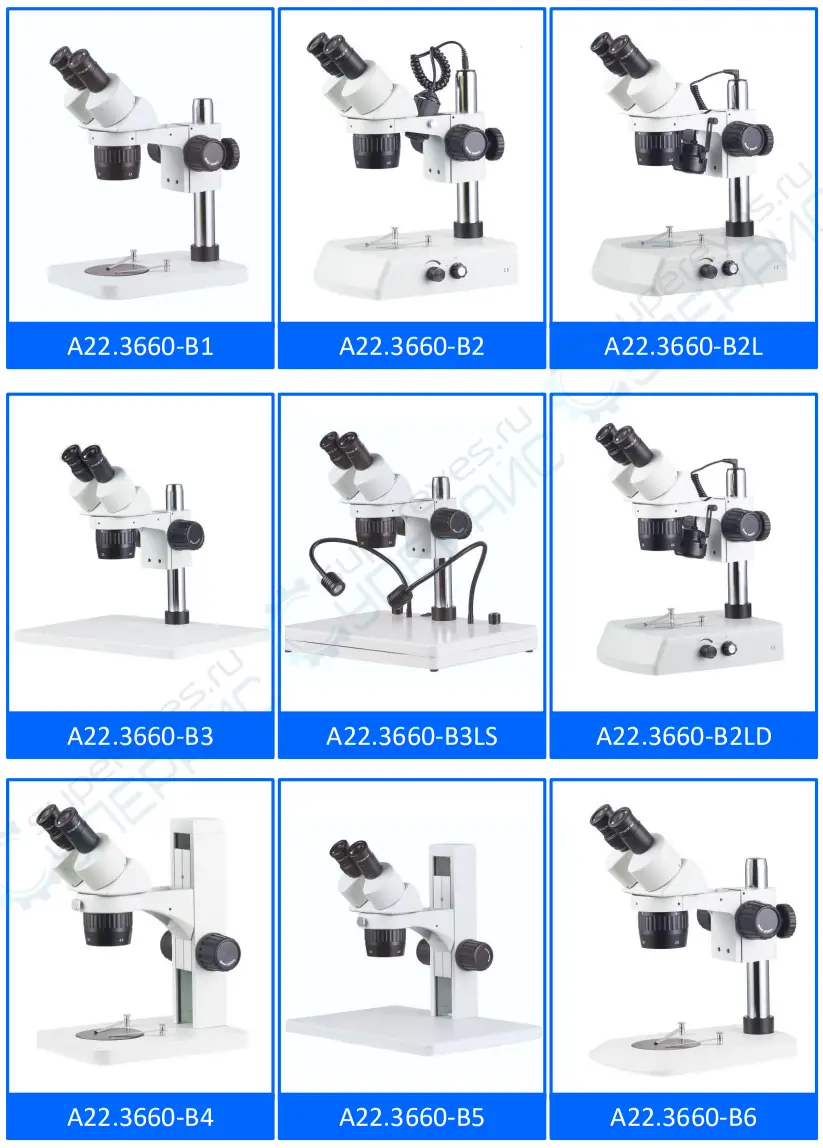

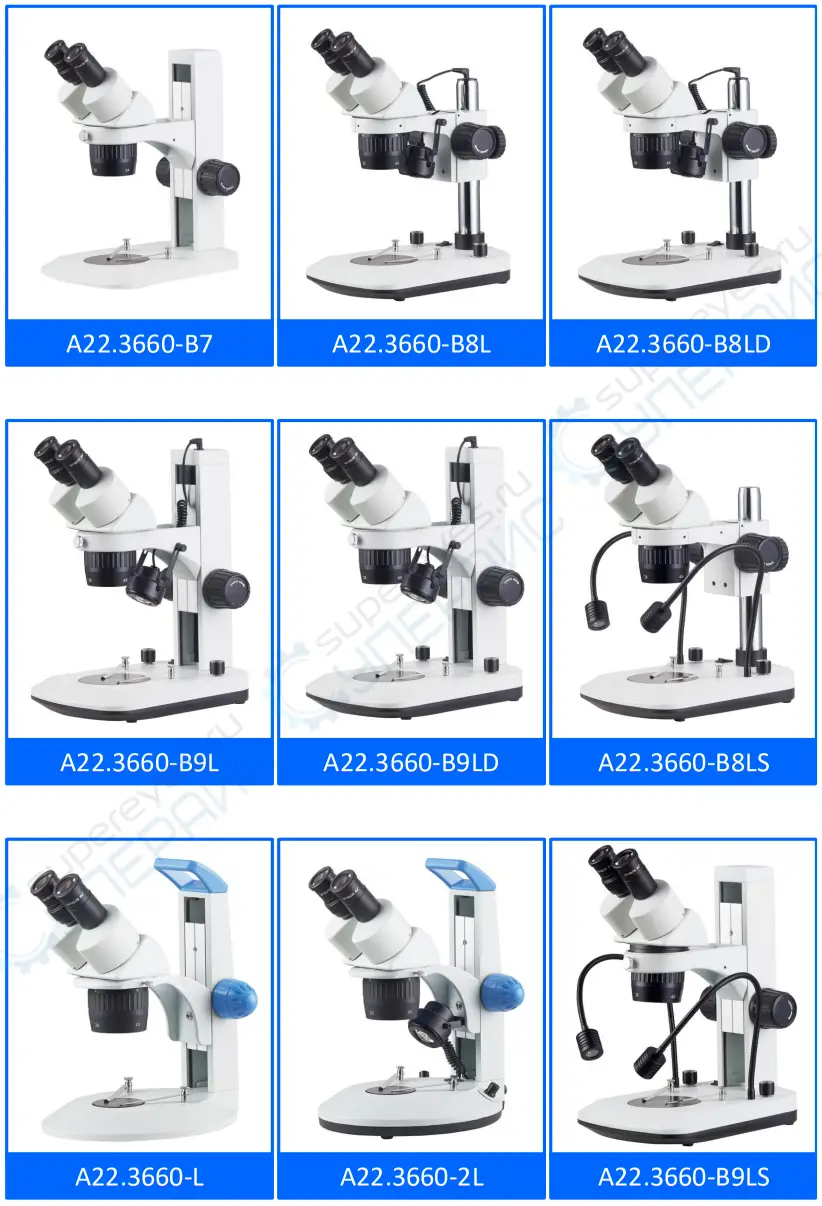

A22.3660 Series Models
Optical Data Sheet
| A22.3660, A22.3660N Optical Data Sheet | ||||||||
| Working Distance 100mm | ||||||||
| Objective | Objective lx | Objective 2x | Objective 3x | Objective 4x | ||||
| Eyepiece | Magnification | View Field | Magnification | View Field | Magnification | View Field | Magnification | View Field |
| WF10x/20mm | 10x | 20.0mm | 20x | 10.0mm | 30x | 7.5mm | 40x | 5.0mm |
| WF15x/15mm | 15x | 15.0mm | 30x | 7.5mm | 45x | 5.0mm | 60x | 3.3mm |
| WF20x/10mm | 20x | 10.0mm | 40x | 5.0mm | 60x | 3.3mm | 80x | 2.5mm |

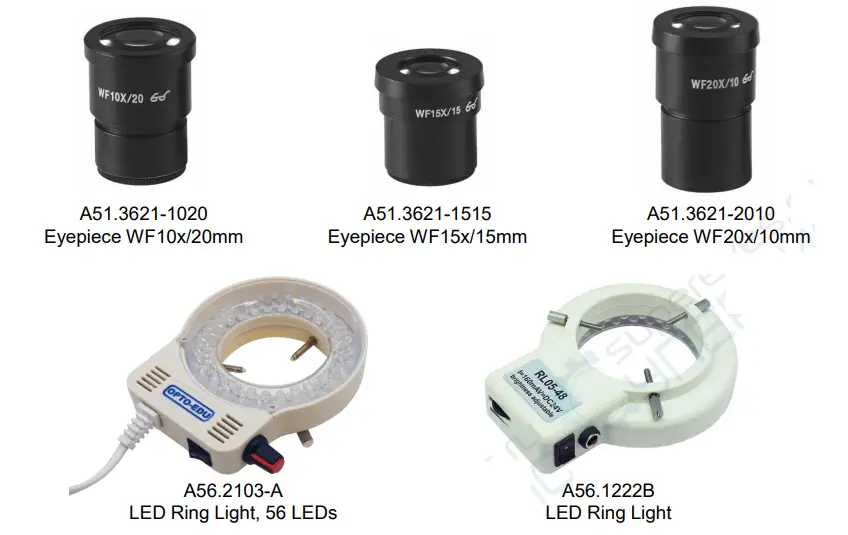

Optional Accessories
| Optional Accessories | Cata.No | |
| Eyepiece | WF10x/20mm, High Eyepoint, Dia.30mm | A51.3621-1020 |
| WF15x/15mm, High Eyepoint, Dia.30mm | A51.3621-1515 | |
| WF20x/10mm, High Eyepoint, Dia.30mm | A51.3621-2010 |

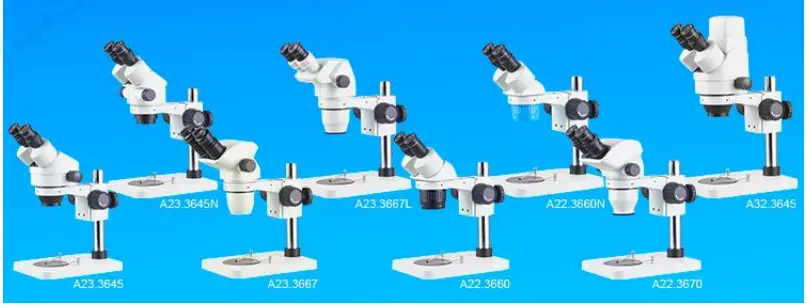

8 Stereo Microscope Series + 35 Stands

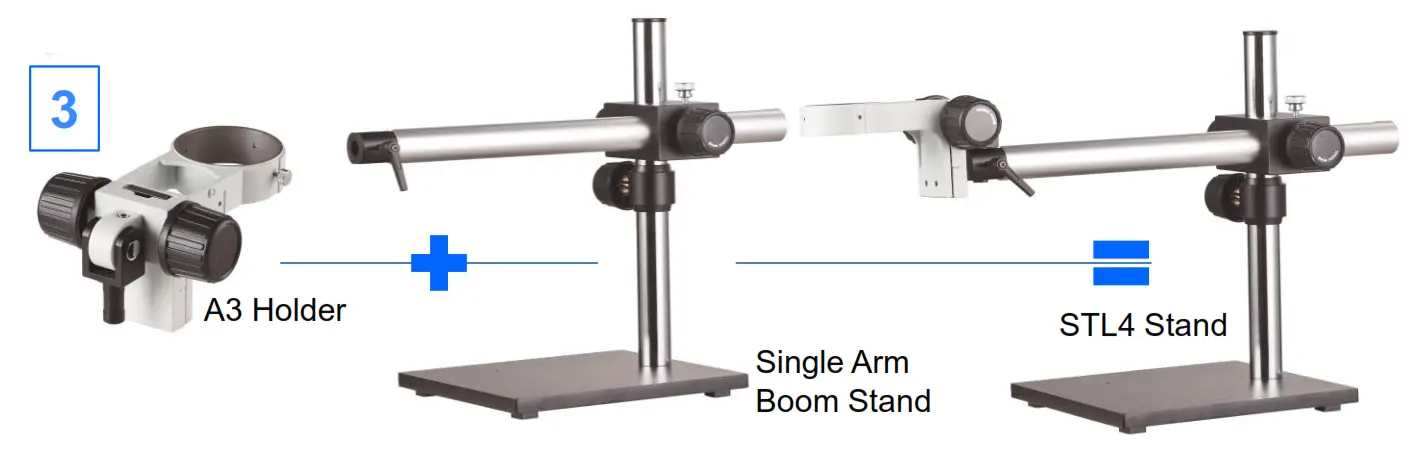

The head can be combined freely With Differrent Stands & Holder Arms
